Page 457 of 566

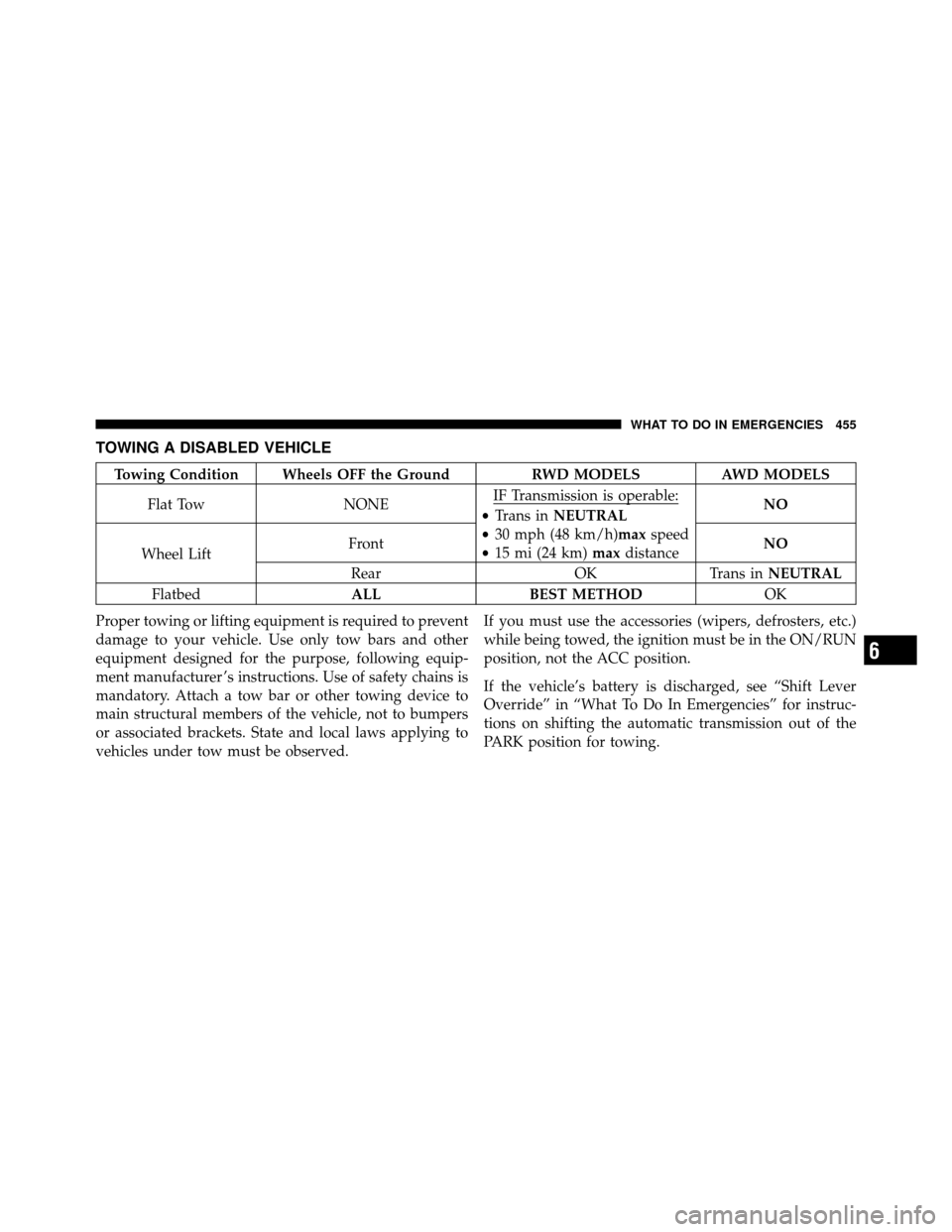

TOWING A DISABLED VEHICLE
Towing Condition Wheels OFF the GroundRWD MODELSAWD MODELS
Flat Tow NONEIF Transmission is operable:
•
Trans in NEUTRAL
• 30 mph (48 km/h)max speed
• 15 mi (24 km) maxdistance NO
Wheel Lift Front
NO
Rear OK Trans in NEUTRAL
Flatbed ALL BEST METHOD OK
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for the purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws applying to
vehicles under tow must be observed. If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
If the vehicle’s battery is discharged, see “Shift Lever
Override” in “What To Do In Emergencies” for instruc-
tions on shifting the automatic transmission out of the
PARK position for towing.
6
WHAT TO DO IN EMERGENCIES 455
Page 458 of 566

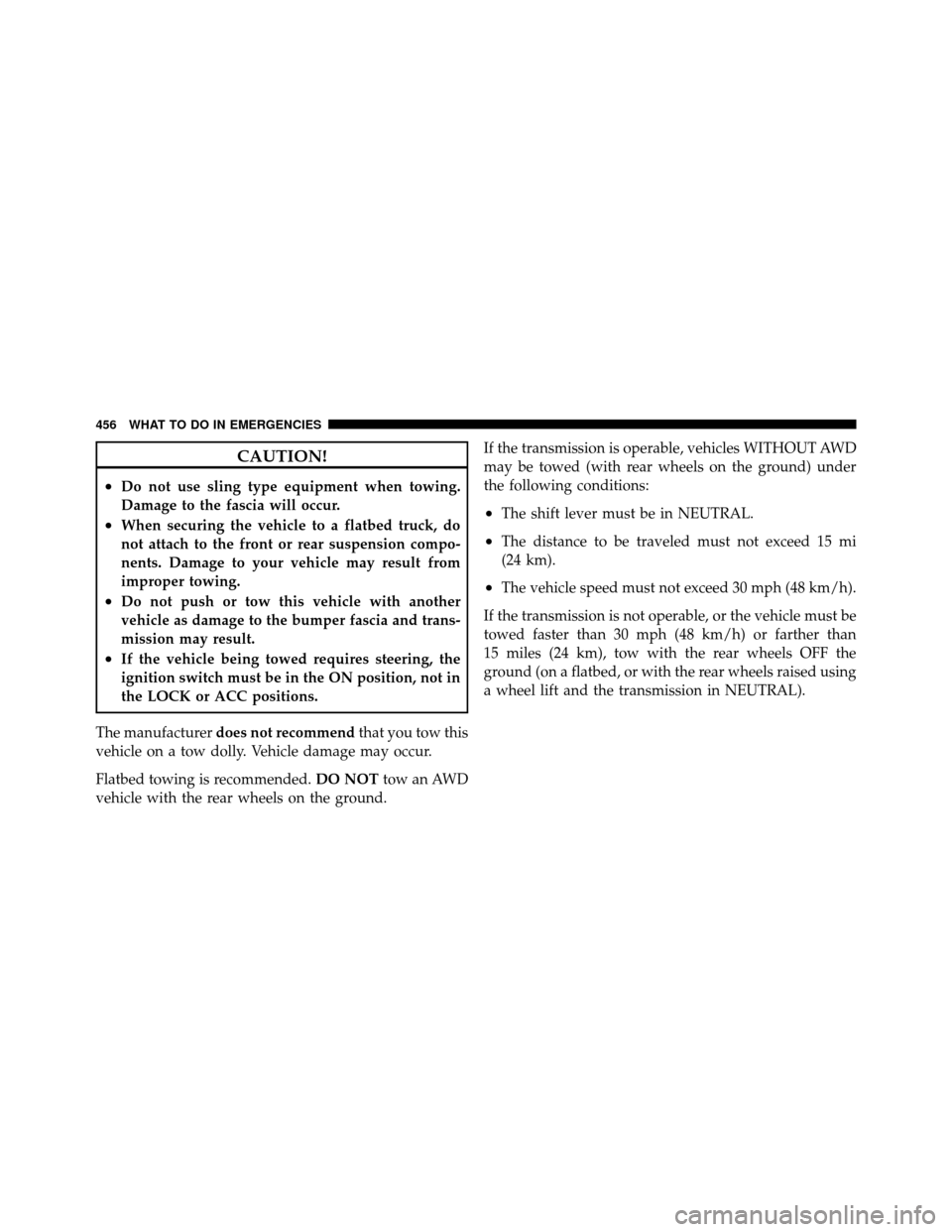

CAUTION!
•Do not use sling type equipment when towing.
Damage to the fascia will occur.
•When securing the vehicle to a flatbed truck, do
not attach to the front or rear suspension compo-
nents. Damage to your vehicle may result from
improper towing.
•Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and trans-
mission may result.
•If the vehicle being towed requires steering, the
ignition switch must be in the ON position, not in
the LOCK or ACC positions.
The manufacturer does not recommend that you tow this
vehicle on a tow dolly. Vehicle damage may occur.
Flatbed towing is recommended. DO NOTtow an AWD
vehicle with the rear wheels on the ground. If the transmission is operable, vehicles WITHOUT AWD
may be towed (with rear wheels on the ground) under
the following conditions:
•The shift lever must be in NEUTRAL.
•The distance to be traveled must not exceed 15 mi
(24 km).
•The vehicle speed must not exceed 30 mph (48 km/h).
If the transmission is not operable, or the vehicle must be
towed faster than 30 mph (48 km/h) or farther than
15 miles (24 km), tow with the rear wheels OFF the
ground (on a flatbed, or with the rear wheels raised using
a wheel lift and the transmission in NEUTRAL).
456 WHAT TO DO IN EMERGENCIES
Page 459 of 566

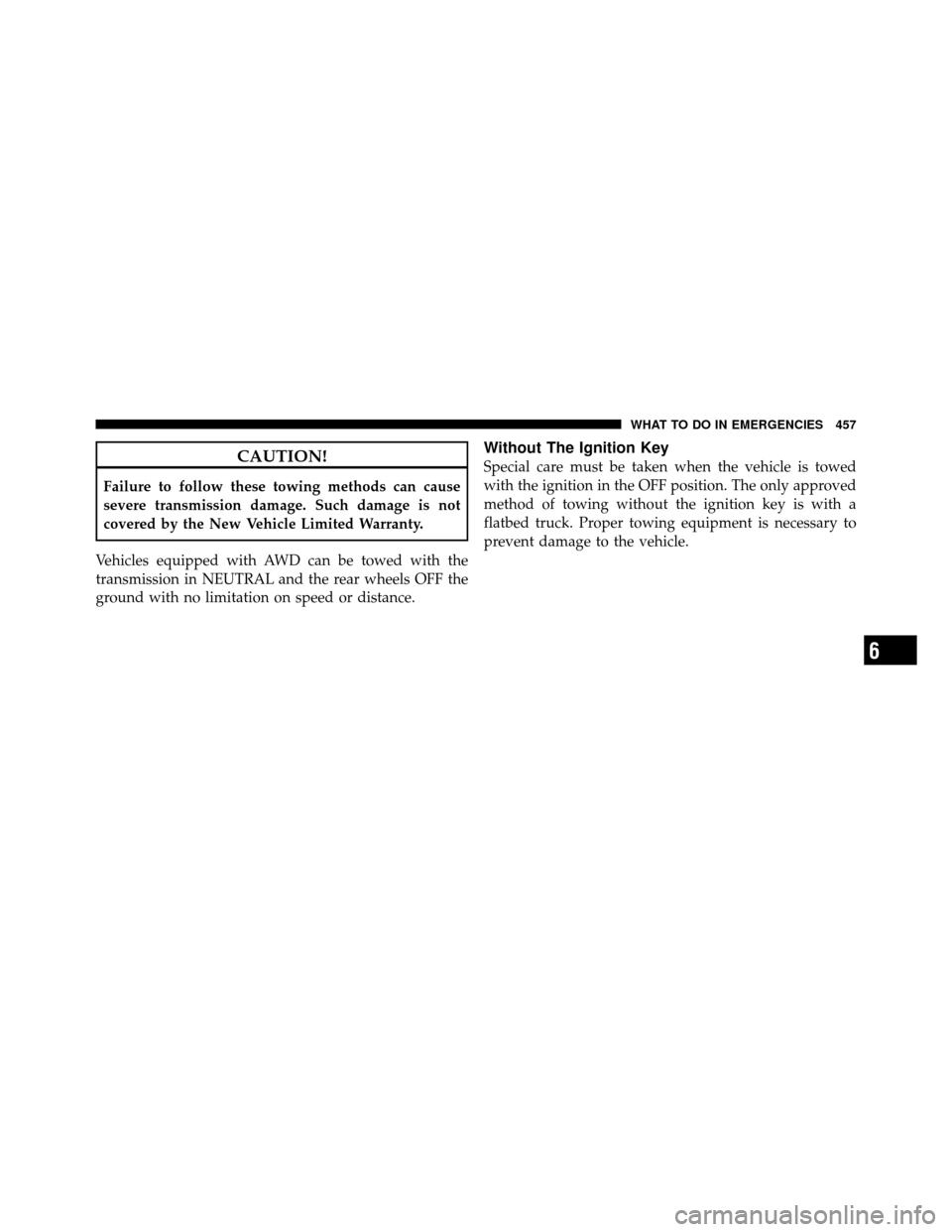

CAUTION!
Failure to follow these towing methods can cause
severe transmission damage. Such damage is not
covered by the New Vehicle Limited Warranty.
Vehicles equipped with AWD can be towed with the
transmission in NEUTRAL and the rear wheels OFF the
ground with no limitation on speed or distance.
Without The Ignition Key
Special care must be taken when the vehicle is towed
with the ignition in the OFF position. The only approved
method of towing without the ignition key is with a
flatbed truck. Proper towing equipment is necessary to
prevent damage to the vehicle.
6
WHAT TO DO IN EMERGENCIES 457
Page 460 of 566
Page 461 of 566

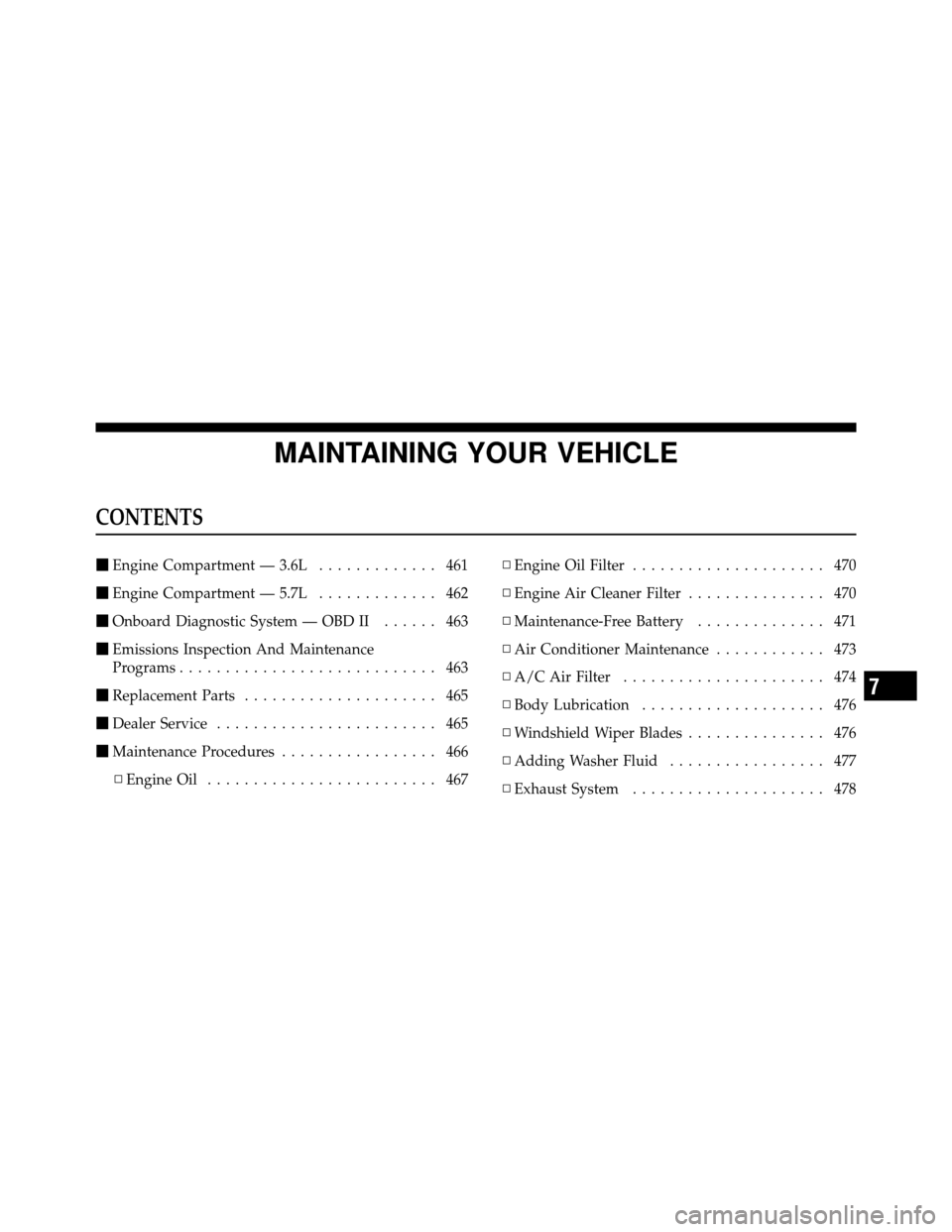

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 3.6L ............. 461
Engine Compartment — 5.7L ............. 462
Onboard Diagnostic System — OBD II ...... 463
Emissions Inspection And Maintenance
Programs ............................ 463
Replacement Parts ..................... 465
Dealer Service ........................ 465
Maintenance Procedures ................. 466
▫ Engine Oil ......................... 467 ▫
Engine Oil Filter ..................... 470
▫ Engine Air Cleaner Filter ............... 470
▫ Maintenance-Free Battery .............. 471
▫ Air Conditioner Maintenance ............ 473
▫ A/C Air Filter ...................... 474
▫ Body Lubrication .................... 476
▫ Windshield Wiper Blades ............... 476
▫ Adding Washer Fluid ................. 477
▫ Exhaust System ..................... 478
7
Page 462 of 566

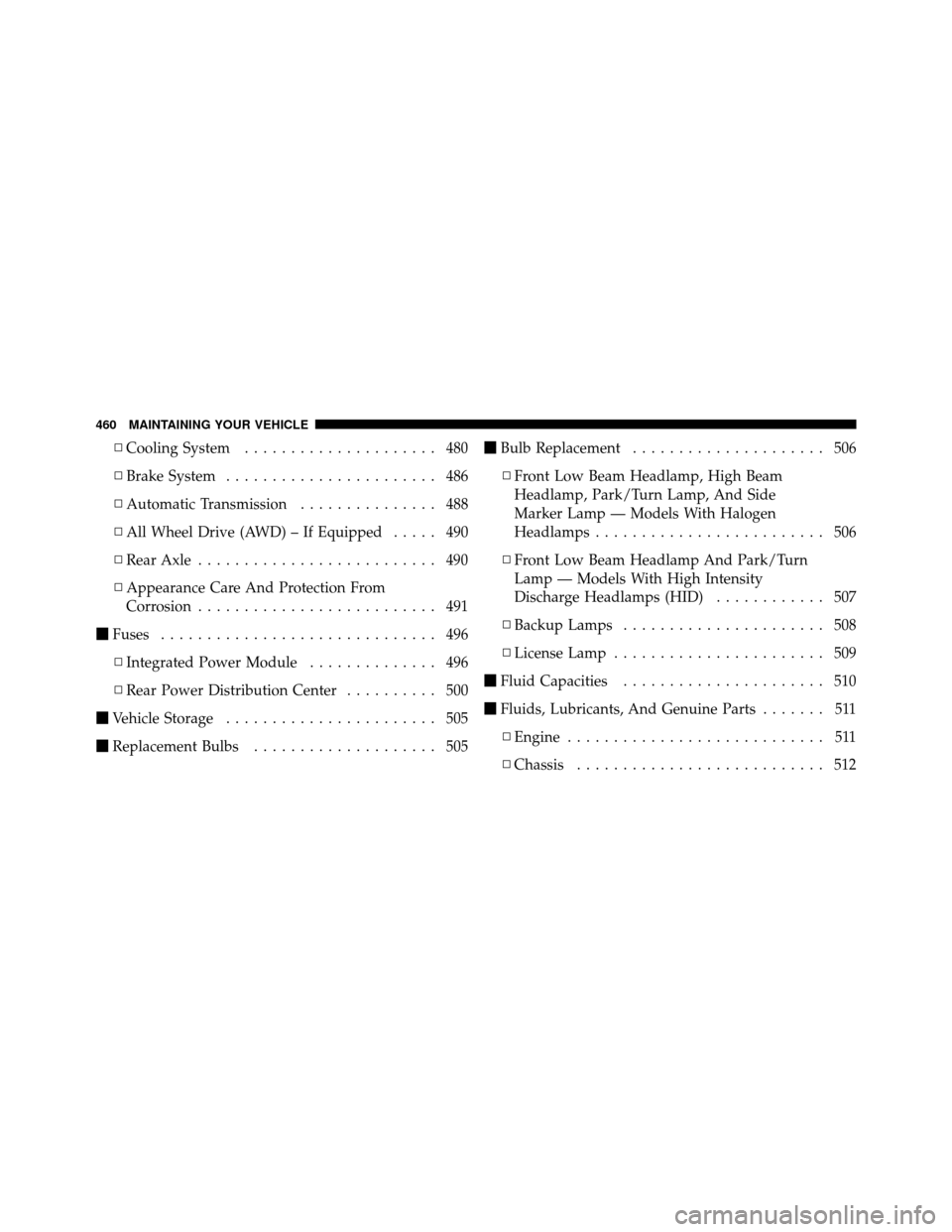

▫Cooling System ..................... 480
▫ Brake System ....................... 486
▫ Automatic Transmission ............... 488
▫ All Wheel Drive (AWD) – If Equipped ..... 490
▫ Rear Axle .......................... 490
▫ Appearance Care And Protection From
Corrosion .......................... 491
Fuses .............................. 496
▫ Integrated Power Module .............. 496
▫ Rear Power Distribution Center .......... 500
Vehicle Storage ....................... 505
Replacement Bulbs .................... 505
Bulb Replacement ..................... 506
▫ Front Low Beam Headlamp, High Beam
Headlamp, Park/Turn Lamp, And Side
Marker Lamp — Models With Halogen
Headlamps ......................... 506
▫ Front Low Beam Headlamp And Park/Turn
Lamp — Models With High Intensity
Discharge Headlamps (HID) ............ 507
▫ Backup Lamps ...................... 508
▫ License Lamp ....................... 509
Fluid Capacities ...................... 510
Fluids, Lubricants, And Genuine Parts ....... 511
▫ Engine ............................ 511
▫ Chassis ........................... 512
460 MAINTAINING YOUR VEHICLE
Page 463 of 566

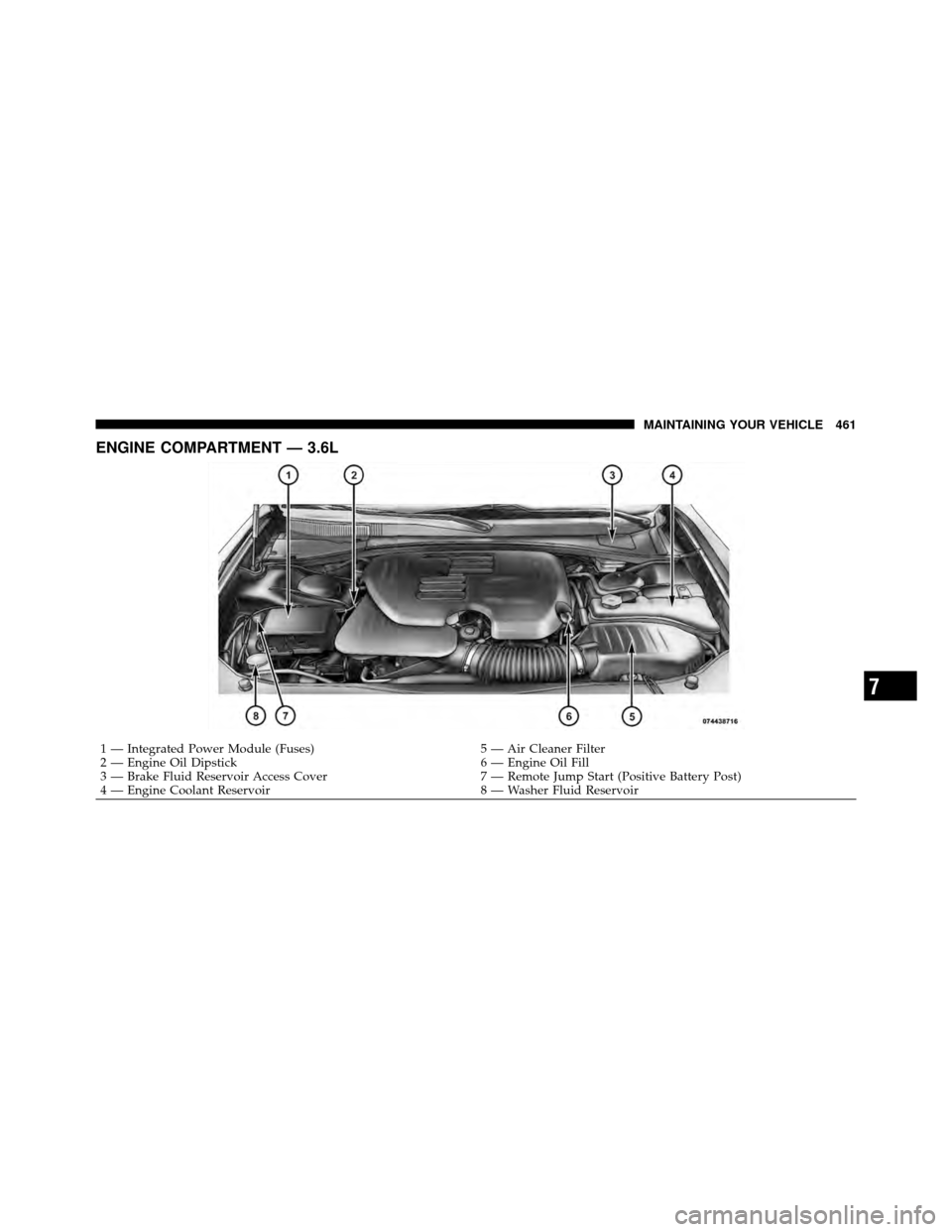

ENGINE COMPARTMENT — 3.6L
1 — Integrated Power Module (Fuses)5 — Air Cleaner Filter
2 — Engine Oil Dipstick 6 — Engine Oil Fill
3 — Brake Fluid Reservoir Access Cover 7 — Remote Jump Start (Positive Battery Post)
4 — Engine Coolant Reservoir 8 — Washer Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 461
Page 464 of 566

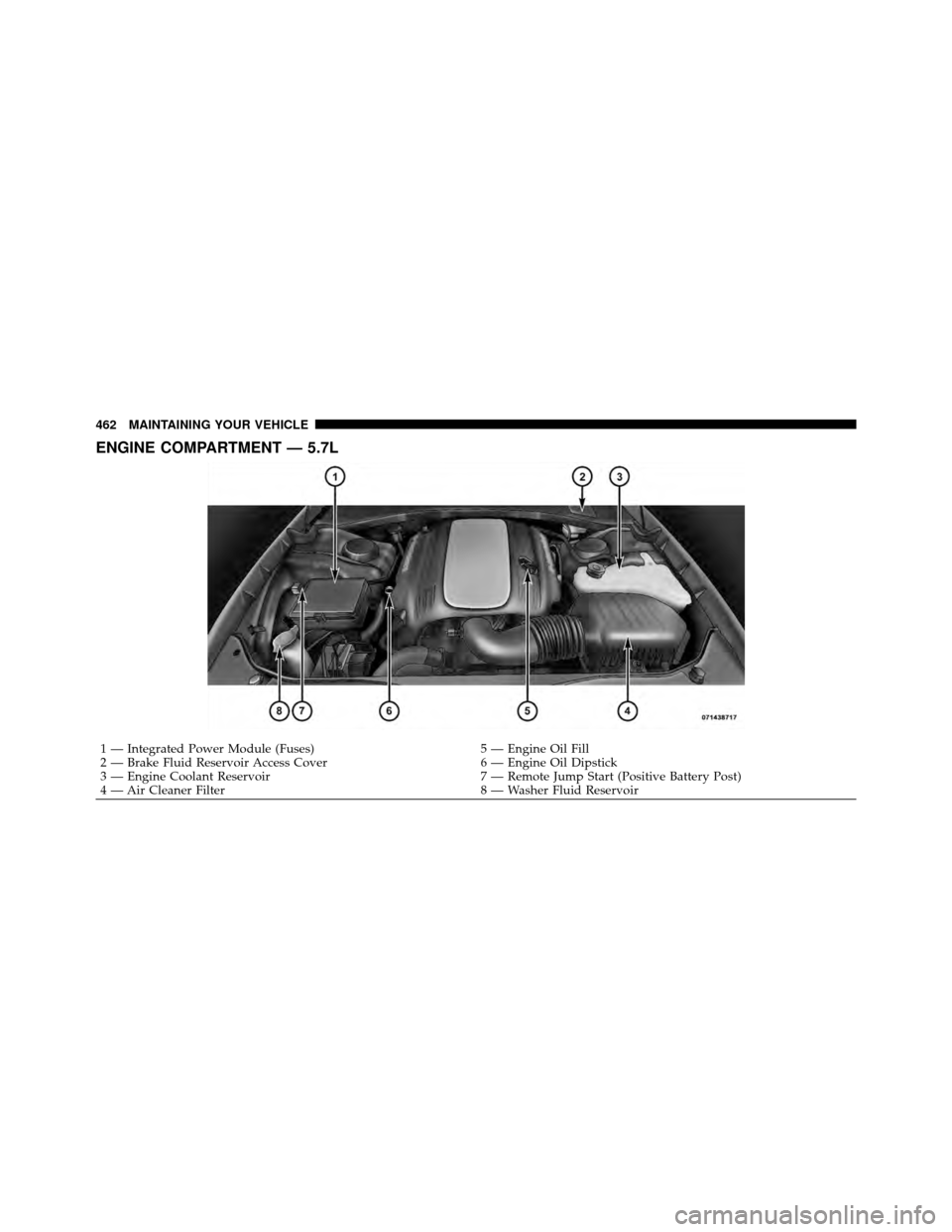

ENGINE COMPARTMENT — 5.7L
1 — Integrated Power Module (Fuses)5 — Engine Oil Fill
2 — Brake Fluid Reservoir Access Cover 6 — Engine Oil Dipstick
3 — Engine Coolant Reservoir 7 — Remote Jump Start (Positive Battery Post)
4 — Air Cleaner Filter 8 — Washer Fluid Reservoir
