2011 DODGE CHARGER Owners Manual

Page 441 of 566

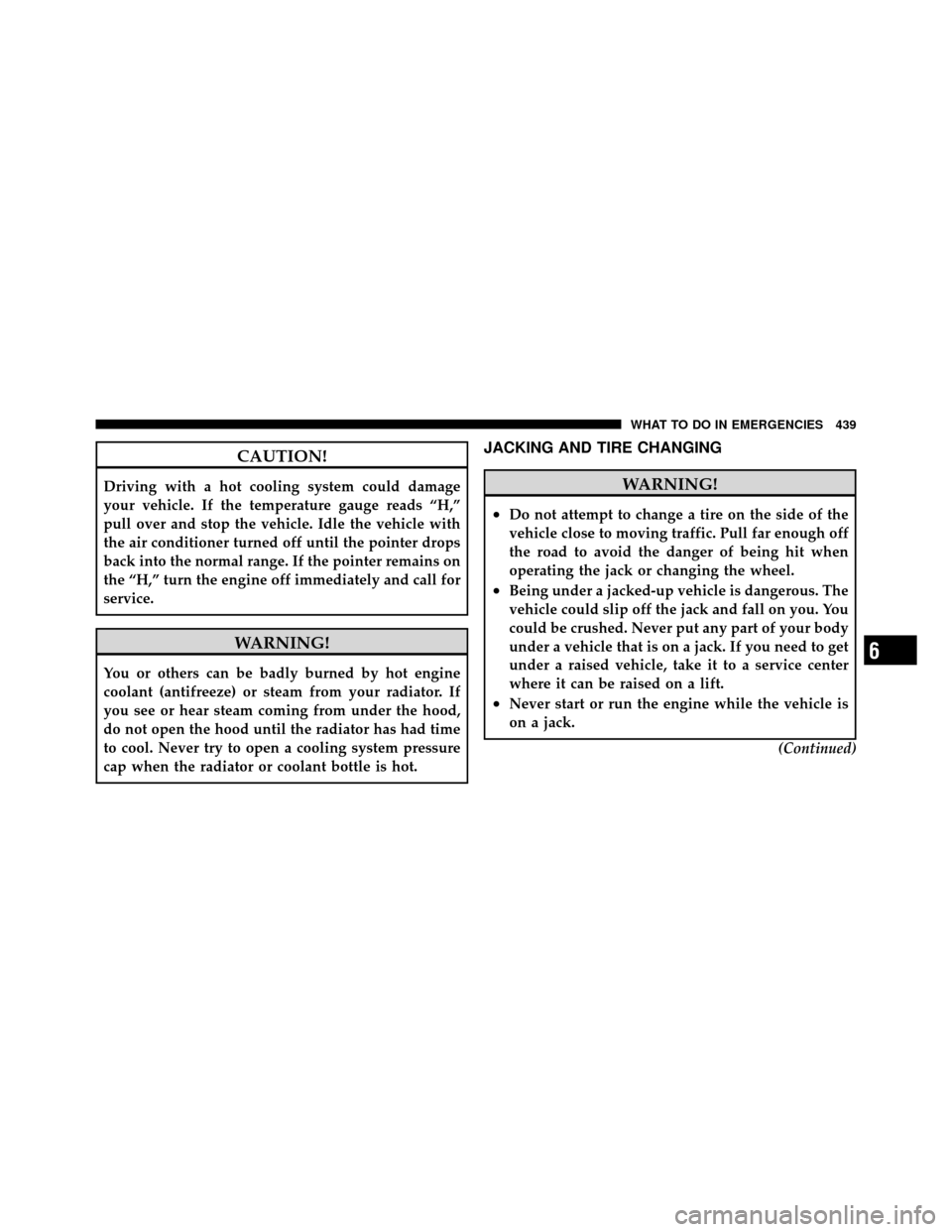

DODGE CHARGER 2011 7.G Owners Manual CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads “H,”
pull over and stop the vehicle. Idle the vehicle with
the air conditioner turned off until

Page 442 of 566

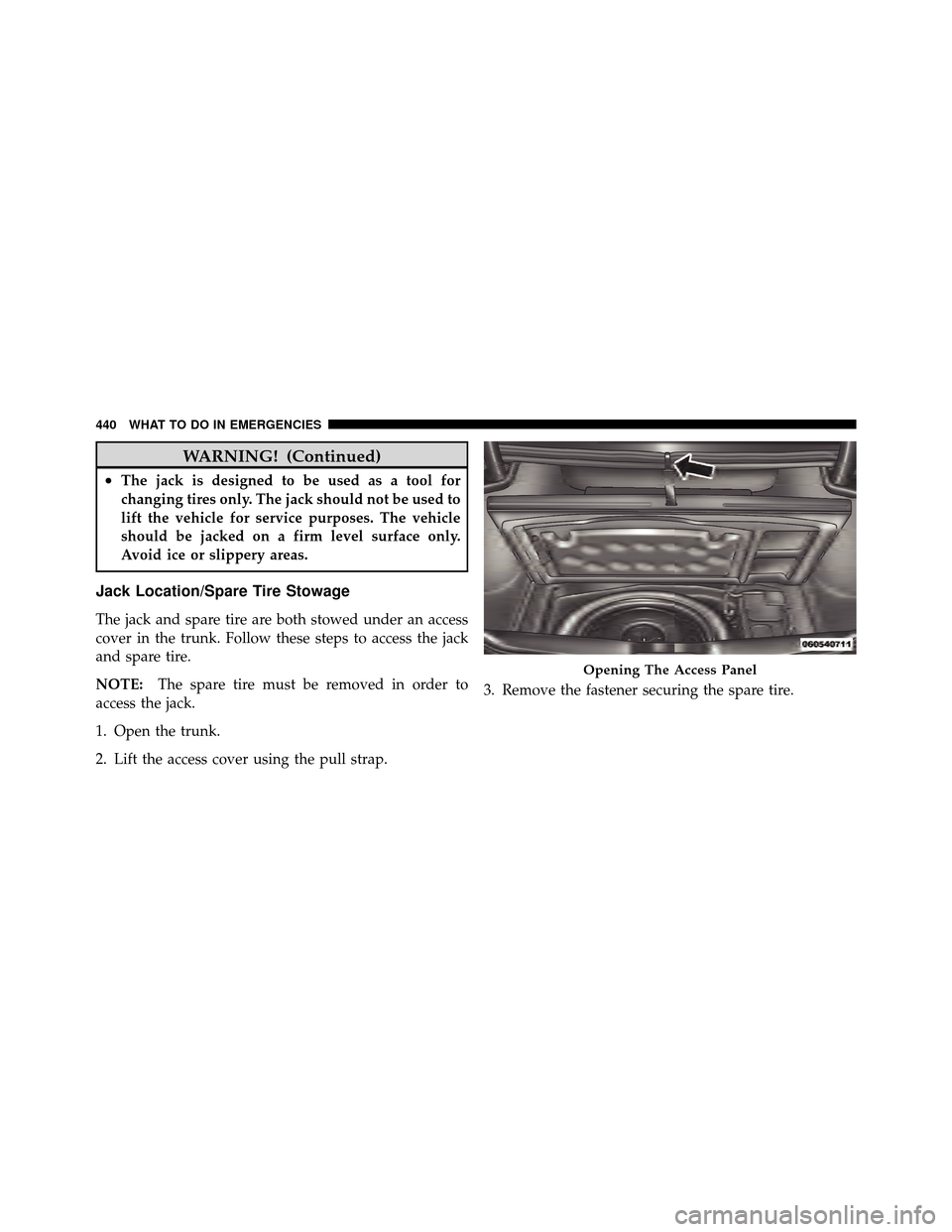

DODGE CHARGER 2011 7.G Owners Manual WARNING! (Continued)
•The jack is designed to be used as a tool for
changing tires only. The jack should not be used to
lift the vehicle for service purposes. The vehicle
should be jacked on a firm

Page 443 of 566

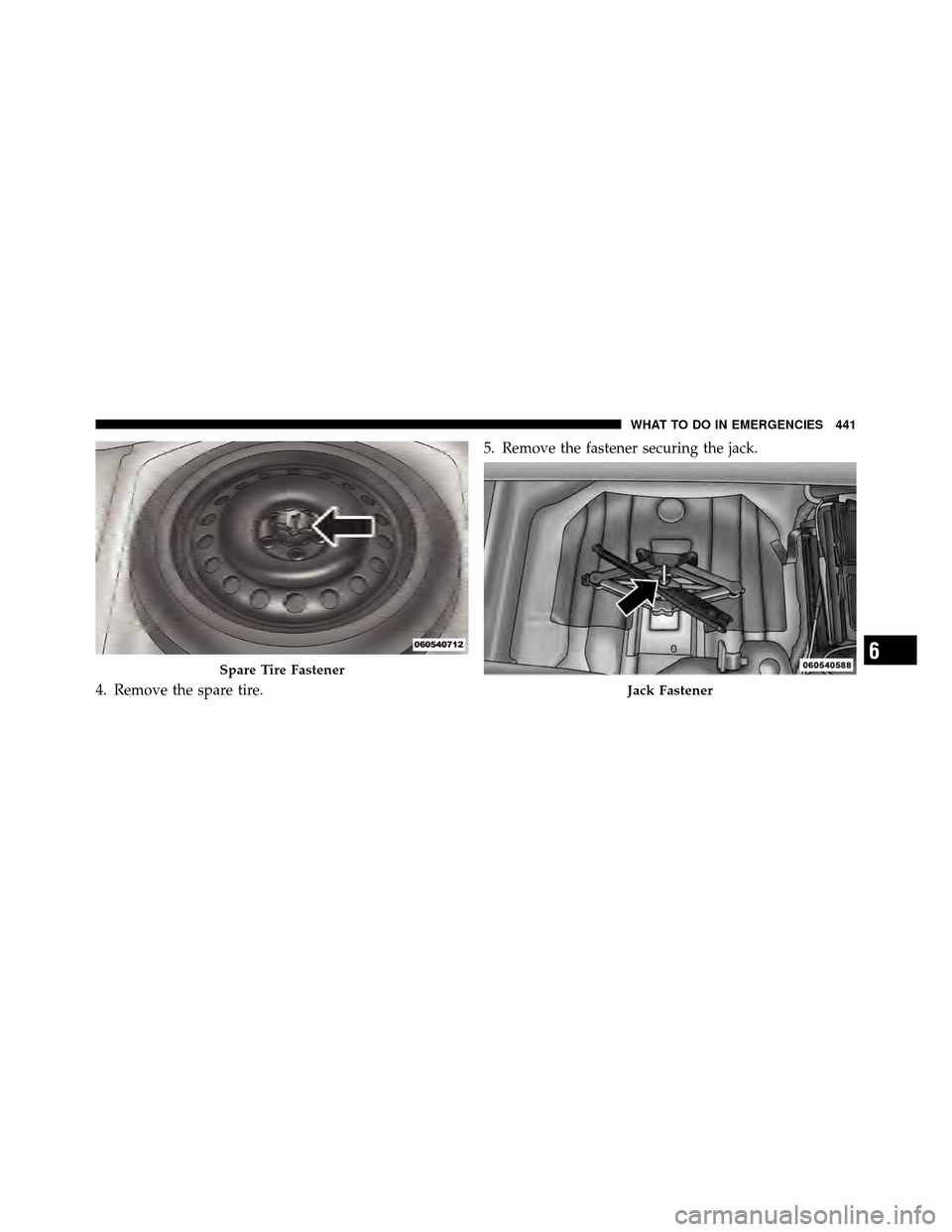

DODGE CHARGER 2011 7.G Owners Manual 4. Remove the spare tire.5. Remove the fastener securing the jack.
Spare Tire Fastener
Jack Fastener
6
WHAT TO DO IN EMERGENCIES 441

Page 444 of 566

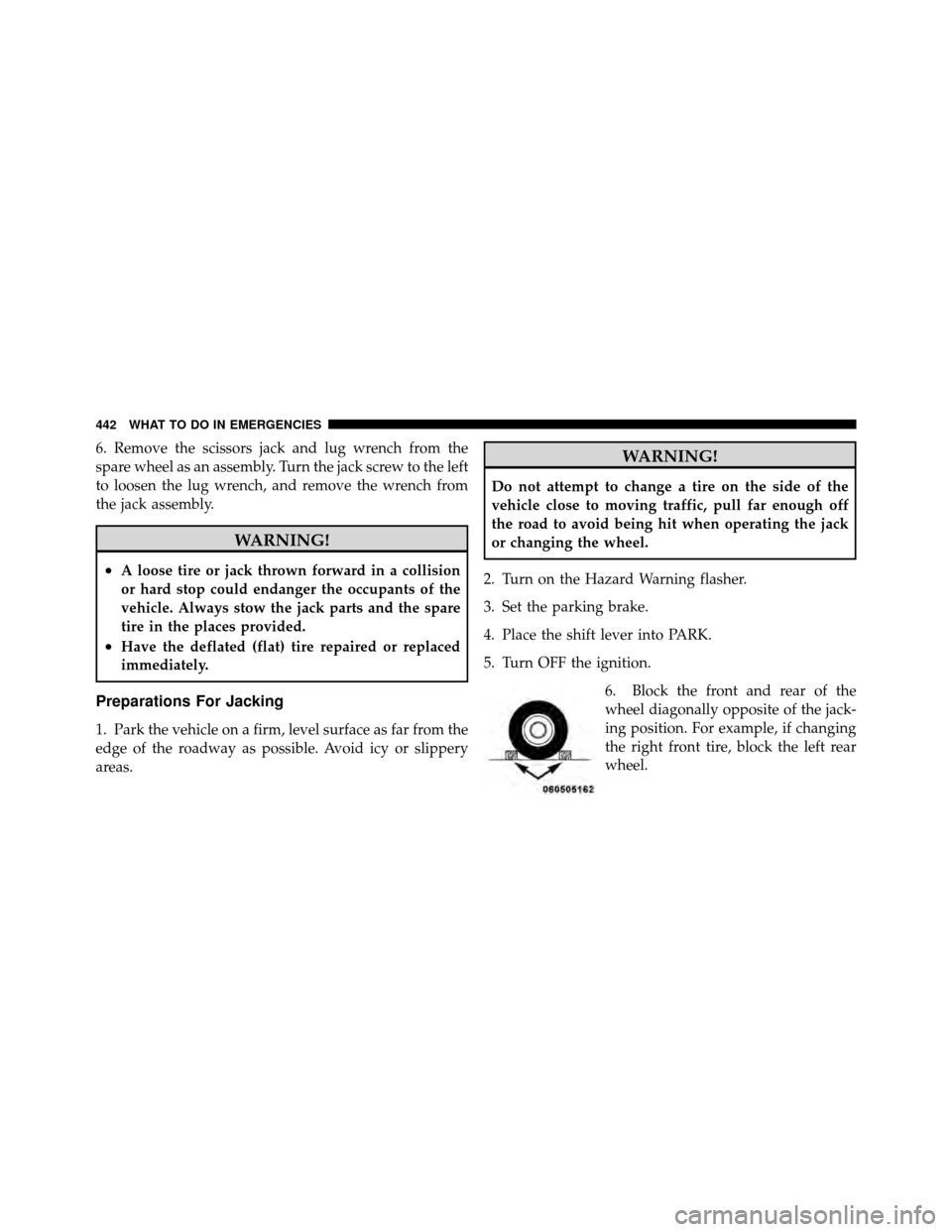

DODGE CHARGER 2011 7.G Owners Manual 6. Remove the scissors jack and lug wrench from the
spare wheel as an assembly. Turn the jack screw to the left
to loosen the lug wrench, and remove the wrench from
the jack assembly.
WARNING!
•A lo

Page 445 of 566

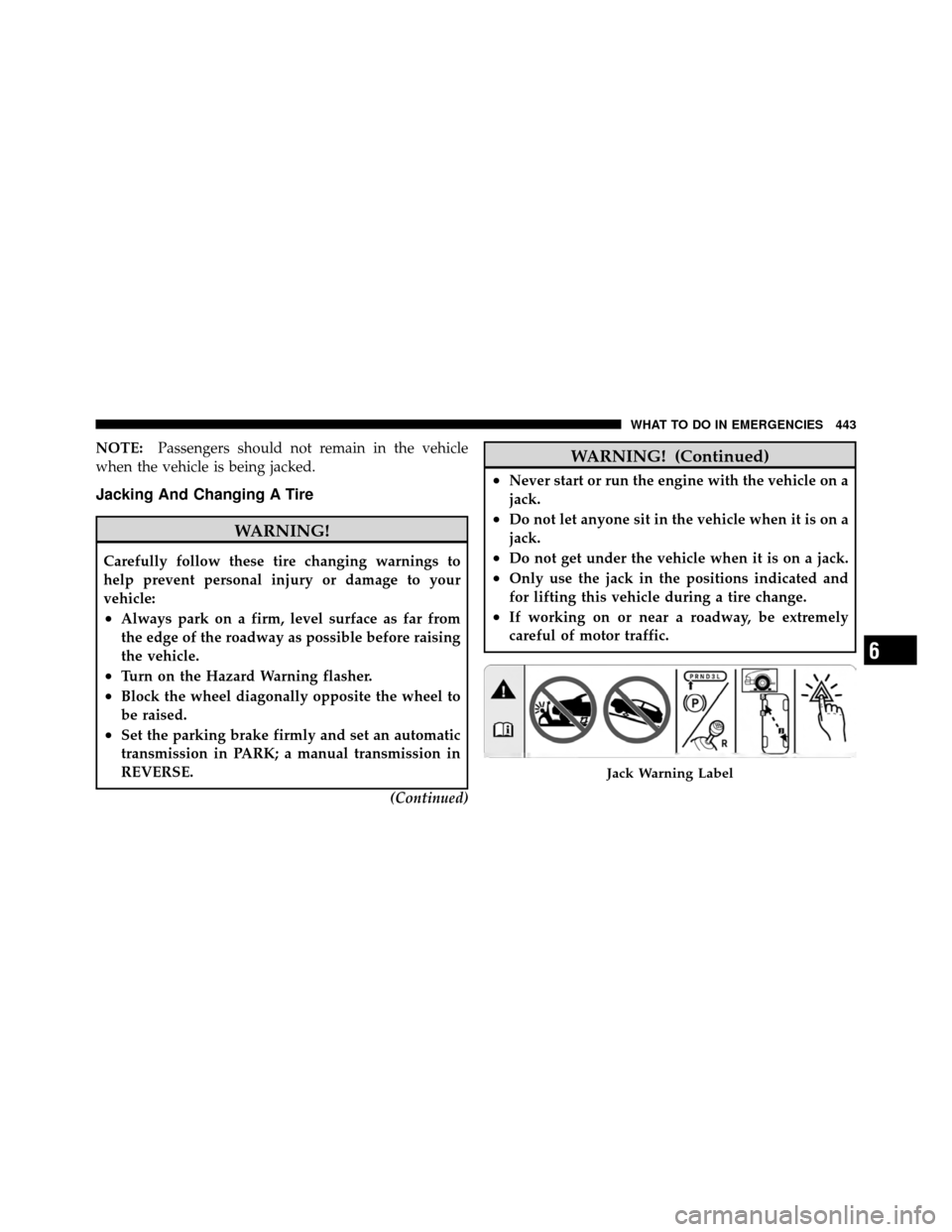

DODGE CHARGER 2011 7.G Owners Manual NOTE:Passengers should not remain in the vehicle
when the vehicle is being jacked.
Jacking And Changing A Tire
WARNING!
Carefully follow these tire changing warnings to
help prevent personal injury or

Page 446 of 566

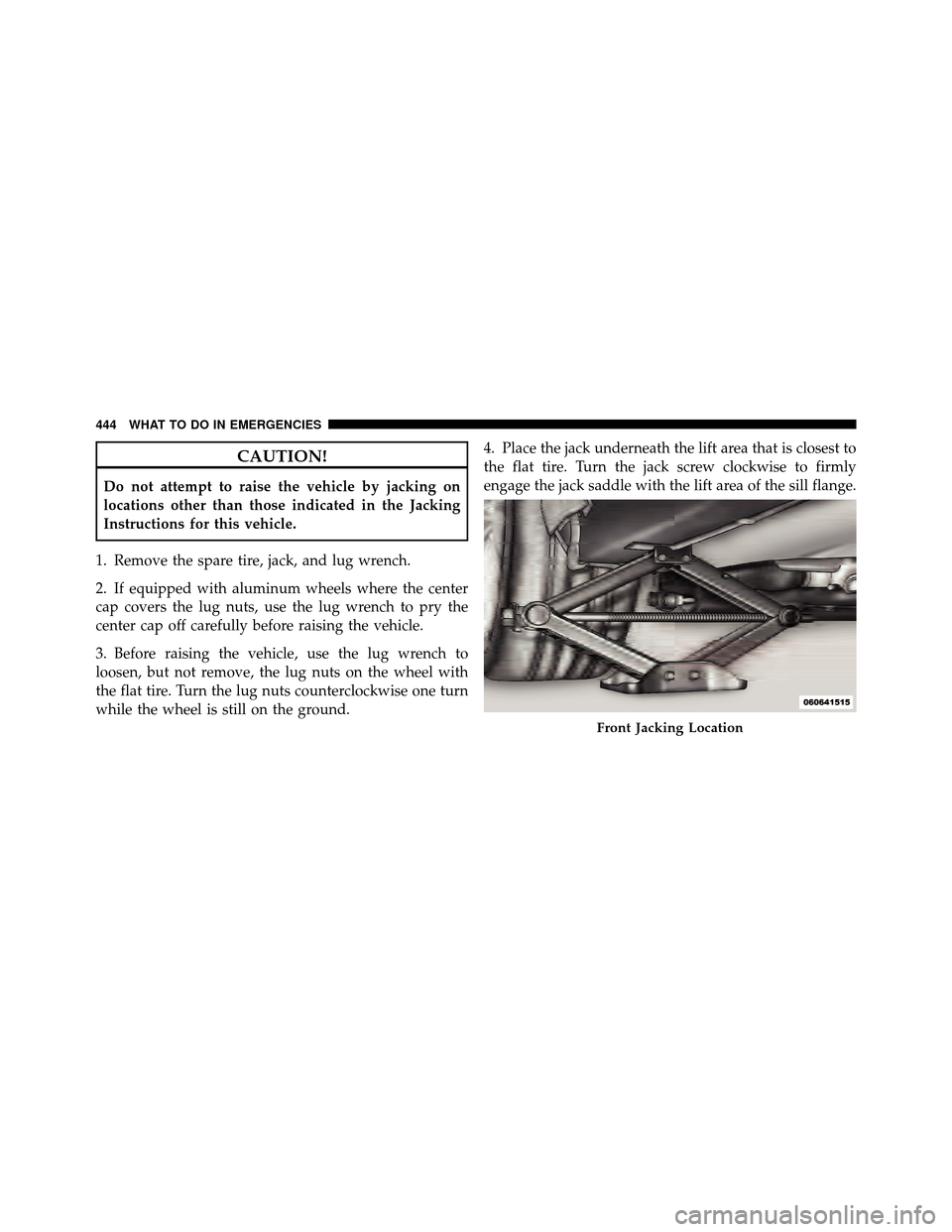

DODGE CHARGER 2011 7.G Owners Manual CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
1. Remove the spare tire, jack, and lug wrench.
2. If equi

Page 447 of 566

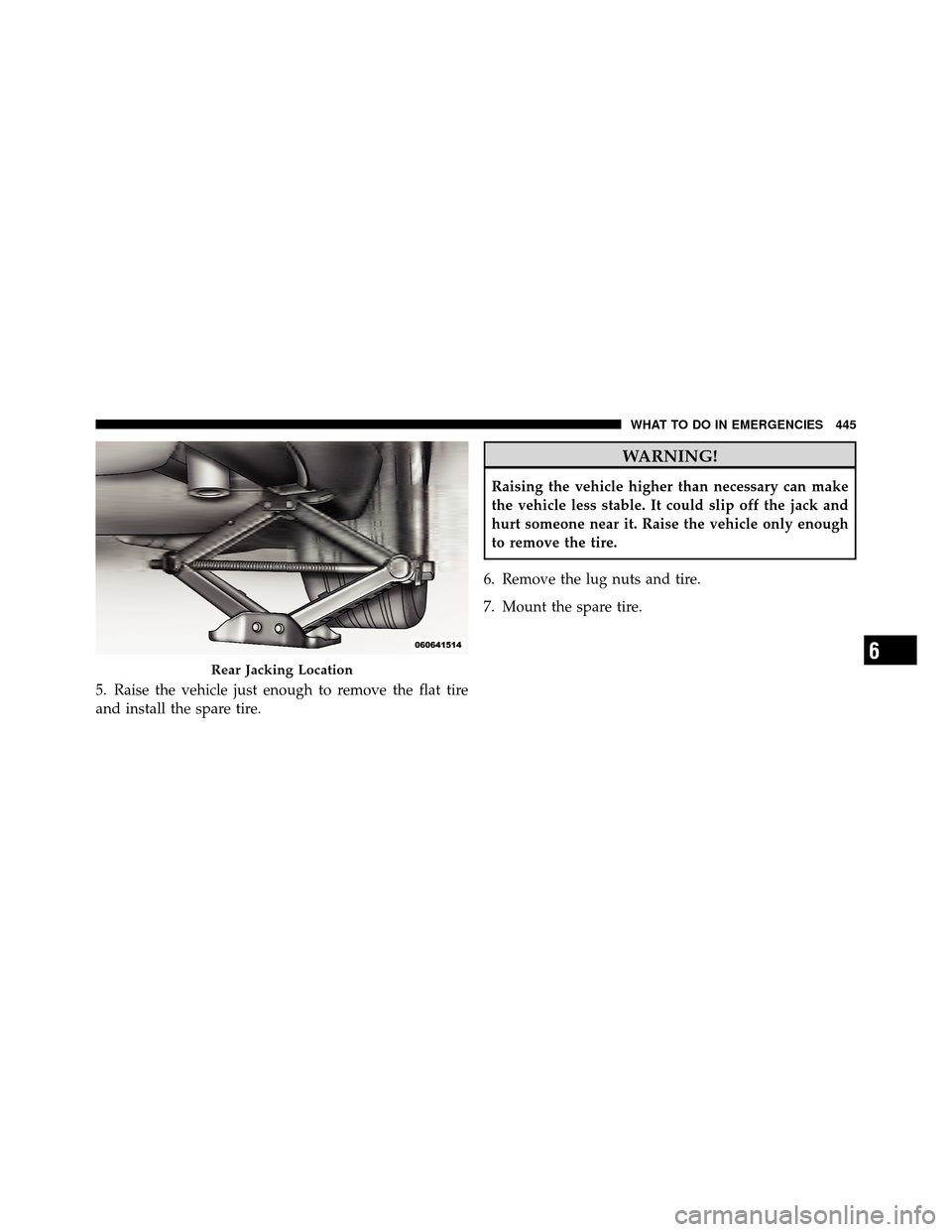

DODGE CHARGER 2011 7.G Owners Manual 5. Raise the vehicle just enough to remove the flat tire
and install the spare tire.
WARNING!
Raising the vehicle higher than necessary can make
the vehicle less stable. It could slip off the jack and

Page 448 of 566

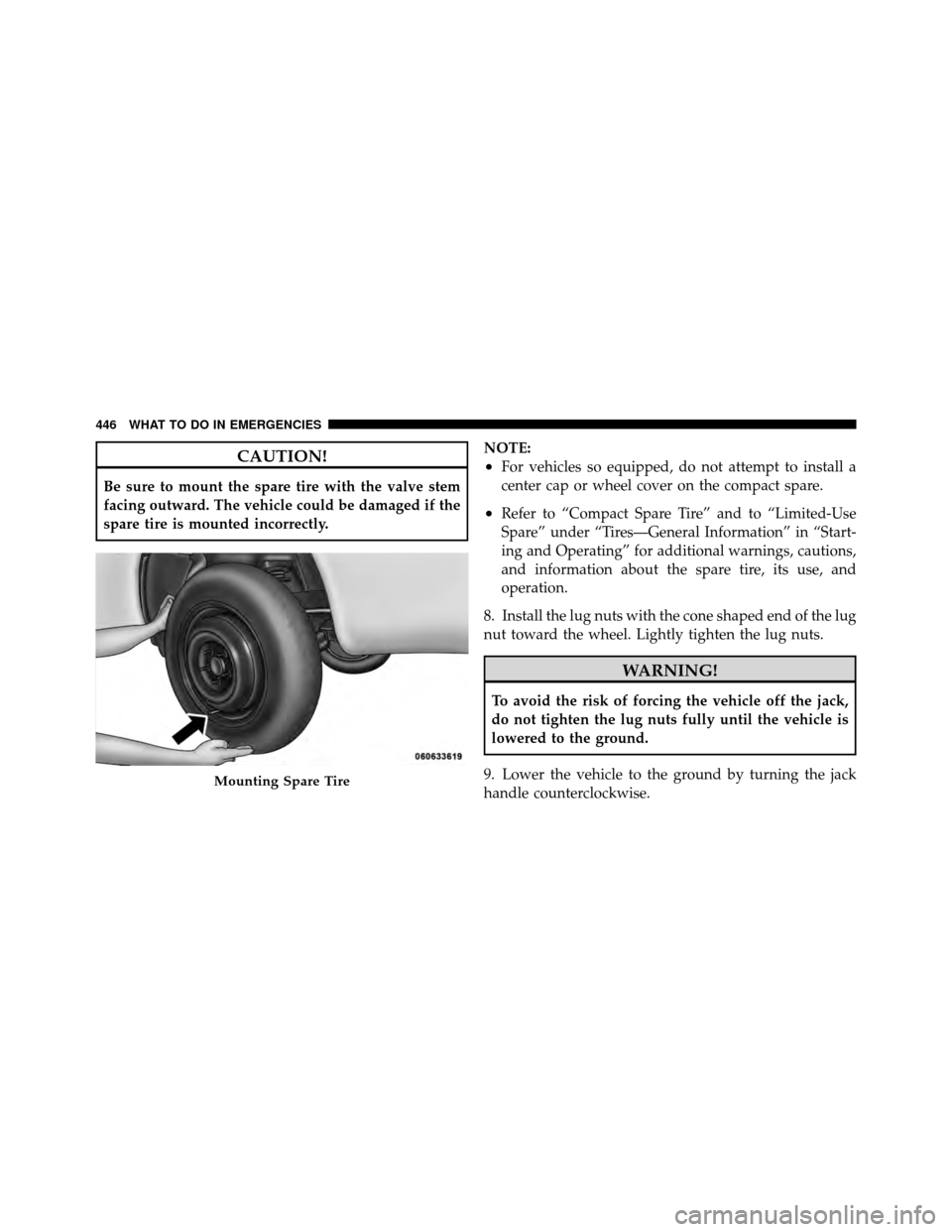

DODGE CHARGER 2011 7.G Owners Manual CAUTION!
Be sure to mount the spare tire with the valve stem
facing outward. The vehicle could be damaged if the
spare tire is mounted incorrectly.NOTE:
•For vehicles so equipped, do not attempt to
