2011 DODGE CHALLENGER Owners Manual

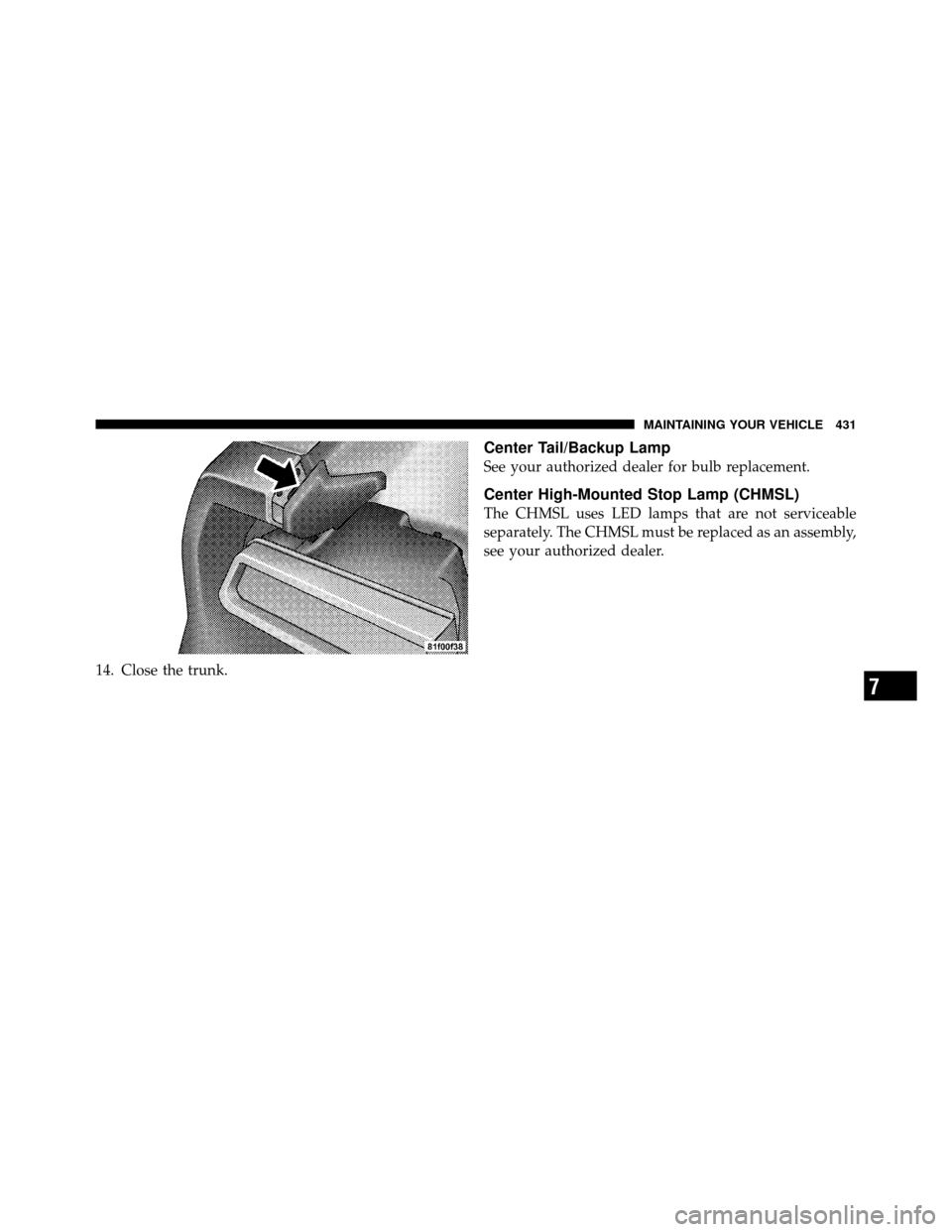

14. Close the trunk.
Center Tail/Backup Lamp
See your authorized dealer for bulb replacement.
Center High-Mounted Stop Lamp (CHMSL)
The CHMSL uses LED lamps that are not serviceable
separately. The CHMSL must be replaced as an assembly,
see your authorized dealer.
7
MAINTAINING YOUR VEHICLE 431

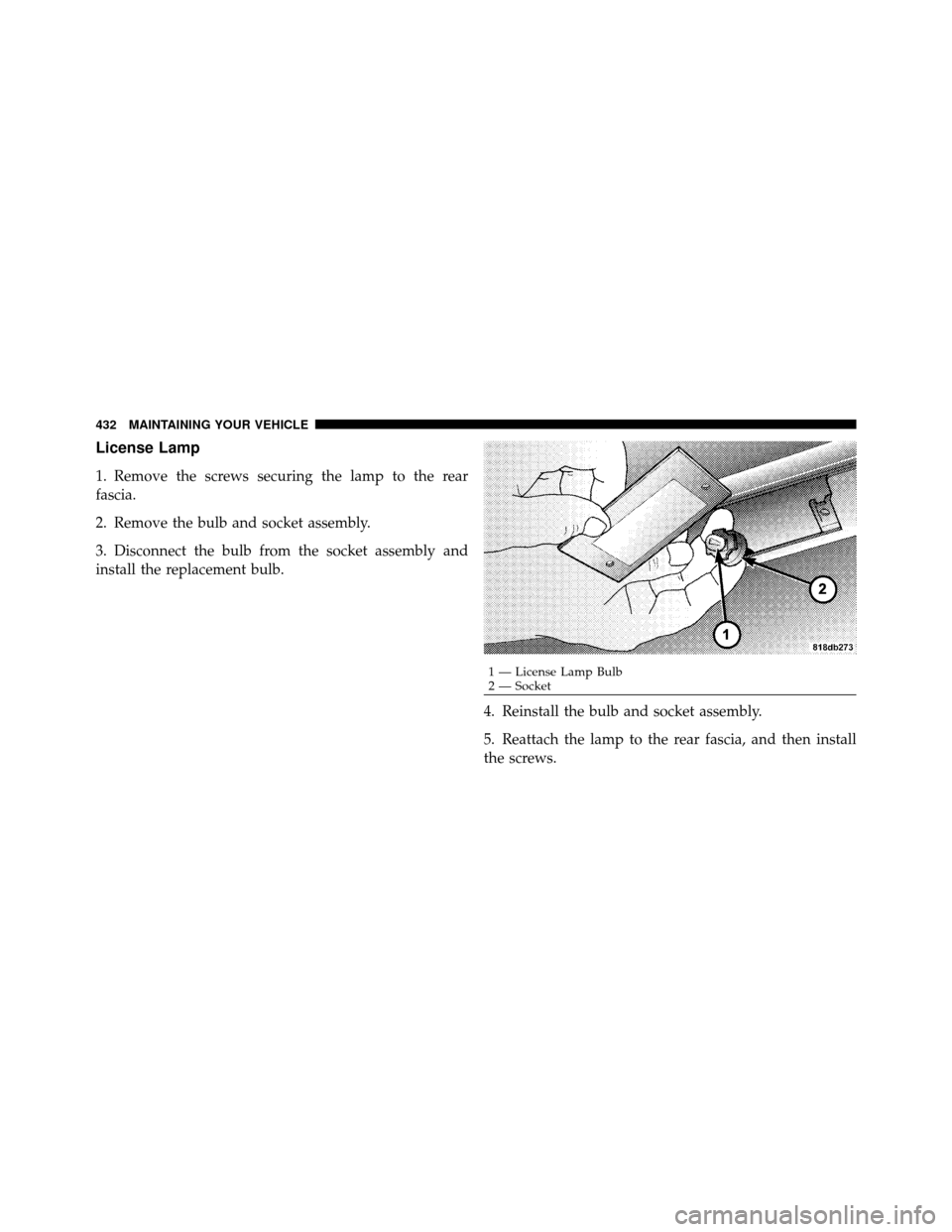

License Lamp
1. Remove the screws securing the lamp to the rear
fascia.
2. Remove the bulb and socket assembly.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.4. Reinstall the bulb and socket assembly.
5. Reattach the lamp to the rear fascia, and then install
the screws.
1 — License Lamp Bulb
2 — Socket
432 MAINTAINING YOUR VEHICLE

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
All Engines 19 Gallons72 Liters
Engine Oil with Filter
3.6 Liter Engine (SAE 5W-30, API Certified) 6 Quarts5.6 Liters
5.7 Liter Engine (SAE 5W-20, API Certified) 7 Quarts6.6 Liters
Cooling System *
3.6 Liter Engine (MOPAR Antifreeze/Coolant 5 Year/100,000 Mile
Formula or equivalent) 11.1 Quarts 10.5 Liters
5.7 Liter Engine (MOPAR Antifreeze/Coolant 5 Year/100,000 Mile
Formula or equivalent) 14.7 Quarts 13.9 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 433

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology) or equivalent.
Engine Oil – 3.6L Engine Use API Certified SAE 5W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil – 5.7L Engine Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs – 3.6L Engine RER8ZWYCB4 (Gap 0.043 in [1.1 mm])
Spark Plugs – 5.7L Engine LZFR5C–11 (Gap 0.043 in [1.1 mm])
Fuel Selection (3.6L and 5.7L Engine
– Automatic Transmission) 87 Octane Acceptable — 89 Octane Recommended
Fuel Selection (5.7L Engine –
Manual Transmission) 91 Octane
434 MAINTAINING YOUR VEHICLE

Chassis
ComponentFluid, Lubricant, or Genuine Part
Manual Transmission – If Equipped MOPAR ATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Automatic Transmission – If
Equipped MOPAR
ATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Brake Master Cylinder MOPARDOT 3, SAE J1703 or equivalent should be used. If DOT 3 brake
fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids.
Power Steering Reservoir MOPARHydraulic Fluid or equivalent meeting MS-11655, such as Fuchs
EG ZH 3044 or Pentosin CHF 11s.
Rear Axle – 3.6L Engine MOPARSynthetic Gear Lubricant SAE 75W140 (API GL-5) or equiva-
lent.
Rear Axle – 5.7L Engine MOPARSynthetic Gear Lubricant SAE 75W90 (API GL-5) or equivalent
(with MOPAR Friction Modifier — Hypoid Gear Additive).
7
MAINTAINING YOUR VEHICLE 435

MAINTENANCE SCHEDULES
CONTENTS
Maintenance Schedule .................. 438
▫ Required Maintenance Intervals .......... 440
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Have your vehicle
serviced as soon as possible, within the next 500 miles
(805 km).
NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle’s
oil if it has been six months since your last oil change,
even if the oil change indicator message is NOT
illuminated.
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S438 MAINTENANCE SCHEDULES
