Tire Safety Information ................. 291
▫ Tire Markings ....................... 291
▫ Tire Terminology And Definitions ......... 295
▫ Tire Loading And Tire Pressure .......... 296
 Tires — General Information ............. 300
▫ Tire Pressure ....................... 300
▫ Tire Inflation Pressures ................ 301
▫ Radial Ply Tires ..................... 303
▫ Spare Tire Matching Original Equipped Tire
And Wheel – If Equipped .............. 303
▫ Compact Spare Tire – If Equipped ........ 304
▫ Full Size Spare – If Equipped ............ 305
▫ Limited-Use Spare – If Equipped ......... 305▫
Tire Spinning ....................... 306
▫ Tread Wear Indicators ................. 306
▫ Life Of Tire ........................ 307
▫ Replacement Tires .................... 308
 Tire Chains .......................... 309
 Snow Tires .......................... 310
 Tire Rotation Recommendations ........... 311
 Tire Pressure Monitor System (TPMS) ....... 312
▫ Base System ........................ 314
▫ Premium System – If Equipped .......... 316
▫ General Information .................. 320
5
STARTING AND OPERATING 249

Partial Off
The “Partial Off” mode is intended for times when a
more spirited driving experience is desired. It is also
intended for driving in deep snow, sand, or gravel. This
mode disables the TCS portion of the ESP and raises the
threshold for ESP activation, which allows for more
wheel spin than what ESP normally allows.
The “ESP OFF” switch is located in the switch bank near
the bottom center of the instrument panel. To enter the
“Partial Off” mode, momentarily press the “ESP OFF”
switch and the “ESP/TCS Indicator Light” will illumi-
nate. To turn the ESP ON again, momentarily press the
“ESP OFF” switch and the “ESP/TCS Indicator Light”
will turn off.NOTE:
To improve the vehicle’s traction when driving
with snow chains, or when starting off in deep snow,
sand, or gravel, it may be desirable to switch to the
“Partial Off” mode by momentarily pressing the “ESP
OFF” switch. Once the situation requiring “Partial Off”
ESP OFF Switch
5
STARTING AND OPERATING 289

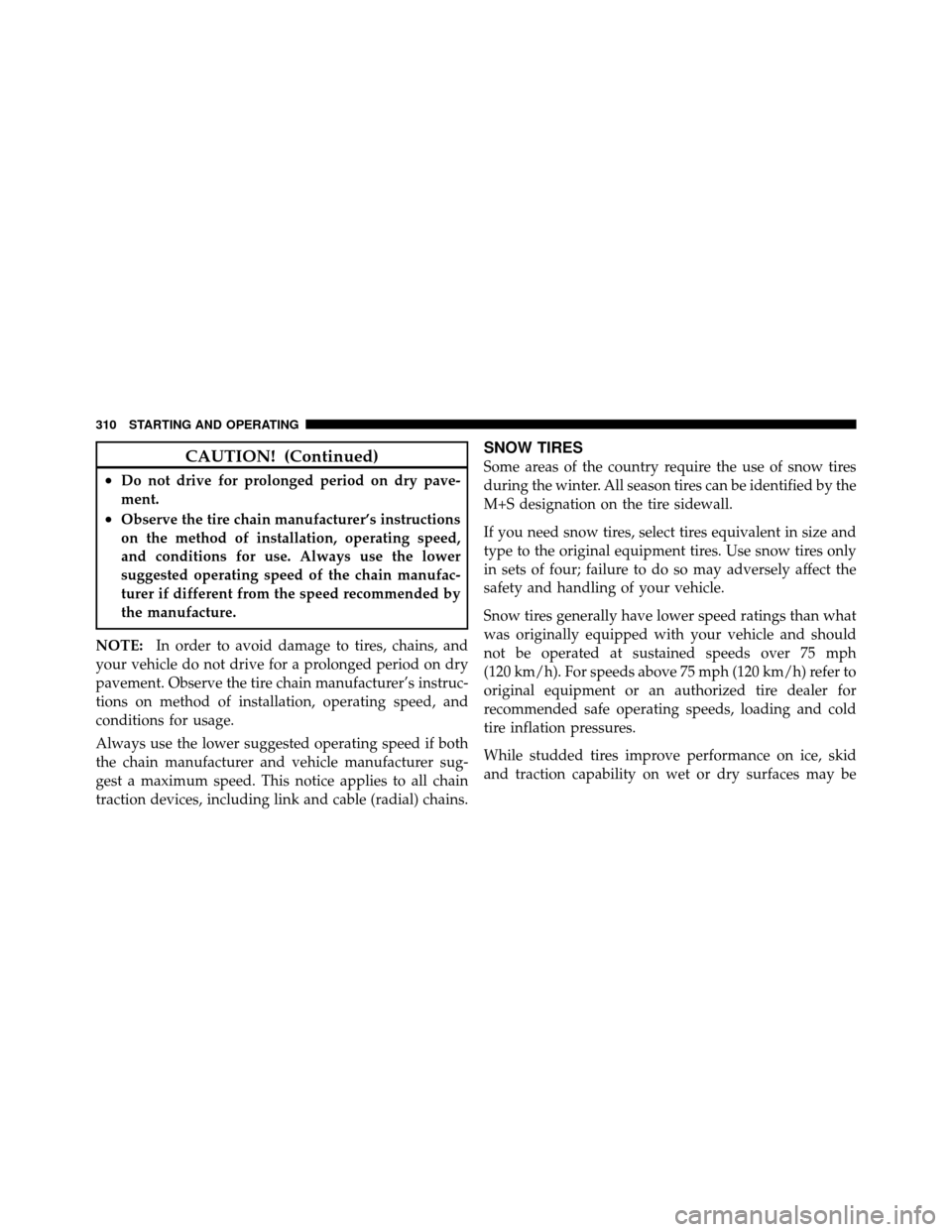

CAUTION! (Continued)
•Do not drive for prolonged period on dry pave-
ment.
•Observe the tire chain manufacturer’s instructions
on the method of installation, operating speed,
and conditions for use. Always use the lower
suggested operating speed of the chain manufac-
turer if different from the speed recommended by
the manufacture.
NOTE: In order to avoid damage to tires, chains, and
your vehicle do not drive for a prolonged period on dry
pavement. Observe the tire chain manufacturer’s instruc-
tions on method of installation, operating speed, and
conditions for usage.
Always use the lower suggested operating speed if both
the chain manufacturer and vehicle manufacturer sug-
gest a maximum speed. This notice applies to all chain
traction devices, including link and cable (radial) chains.
SNOW TIRES
Some areas of the country require the use of snow tires
during the winter. All season tires can be identified by the
M+S designation on the tire sidewall.
If you need snow tires, select tires equivalent in size and
type to the original equipment tires. Use snow tires only
in sets of four; failure to do so may adversely affect the
safety and handling of your vehicle.
Snow tires generally have lower speed ratings than what
was originally equipped with your vehicle and should
not be operated at sustained speeds over 75 mph
(120 km/h). For speeds above 75 mph (120 km/h) refer to
original equipment or an authorized tire dealer for
recommended safe operating speeds, loading and cold
tire inflation pressures.
While studded tires improve performance on ice, skid
and traction capability on wet or dry surfaces may be
310 STARTING AND OPERATING

Tire Pressure Monitoring Low Pressure Warnings
The “TPM Telltale Light” will illuminate in the
instrument cluster, a “LOW TIRE” message will be
displayed and a chime will sound when tire pres-
sure is low in one or more of the four active road tires.
Should this occur, you should stop as soon as possible,
check the inflation pressure of each tire on your vehicle,
and inflate each tire to the vehicle’s recommended cold
placard pressure value. Once the system receives the
updated tire pressures, the system will automatically
update and the “TPM Telltale Light” and “LOW TIRE”
message will turn off. The vehicle may need to be driven
for up to 20 minutes above 15 mph (24 km/h) in order for
the TPMS to receive this information.
Service TPMS Warning
If a system fault is detected, the “TPM Telltale Light” will
flash on and off for 75 seconds and then remain on solid.
The system fault will also sound a chime. If the ignition
switch is cycled, this sequence will repeat, providing the system fault still exists. The “TPM Telltale Light” will
turn off when the fault condition no longer exists. A
system fault can occur due to any of the following:
1. Signal interference due to electronic devices or driving
next to facilities emitting the same radio frequencies as
the TPM sensors.
2. Installing aftermarket window tinting that contains
materials that may block radio wave signals.
3. Accumulation of snow or ice around the wheels or
wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
Vehicles with Compact Spare
1. The compact spare tire does not have a TPM sensor.
Therefore, the TPMS will not monitor the pressure in the
compact spare tire.
5
STARTING AND OPERATING 315

If the ignition switch is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the “TPM Telltale Light” will no longer
flash, and theSERVICE TPM SYSTEM message will no
longer display, and a pressure value will display in place
of the dashes. A system fault can occur due to any of the
following:
1. Signal interference due to electronic devices or driving
next to facilities emitting the same radio frequencies as
the TPM sensors.
2. Installing aftermarket window tinting that contains
materials that may block radio wave signals.
3. Accumulation of snow or ice around the wheels or
wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors. The EVIC will also display a
SERVICE TPM SYSTEM
message for a minimum of five seconds when a system
fault related to an incorrect sensor location fault is
detected. In this case, the SERVICE TPM SYSTEM
message is then followed with a graphic display with
pressure values still shown. This indicates that the pres-
sure values are still being received from the TPM sensors
but they may not be located in the correct vehicle
position. The system still needs to be serviced as long as
the SERVICE TPM SYSTEM message is displayed.
Vehicles with Compact Spare
1. The compact spare tire does not have a TPM sensor.
Therefore, the TPMS will not monitor the pressure in the
compact spare tire.
5
STARTING AND OPERATING 319

Side Airbag............................. 64
Side Window Demisters (Defrosters) .......... 245
Signals, Turn ...................... 84,143,178
Slippery Surfaces, Driving On ............... 273
Snow Chains (Tire Chains) ................. 309
Snow Tires ............................ 310
Sound System Kicker ............................ 234
Spare Tire ....................... 304,305,361
Spark Plugs ............................ 434
Specifications Fuel (Gasoline) ...................... 434
Oil ............................... 434
Speed Control (Cruise Control) .............. 149
Speedometer ........................... 176
Starting ............................. 27,252
Automatic Transmission ................ 253
Cold Weather ....................... 257
Engine Fails to Start .................. 258 Remote
............................ 27
Starting and Operating .................... 252
Starting Procedures ...................... 252
Steering Column Controls ..................... 143
Column Lock ....................... 148
Power ............................ 277
Tilt Column ........................ 148
Wheel, Tilt ......................... 148
Steering Wheel Audio Controls .............. 236
Steering Wheel Mounted Sound System
Controls .............................. 236
Storage ............................... 426
Storage, Vehicle ...................... 244,426
Storing Your Vehicle ...................... 426
Stuck, Freeing .......................... 374
Sun Roof .............................. 159
Sunglasses Storage ....................... 153
Sunroof Maintenance ..................... 162
482 INDEX
