Safety
Dynamic stability control(DSC)

Activation
This system is activated automatically eachtime the vehicle is started.
It comes into operation in the event of a grip or
tra
jectory problem.
This is indicated by
flashing of thiswarning lamp in the instrument panel.

Deactivation

In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft ground...), it may be advisable to deactivate
the DSC system, so that the wheels can move freely and regain grip.

The DSC system offers exceptional
safety in normal driving, but this should not encourage the driver to take extra risks or drive at high speed.
The correct operation of the system depends on obser vation of the manufacturer's recommendationsregarding the wheels (tyres and rims),the braking components, the electronic components and the CITROËN assembly and operation procedures.
After an impact, have the systemchecked by a CITROËN dealer or a qualified workshop.

Operating fault


If this warning lamp comes on,
accompanied by an audible signal
and a message in the instrument
panel screen, this indicates a fault
with the s
ystem.
Contact a CITROËN dealer or a qualifiedworkshop to have the system checked.
Reactivation
The system is reactivated automatically each
time the ignition is switched back on or from 30 mph (50 km/h).
) Press the button.
This warnin
g lamp and the indicator
lamp in the button come on: the
DSC s
ystem no longer acts on theoperation of the engine.
)
Press the button again to
reactivate it manually. But it is recommended that the s
ystem be
reactivated as soon as possible.

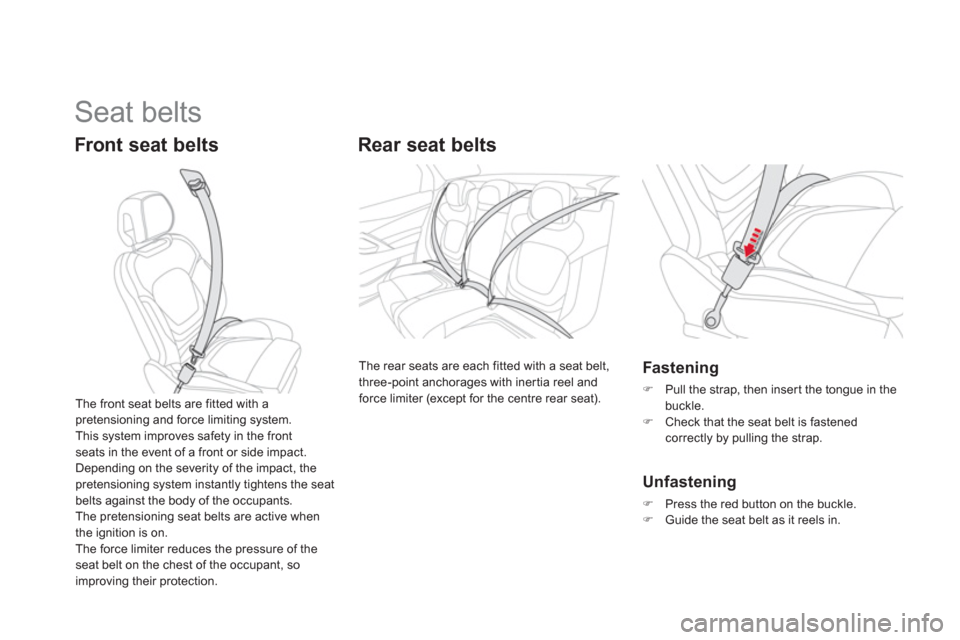

Seat belts
Front seat belt s




Rear seat belts

The rear seats are each fitted with a seat belt,
three-point anchorages with iner tia reel and
force limiter (except for the centre rear seat).
Fastening
)Pull the strap, then inser t the tongue in thebuckle.)Check that the seat belt is fastenedcorrectly by pulling the strap.



Unfastening
)Press the red button on the buckle.)Guide the seat belt as it reels in. Th
e front seat belts are fitted with a pretensioning and force limiting system.
This s
ystem improves safety in the frontseats in the event of a front or side impact.
Depending on the severity of the impact, thepretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant, soimproving their protection.

171Safety
Front seat belt height adjustment
)To adjust the anchorage point, squeeze the control and slide it until you find a notch.



From approximatel
y 12 mph (20 km/h),
the warning lamp(s) flash for two
minutes accompanied by an audible signal. Once these two minutes have
elapsed, the warning lamp(s) remain on until the
driver or one or more passengers fasten their
seat belt.




Seat belt not fastened/unfastened warning lamps *
1.Front and/or rear seat belts not fastened/unfastened warning lamp in the instrument
panel.
2
. Front left seat belt warning lamp.3.
Front right seat belt warning lamp.4.
Rear right seat belt warning lamp.
5. Rear centre seat belt warning lamp. 6.
Rear left seat belt warning lamp.


Front seat belt warning lamps
On switching on the ignition, warninglamp 1
comes on in the instrument panel and the corresponding warninglamp 2
and/or 3come(s) on in red
in the passenger's seat belt and front airbagwarning lamp display if the corresponding seatbelt is not fastened or is unfastened.
Rear seat belt warning lamps
On switching on the ignition, thecorresponding warning lamps 4 , 5
and6come on in red for about 30 seconds
if a seat belt is not fastened.
Above 12 mph (20 km/h), the corresponding
warning lamps 4, 5 or 6
comes on in red,
accompanied by an audible signal and a
message in the instrument panel screen, when
a rear passen
ger has unbuckled their seat belt.


*
Accordin
g to version and/or country of sale.

173Safety
Airbags

System designed to maximise the safety of the
occupants
(with the exception of the rear centrepassenger) in the event of violent collisions.
It supplements the action of the force-limitingseat belts (with the exception of the rear centrepassenger).
I
f a collision occurs, the electronic detectors
record and analyse the front and side impacts sustained in the impact detection zones:


- in the case of a serious impact, the airbags are deployed instantly and protect
the occupants of the vehicle (with theexception of the rear centre passenger);
immediately after the impact, the airbags
deflate rapidly so that they do not hinder
visibility or the exit of the occupants,

- in the case of a minor or rear impact or incertain roll-over conditions, the airbags
will not be deployed; the seat belt alone is
sufficient to provide optimum protection in
these situations.
The airbags do not operate when the ignition is switched off.

This equipment will only deploy once. If a second impact occurs (during thesame or a subsequent accident), the airbag will not be deployed again.
Deployment of the airbag(s) is accompanied by a slight emission of harmless smoke and a noise, due to the activation of the pyrotechniccar tridge incorporated in the system. This smoke is not harmful, but sensitiveindividuals may experience slight irritation.
The noise of the detonation may resultin a slight loss of hearing for a shor ttime.
Impact detection zones
A.
Front impact zone.B.
Side impact zone.
Front airbags


Deployment

The airbags are deployed simultaneously, unless
the passenger's front airbag is deactivated, in
the event of a serious front impact to all or par t
of the front impact zone A, in the longitudinalcentreline of the vehicle on a horizontal plane anddirected from the front to the rear of the vehicle.
The front airbag inflates between the thorax and
head of the front occupant of the vehicle and the steering wheel, driver's side, and the dashboard,
passen
ger's side to cushion their for ward
movement. S
ystem which protects the driver and front
passenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fitted in the centre of the steering wheel; the front passenger's airbag isfitted in the dashboard above the glove box.

Deactivation
Only the passenger's front airbag can be deactivated:)with the ignition off, inser t the key in thefpassenger airbag deactivation switch, )turn it to the "OFF"position,)then, remove the key keeping the switch in
the new position.
Accordin
g to version, this warning lamp comes on either in the
instrument panel or in the seat belt
and passenger's front airbag warning lamp
display when the ignition is on and until the airbag is reactivated.
To assure the safety of your child,the passenger's front airbag must be deactivated when you install a "rear facing" child seat on the front passenger seat. Otherwise, the child would risk beingseriously injured or killed if the airbag were deployed.
If even one of the two airbag warning lamps comes on continuously, donot install a child seat on the frontpassenger seat.
Have it checked by a CITROËN dealer or qualified workshop.



Reactivation

When you remove the child seat, with the
ignition on, turn the switch to the "ON"
position to reactivate the airbag and so assure
the safety of your front passenger in the event
of an impact.
With the ignition on, this warninglamp comes on in the seat belt andpassenger's front airbag warninglamp display for approximately one minute, if the passenger's front
airbag is activated.


Operating fault

If this warning lamp comes on in theinstrument panel, accompanied by an
audible warning and a message in theinstrument panel screen, contact a CITROËN dealer or a qualified workshop to have
the system checked. The airbags may no longer
be deployed in the event of a serious impact.
If this warnin
g lamp flashes, contact
a CITROËN dealer or a qualified workshop. The passenger's front
airbag may no longer be deployed in
the event of a serious impact.

1. Sealing
)Switch off the ignition.)Turn the selector Ato the "sealant"position.)Check that the switch B
is in
position "O" .
)
Uncoil the white pipe G
fully.)
Unscrew the cap from the white pipe.)
Connect the white pipe to the valve of the
tyre to be repaired.
)Connect the compressor's electric plug to
the vehicle's 12 V socket. )Star t the vehicle and leave the engine running.
Take care, this product is harmful(e.g. ethylene-glycol, colophony...) if swallowed and causes irritation to the eyes.Keep it out of reach of children.


Do not star t the compressor before connecting the white pipe to the tyre valve: the sealant product would be expelled through the pipe.

Avoid removing any foreign bodieswhich have penetrated into the tyre.

189Practical information
Removing a wheel

Parking the vehicle

Immobilise the vehicle where it does notblock traffic: the ground must be level, stable and not slippery. Apply the parking brake unless it has been programmed to automatic mode, switch off the ignition and engage firstgear *
to block the wheels. Check that the braking warning lamp and the Pwarning lamp in the parkingbrake control lever come on.
The occupants must get out of the vehicle and wait where they are safe.
Never go underneath a vehicle raised using a jack; use an axle stand.
List of operations
)
Remove the bolt cover (if fitted) from each of the bolts using the tool 4.)
Fit the security socket 5
on the wheelbrace 1
to slacken the security bolt (if fitted).)
Slacken the other bolts (no more than a 1/4 turn) using the wheelbrace 1
only.

*
position R
for the electronic
gearbox system; Pfor the automatic gearbox.

The batteries contain harmful substancessuch as sulphuric acid and lead. They must be disposed of in accordance with regulations and must not, in any circumstances, be discarded with household waste. Take used remote control batteries andvehicle batteries to a special collection point.

Do not reverse the polarity and use only a 12 V charger.
Do not disconnect the terminals whilethe engine is running.
Do not charge the batteries without disconnecting the terminals first.
Do not push the vehicle to star t the engine if it is fitted with the 6 -speed electronic gearbox system or an automatic gearbox.


It is advisable to disconnect the battery if the vehicle is to be left unused for more than one month.


Before disconnecting the battery

Wait 2 minutes after switching off the ignitionbefore disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.

Following reconnection of thebattery

Following reconnection of the battery, switch on
the ignition and wait 1 minute before star ting to
permit initialisation of the electronic systems.However, if problems remain following this
operation, contact a CITROËN dealer or aqualified workshop.
Referring to the corresponding section, you
must yourself reinitialise:


- the remote control key,

- the panoramic sunroof blind,

- the GPS satellite navi
gation system.









Load reduction mode
System which manages the use of certainfunctions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates cer tain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
