2011 Citroen DS5 fuses

Dashboard fuses
The fusebox is placed in the lower dashboard (left-hand side).
Access to the fuses
)Remove the cover.

Fuse
N°


Rating (A)

Functions
F6 A or B
15 Audio system.
F8
3 Alarm.
F13
10 Front cigarette lighter, front 12 V socket.
F14
10 Rear 12 V socket.
F1
63 Courtesy mirror.
F173 Rear cour tesy lamp, courtesy mirror.
F28 A or B
15 Audio system.
F3
020
Rear wiper.
F32
10 Audio amplifier.

203Practical information

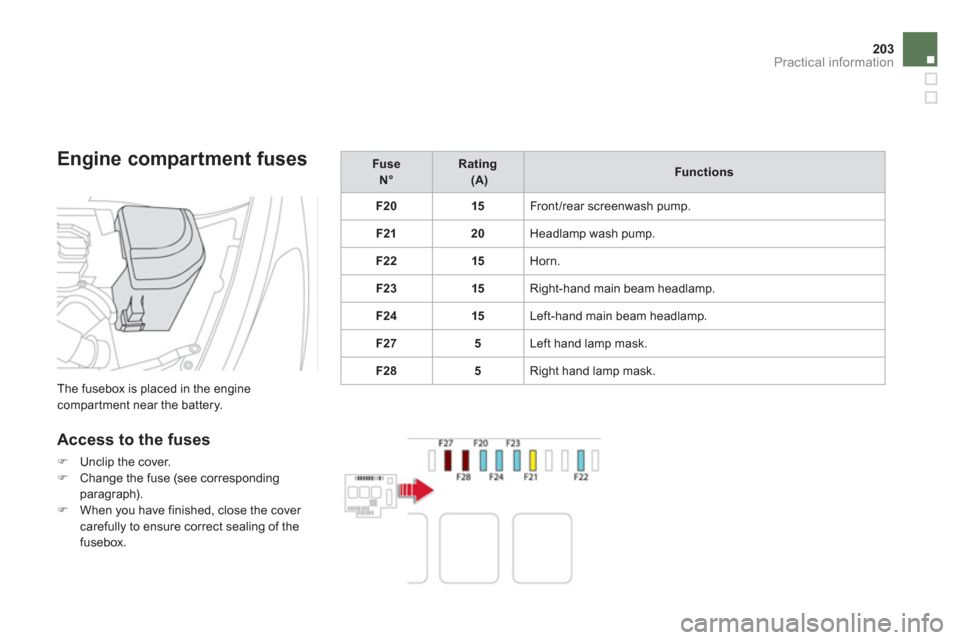

Engine compartment fuses

The fusebox is placed in the engine compartment near the battery.


Access to the fuses
)Unclip the cover. )Change the fuse (see corresponding paragraph).)When you have finished, close the cover carefully to ensure correct sealing of the
f
usebox.


Fuse
N°


Rating (A)

Functions
F20 15
Front
/rear screenwash pump.
F2120 Headlamp wash pump.
F2215
Horn.
F2
315 Right-hand main beam headlamp.
F2
415 Left-hand main beam headlamp.
F275
Left hand lamp mask.
F2
85 Right hand lamp mask.

The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electricalconsumption.
Please note this precaution. You are advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.


Installation of radio communication transmitters

Before installing any after-market radiocommunication transmitter, you can contact a CITROËN dealer for the specification of transmitters which can be fitted (frequency, maximum power, aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive (2004/10 4/EC).
Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest,warning triangle and spare bulbs andfuses available in the vehicle.
B
y visiting a CITROËN dealer you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECHNATURE" range,
products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact colour
of
your vehicle, refills (sealant car tridge for the
temporary puncture repair kit...), ...
"Multimedia":
audio systems, steering mounted audio controls, speakers, Hi-Fi module, Bluetooth hands-free system, por table satellite navigationsystem, semi-integral suppor t bracket for portable navigation system, speed camera
detector, USB Box, reversing camera, por table
video screen, por table video support bracket,
230 V/50 Hz socket, 230 V/12 V adaptor, Wi-Fion board...

The various caps and covers allow access for
checking the levels of the various fluids and for replacing cer tain components.














Petrol engines
1.
Power steering reservoir.2.
Screenwash and headlamp wash reser voir.3.
Coolant reservoir. 4.
Brake fluid reservoir.5.
Battery/Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick. 9.
Engine oil filler cap.THP1556-SPEED AUTOTHP 200 6- SPEED MANUAL

221Checks
The various caps and covers allow access for
checking the levels of the various fluids, for
replacing cer tain components and for primingthe fuel system.

*

According to engine.















Diesel engines
1.
Power steering reservoir.2.Screenwash and headlamp wash reser voir.3.Coolant reservoir.4.
Brake fluid reservoir.
5. Battery/Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick.9.
Engine oil filler cap.10.Priming pump * . 11.
Bleed screw * .
e-HDi1106-SPEED ELECTRONIC
HDi 160 PEF 6- SPEED MANUAL/HDi 160 PEF 6- SPEED AUTO
