CONTENTS
3
Direction indicators 126Hazard warning lamps 126Horn 126Tyre under-infl ation detection 127Braking assistance systems 128Trajectory control systems 129Emergency or assistance call 130Front seat belts 131Airbags 134
8 - SAFETY 126 Î137
Electric parking brake 138Manual parking brake 145Manual gearbox 145Gear effi ciency indicator 1466-speed electronic gearbox system 147Automatic gearbox 150Hill start assist 153Stop & Start 154
Blind spot sensors 157Speed limiter 161Cruise control 163Parking space sensors 165Parking sensors 167
9 - DRIVING 138 Î168
Bonnet 170Running out of fuel (Diesel) 171Petrol engines 172Diesel engines 173Checking levels 174Checks 176
10 - CHECKS 169Î 177
Temporary puncture repair kit 178Changing a wheel 183Changing a bulb 187Changing a fuse 193Battery 197Energy economy mode 199Changing a wiper blade 200Very cold climate screen 200Towing the vehicle 201Towing a trailer 203Audio pre-equipment 204Accessories 205
11 - PRACTICAL
INFORMATION 178Î 206
Petrol engines 207Petrol weights 209Diesel engines 211Diesel weights 212Dimensions 213Identifi cation markings 214
12 - TECHNICAL DATA 207 Î214
Emergency or assistance 215eMyWay 217Audio system 269
AUDIO and TELEMATICS 215 Î302
ALPHABETICAL
INDEX 307Î 310
VISUAL
SEARCH 303Î 306

10
INSTRUMENTS AND CONTROLS




1.
Steering wheel adjustment control.

2.
Steering mounted control paddles
for the 6-speed electronic gearbox
system.

3.
Lighting and direction indicators
control stalk.

4.
Speaker (tweeter).

5.
Windscreen demisting vent.

6.
Sunshine sensor.

7.
Passenger’s airbag.

8.
Glove box/Audio/video sockets/
Passenger’s airbag deactivation
switch/Fusebox.

9.
Bonnet release.

10.
Heated seat control.

11 .
Lumbar massage control.

12.
Electric parking brake.

13.
Gear lever, 6-speed electronic
gearbox system.

14.
Large multifunctional storage unit.

1
MONITORING
37


Warning lamp



is on



Cause



Action/Observations




Airbags


temporarily. This lamp comes on for a few
seconds when you turn on the
ignition, then goes off. This lamp should go off when the engine
is started.
If it does not go off, contact a CITROËN
dealer or a qualifi ed workshop.

fi xed. One of the airbag or seat belt
pretensioner systems has a
fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.

Foot on the
clutch **


fi xed. In the STOP mode of Stop
& Start, changing to START
mode is refused because the
clutch pedal is not fully down. You must declutch fully to allow the
change to engine START mode.

**
Only on the two-tone instrument panel without audio system.
Power steering
fi xed. The power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.


Under-infl ated
tyre


fi xed. The pressure in one or more
wheels is too low. Check the pressure of the tyres as soon
as possible.
This check should preferably be carried
out when the tyres are cold.


Directional
headlamps


fl ashing. The directional headlamps
system has a fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.

6
FITTINGS
108
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.


)
With the ignition on, raise the con-
cealing fl ap; the mirror is lit auto-
matically.
This sun visor is also equipped with a
ticket holder.
SUN VISOR ILLUMINATED GLOVE BOX

Its lid has locations for storing a pen, a
pair of glasses, tokens, maps, a cup...


)
To open the glove box, raise the
handle.
It is lit when the lid is opened.
It houses the front passenger airbag
deactivation switch A
.
If the vehicle is fi tted with air condition-
ing, it provides access to the ventilation
nozzle B
, distributing the same cooled
air as the vents in the passenger com-
partment.
It gives access to the dashboard fuse-
box (see "Practical information - §
Changing a fuse").
PORTABLE ASHTRAY




)
Pull the cover to open the ashtray.

)
To empty it, remove the ashtray by
pulling it upwards.
To avoid any problem of interfer-
ence or risk of overturning, do
not place the ashtray near the
gear lever.

9
DRIVING
158

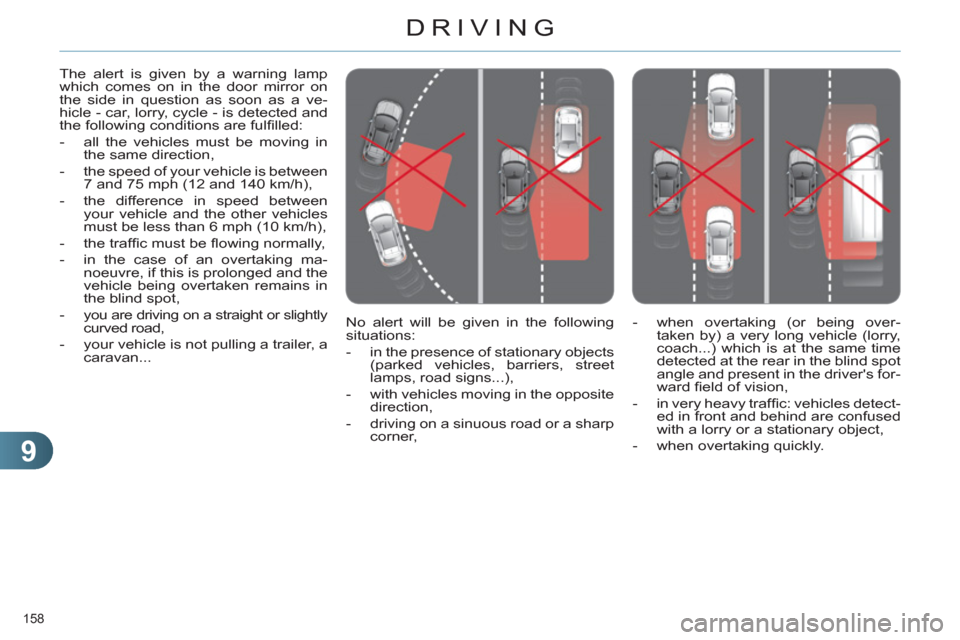

No alert will be given in the following
situations:


- in the presence of stationary objects
(parked vehicles, barriers, street
lamps, road signs...),

- with vehicles moving in the opposite
direction,

- driving on a sinuous road or a sharp
corner, The alert is given by a warning lamp
which comes on in the door mirror on
the side in question as soon as a ve-
hicle - car, lorry, cycle - is detected and
the following conditions are fulfi lled:


- all the vehicles must be moving in
the same direction,

- the speed of your vehicle is between
7 and 75 mph (12 and 140 km/h),

- the difference in speed between
your vehicle and the other vehicles
must be less than 6 mph (10 km/h),

- the traffi c must be fl owing normally,

- in the case of an overtaking ma-
noeuvre, if this is prolonged and the
vehicle being overtaken remains in
the blind spot,

- you are driving on a straight or slightly
curved road,

- your vehicle is not pulling a trailer, a
caravan...

- when overtaking (or being over-
taken by) a very long vehicle (lorry,
coach...) which is at the same time
detected at the rear in the blind spot
angle and present in the driver's for-
ward fi eld of vision,

- in very heavy traffi c: vehicles detect-
ed in front and behind are confused
with a lorry or a stationary object,

- when overtaking quickly.

10
172
PETROL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids and for replacing certain components.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.
7.
Air fi lter.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10
173
*
According to engine.
DIESEL ENGINES

The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air fi lter.
8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Priming pump * .

11 .
Bleed screw * .

11
PRACTICAL INFORMATION
193
CHANGING A FUSE
Access to the tools
The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
To gain access to them:


)
open the glove box lid,

)
unclip the carrier fi tted to the fuse-
box cover by pulling on the right,

Changing a fuse

Before changing a fuse,


)
the cause of the failure must be
identifi ed and rectifi ed,

)
all electrical consumers must be
switched off,

)
the vehicle must be immobilised
with the ignition off,

)
Identify the failed fuse using the al-
location tables and illustrations on
the following pages.
Good

Failed

To replace a fuse, you must:


)
use the special tweezer to extract
the fuse from its housing and check
the condition of its fi lament.

)
always replace the failed fuse with
a fuse of the same rating (same col-
our); use of a different rating may
cause malfunctions (risk of fi re).
if the fuse fails again soon after re-
placement, have the electrical system
checked by a CITROËN dealer or a
qualifi ed workshop.
Installing electrical
accessories
Your vehicle’s electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories on
your vehicle, contact a CITROËN
dealer or a qualifi ed workshop.
CITROËN will not accept respon-
sibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by CITROËN and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
al equipment connected exceeds
10 milliamperes.
The replacement of a fuse not
mentioned in the following ta-
bles may cause a serious mal-
function of your vehicle. Contact
a CITROËN dealer or a qualifi ed
workshop.
Tweezer


)
remove the tweezer,

)
open the fusebox cover by pulling at
top right, then left,

)
fold down the fusebox cover com-
