2011 Citroen C4 RHD remote start
[x] Cancel search: remote startPage 6 of 316
4
EXTERIOR
Parking sensors
This system measures the size of a
free parking space between two ve-
hicles or obstacles.
165
Stop & Start system
This system puts the engine tempora-
rily into standby during stops in the traf-
fi c (traffi c lights, traffi c jams, etc...). The
engine restarts automatically as soon
as you want to move off. The Stop &
Start system allows reductions of fuel
consumption and exhaust emissions,
as well as noise levels when stationary.
154
Welcome lighting
This additional exterior and interior ligh-
ting, controlled remotely, makes your
approach to the vehicle easier when the
light is poor.
98, 106
Directional lighting
This lighting automatically provides
additional visibility when cornering.
99
Cornering lighting
At low speed, this lighting provides
additional visibility when cornering,
at junctions, and when parking...
making use of the corresponding
front foglamp.
100
Page 37 of 316
1
MONITORING
35
Service
temporarily,
accompanied by
a message. A minor malfunction has
occurred for which there is
no specifi c warning lamp. Identify the malfunction by reading the
message displayed in the screen, such
as, for example:
- the opening of the doors, boot or
bonnet,
- the engine oil level,
- the remote control battery,
- the tyre pressures,
- saturation of the particle emission fi lter on
Diesel vehicles (see "Checks - § Checks/
Particle emissions fi lter").
For any other malfunctions, contact a
CITROËN dealer or a qualifi ed workshop.
fi xed,
accompanied by
a message and
an audible signal. A major malfunction has
occurred for which there is no
specifi c warning lamp. Identify the malfunction by reading the
message displayed in the screen and
contact a CITROËN dealer or a qualifi ed
workshop.
Warning lamp
is on
Cause
Action/Observations
Foot on the
brake pedal
fi xed. The brake pedal is not
pressed. With the 6-speed electronic gearbox
system, press the brake pedal to start the
engine (lever in position N
).
If you wish to release the parking brake
without pressing the brake pedal, this
warning lamp will remain on.
fl ashing. With the 6-speed electronic
gearbox system, if you hold
the vehicle on an incline using
the accelerator for too long,
the clutch overheats. Use the brake pedal and/or the electric
parking brake.
Page 80 of 316
4
ACCESS
78
Unlocking the vehicle
Unfolding the key
)
Press this button to unfold the key.
)
Press the open padlock
to unlock the vehicle com-
pletely.
)
Press the open padlock
once to unlock the driver’s
door only.
)
Press the open padlock
again to unlock the other
doors and the boot.
Selective unlocking using the
remote control
)
Maintain the press on the
open padlock until the de-
sired position is obtained.
The windows stop as soon
as you release the button.
Opening the windows using the
remote control
Complete unlocking using the key
)
Turn the key forwards in the driver’s
door lock to unlock the vehicle com-
pletely.
Selective unlocking using the key
)
Turn the key towards the front in the
driver’s door lock once to unlock the
driver’s door only.
)
Turn the key towards the front in the
driver’s door lock again to unlock
the other doors and the boot.
Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to the version of your vehi-
cle, the door mirrors unfold at the same
time.
It also brings on the timed operation
of the welcome lighting, the courtesy
lamps and exterior side spotlamps for
around 30 seconds.
Selective unlocking of the boot
)
Press this button to unlock
the boot. The doors remain
locked.
The complete or selective un-
locking parameter is set via the
vehicle confi guration menu.
Only selective unlocking of the
boot is activated by default.
Programming
Complete unlocking using the
remote control If selective unlocking of the boot is
deactivated, pressing this button also
unlocks the doors.
REMOTE CONTROL KEY
System which permits central unlocking
or locking of the vehicle using the door
lock or from a distance. It is also used
to locate and start the vehicle, as well
as providing protection against theft.

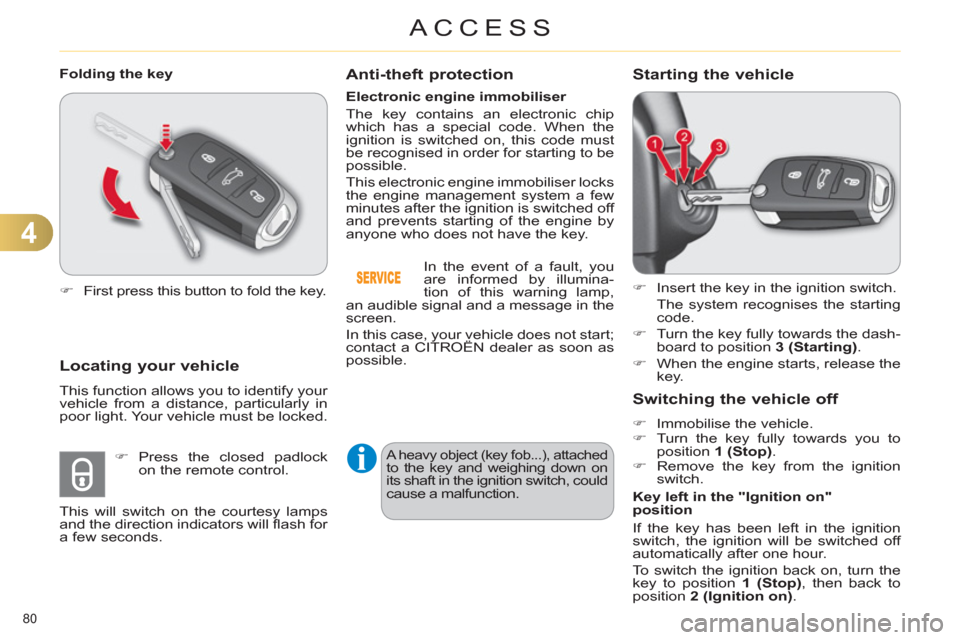

Page 82 of 316
4
ACCESS
80
)
Insert the key in the ignition switch.
The system recognises the starting
code.
)
Turn the key fully towards the dash-
board to position 3 (Starting)
.
)
When the engine starts, release the
key.
A heavy object (key fob...), attached to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Switching the vehicle off
)
Immobilise the vehicle.
)
Turn the key fully towards you to
position 1 (Stop)
.
)
Remove the key from the ignition
switch.
Key left in the "Ignition on"
position
If the key has been left in the ignition
switch, the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop)
, then back to
position 2 (Ignition
on
)
.
Starting the vehicle
Locating your vehicle
This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.
)
Press the closed padlock
on the remote control.
This will switch on the courtesy lamps
and the direction indicators will fl ash for
a few seconds.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
In the event of a fault, you
are informed by illumina-
tion of this warning lamp,
an audible signal and a message in the
screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
)
First press this button to fold the key.
Folding the key
Page 84 of 316
4
ACCESS
82
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration document and
your personal identifi cation documents.
The CITROËN dealer will be able to retrieve the key code and the tran-
sponder code required to order a replacement key.
Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved col-
lection point.
Remote control
The high frequency remote control is a sensitive system; do not operate
it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment
by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle.
Page 200 of 316
11
PRACTICAL INFORMATION
198
Charging the battery using abattery charger
)
Connect one end of the green or black cable to the negative terminal (-) of
the slave battery B
.
)
Connect the other end of the green
or black cable to the earth point C
on the broken down vehicle.
)
Operate the starter, let the engine run.
)
Wait until the engine returns to idle
and disconnect the cables.
It is advisable to disconnect the bat-
tery if the vehicle is to be left unused
for more than one month.
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.
Starting using another battery
The Stop & Start battery does
not have to be disconnected for
charging.
)
Disconnect the battery from the vehicle.
)
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
)
Reconnect starting with the negative
terminal (-).
)
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.
Page 201 of 316
11
PRACTICAL INFORMATION
199
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with the 6-speed
electronic gearbox system.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of
the battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However, if
problems are encountered fol-
lowing this operation, contact a
CITROËN dealer or a qualifi ed
workshop.
Referring to the corresponding
section, you must yourself reini-
tialise:
- the remote control key,
- the panoramic sunroof blind,
- the GPS satellite navigation
system.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions
permit.
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of
thirty minutes.
Switching to economy mode
Once this period has elapsed, a message
appears in the screen indicating that the ve-
hicle has switched to economy mode and
the active functions are put on standby.
If the telephone is being used at
the same time on the navigation
system, it will be interrupted af-
ter 10 minutes.
A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.
)
In order to resume the use of these
functions immediately, start the engine
and let it run for a few minutes.
The time available to you will then be
double the period for which the engine
is left running. However, this period will
always be between fi ve and thirty minutes.
This period may be greatly re-
duced if the battery is not fully
charged.
Page 305 of 316
303
VISUAL SEARCH
EXTERIOR
Remote control ........................... 78-82
- opening/closing
- anti-theft protection
- starting
- battery
Wiper controls......................... 101-103
Changing a wiper blade ................. 200
Door mirrors ................................ 75-76
Blind spot sensors .................. 157-159
Boot ........................................... 83, 88
Temporary puncture repair kit .....178-182
Changing a wheel ................... 183-186
- tools
- removing/refi tting
Changing bulbs....................... 191-192
- rear lamps
- 3 rd brake lamp
- number plate lamp
Parking sensors ...................... 167-168
Parking space sensors ........... 165-166
Towbar ........................................... 203
Towing .................................... 201-202
Accessories ............................ 205-206
Panoramic sunroof .......................... 91
Braking assistance ........................ 128
Trajectory control .................... 129-130
Tyre under-infl ation detection ........ 127
Tyre pressures ....................... 182, 214
Lighting controls ......................... 94-97
Headlamp adjustment...................... 98
Welcome lighting ..................... 98, 106
Directional lighting systems ...... 99-100
Changing bulbs....................... 187-190
- front lamps
- front foglamps
- side repeaters
Doors ......................................... 83, 87
- opening/closing
- emergency control
Child lock ....................................... 125
Electric windows ......................... 89-90
Alarm .......................................... 85-86
Fuel tank ..................................... 92-93
