Page 10 of 316
8
INTERIOR
Interior mood lighting
This dimmed lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.
105
6-speed electronic gearbox system
This system offers driving combining
a fully automatic mode and a manual
mode.
147
Electric parking brake
It combines the functions of auto-
matic application on switching off the
engine and automatic release when
moving off.
Manual application and release re-
mains possible.
138
Audio and communication systems
These systems benefi t from the following
technologies: radio, CD player, USB player,
Bluetooth system, satellite navigation sys-
tem with colour screen, auxiliary sockets.
Radio
269
eMyWay satellite navigation system
217
Massage function
This system provides a lumbar mas-
sage for a period of 60 minutes.
The massage is done in 6 cycles of
10 minutes.
73
Page 13 of 316
11
FAMILIARISATION
A.
Rear view mirror.
B.
Emergency call/Warning lamps
display for front passenger’s airbag
and seat belt/Assistance call.
C.
Courtesy lamp/Map reading lamps/
Interior mood lighting.
D.
Microphone for audio and telematic
system.
E.
Panoramic sunroof blind control.
1.
Central adjustable air vents.
2.
Monochrome screen and small
storage box with fl ap or colour and
mapping screen.
3.
Audio or eMyWay satellite
navigation system.
4.
Central switch panel.
5.
Heating/air conditioning controls.
6.
USB port/auxiliary Jack socket and
cigarette lighter/12 V accessory
socket.
7.
Gear lever, manual or automatic
gearbox.
8.
Manual parking brake.
9.
Portable ashtray.
10.
Large open storage or front
armrest.
Page 109 of 316
6
FITTINGS
107
INTERIOR FITTINGS
1.
Grab handle
2.
Sun visor
(see details on a following page)
3.
Ticket/card holder
4.
Oddments storage
5.
Illuminated
glove box
(see details on a following page)
6.
Door
pocket
s
7.
Large open storage box
(without audio system)
or
Small storage box with fl ap
(with audio system)
8.
Small open storage box
(without audio system)
9.
USB port/Auxiliary socket
(see details on a following page)
10.
Cigarette
lighter/12 V accessory
socket
(see details on following pages)
11 .
Portable ashtray
(see details on following pages)
12.
Centre armrest with storage
(see details on a following page)
Page 111 of 316
6
FITTINGS
109
CIGARETTE LIGHTER/12 V
ACCESSORY SOCKET
)
To use the cigarette lighter, press
it in and wait a few seconds until it
pops out automatically.
)
To connect a 12 V accessory (max
power: 120 W), remove the ciga-
rette lighter and connect a suitable
adaptor.
USB PORT/AUXILIARY SOCKET
The "AUX"
connection box, located in the
centre console, comprises an auxiliary
JACK socket and/or a USB port.
It permits the connection of a portable
device, such as a digital audio player of
the iPod
® or USB memory stick type.
It reads certain audio fi le formats allow-
ing them to be heard via the vehicle's
speakers.
You can manage these fi les using the
steering mounted controls or the audio
system control panel and display them
on the multifunction screen.
For more information on the use of
this equipment, refer to the "Audio and
Telematics" section.
Connected to the USB port, the
portable device charges auto-
matically while in use.
LOWER CENTRE CONSOLE
1.
Storage pocket
2.
Cup holder
3.
Large open storage box
Page 113 of 316
6
FITTINGS
111
LARGE MULTIFUNCTIONAL STORAGE UNIT
This storage unit is closed by a sliding
shutter.
It contains:
- the USB port and 12 V/auxiliary
sockets 1
,
- a retractable support 2
to receive
your mobile phone or portable de-
vice,
- a space ventilated by a closeable
nozzle 3
, to keep food and drinks
fresh if the air conditioning is ope-
rating.
Comfort and storage system for the
driver and front passenger.
The height and length of the armrest
cover can be adjusted.
Height adjustment
)
Raise the cover to the required po-
sition (low, intermediate or high).
)
If you raise the cover slightly beyond
the high position, guide it when low-
ering it to the low position.
Longitudinal adjustment
)
Slide the cover fully forwards or
rearwards.
Storage
The storage space in the armrest can
hold up to 6 CDs.
)
Raise the lever.
)
Raise the cover fully.
It is illuminated only when the
sliding shutter is fully open.
The sliding shutter can be partly
closed up to the level of the re-
tractable support, so as to keep
the storage unit cool.
Page 208 of 316
11
PRACTICAL INFORMATION
206

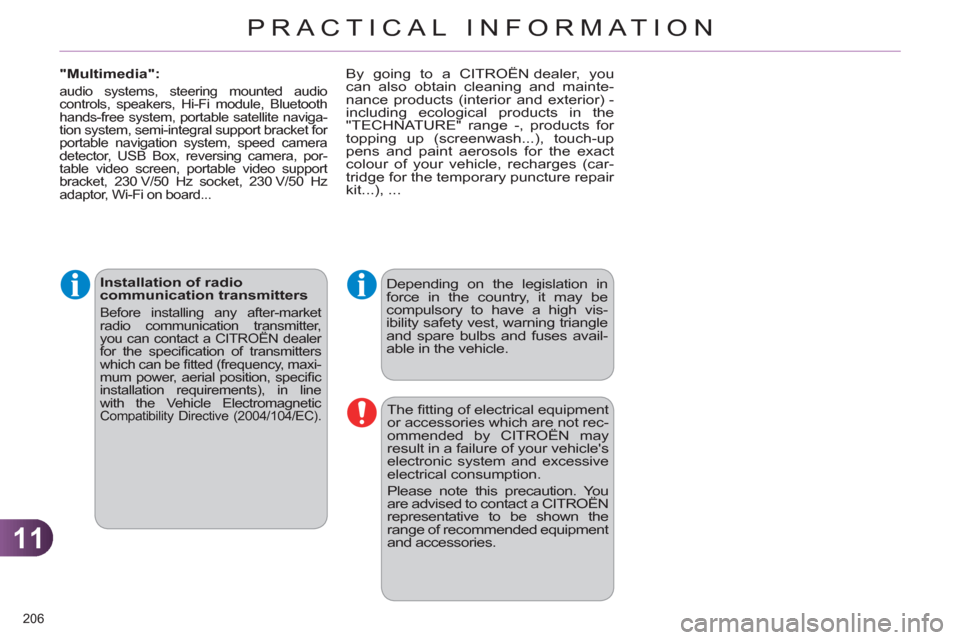

Installation of radio
communication transmitters
Before installing any after-market
radio communication transmitter,
you can contact a CITROËN dealer
for the specifi cation of transmitters
which can be fi tted (frequency, maxi-
mum power, aerial position, specifi c
installation requirements), in line
with the Vehicle Electromagnetic
Compatibility Directive (2004/104/EC).
Depending on the legislation in
force in the country, it may be
compulsory to have a high vis-
ibility safety vest, warning triangle
and spare bulbs and fuses avail-
able in the vehicle.
The fi tting of electrical equipment
or accessories which are not rec-
ommended by CITROËN may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this precaution. You
are advised to contact a CITROËN
representative to be shown the
range of recommended equipment
and accessories.
"Multimedia":
audio systems, steering mounted audio
controls, speakers, Hi-Fi module, Bluetooth
hands-free system, portable satellite naviga-
tion system, semi-integral support bracket for
portable navigation system, speed camera
detector, USB Box, reversing camera, por-
table video screen, portable video support
bracket, 230 V/50 Hz socket, 230 V/50 Hz
adaptor, Wi-Fi on board...
By going to a CITROËN dealer, you
can also obtain cleaning and mainte-
nance products (interior and exterior) -
including ecological products in the
"TECHNATURE" range -, products for
topping up (screenwash...), touch-up
pens and paint aerosols for the exact
colour of your vehicle, recharges (car-
tridge for the temporary puncture repair
kit...), ...
Page 224 of 316
222
03
A press on the OK dial gives access to
short-cut menus according to the display
in the screen.
RADIO:
Activate/Deactivate TA
Activate/Deactivate RDS
GENERAL OPERATION
DISPLAY ACCORDING TO CONTEXT
MUSIC MEDIA PLAYERS,
CD or USB (according
to media):
Play modes:
Normal
Random
Random on all media
Repetition
TELEPHONE (call in
progress):
Private mode
FULL SCREEN MAP OR
IN A NEW WINDOW:
Stop/Restore guidance
Select destination
Enter an address
Directory
GPS coordinates
Divert route
Move the map
Info. on location
Select as destination
Select as sta
ge
Save this place (contacts)
Quit map mode
Guidance criteria
Put call on hold
DTMF rin
g tones
Han
g up1
1
1
1
1
1
1
1
2
2
2
2
2
1
2
2
2
1
1
1
1
1
1
Page 240 of 316
238
05
2 1
1
2
3

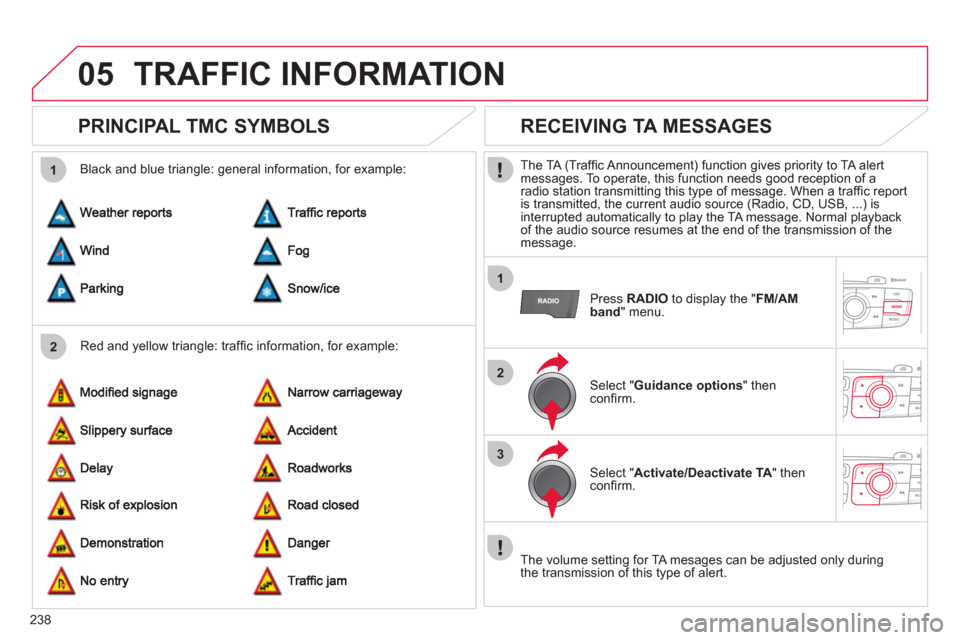

TRAFFIC INFORMATION
PRINCIPAL TMC SYMBOLS
Red and yellow triangle: traffi c information, for example:
Black and blue trian
gle: general information, for example:
RECEIVING TA MESSAGES
The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report
is transmitted, the current audio source (Radio, CD, USB, ...) isinterrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.
Press RADIO
to display the "FM/AMband " menu.
Select " Guidance options
" then confi rm.
Select " Activate/Deactivate TA
" then confi rm.
The volume settin
g for TA mesages can be adjusted only during
the transmission of this type of alert.
