2011 Citroen C4 RHD ECO mode

Your vehicle is fi tted with only some of the
equipment described in this document,
depending on the trim level, version and the
specifi cations for the country in which it is
sold.
The fi tting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of your
vehicle's electronic system. Please note this
specifi c warning and contact a CITROËN
dealer to be shown the recommended
equipment and accessories.
CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.


Happy motoring!

Key

safety warning We draw your attention to the following...


contributes to the protection of the environment


programming a function with the
confi guration menu
At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.
additional information

refer to the page indicated

CONTENTS
3
Direction indicators 126Hazard warning lamps 126Horn 126Tyre under-infl ation detection 127Braking assistance systems 128Trajectory control systems 129Emergency or assistance call 130Front seat belts 131Airbags 134
8 - SAFETY 126 Î137
Electric parking brake 138Manual parking brake 145Manual gearbox 145Gear effi ciency indicator 1466-speed electronic gearbox system 147Automatic gearbox 150Hill start assist 153Stop & Start 154
Blind spot sensors 157Speed limiter 161Cruise control 163Parking space sensors 165Parking sensors 167
9 - DRIVING 138 Î168
Bonnet 170Running out of fuel (Diesel) 171Petrol engines 172Diesel engines 173Checking levels 174Checks 176
10 - CHECKS 169Î 177
Temporary puncture repair kit 178Changing a wheel 183Changing a bulb 187Changing a fuse 193Battery 197Energy economy mode 199Changing a wiper blade 200Very cold climate screen 200Towing the vehicle 201Towing a trailer 203Audio pre-equipment 204Accessories 205
11 - PRACTICAL
INFORMATION 178Î 206
Petrol engines 207Petrol weights 209Diesel engines 211Diesel weights 212Dimensions 213Identifi cation markings 214
12 - TECHNICAL DATA 207 Î214
Emergency or assistance 215eMyWay 217Audio system 269
AUDIO and TELEMATICS 215 Î302
ALPHABETICAL
INDEX 307Î 310
VISUAL
SEARCH 303Î 306

16

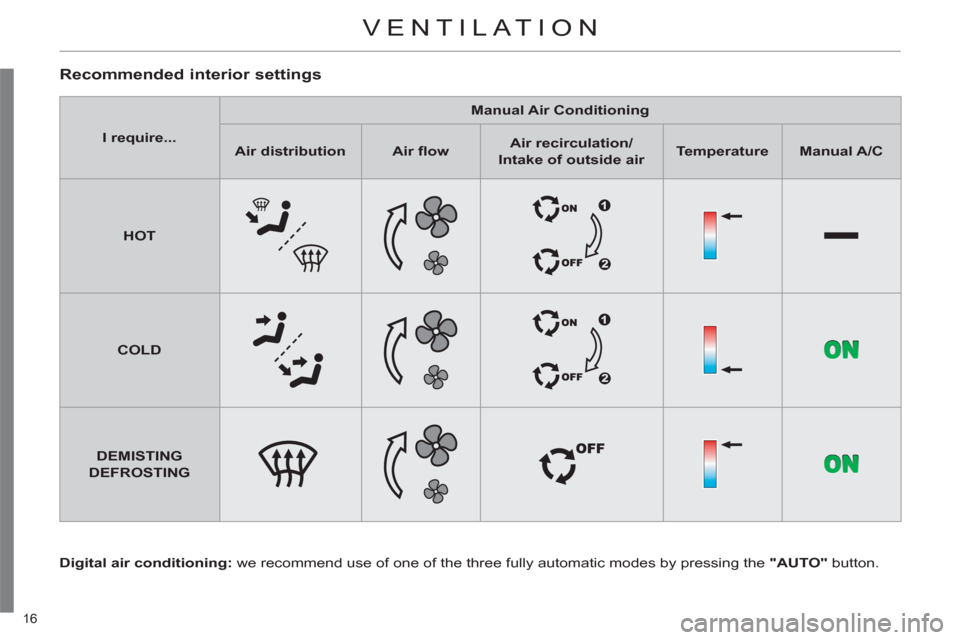

Digital air conditioning:
we recommend use of one of the three fully automatic modes by pressing the "AUTO"
button.

I require...



Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation/


Intake of outside air



Temperature



Manual A/C




HOT







COLD






DEMISTING


DEFROSTING





Recommended interior settings

VENTILATION

23
FAMILIARISATION
DRIVING SAFELY

Stop & Start


Engine going into STOP mode
Engine going into START mode
Deactivation/Reactivation
In certain circumstances the STOP
mode may not be available; the "ECO"

warning lamp fl ashes for a few seconds
then goes off.

- with a manual gearbox;
at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal,

- with the 6-speed electronic gear-
box system;
at speeds below
5 mph (8 km/h), when you press the
brake pedal or you put the gear le-
ver in position N
.



154


- with a manual gearbox;
when you
depress the clutch pedal,

- with the 6-speed electronic gear-
box system;



●
with the gear lever in position A

or M
, when you release the brake
pedal,

●
or gear lever in position N
and
brake pedal released, when you
change to position A
or M
,

●
or engage reverse.

In certain circumstances, START mode
may engage automatically; the "ECO"

warning lamp fl ashes then goes off.



155
You can deactivate the system at any
time by pressing the "ECO OFF"
button;
the button’s warning lamp comes on.



155

The "ECO"
warning lamp goes
off and the engine restarts: The "ECO"
warning lamp comes
on in the instrument panel and the
engine is put into standby:
The system is reactivated auto-
matically every time you start the
engine with the key.

Before refuelling or doing any-
thing under the bonnet, you
must switch off the ignition with
the key.

25
FAMILIARISATION
DRIVING SAFELY

Speed limiter "LIMIT"
Cruise control "CRUISE" Display in the instrument panel


Cruise control

1.
Limiter mode On/Off.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Speed limiter On/Off.

5.
Display the list of memorised
speeds.

160




161


1.
Cruise control mode On/Off.

2.
Programme a speed/Decrease the
programmed value.

3.
Programme a speed/Increase the
programmed value.

4.
Cruise control Off/Resume.

5.
Display the list of memorised
speeds.

160




163
The cruise control or speed limiter
mode appears in the instrument panel
when it is selected.
The values must be set with the engine
running.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on a manual gearbox
(second gear for the 6-speed electronic
gearbox system or automatic gearbox).

Speed limiter

1
MONITORING
27
TWO-TONE INSTRUMENT PANEL WITHOUT AUDIO SYSTEM

Dials and screens



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear effi ciency indicator with manu-
al gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.
Cruise control or speed limiter setting.

4.
Digital speedometer (mph or km/h).

5.
Engine oil level indicator.
6.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

7.
Trip mileage recorder (miles or km).

8.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).

9.
Time.

Control buttons



A.
Lighting dimmer (available in night
mode).

B.
Reminder of servicing information.
Reset service indicator or trip mileage
recorder.

A
and B.
Setting the time and selecting
units.

1
28












TWO-TONE INSTRUMENT PANEL WITH AUDIO SYSTEM

Dials and screens



A.
Lighting dimmer (available in night
mode).

B.
Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.

7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

8.
Trip mileage recorder (miles or km).

9.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).

10.
Range (miles or km).

Control buttons



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear effi ciency indicator for manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.

Analogue speedometer (mph or km/h).


4.
Cruise control or speed limiter setting.

5.
Digital speedometer (mph or km/h).

6.
Engine oil level indicator.

1
29












CUSTOMISABLE COLOUR INSTRUMENT PANEL WITH AUDIO SYSTEM



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear effi ciency indicator with man-
ual gearbox or gear lever position
and gear for the electronic gearbox
system or automatic gearbox.

3.

Analogue speedometer (mph or km/h).


4.
Cruise control or speed limiter setting.

5.
Digital speedometer (mph or km/h).

A.
Dial COLOUR: customisation of the
background colour of the dials.

B.
Screen COLOUR: customisation
of the background colour of the
screens.

C.
Lighting dimmer (available in night
mode).

D.
Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.



Dials and screens


6.
Engine oil level indicator.

7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making an adjustment).

8.
Trip mileage recorder (miles or km).

9.
Fuel gauge and associated low fuel
level warning lamp.

10.
Range (miles or km).

Control buttons
