Monitoring
20
Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel, this confirms that the corresponding system has come into operation.
Warning/indicator lamp
State
Cause
Action/Observations
Left-hand
direction indicato
r
Flashing with audible
signal. The lighting stalk is pushed down.
Right-hand
direction indicator
Flashing with audible
signal. The lighting stalk is pushed up.
Hazard warning
lamps
Flashing with audible
signal. The hazard warning lamps switch,
located on the dashboard, has been
operated. The left-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.
Sidelamps
and/
or dipped beam
headlamps
On fixed. The sidelamps and/or dipped beam
headlamps are on.
Front foglamps
On fixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.
Rear foglamp
On fixed. The rear foglamp is switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamp.
Main beam
headlamps
On fixed. The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Page 24 of 164
Monitoring
22
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal.
Warning/indicator lamp
State
Cause
Action/Observations
Passenger's
airbag system
On fixed, on the
centre console. The control switch, located in the
glove box, is set to the OFF
position.
The passenger's front airbag is
deactivated. Set the control switch to the ON
position to activate
the passenger's front airbag. In this case, do not fit a
child seat in the rear-facing position.
Remember to check the state of the control switch
before starting your vehicle.
ESP/ASR
On fixed. The ESP/ASR off switch, located
in the dashboard (driver’s side) is
activated.
The ESP/ASR is deactivated.
ESP: electronic stability programme
ASR: anti-slip regulation. Press the button to activate the ESP/ASR.
The ESP/ASR system is automatically activated on
starting the vehicle.
Page 39 of 164
2
i
Access
37
Charging fl aps
)
Pull control A
locate at the bottom of the
dashboard, driver's side, to release the
charging flap,
)
open the flap on the right of the vehicle,
)
press latch B
to open the socket cover.
Normal charging
)
Pull control C
located alongside the driver’s
seat, outer side, to release the flap,
)
open the flap on the left of the vehicle,
)
press latch D
to open the socket cover.
Fast charging
For more information on charging
procedures, refer to the "Practical
information" section of this document.
Page 41 of 164
3
!
Comfort
39
Head restraint height adjustment
)
To raise it, pull upwards.
)
To lower it, push it downwards, pressing
the height adjustment button at the same
time.
)
To remove it, raise it to the high position,
then remove it pressing the height
adjustment button at the same time.
)
To refit it, engage the rods of the head
restraint in the aper tures, pressing the
height adjustment button at the same time. Never drive with the removed head
restraints in the vehicle as they could
be thrown around the vehicle on sharp
braking. They must always be in place
and adjusted correctly.
After installing the head restraint, check
that the height adjustment button has
engaged correctly.
The adjustment is correct when the top
of the head restraint is aligned with the
top of the head of the seated person.
Press the control switch, located on the
dashboard, to switch on the driver's seat
heating.
The warning lamp in the switch comes on.
The temperature is controlled automatically.
Pressing a second time stops operation.
Heated seat control
Page 53 of 164
3
i
Comfort
51
)
Switch off the demisting/defrosting
of the rear screen and door mirrors
as soon as appropriate, so as to
limit electrical consumption and
optimise the range of the vehicle.
Front Demist -
Defrost
Rear screen demist - defrost
The control button is located on the dashboard, to the right of the steering wheel.
)
Press this button to demist /
defrost the rear screen and
(depending on version) the
door mirrors. The indicator
lamp associated with the button
comes on.
Place the air distribution control in
this position.
Switching on
Switching off
The demisting/defrosting switches off
automatically to prevent an excessive electric
consumption.
)
It is possible to stop the demisting/
defrosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated with
the button goes off.
For rapid demisting - defrosting, you
can also press the " MAX
" button. The air conditioning star ts (indicator lamp on)
and exterior air intake is selected (indicator
lamp off).
Place the temperature control
between "●" and " H
".
Place the air flow control in the
desired position.
Front demisting-defrosting can be used as
soon as the "Ready" lamp is on.
Rear screen demisting/defrosting can only
operate when the "Ready" lamp is on.
Page 74 of 164
!
Safety
72
Anti-slip regulation (ASR)
and electronic stability
programme (ESP)
Trajectory control systems
Deactivation
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground, ...), it may be advisable to deactivate
the ASR and ESP systems, so that the wheels
can move freely and regain grip.
)
Press this button button, located on the
dashboard to the right of the steering
wheel, until the corresponding symbol
appears in the instrument panel screen.
Activation
These systems are activated automatically
each time the vehicle is star ted.
They come into operation in the event of a grip
or trajectory problem.
The display of this symbol indicates
that the ASR and ESP systems are
deactivated.
Reactivation
These systems are not reactivated
automatically.
)
Press this button again to reactivate them
manually.
The symbol going off in the instrument panel
indicates the reactivation of the ASR and ESP
systems.
The anti-slip regulation (also known as Traction
Control) optimises traction to prevent skidding
of the wheels, by acting on the brakes of the
driving wheels and on the engine.
The electronic stability programme acts on the
brake of one or more wheels and on the engine
to keep the vehicle on the trajectory required
by the driver, within the limits of the laws of
physics.
This is indicated by flashing of this
warning lamp in the instrument panel.
The ASR /ESP systems offer
exceptional safety in normal driving, but
this should not encourage the driver to
take extra risks or drive at high speed.
The correct functioning of these
systems depends on obser vation of
the manufacturer’s recommendations
regarding the wheels (tyres and rims),
the braking components, the electronic
components and the assembly
and repair procedures used by the
CITROËN dealer network.
After an impact, have these systems
checked by a CITROËN dealer or a
qualified workshop.
Operating fault
The display of this message
in the instrument panel
indicates a malfunction of
these systems.
Contact a CITROËN dealer or a qualified
workshop to have the ASR /ESP systems checked.
Page 78 of 164
i
!
Safety
76
Airbags
The airbags have been designed to maximise
the safety of the occupants in the event of
violent collisions. They supplement the action
of the force-limiting seat belts.
In this case, the electronic detectors record and
analyse the front and side impacts suffered in
the impact detection zones:
- in the event of a serious impact, the airbags
are deployed instantaneously and protect
the occupants of the vehicle; immediately
after the impact, the airbags deflate rapidly
so that they do not hinder the visibility of
the occupants or their possible exit from
the vehicle,
- in the event of a minor impact or rear
impact and in cer tain roll-over conditions,
the airbags will not be deployed; the seat
belt alone is sufficient to provide maximum
protection in these situations.
The airbags do not operate when the
ignition is off.
This equipment only operates once. If a
second impact occurs (during the same
or a subsequent accident), the airbag
will not operate. The deployment of one or more airbags
is accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic car tridge
incorporated in the system.
This smoke is not harmful, but sensitive
individuals may experience some
irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.
Impact detection zones
A.
Front impact zone.
B.
Side impact zone.
Front airbags
Deployment
The airbags are deployed simultaneously,
unless the passenger's front airbag is
deactivated, in the event of a serious front
impact applied to all or par t of the front impact
zone A
, in the longitudinal centreline of the
vehicle on a horizontal plane and directed from
the front to the rear of the vehicle.
The front airbag inflates between the front
occupant of the vehicle and the dashboard to
cushion their for ward movement. System which protects the head and chest of
the driver and front passenger in the event of a
front impact.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.
Page 81 of 164

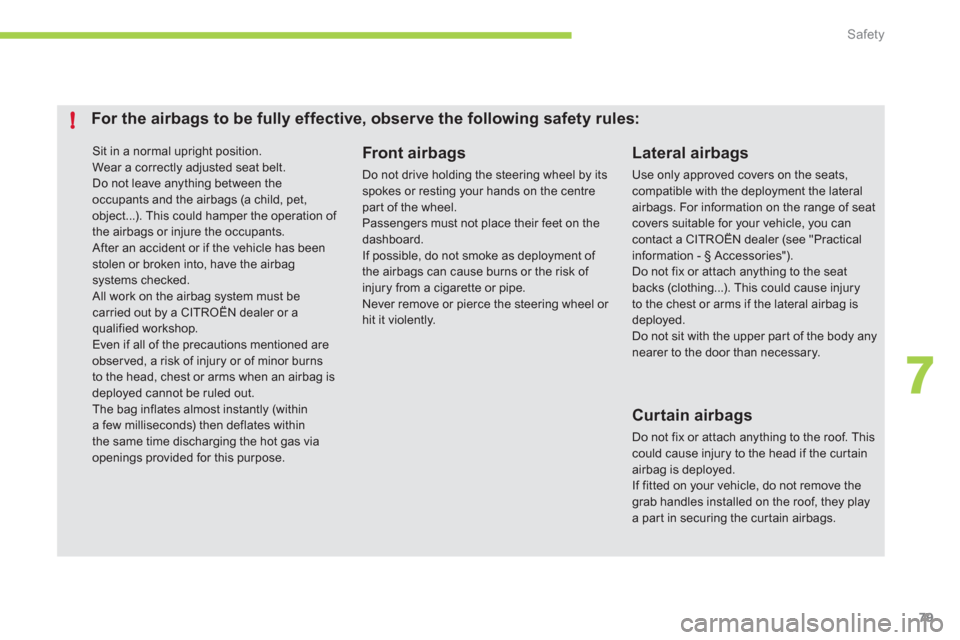

7
!
Safety
79
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...). This could hamper the operation of
the airbags or injure the occupants.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualified workshop.
Even if all of the precautions mentioned are
obser ved, a risk of injury or of minor burns
to the head, chest or arms when an airbag is
deployed cannot be ruled out.
The bag inflates almost instantly (within
a few milliseconds) then deflates within
the same time discharging the hot gas via
openings provided for this purpose.
Lateral airbags
Use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a CITROËN dealer (see "Practical
information - § Accessories").
Do not fix or attach anything to the seat
backs (clothing...). This could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper par t of the body any
nearer to the door than necessary.
Front airbags
Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
If possible, do not smoke as deployment of
the airbags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.
Curtain airbags
Do not fix or attach anything to the roof. This
could cause injury to the head if the cur tain
airbag is deployed.
If fitted on your vehicle, do not remove the
grab handles installed on the roof, they play
a par t in securing the cur tain airbags.
For the airbags to be fully effective, observe the following safety rules:
