Instruments and Controls 5-7
Instrument Cluster
English Automatic Transmission Shown, Metric and Manual Similar

Black plate (8,1)Chevrolet Camaro Owner Manual - 2011
5-8 Instruments and Controls
Speedometer
The speedometer shows the
vehicle's speed in either kilometers
per hour (km/h) or miles per
hour (mph).
Odometer
The odometer shows how far the
vehicle has been driven, in either
kilometers or miles.
This vehicle has a tamper-resistant
odometer. If the vehicle needs a
new odometer installed, the new
one is set to the mileage of the old
odometer. If this is not possible, it is
set at zero and a label is put on the
driver door to show the old mileage
reading.
Trip Odometer
The trip odometer shows how far
the vehicle has been driven since
the trip odometer was last set
to zero.
Set the odometer using the Driver
Information Center (DIC).
To set the trip odometer to zero,
press and hold the SET button
while the trip odometer display is
showing.
Tachometer
The tachometer displays the
engine speed in revolutions per
minute (rpm).
Fuel Gauge
English

Black plate (9,1)Chevrolet Camaro Owner Manual - 2011
Instruments and Controls 5-9

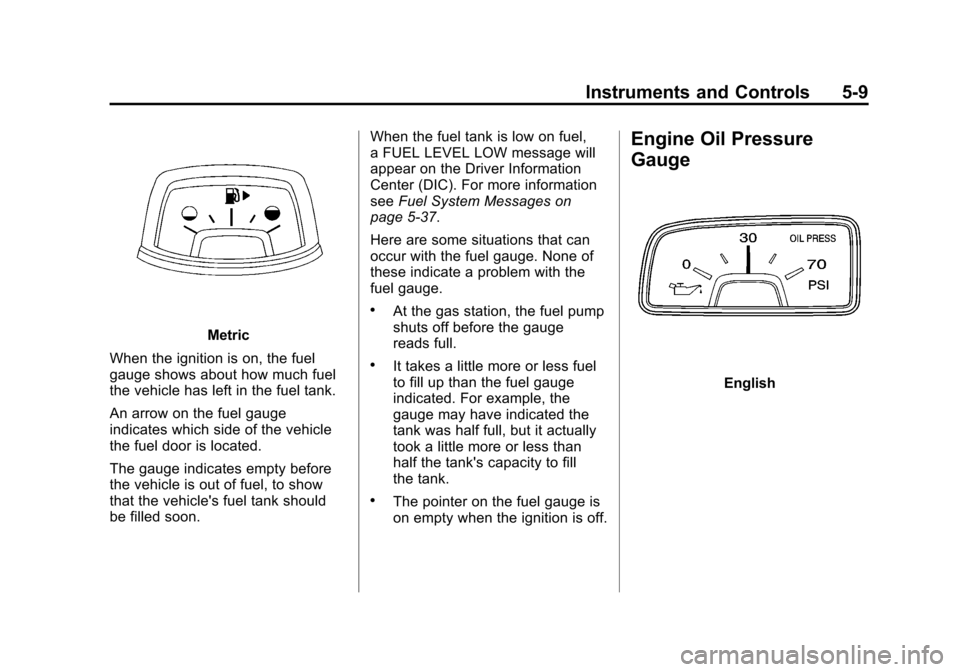

Metric
When the ignition is on, the fuel
gauge shows about how much fuel
the vehicle has left in the fuel tank.
An arrow on the fuel gauge
indicates which side of the vehicle
the fuel door is located.
The gauge indicates empty before
the vehicle is out of fuel, to show
that the vehicle's fuel tank should
be filled soon. When the fuel tank is low on fuel,
a FUEL LEVEL LOW message will
appear on the Driver Information
Center (DIC). For more information
see
Fuel System Messages on
page 5‑37.
Here are some situations that can
occur with the fuel gauge. None of
these indicate a problem with the
fuel gauge.
.At the gas station, the fuel pump
shuts off before the gauge
reads full.
.It takes a little more or less fuel
to fill up than the fuel gauge
indicated. For example, the
gauge may have indicated the
tank was half full, but it actually
took a little more or less than
half the tank's capacity to fill
the tank.
.The pointer on the fuel gauge is
on empty when the ignition is off.
Engine Oil Pressure
Gauge
English

Black plate (10,1)Chevrolet Camaro Owner Manual - 2011
5-10 Instruments and Controls
Metric
For vehicles with the oil pressure
gauge, it is located in front of the
shifter, and shows the engine oil
pressure in kPa (kilopascals) or
psi (pounds per square inch) when
the engine is running. Oil pressure may vary with engine
speed, outside temperature and
oil viscosity, but readings above
the low pressure zone indicate
the normal operating range. When
the oil pressure reaches the low
pressure zone, a message appears
in the Driver Information Center
(DIC). See
Engine Oil Messages on
page 5‑36 andEngine Oil on
page 10‑10 for more information.{WARNING
Do not keep driving if the oil
pressure is low. The engine can
become so hot that it catches
fire. Someone could be burned.
Check the oil as soon as possible
and have the vehicle serviced. Notice:
Lack of proper engine
oil maintenance can damage the
engine. The repairs would not be
covered by the vehicle warranty.
Always follow the maintenance
schedule for changing engine oil.
A reading in the low pressure zone
can be caused by a dangerously
low oil level or some other problem
causing low oil pressure. Check the
oil as soon as possible.

Black plate (11,1)Chevrolet Camaro Owner Manual - 2011
Instruments and Controls 5-11
Engine Oil Temperature
Gauge
English
Metric
For vehicles with this gauge, it is
located in front of the shifter, and
shows the engine oil temperature.
If the gauge pointer moves into the
red area, it means that the engine
oil has overheated. If the vehicle
has been operated under normal
driving conditions, pull off the road,
stop the vehicle and turn off the
engine as soon as possible.
See Engine Oil on page 10‑10 for
more information.
Engine Coolant
Temperature Gauge
English

Black plate (12,1)Chevrolet Camaro Owner Manual - 2011
5-12 Instruments and Controls
Metric
This gauge shows the engine
coolant temperature. If the gauge pointer moves towards
the H or shaded icon, the engine is
too hot.
This reading indicates the same
thing as the warning message.
It means that the engine coolant
has overheated. If the vehicle has
been operating under normal driving
conditions, pull off the road, stop
the vehicle, and turn off the engine
as soon as possible. See
Engine
Overheating on page 10‑25 for
more information.
Transmission
Temperature Gauge
English

Black plate (13,1)Chevrolet Camaro Owner Manual - 2011
Instruments and Controls 5-13
Metric
For vehicles with this gauge,
it is located in front of the shifter,
and shows the transmission oil
temperature when the ignition is on. If the gauge is reading in the red
area and/or a message appears
in the DIC, the vehicle must be
stopped and the cause checked.
One possible cause is a low fluid
level in the transmission.
For information on the DIC
messages see
Transmission
Messages on page 5‑40.
Notice: If the vehicle is
driven with the transmission
temperature gauge above the
normal operating range, the
transmission can be damaged.
This could lead to costly repairs
that would not be covered by
the vehicle warranty. Do not drive
the vehicle while the transmission
temperature gauge reading is
above normal. See your dealer
for service.
Voltmeter Gauge
English Shown, Metric Similar
For vehicles with this gauge, it is
located in front of the shifter, and
shows the battery's state of charge
in DC volts.

Black plate (14,1)Chevrolet Camaro Owner Manual - 2011
5-14 Instruments and Controls
When the engine is running,
and the ignition is on, this gauge
shows the condition of the charging
system. The vehicle's charging
system regulates voltage based on
the state of charge of the battery.
It is normal for the voltmeter to
fluctuate. Readings between the
low and high warning zones indicate
the normal operating range.
Readings in the low warning zone
can occur when a large number of
electrical accessories are operating
in the vehicle and the engine is left
idling for an extended period.If there is a problem with the
battery charging system, a message
appears in the Driver Information
Center (DIC) and/or the charging
system light comes on. See
Battery
Voltage and Charging Messages on
page 5‑34 andCharging System
Light on page 5‑17 for more
information.
However, readings in either warning
zone can indicate a possible
problem in the electrical system.
Have the vehicle serviced as soon
as possible.Safety Belt Reminders
Driver Safety Belt Reminder
Light
There is a driver safety belt
reminder light on the instrument
panel cluster.
When the engine is started this
light and a chime come on and stay
on for several seconds to remind
drivers to fasten their safety belts.
The light also begins to flash.
This cycle repeats if the driver
remains unbuckled and the vehicle
is moving.
