150 Intelligent te chn olog y
Noises from the b rake system signal that
wheel spin is being controlled.
Driving off
When drivi ng off, a lways be sure to keep road
conditions in mind as you accelerate. If one
d rive wheel spi ns because it is on a surface
with less grip, gradua lly increase the press ure
on the accelerator pedal until the car starts to
move. The wheel less able to transfer power
spins.
O verheating of bra kes
To prevent the disc brake of the braked wheel
from overheating if subjected to excessive
loads, the EDL cuts out temporarily. The vehi­
cle rema ins operationa l and behaves in the
same way as a vehicle without EDL.
As soon as the brake has cooled down, EDL
switches on again automatically .
A WARNING
-When accelerating on slippery surfaces,
such as on ice or snow, always be careful
when depressing the acce lerator pedal.
Even with the EDL working, the drive
wheels can spin and reduce yo ur ability
to contro l your car. -Risk of crash!
- The increased safety afforded by EDL
does not mean that you can ta ke safety
risks. Always adapt your dr iving sty le to
the road conditions and traff ic situa tion.
@ Tips
If a fa ult occurs in the ABS, the EDL is also
not f unct ion ing. This is indicated by the
ABS warning light ¢
page 17.
Anti-Slip Regulation System (ASR)
The Anti-Slip Regulation System prevents the
driven wheels from spinning wh en the car is
accelerating.
General notes
The Anti-Slip Regulation System (ASR) is inte­
grated in the electronic stabilization program
(ESP). When th e vehicle starts up and acceler- ates, the whee
ls are prevented from spinning
by adjusting the engine power to match the
amount of grip available from the road sur­
face.
How the system works
ASR pe rforms a utomat ica lly, i.e . w ithout t he
driver's intervention. With the aid of the ABS
sensors ¢
page 153, ASR monitors t he speed
of the dr iven whee ls . If the whee ls start to
spin, the engine torq ue is reduced automati­
cally until the tires find enough gr ip to lock
onto the road surface . The system is active
across the ent ire speed range .
The ASR works in conjunction with the ABS. If
a malfunction should occur in the ABS, the
ASR w ill also be out of act io n.
@ Tips
To ensure that the ASR works properly, all
four whee ls must be fitted wit h ident ica l
tires . Any differences in ro lling radius of
the tires can cause the system to reduce
engine power wh en this is not desired. See
a lso
¢ page 205, New tires and repla cing
tires and wheels.
Rear spoiler
The rear spoiler improves vehicle handling
and enhances driver control .
Fig. 131 Switc h fo r rear spo iler
The rear spoiler deploys and retracts. Spoiler
operation can be set for automat ic or manual
operation .

Energy management
Starting ability is optimized
Energy management controls the distribution
of electrical energy and thus optimizes the
availability of electrical energy for starting the engine .
If a vehicle with a conventional energy system
is not driven for a long period of time, the bat­
tery is discharged by idling current consumers
(e.g. immobilizer). In ce rtain c ircumstances it
can result in there being insuff icient ene rgy
avai lab le to start the engine .
Intell igent energy management in your vehi­
cle handles the d istribution of electrical ener­
gy. Starting ab il ity is markedly imp roved and
the life of the battery is extended .
Basically, energy management consists of
batt ery diagno sis, idlin g current man ag e­
m ent
and dyn ami c en ergy manag emen t.
Batter y diagnosis
Battery diagnosis continuously determines
the state of the battery . Sensors determ ine
battery vo ltage, battery current and battery
temperature. This determ ines the current
state of charge and the powe r of the battery.
Idling curr ent man agement
Idling current management reduces energy
consumption while the vehicle is stand ing .
W ith the ignition switched off, it cont ro ls the
energy s upply to the various electr ical compo ­
nents . Data from battery diagnosis is consid­
ered.
D epending on the batte ry's state of charge,
i nd ividua l consumers are gradual ly t urned off
to prevent excess ive d ischarge of the battery
and thus maintain starting capability .
Dynam ic en ergy management
While the vehicle is being driven, dynamic en­
e rgy management dist ributes the energy gen­
e rated according to the needs of the individu­
a l components.
It reg ulates cons umption, so
that more electrical energy is not being used
Int ellig ent technolog y 155
than is being generated and ensures an opti ­
mal state of charge for the battery.
(0 Tips
- But even energy management canno t
negate the limits of physics . Consider
that the power and life of a battery are
limited .
- If starting ability is threatened, you are
informed by a warning
r::!)poge 156,
Driver notification in the instrument
cluster display.
What you should know
The highest priority is given to maintaining
starting capability.
The battery is severe ly taxed in short -distance
driving, in city traffic and during the cold time
of year. Abundant electrical energy is re­ quired, but only a little is generated .
It is also
critical if the engine is not running and electri­
cal components are turned on . In this in­
stance energy is be ing consumed but none is
being generated.
It is in precisely these situations that you will
notice energy management actively regulat ­
ing the d istribution of energy .
Vehicle stands for an e xtended peri od
If you do not drive your vehicle over a period
of several days or weeks, e lectr ical compo­
nents are gradually cut back or switched off.
This reduces energy consumption and ma in ­
ta ins start ing capability over a longer period .
Take into considerat ion that when you unlock
your vehicle, some convenience functions, such as the remote key or power seat adjust­
ment, may not be available . The conven ience
funct ions w ill be available again when you
tu rn o n the ignition and start the engine .
With the engine turned off
If you listen to the radio, for example, w ith
the engine turned off, the battery is being d is-
charged.
~
•
•

186 Checking and filling
Before you check anything in the engine com­
partment,
alwa ys r ea d and heed all WARN­
INGS ¢ A in Working in the engine
comportment on page 178.
• Switch the ignition off .
• Read the coo lant level at the coolant expan­
s ion tank ¢
fig. 141 . With a co ld engine, it
must be above the "min" mark. W ith a hot
engine, it can be a little above the indicated
range.
The location of the coolant expansion tank
can be seen in the engine compartment illus­
tration .
To obtain an accurate reading , the engine
must be switched
off.
The expansion tank in you r vehicle is equipped
with an e lectric coolant level sensor .
When the coolant level is too low, the warning light in the Auto- Check System ¢
page 31 will
blink until you add coo lant and the level has
been restored to no rma l. Even though there is
an electric coolant level sen sor, we still rec­
ommend you check the coolant leve l from
time to time.
Coolant loss
Coolant loss may indicate a leak in the cooling
system . In the event of coolant loss, the cool­
ing system should be inspected immediately
by your authorized A udi dealer. It is not
enough merely to add coolant .
In a
sealed system, losses can occur only if
the boiling point of the coolant is exceeded as
a result of overheating.
@ Note
Do not add any type of ra diator leak seal­
ant to yo ur vehicle's eng ine coolant. Add ­
ing radiator repair f luid may adversely af­
fect the function and performance of your
cooling system and could result in damage
not covered by your New Vehicle Limited
Warranty.
Adding coolant
Be very careful when adding engine coolant.
Before you check anyth ing in the engine com­
partment,
always read and heed all WARN­
INGS ¢ A in Working in the engine comport­
ment on page 178 .
•Turnoff the engine.
• Let the eng ine cool down.
• Place a thick rag ove r the coolant expansion
tank
¢ page 185, fig . 141 and carefully
tw ist the cap counter-clockwise ¢&_ .
• Add coolant.
• Twis t the cap o n aga in
tightly.
Replacement engine coolant must conform to
exact spec ificat ions
¢ page 185, Coolant.
E ven in a n emerge ncy, if coo lant addi -
t ive G1 2++, G12+ or G12 is not ava ilable , do
not use a d ifferen t addit ive. Use plain water
instead unti l you can get the cor rect additive
and can restore the correct ratio . This sho uld
be done as soon as possible .
If you have los t a considerab le amo unt o f
coolant , then you sho uld add cold ant ifreeze
and co ld wate r on ly w hen the engine is cold.
Always use
new engine coo la nt whe n refilling .
Do not fill coola nt above the "MAX" mark. Ex­
cess coo la nt wi ll be fo rced o ut through the
pressure relief valve in t he cap w hen the en­
gine becomes hot.
,&. WARNING ~ -
- T he cooling system is under pressure and
can get very hot. Reduce the risk of
scalding from hot coolant by followi ng
these steps.
- T urn
off the engine and allow it to coo l
down.
- Protect you r face, hands and a rms from
esca ping fluid and steam by covering
the cap w ith a large, t hick rag.
- T urn the cap slowly a nd ve ry carefully
in a counter-clo ckwise direction while
applying light, downward pres sure on
the top o f the cap.

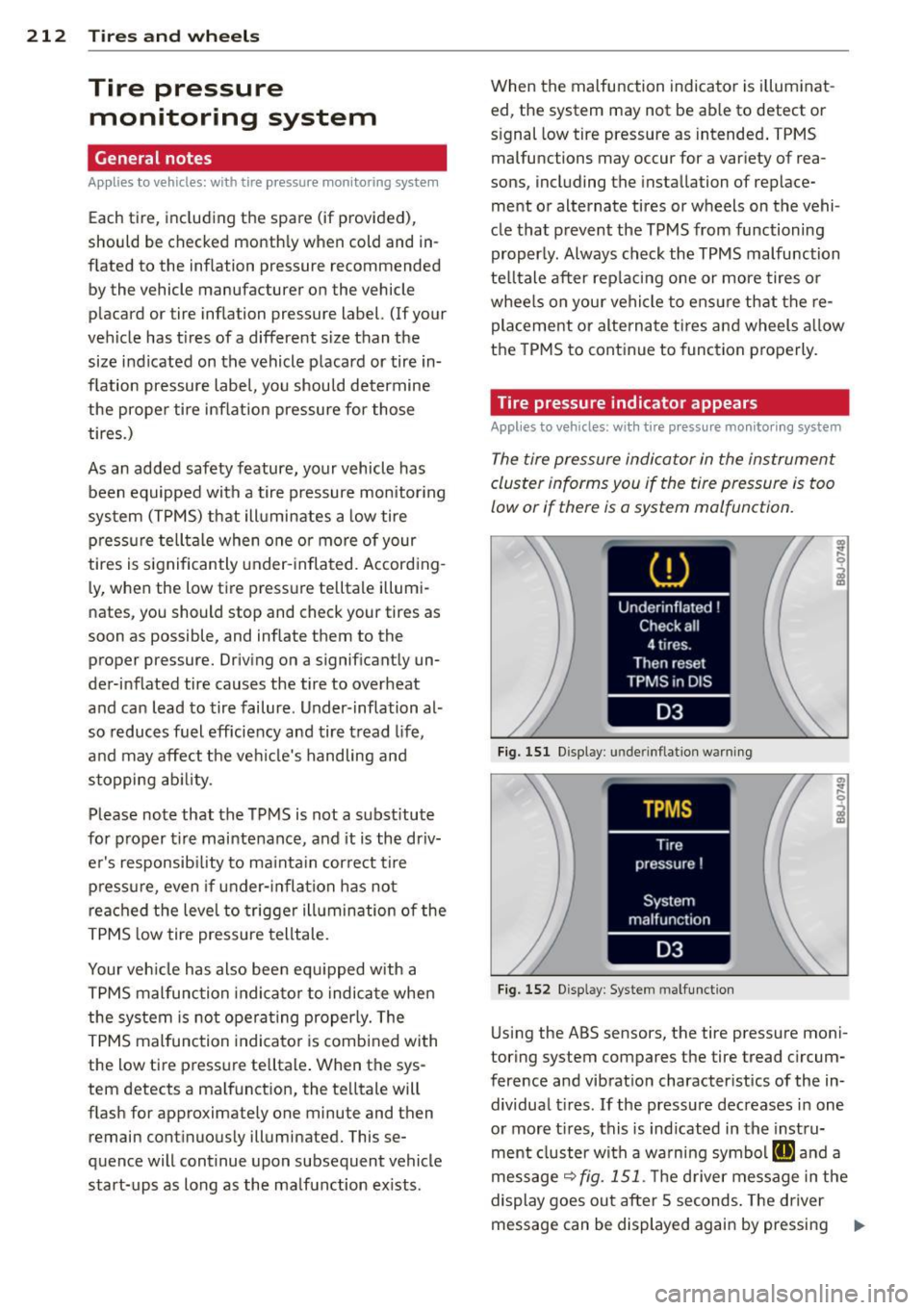

212 Tires and wheels
Tire pressure
monitoring system
General notes
Appl ies to vehicles: with tire pressure monitoring system
Each tire, including the spare (if provided),
should be checked monthly when cold and in­
f lated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has t ires of a different size than the
size indicated on the vehicle placard or tire in­
flation pressure label, you should determine
the proper tire inflation pressure for those
tires.)
As an added safety feature, your vehicle has
been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly under-inflated. According­
ly, when the low tire pressure telltale illumi­
nates, you should stop and check your tires as
soon as possible, and inflate them to the proper pressure. Driving on a significantly un­
der-inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation al­
so reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and
stopping ability.
Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driv­
er's responsib ility to ma inta in correct tire
pressure , even if under-inflation has not
reached the level to trigger illumination of the
TPMS low tire pressure telltale.
Your veh icle has also been equ ipped with a
TPMS malfunction indicato r to indicate when
the system is not operating properly. The
TPMS malfunction indicato r is combined with
the low tire pressure telltale. When the sys­
tem detects a malfunction, the telltale will
f lash for approximately one minute and then
remain continuously illuminated. This se­
quence will continue upon subsequent vehicle
start-ups as long as the ma lfunction exists. When the
malfunction indicator is illuminat­
ed, the system may not be ab le to detect or
s ignal low tire pressure as intended. TPMS
malfunctions may occur for a variety of rea­
sons, including the installation of replace­
ment or alternate tires or wheels on the vehi­
cle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ens ure that the re­
placement or alternate ti res and wheels allow
the TPMS to continue to function properly.
Tire pressure indicator appears
Applies to veh icles : w ith tire pressure monitoring system
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction.
Fig. 151 Display : underinflatio n warning
Fig. 152 Display: System malfunction
Using the ABS sensors, the tire pressure moni­
toring system compares the tire tread circum­
ference and vibration characteristics of the in­ dividual tires. If the pressure decreases in one
or more t ires, this is indicated in the instru­
ment cluster with a warning symbol
g and a
message
r=:> fig. 151. Th e driver message in the
display goes out after 5 seconds. The driver
message can be displayed again by pressing
11--

~ Use the hexagonal socket in the screwdriver
handle to screw in and tighten all wheel
bo lts
slightly .
~ Unscrew the alignment pin and insert and
t ighten the remaining wheel bolt s light ly
like the rest.
~ T urn the jack handle counter-clockw ise to
l ower the vehicle unti l the jack is fully re­
leased .
~ Use the whee l bolt w rench to t ighten al l
whee l bolts firmly <=>
page 222 . Tighten
them
crosswise, from one bolt to the (ap ­
proximate ly) opposite one, to keep the
whee l cente red.
Q;) Note
When removing or installing the wheel,
the rim could hit the brake rotor and dam­
age the rotor. Work carefully and have a
second person help you.
(D} Tips
Never use the hexagonal socket in the han­
dle of the screwdriver to loosen or t ighten
the wheel bolts .
- Pull the reversib le b lade from the screw­
driver before yo u use the hexagonal
socket in the handle to t urn the whee l
bo lts .
- When mounting tires with
unid irectional
tread design
make su re the tread pat­
te rn is poi nted the r ight way
<=> page 226.
- The wheel bolts should be clea n and easy
to tu rn . Check for d irt and corrosion on
the mat ing s urfaces of both the wheel
and the hub. Rem ove a ll dirt from these
su rfaces before rem ounting the wheel.
Notes on wheel change
Please read the information <=> page 205 , New
tires and replacing tires and wheels ,
if you are
going to use a spare t ire which is different
from the tires on your ve hicle.
Afte r you change a tire :
What do I do now? 225
-Check the tire pre ssure on the spare imme­
diately after mounting.
- Have the whe el bolt tightening torque
checked with a torque wrench as soon a s
possible by your authorized Audi dealer or
a qualified service station.
- With steel and alloy wheel rim s, the wheel
bolt s are cor rectly tightened at a torque of
90 ft lb (120 Nm ).
- If you noti ce while changing a tire that the
wheel bolts are corroded and difficult to
turn , then they should be replaced before
you check the tightening to rque.
- Replace the flat tire w ith a new one and
have it installed on your vehicle as soon as
possible. Remount the whee l co ver.
Until then , dr ive with extra care and at re­
duced speeds.
A WARNING
- If you are going to equ ip your vehicle
w it h tires o r rims which differ from those
which were factory installed, then be
sure to rea d the information
¢ page 205,
New tire s and replacing tires and
wheels.
- Always sto re the too ls secu rely in lug­
gage com partmen t. Othe rwise , in a n ac­
cident or s udden m aneuver they cou ld fly
forwa rd, causing inj ury to passengers in
the vehicle.
(D Note
D o not use comme rcially ava ilab le tire
se alants . Ot herwise, t he e lectr ic al c ompo­
nen ts of the tire pressu re monitoring sys ­
tem will no lo nger work p roperly and the
sensor fo r the tire pressure mon itor ing
system will have to be rep laced by a quali­
fied workshop. •
•

228 Fuses and bulbs
Fuse Location, Instrument Panel left
0
Fig. 172 Fuse ca rrier be hind the inst rum ent pan el end
fa ce, cover rem oved
Some of the equipment i tems lis ted are op­
tional or only available on certain model con ­
figurations.
Note that the following table is accurate at
the time of going to press and is subject to
change. In the event of discrepancies, the la­
bel on the inside of the cover always takes
precedence.
The power seats are protected by circuit
breakers,
which automatically reset after a
few seconds after the overload has been rem­
edied .
No. Equipment
1
I 2
Engine relay, fuel tank control
unit , Airbag Off light, light
switch (switch illumination), di-
agnostic connector
ABS, ASR, ESP, brake light switch
3 AFS headlight (left)
Amps
10
5
s
No.
4
5
6
7
Equipment
Oil level sensor (extended main-
tenance interval)
(WIV), tire
pressure monitoring system,
switch for Electronic Stability Program (ESP), AFS headlights
(control unit), A/C system (pres-
sure sensor), backup light
switch
Automatic headlight range con­
trol, AFS headlight (right)/
manual headlight range con­
trol, halogen headlights
Control unit for CAN data trans­
fer (gateway), electromechani­
cal steering, automatic trans­ mission shift gate
Acoustic Park Assist, automatic
dipping interior rear
view mir-
ror, garage door opener, heata­
ble windshield washer nozzles,
washer pump, wind deflector
relay (Roadster)
--r-
Amps
5
5/10
5
5
8 Haldex clutch 5
9 Control unit Audi magnetic ride 5
10 Airbag control unit 5
Mass airflow sensor, crankcase
11 5/10
heating
Door control unit (central lock-
12 10
ing driver/passenger)
--
13 Diagnostic connector 10
Rain sensor, automatic trans-
14 5
mission shift gate
15 Roof light (interior lighting) 5
16 A/C system (control unit) 10
17 Tire pressure monitoring sys-
5
tern (control unit)
l
I
18 Notused -
19 Not used
20 Not used
21 Fuel injectors (gasoline engine)
Wind deflector (Roadster)
Horn
24 Transmission (control unit) 10
30
20
15
..,.

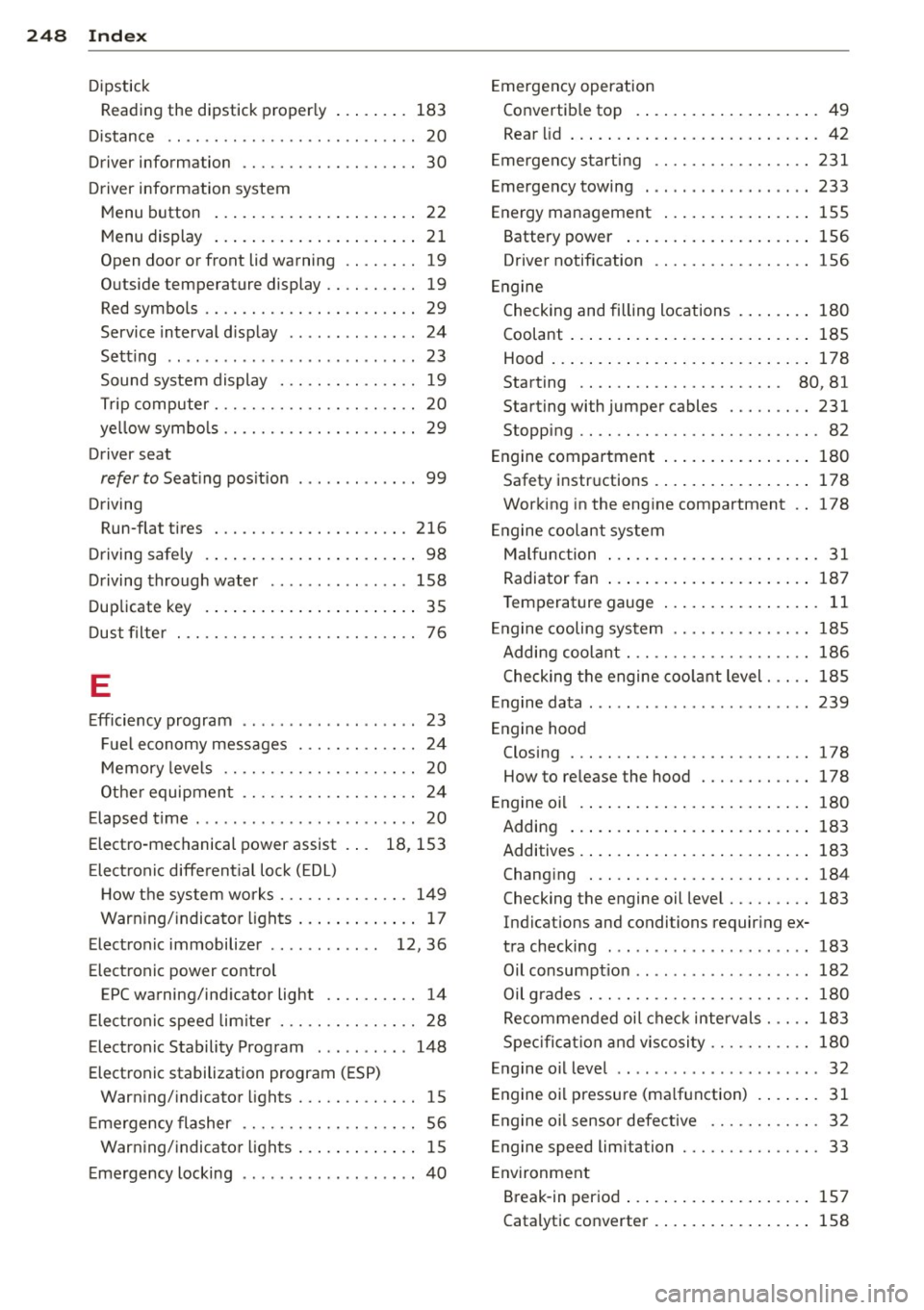

248 Index
Dipstick
Reading the dipstick prop erly ..... .. . 183
Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Driver information . . . . . . . . . . . . . . . . . . . 30
Dr iver info rmation system
M enu button . . . . . . . . . . . . . . . . . . . . . . 22
M enu display .............. .. .... .. 21
Open door or front lid warning .. .... .. 19
Outside temperature display .. .. .. .... 19
Red symbols ....................... 29
Service interval d isplay ......... ..... 24
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Sound system display ..... .. .. .. .. . . 19
Trip computer . . . . . . . . . . . . . . . . . . . . . . 20
ye llow symbo ls ........... .... .... .. 29
Driver seat
refer to Seat ing pos ition ........ ..... 99
Driving Run-flat tires ............ .. .. .... . 216
Driving saf ely . . . . . . . . . . . . . . . . . . . . . . . 98
Driving through water ....... .... .... 158
Duplicate key .............. ... .... .. 35
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . 76
E
Efficiency program . . . . . . . . . . . . . . . . . . . 23
Fu el economy messages . . . . . . . . . . . . . 24
Memory levels . . . . . . . . . . . . . . . . . . . . . 20
Other equipmen t . . . . . . . . . . . . . . . . . . . 24
Elapsed time . . . . . . . . . . . . . . . . . . . . . . . . 20
Electro-mechanical power assist . . . 18, 153
El ect ronic different ial lock (EDL)
How the system works ..... .. .. .. .. . 149
Warning/indicator lights ....... .... .. 17
E lect ronic immobilizer . . . . . . . . . . . . 12, 36
Electronic power control
EPC warning/indicator light .. .. .. .... 14
El ect ronic speed limiter . . . . . . . . . . . . . . . 28
Electronic Stability Program ...... .... 148
Electronic stabilization program (ESP) Warning/indicator lights ... .. .. .... .. 15
Emergency flasher . . . . . . . . . . . . . . . . . . . 56
Warning/indicator lights ....... .... . . 15
Emer gency locking . . . . . . . . . . . . . . . . . . . 40 Emergency
operation
Convertible top .. .................. 49
Rear lid ... .. .. .. .. .............. .. 42
Emergency starting ............. .. .. 231
Emergency towing . ................ . 233
Energy management ................ 155
Battery power ... ................. 156
Driver notification ................. 156
Engine Check ing and filling locations ..... ... 180
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Hood ......... .. .. .............. . 178
Starting . . . . . . . . . . . . . . . . . . . . . . 80, 81
Starting with jumper cables ..... .... 231
Stopping .. .. .. .. .. ........... .... . 82
Eng ine compartment . . . . . . . . . . . . . . . . 180
Safety instructions ................ . 178
Working in the engine compartment 178
Engine coolant system
Malfunction ... .. .................. 31
Radiator fan ..... ................. 187
T em perature gauge ............ .... . 11
Engine cooling system . . . . . . . . . . . . . . . 185
Adding coolant . .. ............. .. .. 186
Checking the engine coolant level ... .. 185
Engine data ..... ................... 239
Engine hood Closing ... .... ................... 178
How to release the hood ............ 178
Engin e oil . ..... .. .. .............. . 180
Adding ....... .. ............. .... 183
Additives . ..... .. .. .............. . 183
Changing . .... .. ............. .... 184
Checking the engine oil level ..... .... 183
Indications and conditions requiring ex-
tra checking ..... ................ . 183
Oil consumpt io n .. .. ..... ........ .. 182
Oil grades . .. .. .. ............. .. .. 180
Recommended oil check intervals ... .. 183
Specification and viscosity ........... 180
Engine oil level . . . . . . . . . . . . . . . . . . . . . . 32
Engine oil pressure (malfunction) ... ... . 31
Engine oil sensor defective . . . . . . . . . . . . 32
Engine speed limitation .............. . 33
Environm ent
Break-in period ... ............. .... 157
Catalytic converter ................ . 158

250 Index
Washer system . . . . . . . . . . . . . . . . . . . . . 62
Xenon headlights . . . . . . . . . . . . . . . . . . . 53
H ead restraints . ........... .... .... . 101
Adjusting .. ............. .. .. .. .. . 101
Heated front seats (climate control) . . . . . . . . . .
79
rear window . . . . . . . . . . . . . . . . . . . . . . . 79
Heated outside mirrors ..... .... .... .. 59
Heated seats . . . . . . . . . . . . . . . . . . . . . . . .
79
Heated washer jets
W iper and washer system .. .. .. .. .. . . 60
Heating ... .. ................ ..... .. 75
H igh beam . . . . . . . . . . . . . . . . . . . . . . 53, 55
Warn ing/ indicator l ights . .. .... .. .. .. 15
High voltage warn ing label ...... .. .. . 237
Hill Descent Assist .......... ... .... ..
90
H omeLink ® universal remote control . . . . 94
Hood
Opening . .. ..... ........... ... .. . 178
Release lever .. .... ...... .. .. .. .. . 178
Horn .. ... .................. ..... .. .
8
H ow many airbags does my vehicle have? 121
How often should I check my tire pres-
sures? .. .. .. ................ ... ... 201
How safety belt pretensioners work ... . 113
H ydroplaning 204
I
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . 80
Ignition key safety lock ..... .. .. .... .. 81
I gnition lock . . . . . . . . . . . . . . . . . . . . . . . . 80
Ignition lock pos itions . . . . . . . . . . . . . . . . 80
Immobilizer ................ .. .... .. 12
Important things to do before driving . . . 98
Improperly worn safety belts . .. .. .. .. . 112
I ndicator light
Airbag system . . . . . . . . . . . . . . . 125, 126
Audi magnetic ride ......... ... .... .. 14
C lutch overheating . . . . . . . . . . . . . . . . . . 92
PASSENGER AIR BAG OFF .. .... .... . 126
I ndicator lights ............ .. .. .. .. .. 13
Red symbols in the center disp lay .... . . 29
Ye llow symbols in the center disp lay ... 29
Infant seats . ... .......... .. .. .. .. . 141
Inside rearview mirror ...... .. .. .... .. 58 Installing child safety seats
Safety be lts . . . . . . . . . . . . . . . . . . . . . . 144
Instrument cluster and controls ... .... . 10
Instrument panel illumination .... .... . 57
Instruments and controls General illustration . . . . . . . . . . . . . . . . . . 8
Interior lights . . . . . . . . . . . . . . . . . . . . . . . 56
Luggage compartment ............. . 57
J
Jump-starting . .. .. ..... ....... ... .. 231
Jumper cables ... .. ............. .... 232
K
Key ........ .... .. .................. 35
Battery replacement .............. .. 36
Convenience opening and closing of pow-
er top .... ...... ............. .... . 48
Convenience opening and closing of win-
dows ........ ... .. ................ 44
Emergency key ... ....... ...... .. .. . 35
Key replacement .............. ..... 35
Master key ....................... . 35
Valet key .. .. .. .. ... .......... .... . 35
Keyless entry remote control .. .. ... ... . 35
Kick -down . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Knee air bags .. .. .. ... .......... .... 130
Description .. .. .. ............. .. .. 130
How they work ... ................ . 131
Important safety instructions ........ 132
L
Lap timer ... .. .. .. ............. .. .. . 25
Launch Control Program ... ...... .. .. . 91
Leather . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Cleaning ......................... 171
Leaving home ..... ............. .... . 54
Lifting jack . .... .. .. ... ... ..... .. .. 223
Lifting vehicle ..... ................ . 236
Light/rain sensor defective ........... . 34
Lights . .... .... .. ............. .... . 53
Coming/Leaving home . . . . . . . . . . . . . . . 54
Emergency flasher . . . . . . . . . . . . . . . . . . 56
Exterior lighting . . . . . . . . . . . . . . . . . . . . 54
Front fog lights . . . . . . . . . . . . . . . . . . . . 55
