2011 AUDI A5 COUPE engine

Intelligent t echnology L ______________________________________ _
Servotronic® - advanced power
steering system
The power steering systems uses the power of the
running engine to allow precise steering with little effort .
The advanced Servotronic® power steering system senses the road
speed and ele ct ronically adjusts power assistance to provide
comfortable and safe steering response exactly matched to the
veh icle speed .
Power steering will not work if the engine is off . As a resu lt, the
steeri ng wheel will be hard to turn.
T he power steeri ng fluid level is checked du ring the sched uled main ­
tenance services .
0 Note
If there is an electronic malfunction, servotronic will still function
like a conventional power s teer ing system, provid ing a cons tant
steering support force that is no longer proportionate to the vehicle
speed. This is most noticeable when t urning the s teer ing wheel at low
speeds (for example when park ing) , - more effor t will be required
than us ua l.
• Be aware of the d ifferent than usual steering response and adjust
your stee ring force accord ingly .
• Have the prob lem checked and set r ight by an Audi dealer as soon
as possib le.
[ i ] Tips
• When the e ngine is running, neve r hold the stee ring whee l turned
all the way to the rig ht or to the left for longer than 15 seconds. The
powe r steering pump wi ll overheat the hydra ulic fluid if yo u keep
holding the steering wheel turned all the way . This is likely to damage
t he power s teer ing system . •
If the power steering system s hou ld fa il entirely, or if the engine
is no t ru nning (fo r examp le, while be ing towed), you will st ill be able
to steer the vehicle. However,
considerably more effort will be
req uired to do so .
• If the power steering system should have a leak, or is not func­
tioning prope rly, con tact your au thor ized A udi dealer immedia tely.
• The power steer ing system requires a specia lly formulated
hyd raulic fluid. The power steer ing rese rvoir is the one loc ated
farthest to the rear on the left s ide of the eng ine compartme nt
=>
page 2 76 . T he correct fluid leve l in the reservo ir is im port an t fo r
proper functioning of the power steeri ng .•
Dr"ving with your quattro®
With all wheel drive, all four wheels ore driven.
General information
With all wheel d rive, power is d istributed to all four wheels. This
h appens a utomatically depending on your dr iv ing style and t he road
conditions at the time . See also =>
page 238, "Electronic different ial
loc k (ED L)".
T he all whee l dr ive concept is designed for high engine power . Your
veh icle is except ionally powe rf ul and has excellent driving character­
istics both under normal driving condit ions and on snow and ice .
Always read an d fo llow safety precautions =>& .
Winter tires
When driving in the winter, your vehicle with a ll whee l drive has an
adva ntage, even w ith regular t ires . In winter road cond it io ns it may
be advisable to mount winte r tires (or all-seaso n tires) for improved
dr iveability a nd b rak ing: t hese tires mus t be mounted on
all four
wheels . See also => page 307, "Winter ti res" .
Tire chains
Where tire chains are mandatory on certa in roa ds, this norma lly a lso
applies to veh icles with a ll w heel drive =>
page 308, "Snow chains" . Iii-

Intelligent technology
--------------------------------------------------' "---.L==--
Repl acing wheel s/tires
Vehicles wi th all wheel drive must a lways have tires of t he same size.
Also avoid tires with different tread depths. For details see page
=> page 303, "New tires and rep lacing tires and wheels".
Off -Road driving?
Your Audi does not have enough ground clearance to be used as an
off-road veh icle . It is therefore best to avo id ro ugh tracks and uneven
terrain as m uch as possible . Also refer to=>
page 247.
& WARNING
Alway s adju st your driving to road and traffi c conditi ons. Do not
let the ex tra safety afforded by all wheel dr ive tempt you into
taking extra risks.
• Although the all wheel dri ve is ve ry effecti ve, always
remember that braking capacity is limited by tire traction. You
should therefore not dri ve at ex cessive speeds on icy or slippery
road surfaces .
• On wet road surfaces , be careful not to drive too fast because
the front wheel s could begin to slide on top of the water (aqua­
planing ). If th is should occur, you will have no warning from a
sudden increase in engine speed as with a front-wheel drive
vehicle. Always drive at speeds which are suited to the road cond i­
tions -ris k of crash.
n
Controls and equip­
ment Safety first Vehicle operation
Energy management
Starting ability is optimized
E
nergy management contr ols th e distributi on of elec­
tri cal energy and thus optimizes the availabili ty of elec­
tri cal energ y for star ting the engin e.
If a vehicle with a conventiona l energy system is not dr iven for a long
per io d of time, t he battery is di sch arged by idling cur rent consume rs
(e .g. immob il izer) . In certain c ircumstances it can result in there
being insuffic ien t energy av a ilab le to start t he eng ine .
Inte lligent energy management in your ve hicle hand les the d istribu ­
tion of e lectrical energy . Starting ability is ma rkedly improved and
the l if e of the battery is extended.
Bas ically, energy management consists of
battery d iagnos is, idling
current management
a nd dynamic energy management .
Battery diagnosis
Battery d iagnosis con tinuously dete rmines the st ate o f the batte ry.
Sensors determ ine battery vo ltage, battery current and battery
t empe ra ture. This de termine s the cur rent sta te of cha rge and the
power of the battery.
Idling current management
I d ling current management reduces energy consumption wh ile the
vehicle is s tanding. W ith t he igni tion swi tched off, it con trols the
energy supply to the var io us electrical components. Data from
b att ery diag nosis is considered .
Depend ing on the battery 's state of charge, individual consumers a re
gradually t urned off to p revent excessive discha rge of the battery and
thus main tain start ing capab ility.
Dynamic energy management
Whi le the vehicle is being dr iven , dynamic energy management
dis tributes the energy generated a cco rding to the needs o f th e in di-
Vehicle care Do-it-yourself service Technical data

Intelligent technology
'-------------------------------------------------

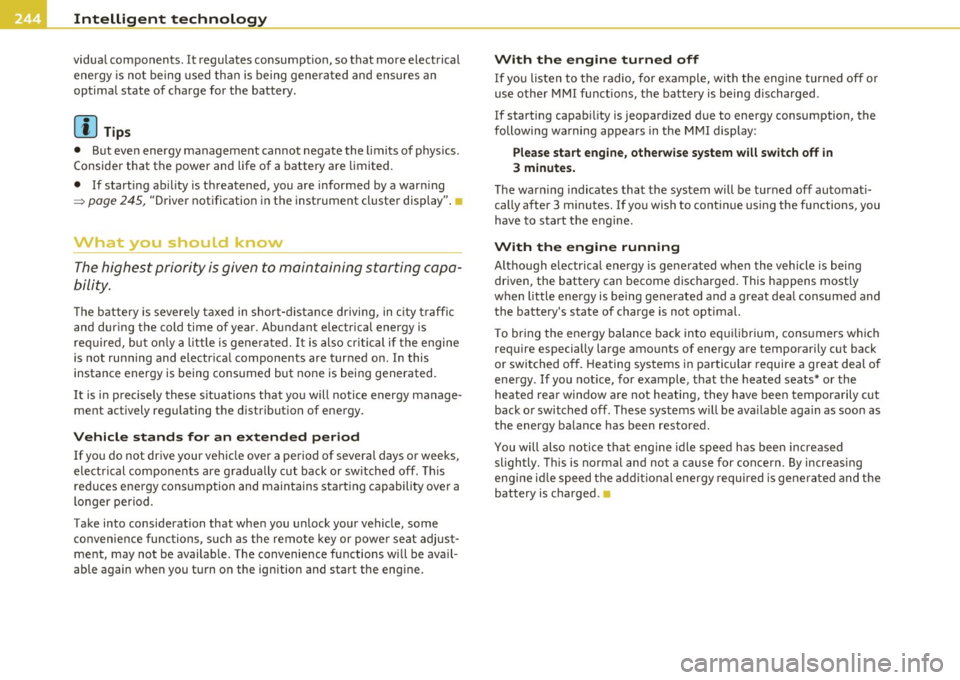

vi dual components. It regulates consumption, so that more electrical
energy is not being used than is being generated and ensures an
optimal state of charge for the battery .
[I] Tips
• But even energy management cannot negate the limits of physics.
Consider that the power and life of a battery are limited.
• If starting ability is threatened, you are informed by a warning
~ page 245, "Driver notification in the instrument cluster display" .•
What you should know
The highest priority is given to maintaining starting capa ­
bility.
Th e battery is severe ly taxed in short-distance driving, in city traffic
and during the cold time of year. Abundant electrical energy is
required, but only a little is generated.
It is also critical if the engine
is not running and electrical components are turned on. In this
instance energy is being consumed but none is being generated.
It is in prec ise ly these sit uations that you will notice energy manage­
ment actively regulating the distribution of energy.
Vehicle stands for an extended period
If you do not drive your vehicle over a period of several days or weeks,
electrical components are gradually cut back or sw itched off. This
reduces energy consumption and maintains starting capability over a
longer period.
Take into consideration that when you unlock your vehicle, some
convenience functions, such as the remo te key or power seat adjust­
ment, may not be available. The convenience functions will be avail­
able again when you turn on the ignition and start the engine.
W ith the engine turned off
If you listen to the radio, for example, with the engine turned off or
use other MMI functions, the battery is being discharged .
If starting capability is jeopardized due to energy consumption, the
following warning appears in the MMI display:
Please start engine, otherwise system will switch off in
3 minutes.
Th e warn ing indicates that the system will be turned off automati­
cally after 3 m inutes. If you wish to continue using the functions, you
have to start the engine.
With the engine running
Although electrica l energy is generated when the vehicle is being
driven, the battery can become discharged. This happens most ly
when little energy is being generated and a great deal consumed and
the battery's state of charge is not optimal.
T o br ing the ene rgy balance back into equilibrium, consumers which
require especially large amounts of energy are temporarily cut back
or switched off. Heating systems in particular require a great deal of
energy .
If you notice, for example, that the heated seats* or the
heated rear window are not heating, they have been temporarily cut
back or switched off. These systems will be ava ilable again as soon as
the energy ba lance has been restored.
You will also notice that engine idle speed has been increased
slightly. This is normal and not a cause for concern. By increasing
eng ine id le speed the additional energy required is generated and the
battery is charged. •

Intelligent technology
--------------------------------------------------' '----'----
Driver notification in the instrument
cluster display
If battery power drops into the range where it can limit the ability of
the engine to start, this is shown in the instrument cluster display
with the following driver message:
Lo w b attery charge : batt ery will be charged while driving
Th is notification rem inds you that the starting capability of the
engine may be limited . As soon as you start driving again, the batte ry
w ill be recharged and the notification w ill go out.
Dri ver notification appears and goes out again
If th is dr iver notification appears after the ignition is turned o n or
while driving a nd it goes out again afte r a w hile, the battery has been
adequate ly recharged.
Driver no tification appears and does not go out
again
If th is dr iver notifica tion appears afte r the ignition is turned o n or
while driving and does not go out again, the battery 's state of charge
is not in the optimal range . Starting ability is restricted. Have the
battery checked as soon as poss ible by an au thor ized Aud i dea le r o r
qualified workshop. •
Controls and equip­ ment Safety first Vehicle operation
Vehicle care Do-it-yourself service Technical data

Driving and environment
Driving and environment
The first 1,000 miles (1,500 km)
and afterwards
New engine
The engine needs to be run-in during the first 1,000 miles
(1,500 km) .
For the first 600 miles (1,000 kilometers):
-Do not use full throttle .
- Do not drive at engine speeds that are more than 2/3 of
t h e m axim um permitted RPM .
From 600 to 1,000 miles (1,000 to 1,500
kilometers):
-Speeds can gradually be inc reased to t he max imu m
per miss ib le road or engine speed.
During and after break-in period
- Do no t rev the engi ne up to high s peeds when it is cold.
This app lies w hether the t ra nsm ission is i n N (Ne utral) or
1n g ear.
After the break-in period
- Do not exceed max imum engi ne speed under any circum ­
sta nces.
- Ups hift into t he nex t higher gear
before reach ing t he red
area at t he end of the tachometer scale~
page 10.
During the first few hours of driving, the engine's interna l fr iction is
hig her th an later w hen all t he mov ing pa rts have been broke n in . How we
ll th is brea k-in process is done depe nds to a considerable ext ent on
the way the veh icle is driven dur ing the first 1,000 m iles (1,500 ki lo­
mete rs).
0 Note
E xtremely high engine speeds are au tom atic ally reduced. However,
these rpm limits are prog rammed fo r a n engine well run-in, not a new
eng ine.
~ For the sake of the environment
Do no t dr ive w it h u nne cessa rily h igh eng ine speeds - u pshift ing early
saves fuel, reduces noise and protects the environment. •
New tires
If you r ve hi cle is runni ng on new tires, d riv eve ryca refu llyf or
th e fi rst 350 miles (50 0 kilo m ete rs) aft er fitting .
& WARNING
New tires tend to be slippery and must also be "broken -in ". Be
sure to remember th is during the first 350 miles (500 kilome­
ters ). Brake gently. Avoid following closely behind other vehicle s
or other situat ions that might require sudden , hard braking. u
New brake pads
Remember t hat new brake pa ds d o not hav e a f ull braki ng
eff ect d uring t he fir st 2 50 miles (4 00 ki lomet ers) afte r they
ar e installed.
II-

Driving and environment
The catalytic converter is an effic ient ''clean-up" dev ice built into the
ex hau st system of the ve hicle. The c ata ly tic converter bu rns many of
the pollutants in the exhaust gas before they are released into the
atmosphere.
T he exclusive use of unleaded fuel is c rit ical ly import ant for the life of
the cata lytic converter and proper funct ioning of the eng ine.
& WARNING
• Do not park or operate the vehicle in areas where the hot
e xhaust system may come in contact with dry grass, brush, fuel
spill or other material which can cause a fi re.
• Do not apply additional undercoating or rustproofing on or
near the e xhaust man ifold , exhaust pipes , catalytic converte r or
heat shields . During driving, the substance used for undercoating
could overheat and cause a fire.
0 Note
• Be aware that j ust one tank filling with leaded fuel will already
seriously degrade the performance of the ca talytic conve rter.
• Do not exceed the correct engine oil level =>
page 279.
• Do not dr ive until the fuel tan k becomes complete ly empty . The
engine could misfire . Unburned fuel cou ld also get into the exha ust
system and th is cou ld cause the catalyt ic converter to overheat .
• Do not tu rn o ff the igni tion while t he vehi cle is moving.
• Do not contin ue to operate your vehicle under these conditions, as
otherwi se fuel c an reac h the c atal ytic conve rter. This co uld res ult in
overheat ing of the converter, requir ing its replacement.
• T o ass ure eff icient ope ra ti on of the Emiss ion Cont rol System:
- Have your vehicle maintained properly and in accordance with
the se rvice recommendations in your Wa rranty
& M aintenance
booklet. -
Lack of proper maintenance as well as improper use of the
veh icle w ill impair the f unc tion of the emiss io n con trol sys te m an d
co uld lead to damage.
<£> For the sake of the environment
Even when the Emiss ion Control System is operating p roperly, the
exhaust gas can have a s ulfur -like exhaust gas smell under some
operat ing states . This depends on the sulfur content of the fu el being
used. Using a different brand of fuel may help, or filling the tank with
lead -free supe r grade gasoline. •
Operate your vehicle economically
and minimize pollution
General
Your personal style of d riving will det ermine the economy
of your vehicle, as well as exhaust and noise le vels.
Fuel eco nomy, e nvir onmenta l impa ct, and wea r o n your eng ine ,
brakes and tires large ly depend on three factors:
• your persona l driving style
• operat ing cond itions
• t echni cal lim itat io ns
If you anticipate what you need to do next and drive economica lly,
you c an easily cut yo ur fuel consum ptio n by 10- 15 pe rcen t. T his
sect io n w ill give you some tips on how you can he lp the env ironment
and your pocket book.
[ i ] Tips
Th e consumption estimates as pub lished by ENV IRONMENTAL
PROTECTIO N AG ENCY ( EPA) and Transport Ca nada may not co rre­
spond to your act ua l cons umption on the road, which will vary

Driving and environment
------------------------------------------------'
depending upon vehicle load and speed, road and weather conditions,
trip length, etc. •
Drive smoothly and keep a lookout ahead
Vehicles use the most fuel when they are accelerating .
-Avoid unnecessary accelerating and braking.
Vehicles use the most fuel when they are accelerating. If you antici­
pate what is going to happen next, you will need to brake less and,
thus, accelerate less. Let the vehicle coast whenever possible - for
example when you see that the next traffic light is red.
Avoid full throttle
Driving at moderate speeds saves fuel and improves your
mileage.
- Try and keep well below your car's maximum speed.
Accelerating gently reduces fuel consumption, engine wear, and does
not disturb the environment .
Fuel consumption, exhaust emissions and eng ine noise increase
disproportionately at high speeds . If you drive at approximately three
quarters of top speed, fuel consumption will be reduced by one half.
Never drive faster than the posted speed limit and weather condi­
tions permit. •
Reducin~ unnecessary idling
Even when your car is just idling it burns up fuel.
-Shut the engine off when you are not driving the vehic le .
- Do not warm up the vehicle by letting the engine run at
idle.
Controls and equip­ ment Safety first Vehicle operation It makes sense to shut off the engine in traffic jams, when waiting for
trains to pass at railroad crossings, or at traffic lights that have long
waits on red. Turning the engine off for just 30 -40 seconds saves
more fuel than is burned starting the engine again .
It takes a long t ime for the engine to warm up fully when it is running
at idle. However, wear and noxious emissions are especia lly high
when the eng ine is warming up. So you should dr ive away as soon as
you start the engine and avoid running at high rpms while the engine
is still warming up.
0 Note
Do not leave engine idling unattended after starting . If warning
lights should come on to indicate improper operation, they would go
unheeded. Extended idling also produces heat, which could result in
overheat ing or other damage to the vehicle or other property. •
Regular maintenance
A badly tuned engine unnecessarily wastes a lot of fuel .
- Have your vehic le serviced at regular intervals .
By having your vehicle regularly serviced by an authorized Audi dealer
helps to ensure that it runs properly and economically . The condit ion
of your vehicle not on ly affects its safety and ability to hold its val ue,
it also affects fuel consumption.
Check your oil each time you fill your tank.
Th e amount of oil used is related to engine load and speed.
It is normal for the oil consumption of a new engine to reach its
lowest value after a certain mileage has been driven.
You must dr ive your veh icle about 3,000 miles (5,000 kilometers)
before you can properly assess oi l consumption .
Thi s also applies to fuel consumption and eng ine output.
Vehicle care Do-it-yourself service Technical data

Driving and environment
0 Note
• Have your vehicle mainta ined properly and in accordance w ith the
service recommendations in your Warranty
& Maintenance booklet.
Lack of proper maintenance as well as improper use of the vehicle w ill
impair the function of the emission control system and could lead to
damage.
• Do not alter or remove any component of the Emission Control
System unless approved by the manufacturer.
• Do not a lter or remove any device, such as heat shields, switches,
ignition w ires, va lves, which are designed to protect your vehicle 's
Emission Control System and other important vehicle components .•
Fewer short trips
Fuel consumption will always be relatively high on short
trips .
-Try to avoid driving short distances with a cold engine.
The engine and catalytic converter have to reach their optimal oper­
ating temperature
to reduce fuel consumption and noxious emis ­
sions effectively.
Just after starting, a cold engine in a mid-size car only achieves a fuel economy of 6-8 miles per ga llon (30-40 l/100 km). After about a half
a mile, fuel economy climbs to 12 mpg (20 l/100 km). After about
2.5 miles (4 km), the engine is at its proper operating temperature
and fuel economy has reached a normal level. So you can see that you
sho uld avoid short trips whenever poss ible.
The
outside temperature is also cr it ical in this regard . Your car
consumes more fue l in the winter than in the summer.
