_______________________________________________ A_ ir_ b_ a_,,,g ~ s,,._y _s _t_ e _ m ___ _
& WARNING (co ntinued )
• Even when they deploy, airbags provide only supplemental
prot ection .
• Airbag work most effectively when u sed with p roperly worn
safety belts .
• Therefore, always wear your safety belts and make sure that
everybody in your veh icle is properly restrained.
& WARNING
A person on the front passenger seat , especially infants and small
c hildren, will re ceive serious injuries and can even be killed by
being too close to the airbag when it inflates.
• Although the Advanced Airbag System in your v ehicle is
designed to turn off the front passenger ai rbag if an infant or a
s mall child i s on the front passenger seat, nobody can ab solutely
guar antee that deployment under these special conditions is
impossible in all conceivable situations that may happen during
the useful life of your veh icle.
• The Advanced Airbag System can deploy in accordance with the
" low risk" option unde r the U .S . Federal Standard if a child that is
heavier than the typical one-year old child is on the front
passenge r seat and the other conditions for airbag deployment
are met.
• Accident statistics have shown that children are generally safer
in the rear seat area than in the front seating position.
• For their own safety, all children, especially 12 years and
younger, should alway s rid e in the back properly re strained for
their age and size. •
Controls and equip­ ment Safety first Vehicle operation
Advanced front airbag system
Your vehicle
is equipped with a front Advanced Airbag System in
co mpliance wit h United St ates Feder al Motor Vehicle S afety St andar d
208 as applicab le at the time your vehicle was manufactured .
Th e front A dvanced A irbag System supp lements the safety be lts to
prov ide addit ional protection for the dr iver's and front passenge r's
heads and upper bodies in frontal crashes. The airbags inflate o nly in
frontal i mpacts w he n t he vehicle de ce le ra ti on is high enoug h.
The front Advanced Airbag System for the front seat occupants is not
a s ubstitu te for your s afety be lts. R at he r, it is p art o f the ove rall occu­
pant restrai nt system in your ve hicle. Always remembe r that the
air bag sys tem can on ly help to protect you, if yo u are s itting upr ight,
wearing your safety be lt and wear ing it properly . This is why you and
your passengers must always be p roper ly restra ined, not just beca use
the law requires you to be .
The Advanced Airbag System in your vehicle has been cert ified to
meet the " low r is k " requi remen ts for 3 and 6 ye ar-old childr en on the
passenger side and very sma ll adults on the driver side. The low risk
deployme nt criter ia a re in tended to he lp red uce the risk o f inju ry
throug h interaction with the fro nt a irbag tha t can occur, for examp le ,
by being too close to the stee ring wheel an d instr ument panel whe n
t he a irba g inflates.
In addit ion, the system has bee n certified to comply with the
"supp ression " requireme nts of the Safety Sta ndard, to turn off th e
front airbag for infants 12 mo nths old and you nger who are
re strai ned o n the fron t pa ssenge r sea t in child res tra ints that are
listed in the Standard=>
page 217, "Chil d restraints and Advanced
Air bag s".
" Supp ression" requ ires the front a irbag on the passenger side to be
turne d off if:
• a child up to a bout one year o f age is re stra ined on the fron t
passenger seat in one of the rear-facing or forward-fac ing infant
restr aints liste d in F ed er al M oto r Ve hicl e Sa fety S tandard 208 with
w hich the Advanced A irbag System in yo ur ve hicle was certified. For a ...
Vehicle care Do-it-yourself service Technical data

_______________________________________________ A_ ir_ b_ a_,,,g '--- s.:.y _s _t_ e _ m ___ ffl'II
& WARNING (co ntinued )
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
c hild against the backrest, center arm rest , door, or roof .
• Always install rearwa rd-facing child restraints in the back seat.
• If you must install a rearward facing child safety seat on the
front passenger seat because of except ional circumstances and
the PASSENGER AIR BAG OFF light does not come on and stay on ,
immediately install the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your
authorized Audi dealer.
& WARNING
If, in except ional circumstances, you must install a forward-facing
child re straint on the front pa ssenger's seat:
• Always make sure the forward-facing seat has been designed
and certified by its manufacturer for us e on a front seat with a
passenger front and s ide airbag.
• Never put the forward-facing child restraint up again st or very
near the instrument panel.
• Always move the passenger seat into its rearmost position
in
the seat's fore and aft adjustment range, as far away from the
airbag a s po ssible, before installing the forward-facing child
restraint. The backrest must be adjusted to an upr ight position.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched on .•
Advanced Airbag System components
Th e front passenger seat i n your ve hicle has a lot of very im portant
parts o f th e Ad van ced A irbag System in it. These parts include t he
we ight-sens ing mat, sensors, wir ing, brackets, and mo re . The func-
Controls and equip­
ment Safety first Vehicle operation
tion of the system
in the front passenger seat is checked by the elec­
t ronic contro l unit whe n t he ignit io n is on. The con tro l u nit mon itors
t he Advanced A irbag System and tu rns th e airbag indicator light on
when a malfunction in the system components is detected. The func­
tion of the a irbag indicator light is descr ibed in greater deta il below.
Beca use the front passen ger seat contains importa nt parts of the
Advance d Ai rbag System, you mus t take care to p revent i t fro m be ing
dama ged. Damage to the seat may prevent t he Advance d Airbag for
t he front p assenge r seat fro m d oin g its job in a cra sh.
The front Advanced Airbag System consists of the
following:
• Cras h sensors in the front of the vehicle t hat measure vehicle
acc ele ra tio n/d ecele ration to prov ide info rmat io n t o the Adva nced
Airbag System about t he severity of the crash.
• An elec tron ic con tro l unit, w it h i nteg rated crash senso rs fo r front
and side impacts . The contro l unit " dec ides" w het her to fire the front
a irbag s base d on th e informa tion re ceived from t he cr ash sensors.
The control unit also "decides" whether the safety be lt pretens ioners
s ho uld b e activa ted.
• An Advanced Airbag with gas generator and cont rol va lve for the
dr ive r inside t he st eer ing whee l hub .
• An Advanced Air ba g with gas gene rator and control valve inside
t he inst rume nt pan el for the front pass enger.
• A weig ht-sensing mat unde r the upholste ry paddin g of the front
passenger seat c ushi on that measures the tota l weigh t on the seat .
T he information registe red is se nt co ntin u ously to the electronic
cont rol uni t t o reg ulate deployment of t he front Advanc ed A irbag o n
the passenger side .
• An a irbag mon itoring system and ind icator light in the inst rume nt
cluster =>
page 201.
• A sensor in each fro nt seat reg isters the distance between t he
res pective seat and the s teer ing whee l o r i nst rume nt pane l. The
information reg iste red is sent co ntin uously to the e lectro nic cont rol
uni t to reg ulate dep loyment o f the front Advanced Airbags . .,_
Vehicle care Do-it-yourself service Technical data

situations. Be sure to read the important information about safety
and heed the WARNINGS in this chapter.
Deployment of the Advanced A irbag System and the activation of the
safety belt pretensioners depend on the deceleration measured by
the crash sensors and registered by the electron ic control unit. T he
amount of inflation of the front airbags can a lso be adapted to the
front seat position, depending on the distance between the respec­
tive front seat and the steering wheel or instrument panel as regis­
tered by sensors in the seats. Crash severity depends on speed and
deceleration as well as the mass and stiffness of the vehicle or object
involved in the crash .
On the passenger side, regardless of safety belt use, the air bag w ill
be turned off if the weight on the passenger seat is less than the
amount programm ed in the electronic control unit . The front airbag
on the passenger side will also be turned off if one of the chi ld safety
seats that has been certified under Federal Motor Vehicle Safety
Standard 208 has been recognized on the seat. The
PASSENGER AIR
BAG OFF
light comes on and stays on to tell you when the front
Advanced Airbag on the passenger side has been turned off
=> page 192, "Child rest raints on the front seat -some important
things to know".
& WARNING
To reduce the risk of injury when an airbag inflates, always wear
safety belts properly.
• If you are unrestrained, leaning forward, sitting sideways or
out of position in any way, your risk of injury is much higher .
• You will also receive serious injuries and could even be killed if
you are up against the airbag or too close to it when it inflates •
even with an Advanced Airbag=>
page 190. •
Safety first Vehicle OP-eration
Airbag system
More important things to know about front
airbags
Fig. 17 9 Inflated
front airbags
Safety belts are important to help keep front seat occupants in the
proper seated position so that airbags can unfold properly and
prov ide supplemental protection in a frontal collision.
Th e front airbags are designed to provide additiona l protection for
the chest and face of the driver and the front seat passenger when:
• safety belts are worn properly,
• the seats have been positioned so that the occupant is properly
seated as far as possible from the airbag ,
• and the head restraints have been properly adjusted .
Because airbags inflate in the blink of an eye with great force, things
you have on your lap o r have placed on the seat could become
dangerous projectiles, and be pushed into you if the airbag inflates.
When an airbag deploys, fine dust is released. This is normal and is
not caused by a fire in the vehicle. This dust is made up mostly of a
powder used to lubricate the airbags as they deploy .
It could irritate
skin.
It is important to remember that while the supplemental airbag
system is desig ned to reduce the likelihood of serious injur ies, other
injuries, for example swell ing, bruising and m inor abrasions, can also
happen when airbags inflate. Airbags do not protect the arms or the •
Vehicle care Do-it-yourselt service iTechnical data

_________________________________________________ A_ ir_ b_ a_,,g :;..__ s-=y '"- s_ t_ e_ m __ _
& WARNING (co ntinued )
airbag during braking or in a sudden maneuver. Objects near the
airbags can b ecome projectiles and cause injury , particularly when
the seat is reclined.
& WARNING
The fine dust created when airbags deploy can c ause breathing
problems
for people with a history of asthma or other breathing
conditions.
• To
reduce the risk of breathing probl ems, those with asthma or
other respiratory conditions should get fresh air right away by
getting out of the vehicle or opening windows or doors.
• If you are in a colli sion in which airbags deploy, wash your
hands and face with
mild soap and water before eating .
• Be careful
not to get the dust into your eyes, or into any cuts or
scratches.
• If the residue should get into your eyes, flush them with
water. •
Monitoring the Advanced Airbag
System
Airbag monitoring indicator Light~~
Two sep ara te i ndic a to rs mo nit o r the func tio n of the
A dvan ced Ai rb ag Sy stem: th e airbag mo nito ring i ndic ator
lig ht and th e
PASSENGER AIR BAG OFF light.
The A dvanced A irbag System ( includ ing the elect ronic contro l unit,
senso r circu it s and system wir ing) is mon it or ed co ntinuous ly to make
sure that it is function ing p roperly whenever the ignition is on. Eac h
tim e you turn on the igni tion, the airba g mo nitoring indicat or ligh t
t:.
will come o n for a few seconds (se lf diagnostics) .
Controls and equip­
ment Safety first Vehicle operation
The system must be inspected when the indicator
light ~:
• does not come o n when the ignit io n i s switched on,
• does not go o ut a few se conds a fter you h ave switche d on t he ig ni­
tion, or
• co mes on whil e dr iving.
If a n airbag system malfunction is detected, the ind icator light will
fi rst start flashing to catc h the dr iver 's attention and t hen stay on
cont inuo usly to s erve as a constan t rem inder to have the system
inspected immediately .
If a ma lf u ncti on oc curs that tur ns th e fron t air bag on the passe nger
side off, the
PASSENGER AIR BAG OFF light will come on and stay on
w henever the ignition is on.
& WARNING
An airbag system that is not functioning properly cannot provide
supplemental p rotect ion in a frontal crash .
• If the airbag indicator light comes on, it means that there may
be something wrong with the Advanced Airbag System. It is
possible that the airbag will inflate when it is not supposed to, or
will not inflate when it should .
• Have the airbag system inspected immediately by your autho­
rized Audi dealer. •
Vehicle care Do-it-yourself service Technical data

_________________________________________________ A_ ir_ b_ a_,,g :;..__ s-=y '"- s_ t_ e_ m __ _
the weight-sensing mat to measure more weig ht t han is act ua lly on
t he sea t.
If the PASSENGER AIRBAG OFF light still does not come on and
does not stay on cont in uou sly (when the ignition is sw itched on),
• t ake the child re st raint o ff the fr ont pa ssenge r seat and in stall i t
prope rly at one of t he rear seat pos itions. Have t he a irbag system
i n sp ec ted by y ou r au thorized A udi dea ler im medi ately.
• move the child to a rear seat posit io n and make sure that the child
is prop erly restra ined in a chi ld restr aint t hat is a ppropr iate f or its
size and age.
Th e
PASSENGER AIRBAG OFF light s ho uld NO T come on when the
ign ition is on and an adult is sitt ing in a proper seating pos it io n on the
front passenger seat . If t he
PASSENGER AIRBAG OFF light comes on
and stays on or flashes for abou t 5 seco nds w hile driving, under these
circumstances, make sure that:
• t he adult on t he fr on t p asse nger sea t is prope rly se ate d on the
center of the seat cushion with his or her back up against the backrest
and the bac krest is not recline d => page 172, "Proper occupant
seating posit ions",
• t he adult is n ot tak ing weig ht off t he se at by h olding on to t he
passenger assist handle above the fro nt passenger doo r or
s u pp orting their weight on the armrest,
• the safety belt is be ing properly worn and t hat there is not a lot of
s la ck in t he safe ty be lt webb ing ,
• accessory seat cove rs or cushions o r othe r th ings that may cause
an in cor rect re adin g or impress io n o n the weight -sen sing m at under
the upholstery of the seat have been removed from the front
pas senge r sea t,
• a safety be lt extender has not been left in the safety belt latch fo r
t he fr ont p asse n ge r se at.
In addition to the
PASSENGER AIRBAG OFF lig ht i n the center of the
instrument pa nel, the message
PASSENGER AIRBAG OFF or
PASSENGER AIRBAG ON w ill br ie fly ap pear in t he instr ument cluster
Controls and equip­
ment Safety first Vehicle operation
display. This
is to inform the dr iver of the current front passenger
a ir bag s tatus. •
Important safety instructions on
monitoring the Advanced Airbag System
& WARNING
An airbag system that is not functioning properly cannot provide
supplemental protection in a frontal crash.
• If the airbag indicator light comes on, it means that there may
be something wrong with the Advanced Airbag System. It is possible that the airbag will inflate when it is not supposed to, or
will not inflate when it should .
• Have the airbag system inspected immediately by your autho­
rized Audi dealer.
& WARNING
If the front airbag inflates, a child without a child restraint, in a
rearward-facing child safety seat or in a forward-facing child
restraint that has not been properly installed will be seriously
injured and can be killed .
• Even though your vehicle i s equipped with an Advanced Airbag
System, make certain that all children, especially 12 years and
younger , always ride on the back seat properly restrained for their
age and size .
• Always install forward or rear-facing child safety seats on the
rear seat -even with an Advanced Airbag System.
• If you must install a rearward-facing child safety seat on the
front passenger seat because of e xceptional circumstances and
the PASSENGER AIR BAG OFF light does not appear and stay on, immediately install the rear-facing child safety seat in a rear ..,
Vehicle care Do-it-yourself service Technical data

______________________________________________ ___:.A:::::.:.: ir:....: b~ a~g !....= s:ly '..:s~ t~ e~ m~ ---
& WARNING (co ntinued )
• Always make sure that the side airbag can inflate without
interference:
-Never install se at covers or replacement upholstery over the
front seatbacks that have not been specifically approved by
Audi .
- Never use additional seat cushions that cover the areas
where the side airbags inflate .
- Damage to the original seat covers or to the seam in the area
of the side airbag module must always be repaired immedi­
ately by an authorized Audi dealer.
• The airbag sy stem can be activated only once. After an airbag
has inflated, it must be replaced by an authorized Audi dealer or
qualified technician who has the technical information , training
and special equipment necessary.
• The airbag sy st e m can be deployed only onc e. After an airbag
has been deployed, it must be replaced w ith new replacement
parts de signed and approved es pecially for your Audi model
version . Replacement of complete airbag systems or airbag
components must be performed by qualified workshops only.
Make sure that any airbag service action is entered in your Audi
Warranty
& Maintenance booklet under AIRBAG REPLACEMENT
RECORD.
• In accidents when an airbag is deployed, the vehicle battery
separates the alternator and the starter from the vehicle electrical
system for safety reason s with a pyrotechnic circuit interrupter.
- Work on the pyrotechnic circu it interrupter must only be
performed by a qualified dealer -risk of an a ccident!
- If the vehicle or the circu it interrupter is scrapped, all appli­
cable safety precautions must be followed .
Controls and equip­ ment Safety first Vehicle operation
'£' For the sake of the environment
U
ndeployed airbag modules and pretens io ners mig ht be classified as
Perch lorate Material -special handling may app ly, see
www.d ts c. ca.gov/ha za rdouswaste/pe rchlorate . W he n t he vehicle or
parts of the restraint system includi ng a irbag modules safety belts
w ith pretens io ners are s crappe d, all ap plic abl e laws and reg ulat ion s
must be observed. Your author ized Aud i dealer is familiar with these
req uir ements and we recommen d that yo u have yo ur dea le r pe rform
this service for you .•
Other things that can affect Advanced
Airbag performance
Chang ing the ve hicle's suspension system can change the way that
t he Adv anced Airbag System pe rforms in a crash . For example, using
tire-r im combinations not approved by Aud i, lower ing the veh icle,
c hang ing the st iffness o f the suspe nsio n, incl uding the s prings,
s u spension str uts, shoc k absorbe rs etc. can change the forces that
are meas ured by the airb ag sensors and sen t to the ele ctron ic con trol
uni t. Some suspension changes ca n, for examp le, increase the force
levels measu red by t he sensors and ma ke the airbag system dep loy in
crashes in which it wou ld not deploy if the changes had not bee n
made . Other kin ds of changes may re duce the force levels meas ured
by the senso rs and p revent the airbag from dep loyi ng when it should .
The sensors in the safety belt buckle for the d river and front
p assenger se at tell the e le ct ro nic co ntro l mo dule if the sa fe ty belt is
latc hed or not . If the safety be lt is be ing used, the fron t airbag w ill
dep loy at a s ligh tly hig her ra te o f ve hicl e decelerat io n t han if the
safety belt is not be ing used. T he refo re, in a part icular collis io n, it is
poss ible that an a irbag wi ll not deploy at a seating posit ion where the
safety belt is being used but wi ll inflate at the posi tion whe re the
safety belt is not bei ng used. It is important that not hing interfere
w ith the s afe ty be lt bu ckles so t hat th e sensor s can sen d the correct
information about safety belt use to the electronic contro l unit. ..
Vehicle care Do-it-yourself service Technical data

are wearing your safety belt and wear ing it properly . This is why you
should always wear your safety belt, not just because the law requires
you to do so=>
page 181, "General notes".
The safety belt buckle for the driver and front seat passenger have
switches that tell the airbag control module if the safety belt is being
used or not. If the safety belt is being used, the knee airbag will
dep loy at a slightly higher rate of deceleration than if the belt is not
being used. Therefore, in a particular collision, it is poss ible that an
airbag will not deploy at a seating position where the safety belt is
being used but will inflate at the position whe re the safety be lt is not
being used.
Remember too, airbags w ill deploy only once and only in certa in kinds
of accidents -your safety belts are always there to offer protection in
t hose accidents in which airbags are not supposed to deploy or when
they have already deployed, for example when your vehicle strikes or
is struck by another after the first collision.
This is just one of the reasons why an airbag is not a substitute for the
safety belt. The airbag system wo rks most effective ly when used with
the safety belts. Therefore, always wear your safety belts correctly .
It is important to remember that while the supplemental airbag
system is desig ned to reduce the likelihood of serious injuries, other
injuries, for example, swe lling, bruis ing, and minor abrasions can
also be associated with airbags.
The knee airbag system basically consists of:
• Th e electronic control module
• T wo inflatable airbags (airbag and gas generator), one for the
driver and one for the front passenger
• The airbag indicator light in the instrument panel
The knee airbag system will not deploy:
• when the ignition is turned off
• in front-end collis ions when the decelerat ion measured by the
control unit is too low
• in s ide collisions
Safety first Vehicle OP-eration
Airbag system
• in rear-end collisions
• in rollovers
• in the event of a system ma lfunction (warning/indicator light illu­
minated)=>
page 16 .
& WARNING
• Safety belts and the airbag system can only provide protection
when occupants are in the proper seating position =>
page 199.
• If the airbag indicator light comes when the vehicle is being
used, have the system inspected immediately by your authorized
Audi dealer. The airbag may not work properly when the vehicle
acceleration in a side collision is high enough to deploy the airbag.
See also =>
page 16. •
A pp lies to vehi cles: w ith knee a irbags
How knee airbags work
The risk of injury to the leg area is reduced by fully
deployed knee airbags.
Fig . 182 Inflated
airbags protecting
in a
frontal collision
The knee air bag system has been designed so that the airbags for the
dr iver and front passenger are deployed in certa in but not all frontal
co llisions .
ti-
Vehicle care Do-it-yourselt service iTechnical data

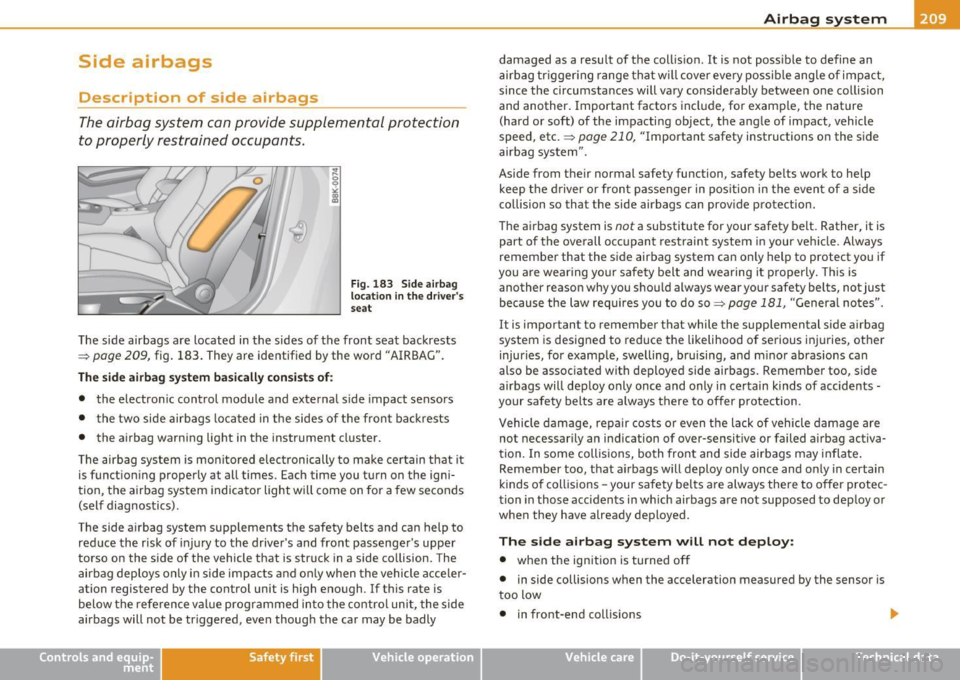

Side airbags
Description of side airbags
The airbag system can provide supplemental protection
to properly restrained occupants.
Fig. 183 Side airbag
location in the driver's
seat
The side airbags are located in the sides of the front seat backrests
=>
page 209, fig. 183. They are identified by the word "AIRBAG" .
The side airbag system basically consists of:
• the electronic control module and external side impact sensors
• the two side airbags located in the sides of the front backrests
• the airbag warning light in the instrument cluster.
The airbag system is monitored electronically to make certain that it
is functioning properly at all times. Each time you turn on the igni­
tion, the airbag system indicator light will come on for a few seconds
(self diagnostics) .
The side airbag system supplements the safety belts and can help to reduce the risk of injury to the driver's and front passenger's upper
torso on the side of the vehicle that is struck in a side collision. The
airbag deploys only in side impacts and only when the vehicle acceler­
ation registered by the control unit is high enough . If this rate is
below the reference value programmed into the control unit, the side
airbags will not be triggered, even though the car may be badly
Safety first Vehicle OP-eration
Airbag system
damaged as a result of the collision. It is not possible to define an
airbag triggering range that will cover every possible angle of impact,
since the circumstances will vary considerably between one collision
and another. Important factors include, for example, the nature
(hard or soft) of the impacting object, the angle of impact, vehicle
speed, etc.
=> page 210, "Important safety instructions on the side
airbag system" .
Aside from their normal safety function, safety belts work to help keep the driver or front passenger in position in the event of a side
collision so that the side airbags can provide protection.
The airbag system is
not a substitute for your safety belt. Rather, it is
part of the overall occupant restraint system in your vehicle. Always
remember that the side airbag system can only help to protect you if
you are wearing your safety belt and wearing it properly. This is
another reason why you should always wear your safety belts, not just
because the law requires you to do so=>
page 181, "General notes".
It is important to remember that while the supplemental side airbag
system is designed to reduce the likelihood of serious injuries, other
injuries, for example, swelling, bruising, and minor abrasions can
also be associated with deployed side airbags. Remember too, side
airbags will deploy only once and only in certain kinds of accidents -
your safety belts are always there to offer protection .
Vehicle damage, repair costs or even the lack of vehicle damage are
not necessarily an indication of over-sensitive or failed airbag activa­
tion. In some collisions, both front and side airbags may inflate.
Remember too, that airbags will deploy only once and only in certain
kinds of collisions -your safety belts are always there to offer protec­
tion in those accidents in which airbags are not supposed to deploy or
when they have already deployed.
The side airbag system will not deploy:
• when the ignition is turned off
• in side collisions when the acceleration measured by the sensor is
too low
• in front-end collisions
~
Vehicle care Do-it-yourselt service iTechnical data
