23Familiarisation

If this warning lamp comes on in
the instrument panel, automatic application/release is deactivated
.
The parking brake must be appliedand released manually. y
Before leaving the vehicle, check
that the the brake warning lamp and
the P warning lamp in the controllever A
are on fixed (not flashing).
120


If towing a trailer or caravan or if theslope might vary (transpor t by boat or lorry, recovery of the vehicle...) make a maximum application of the parking brake - by making a long pull on the
control lever A
- to immobilise thevehicle.

Driving safely


Electric parking brake


Manual Application/Release
Manual application
of the parking brake is possible by pulling
the control lever A. With the ignition on, manual releaseof theparking brake is possible by pressing the brake pedal
and pulling
then releasing
the control lever A
.


If an audible signal is heard on opening the driver's door with the hybrid system active, apply the parking brake
manually. Do not leave a child alone in the vehicle with the ignition on; they might release the parking brake.
Automatic Application/Release
Press the accelerator pedal, the parking brakeis released automatically and progressively as you move off.With the vehicle stationary, the parking brakeis applied automatically on switching off theignition (Readylamp off).

Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
Optimise the use of your
gearbox
Use automatic mode Aas much as possible
as this optimises gear changes to suit the circumstances.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. These practices contribute towards a reduction in fuel consumption and CO2 emissions and also helps reduce
the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffic is flowing well.


Before moving off, if the passenger compartment is too warm, ventilate it byopening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents open.
Remember to make use of equipment that canhelp keep the temperature in the passenger compartment down (sun roof and windowblinds...). Switch off the air conditioning, unless it has automatic digital regulation, as soon as thedesired temperature is attained. Switch off the demisting and defrostingcontrols, if not automatic.
Switch off the heated seat as soon as possible.


Switch off the headlamps and front foglampswhen the level of light does not requiretheir use.

Avoid running the Diesel engine when stationary, par ticularly in winter; your vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia devices (film, music, videogame...), you will contribute towards limitingthe consumption of electrical energy, and soof fuel.
Disconnect your por table devices beforeleaving the vehicle.



Control the use of your electrical equipment

51Hybrid system

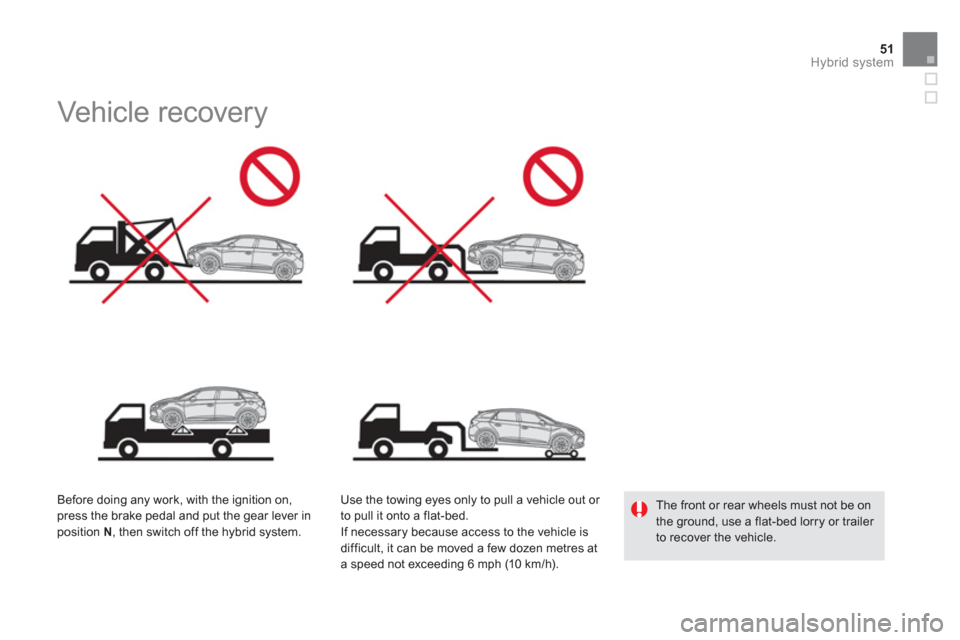

Vehicle recovery


Before doing any work, with the ignition on,press the brake pedal and put the gear lever in position N, then switch off the hybrid system.
Use the towing eyes only to pull a vehicle out or
to pull it onto a flat-bed.
If necessary because access to the vehicle is
difficult, it can be moved a few dozen metres ata speed not exceeding 6 mph (10 km/h).
The front or rear wheels must not be on the ground, use a flat-bed lorry or trailer to recover the vehicle.

Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.
Warning/indicator lampStateCauseAction/Observations




Left-handdirection indicatorflashing with buzzer. The lighting stalk is pushed down.





Right-handdirection indicatorflashing with buzzer. The lighting stalk is pushed up.





Sidelampsfixed.The lighting stalk is in the
"Sidelamps" position.



Dipped beamheadlampsfixed.The lighting stalk is in the "Dipped
beam headlamps" position.




Main beam headlampsfixed. The lighting stalk is pulled towardsyou. Pull the stalk to return to dipped beam headlamps.



Front foglampsfixed.The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.

For more information on the lighting controls, refer to the "Visibility" section.




Automatic headlamp dipping
fixed.The lighting stalk has been pulledtowards you and the button (to the right of the steering wheel) has beenpressed.
Its warning lamp is on.
The camera, located in the interior rear view mirror,
authorises or not switching between main and dipped beam, depending on the exterior lighting and the
driving conditions.
Pull the li
ghting stalk to return to dipped beam.
Readyfixed. The vehicle is ready to move off; you can press the accelerator. It comes on once high voltage is established in the
vehicle.

Emergency procedure
Emergency unlocking/locking

using the integral key
The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
- cell battery flat, vehicle battery discharged
or disconnected, ...
- vehicle located in an area with stron
gelectromagnetic signals.)Maintain a pull on button 1
, to extractthe integral key 2.
Complete unlocking
)
Tu r n t h e k ey towards the front of the vehicle
to unlock the vehicle.



Normal locking
)Turn the key towards the rear of the vehicle
to lock the vehicle completely.

Deadlocking
)Turn the key towards the rear in the driver's door lock to lock the vehicle completely.)Turn the key towards the rear again withinfive seconds to deadlock the vehicle.
