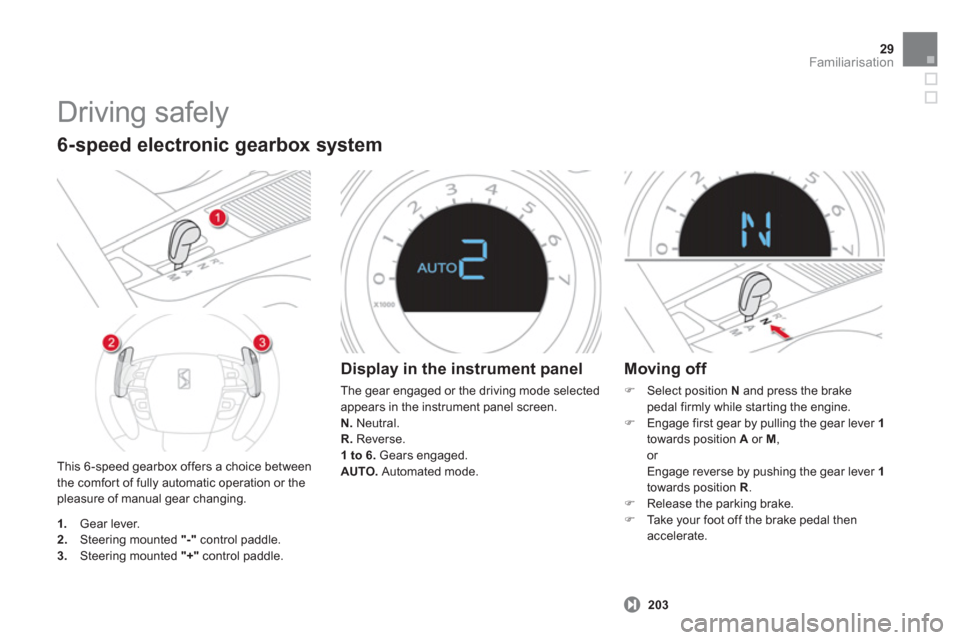

29Familiarisation
Driving safely

This 6 -speed gearbox offers a choice between
the comfor t of fully automatic operation or thepleasure of manual gear changing.

6-speed electronic gearbox system
1.
Gear lever. 2.Steering mounted "-"control paddle.3.Steering mounted "+"control paddle.
Display in the instrument panel
The gear engaged or the driving mode selected appears in the instrument panel screen.
N.Neutral.
R. Reverse.
1 to 6.Gears engaged.AUTO.Automated mode.




Moving off
)
Select position N
and press the brake pedal firmly while star ting the engine. )
Engage first gear by pulling the gear lever 1towards position A
or M,
or
Engage reverse by pushing the gear lever 1towards position R.) Release the parking brake. )
Ta k e y o u r foot off the brake pedal thenaccelerate.
203

Driving safely
Automatic gearbox
This six-speed gearbox offers the choice of automatic operation or the pleasure of manualgear changing. 1.
Gear lever.2.
"S" (sport)button.3."7" (snow)
button.


Display in the instrument panel

The driving mode selected and/or the gear engaged appear in the left hand instrument
panel screen.
P.Park.R. Reverse.N.Neutral. D.Drive (automatic).S.
Sport programme. 7.
Snow programme.
1 to 6.Gears engaged. -. Invalid value in manual operation.


Moving off
)With your foot on the brake, select position Por N.)Star t the engine.)then select position R , D
or M.)Remove your foot from the brake pedal,
then move off.
207

33Familiarisation
Driving safely
1.
Limiter mode On/Off. 2.Decrease the programmed value.3.Increase the programmed value.4.
Speed limiter On/Off.
5. Display the list of memorised speeds.


Speed limiter "LIMIT"
218
1.Cruise control mode On/Off.
2. Programme a speed/Decrease the
programmed value.3. Programme a speed/Increase the
programmed value.4. Cruise control Off/Resume.
5. Display the list of memorised speeds.
Cruise control "CRUISE"

218

The cruise control or speed limiter mode
appears in the instrument panel when it is
selected.

Display in the instrument panel

The values must be set with the engine running.
219
22
1
In order to be programmed or activated, the
vehicle speed must be higher than 25 mph (40 km/h), with at least fourth gear engaged ona manual gearbox (second gear for the6-speed electronic gearbox system or automatic gearbox).
Speed limiter

Cruise control

Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently,change up without waiting and drive by changing up quite soon. If your vehicle has the system, the gear efficiency indicator invites you to change up; it is displayed in the instrument panel, follow its instructions.
With an automatic or electronic gearbox, stay in Drive "D"or Auto "A"
, according to the type of gearbox, without pressing theaccelerator pedal heavily or suddenly.


Drive smoothly


Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. These practices contribute towards a reduction in fuel consumption and CO2emissions and also helpsreduce the background traffic noise.


If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffic is flowing well.



Control the use of your
electrical equipment


Before moving off, if the passenger compartment is too warm, ventilate it by opening the windows and air vents before using the air conditioning. Above 30 mph (50 km/h), close the windowsand leave the air vents open.
Remember to make use of equipment that can help keep the temperature in thepassenger compar tment down (sunroof and window blinds...). Switch off the air conditioning, unless it hasautomatic digital regulation, as soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic. Switch off the heated seat as soon as possible.

Customisable colour instrument panel - Type 1
1.
Rev counter (x 1 000 rpm or tr/min). 2.
Gear efficiency indicator with manualgearbox or gear lever position and gear for
the electronic gearbox system.3.Analogue speedometer (mph or km/h). 4. Cruise control or speed limiter setting. 5.
Digital speedometer (mph or km/h).
6
.Engine oil level indicator.
Dials and screens
Control buttons
7.Ser vice indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed successively on switching on the ignition.
Lighting dimmer setting (when making an
adjustment).
8. Tr i p m i l e age recorder (miles or km).9.Fuel gauge and associated low fuel
warning lamp.
10. Range (miles or km).
A.Dial COLOUR: customisation of the
background colour of the dials. B.Screen COLOUR: customisation of thebackground colour of the screens.
C.Lighting dimmer (available in night mode).D. Reminder of the ser vicing information
Reset the service indicator or the trip
mileage recorder.

39Monitoring
1. Rev counter (x 1 000 rpm or tr/min). 2.Gear efficiency indicator with manualgearbox or gear lever position and gear for
the electronic gearbox system or automaticgearbox. 3.Speedometer (mph or km/h).4. Central screen.
5. Fuel gauge and associated low fuel level
warning lamp.
Dials and screens
6.
Tr i p m i l e age recorder (miles or km).7.
Ser vice spanner (if a ser vice is due or
missed),
total mileage recorder. (miles or km)




Control buttons




















Customisable colour instrument panel - Type 2
A.Dial COLOUR: customisation of the
background colour of the dials. B. Screen COLOUR: customisation of the
background colour of the screens.C. Dashboard lighting dimmer (in night mode).D.Star t a manual test (procedure for checking
the status of systems and display of vehicle
alerts).
Reset service indicator or trip mileage
recorder.

Type 2 instrument panel central screen and controls
1. Speed limiter or cruise control settings.2.
Engine oil level indicator.
Reminder of the ser vicing information.
These functions are displayed successively
on switching on the ignition, after the
welcome sequence and before display of
the active available functions.
Alert or information messages may be displayed temporarily.
This
group of controls allows:

-
when stationary
, configuration of theyvehicle, central screen and instrument
panel parameters (driving and comfor t
systems, language, units, sounds...),
-
when stationary and while driving,scrolling the active functions available(trip computer, navigation-guidance...).


Controls

There is a button and a thumb wheel to control
the central screen in the instrument panel:
A.button on the end of the wiper stalk: run through the various active functionsavailable. B.thumb wheel on the left of the steering column,
- rotation (other than menu): scroll through
the list of active functions available,
- press: main menu, confirm the selection,
- rotation
(in a menu): move up or down in
the menu.

41Monitoring
)Press thumb wheel B for access to the main menu and select one of the following
functions:
- "Vehicle parameters",
- "Displa
y adjustment",
- "Choice of sounds". )Turn the thumb wheel B
to move around in
the instrument panel central screen.)Press the thumb wheel Bagain to confirm
the selection.Thi
s menu is used to activate or deactivate certain driving and comfor t systems, classified in different categories:
- "Access to the vehicle" (see "Access" section):


●
"Plip action" (Selective unlocking of the
driver's door),

●
"Unlocking only boot" (Selectiveunlocking of the boot).

- "Driving assistance":


●
"Parking brake automatic" (Automaticelectric parking brake; see "Driving" section),

●
"Rear wipe in reverse gear" (Rear wiper coupled to reverse gear; see "Visibility"section),

●
"Speeds memorised" (Memorising speeds; see "Driving" section).


- "Vehicle li
ghting" (see "Visibility" section):
●
"Directional headlamps" (Main/additional
directional lighting),
●
"Daytime lights" (Daytime runninglamps).


- "Interior lighting" (see "Visibility" section):
●
"Follow-me-home" (Automatic timed
operation of headlamps),
●
"Welcome lighting" (Interior/exterior
welcome lighting).


Vehicle parameters
Main menu
The main menu and its associated functions can only be accessed when
stationary.A message appears in the instrumentpanel central screen, above a certainspeed threshold, indicating that the main menu cannot be displayed.
