2011.5 Citroen DS4 RHD display

The system is reactivated automaticallyat every new star t using the key.
Reactivation

This system requires a specific battery with aspecial specification and technology (reference numbers available from a CITROËN dealer or
a qualified workshop).
Fitting a battery not listed by CITROËN
introduces the risk of malfunction of the system. In the event of a malfunction with the s
ystem,
the "ECO OFF"switch warning lamp flashes,
then comes on continuously.
have it checked by a CITROËN dealer or a qualified workshop.


Operating fault
Maintenance

Before doing anything under the bonnet, deactivate the Stop & Start system to avoid any risk of injury resulting from automatic operation of STA R T mode.

The Stop & Star t system makes use of advanced technology. All work on this type of battery must be done only by a CITROËN dealer or a qualifiedworkshop. Pr
ess the "ECO OFF"switch again.
The system is active again; this is confirmed
by the switch warning lamp going off and the
display of a message.
In the event of a fault in STOP mode, thevehicle may stall. All of the instrumentpanel warning lamps come on.Depending on version, an alert message may also be displayed askingyou to put the gear lever into position Nand put your foot on the brake pedal.
It is then necessary to switch off the ignition, then restart the engine using the key.

Memorising speeds This memorisation of speeds applies to both the speed limiter and the cruise control.
You can memorise up to 5 speeds in the system. By default, a few speeds are already memorised.
With your Audio system
)Go to the main menu by pressing the
"MENU"
button.)Select the "Personalisation-configuration" menu and confirm. )Select "Vehicle parameters" menu andconfirm. )Select the "Driving assistance" line and conform.)Select "Speeds memorised" line and confirm. )Modify the speed. )Select "OK
" and confirm to save themodifications.


With the eMyWay satellite
navi
gation system
)Press the "MEM"button to display the list
of speeds memorised.



Access

For safety reasons, the driver must only carry out these operations whenstationary.
)
Go to the main menu by pressing the left
hand thumb wheel at the bottom of thesteering wheel. ) Select the "Vehicle parameters" menu andconfirm.)Select the "Driving assistance" line and confirm.)
Select the "Speeds memorised" line and confirm.)
Modify the speed.)
Select " OK" and confirm to save the
modifications.
These operations are only possible when stationary with this system.
Selection
To select a memorised speed:)press and hold the "+" or " -" button; the system stops at the nearest memorised speed, )press and hold again the " +
" or "-
" button to select another memorised speed.
A reminder of the speed and the state of thesystem (on/off) is displayed in the instrumentpanel.

219Driving
System which prevents the vehicle fromexceeding the speed programmed by the driver.
When the programmed speed limit is reached, pressing the accelerator pedal no longer has
any effect.





Speed limiter

The speed limiter cannot, in any circumstances, replace the need to respect speed limits, nor can it replace the need for vigilance andresponsibility on the par t of the driver.
The functions of this system are grouped
together on the steering mounted controls.
1
.Speed limiter mode selection wheel.
2. Programmed value decrease button. 3.
Programmed value increase button.
4. Speed limiter on/off button.
5. List of memorised speeds display button. (see "Memorising speeds")
Steering mounted controls

The programmed information is grouped
together in the instrument panel screen.
6
. Speed limiter on/off indication.
7.Speed limiter mode selection indication. 8. Programmed speed value.9.Selection of a memorised speed.
(see "Memorising speeds")


Displays in the instrument panel


Operation

The speed limiter is switched onmanually:
it requires a programmed speed of at least
20 mph (30 km/h).
The speed limiter is switched offby manual foperation of the control.
The programmed speed can be exceeded
temporarily by pressing the accelerator firmly
beyond the point of resistance.
To return to the programmed speed, simply
release the accelerator pedal.
The pro
grammed speed remains in the memory
when the ignition is switched off.

) Turn dial 1
to the "LIMIT"
position: the
speed limiter mode is selected but is not
switched on
(Pause). You do not have to switch the speed limiter on
in order to set the speed.) Set the speed value by pressing button 2or 3(e.g.: 55 mph (90 km/h)).
Programming
You can then change the programmed speed using buttons 2
and 3:- by + or - 1 mph (km/h) = shor t press,
- in steps of + or - 5 mph (km/h) = maintained press.
If speed memorisation is available and activated on your vehicle, theprogrammed speed will stop at the closest memorised speed; refer to thecorresponding paragraph. )Switch the speed limiter on by pressing button 4 . )Switch the speed limiter off by pressing button 4: the display confirms that it has been switched off (Pause).)Switch the speed limiter back on by pressing button 4
again.

Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have any effect unless you press the pedal firmlypast the ypoint of resistance
.
The speed limiter is deactivated temporarily and the programmed speed,
which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the programmed speed.
On a steep descent or in the event of sharp acceleration, the speed limiter will not be able to prevent the vehiclefrom exceeding the programmed speed. To a v o i d a ny risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- do not fit one mat on top of another.



Exiting the speed limiter mode
)Turn dial 1to the "0"
position: the speed
limiter mode is deselected. It disappears
from the screen.



Operating fault

In the event of a fault with the speed limiter,
the speed is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a qualified workshop.

221Driving





Cruise control
System which automatically maintains thespeed of the vehicle at the value programmed
by the driver, without any action on the
accelerator pedal.
The
functions of this system are grouped
together on the steering mounted controls.
1
.Cruise control mode selection dial.
2. Speed programming/value decreasebutton.3.
Speed programming/value increase button.4.
Cruise control off/resume button.
5. Memorised speeds display button.(see "Memorising speeds")
Steering mounted controls
The cruise control system cannot, in any
circumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibility on the par t of the driver.
You are advised to keep your feet near the pedals at all times.

The programmed information is grouped
together in the instrument panel screen.
6
. Cruise control off/resume indication.
7.Cruise control mode selection indication. 8. Programmed speed value.9.Selecting a stored speed.
(see "Storing speeds")

Displays in the instrument panel


Operation

The cruise control is switched on
manually: it
requires a minimum vehicle speed of 25 mph
(40 km/h) and engagement of:


- fourth gear on the manual gearbox,

- second gear on the electronic gearbox system or automatic gearbox, in sequentialdriving mode,

- position A
on the electronic gearboxsystem or Don an automatic gearbox.
The cruise control is switched off
manually for by pressing the brake or clutch pedal or
on triggering of the ESP system for safety reasons.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator
pedal.
Switching off the ignition cancels any programmed speed value.

223Driving





Parking space sensors


System which measures the parking space available between two vehicles or obstacles.
It measures the size of the space and gives you
information on:


- the possibility of fitting into a free space,
depending on the dimensions of your
vehicle and the distances needed for manoeuvring,

- the level of difficulty of the manoeuvre to
be performed.
The s
ystem does not measure spaces which
are clearl
y much smaller or larger than the sizeof the vehicle.
Displays in the instrument panel You have identified a parking space:)
Press button A
to select the function.)
Operate the direction indicator on the side where the space is to be measured;
a message is displayed to confirm thatmeasurement is in progress.) During measurement, go forward the
length of the space, at a speed less than
12 mph (approx. 20 km/h), to prepare for your manoeuvre.) Once the measurement has beencompleted, the system informs you of
the level of difficulty of the manoeuvre
by a message in the multifunction screen
accompanied by an audible signal.


Operation

The parking space sensor function
warning lamp can have two differentstates:
-
on fixed:the function is selected by a
press on control A . -
off:
the function is not selected,

The function displays the following types of message: The function deselects itself automatically:


- when you engage reverse gear,

- when you switch off the ignition,

- if measuring is not requested,

- within five minutes of selection of the function,

- if the vehicle speed exceeds the
threshold of 45 mph
(approx. 70 km/h) for one minute.

If the lateral distance between
your vehicle and
the parking space is too large, the system maynot be able to measure the space.
The s
ystem remains available after each measurement and can therefore measure several spaces in succession.
In poor or wintry weather, ensure that the sensors are free of dir t, ice or snow.
The parking space sensor system deactivates
the front parking sensors when measuring
forwards.
Parking possible
Parking difficult
Parking not advised
If there is a fault, have the system checked by a CITROËN dealer or a qualified workshop.

225
Driving

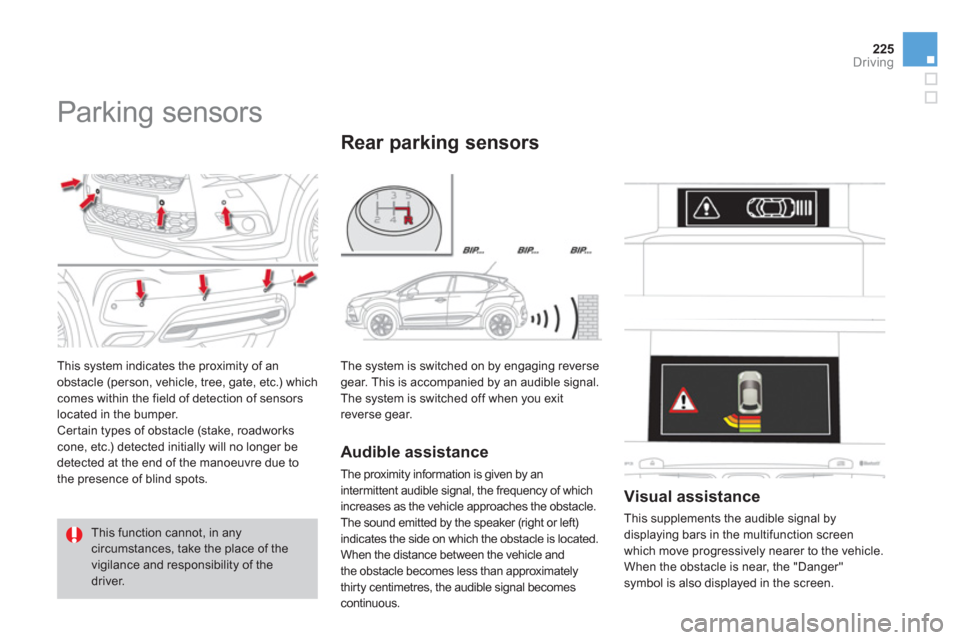

Parking sensors

This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.) which comes within the field of detection of sensorslocated in the bumper.
Cer tain types of obstacle (stake, roadworkscone, etc.) detected initially will no longer bedetected at the end of the manoeuvre due to
the presence of blind spots.


This function cannot, in any
circumstances, take the place of the vigilance and responsibility of the driver.The s
ystem is switched on by engaging reversegear. This is accompanied by an audible signal.
The system is switched off when you exit reverse gear.
Rear parking sensors
Audible assistance
The proximity information is given by anintermittent audible signal, the frequency of whichincreases as the vehicle approaches the obstacle.
The sound emitted by the speaker (right or left)indicates the side on which the obstacle is located. When the distance between the vehicle andthe obstacle becomes less than approximately
thirty centimetres, the audible signal becomescontinuous.



Visual assistance

This supplements the audible signal by
displaying bars in the multifunction screen
which move progressively nearer to the vehicle.
When the obstacle is near, the "Danger" symbol is also displayed in the screen.
