2011.5 Citroen C4 PICASSO Owner's Manual

YOUR HANDBOOK
ON THE INTERNET!


CITROËN lets you view your vehicle's
documentation on line, to see earlier versions
and the latest information, simply and free of
charge.
Connect to http://service.citroen.com

:

1|
Select your language and register,
click on the link in the "Private customer access" zone to consult the
vehicle documentation; a window opens providing access to all of
the handbooks,
select your vehicle, choose the body type then the date of issue of
the handbook,
fi nally, click on the heading of your choice.
2|
3 |
4 |

Your vehicle is fi tted with only some of the
equipment described in this document, de-
pending on the trim level, version and the
specifi cations for the country in which it is
sold.
The fi tting of electrical equipment or ac-
cessories which are not recommended by
CITROËN may result in a failure of your ve-
hicle's electronic system. Please note this
specifi c warning and contact a CITROËN
dealer to be shown the recommended
equipment and accessories.

CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.

Happy motoring!

We draw your attention to the following...


At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.

Key

safety warning


contributes to the protection of the environment


refer to the page indicated

CONTENTS
2
Monochrome screen A 45Monochrome screen C 47Colour screen (MyWay) 50NaviDrive colour screen 52Trip computer 53
■■■■■
II - MULTIFUNCTIONSCREENS45 Î55
Ventilation 56Manual air conditioning 58Digital air conditioning 60Scented air freshener 65Front seats 67Rear seats 70Seat modularity 75Mirrors 76Steering wheel adjustment 77
■■■■■■■■■
III - COMFORT 56Î77
Remote control key 78Starting the engine 81Alarm 84

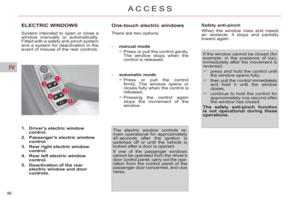

Electric windows 86Doors 88Boot 90Opening rear screen 90Panoramic sunroof 91Fuel tank 92
■■■■■■■■■
IV - ACCESS 78Î93

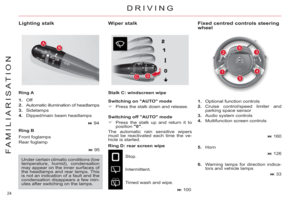

Lighting controls 94LED lamps 96Daytime running lamps 96Automatic illumination
of headlamps 97Headlamp adjustment 98Directional lighting 99Wiper controls 100Automatic rain sensitive wipers 101Courtesy lamps 103Interior mood lighting 104
■■■■
■■■■■■
V - VISIBILITY 94 Î 104

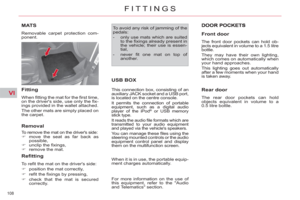

Interior fi ttings 105Illuminated glove box 106Mats 108Boot fi ttings 111Luggage retaining net 115Torch 116
■■■■■■
VI-FITTINGS 105 Î 116
Instrument panels 31Indicator and warning lamps 33Indicators 42
■■■
FAMILIARISATION 4 Î30
I - MONITORING 31 Î44
Child seats 117ISOFIX child seats 122Child lock 125
■■■
VII - CHILDSAFETY 117 Î125
Eco-driving 29■

CONTENTS
3
Direction indicators 126Hazard warning lamps 126Horn 126Tyre under-infl ation detection 127Braking assistance systems 128Trajectory control systems 129Emergency or assistance call 130Seat belts 131Airbags 135
■■■■■■■■■
VIII-SAFETY 126Î138
Electric parking brake 139Hill start assist 146Manual gearbox 147Gear effi ciency indicator 1486-speed electronic gearbox system 149Stop & Start 153Automatic gearbox 156Fixed centred controlssteering wheel 160Speed limiter 162Cruise control 164Parking space sensors 166Lane departure warning system 168Parking sensors 169Pneumatic suspension 171
■■■■■
■■■
■■■■■■
IX - DRIVING 139Î172

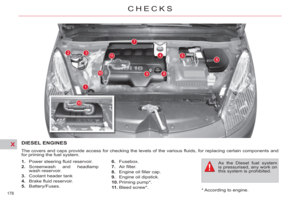

Bonnet 174Running out of fuel (Diesel) 176Petrol engines 177Diesel engines 178Checking levels 179Checks 181
■■■■■■
X - CHECKS 173Î 182

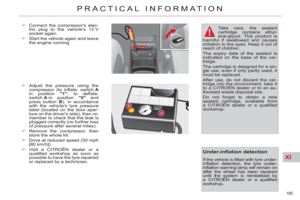

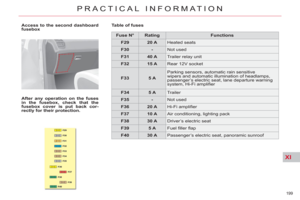

Temporary puncture repair kit 183Changing a wheel 186Changing a bulb 190Changing a fuse 19712 V battery 203Energy economy mode 206Towing the vehicle 207Towing a trailer 209Roof bars 210Very cold climate screen 210Accessories 211
■■■■■■■■■■■
XI - PRACTICALINFORMATION 183Î 212

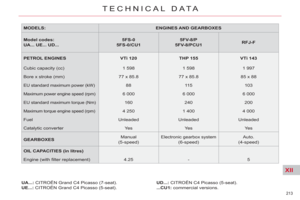

Petrol engines 213Petrol weights 214Diesel engines 215Diesel weights 217Petrol/Diesel weights - commercial versions 221Dimensions 223Identifi cation markings 226
■■■■■
■■
XII - TECHNICALDATA 213 Î226
Emergency or assistance 227NaviDrive 231MyWay 275Audio system 307Video pack 329
■■■■■
AUDIO andTELEMATICS 227 Î336
VISUALSEARCH 337 Î 341
ALPHABETICALINDEX 342 Î 348

4
FAMILIARISATION

Xenon directional headlamps

This system allows the light beams
to follow the direction of the road
ahead.



99
Front/rear parking sensors

Sensors, located in the bumpers, de-
tect obstacles.



169

Parking space sensor

This system measures the size of
a parking space available between
two vehicles or obstacles.



166
EXTERIOR


Stop & Start

This system puts the engine tempo-
rarily into standby during stops in the
traffi c (red lights, traffi c jams, etc...).
The engine restarts automatically as
soon as you want to move off.
Stop & Start reduces fuel consump-
tion, exhaust emissions and noise
when stationary.



153

5
FAMILIARISATION

Panoramic sunroof




91

Opening rear screen




90

Pneumatic rear suspension

This enhances driving comfort and
maintains a constant body height,
whatever the vehicle load.



171

Exterior side spotlamps

These light up the zones facing the
driver’s and passenger’s doors.



98
Door mirrors

With electric foldback.
Automatically tilts in reverse gear.



76
EXTERIOR

6
FAMILIARISATION


A.
Central locking

B.
Unlocking

C.
Remote lighting control

D.
Folding/unfolding the key

Press control A
, located on the switch
panel to the right of the dashboard. The
fuel fl ap automatically opens up fully.
Insert the pump nozzle so as to push in
the metal fl ap B
.
Push the fuel fi ller fl ap to close it.

After switching off the ignition, con-
trol A
is only active for a few minutes.
If necessary, switch on the ignition
again to reactivate it.
Bonnet stay: Unclip the stay and insert
it into the notch.



78



Bonnet opening/closing

To release the bonnet, pull the lever
located under the dashboard left hand
end towards you. Then operate the
safety catch at the front of the bonnet,



174



92



Selective opening

Using the multifunction screen, you can
choose from the following options for
opening your vehicle with the remote
control:


- either all of the doors and the tail-
gate,

- or the driver’s door with a fi rst press,
then all of the other doors with a
second press.
To close:
move the stay back to
its initial position, lower the bon-
net, then allow it to slam shut at
the end of its travel.
OPENING

Remote control key
Fuel tank


Capacity: approximately 60 litres.
