2010 YAMAHA YFM350R Owners Manual

8-26
8
EBU24711Adjusting the parking brake free play The parking brake free play must be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
Cable length “A” should measure 64–68 mm
(2.52–2.68 in). Adjust the parking brake free play
as follows.1. Release the parking brake by moving the
parking brake lever to the right.
2. Fully loosen the locknut and the adjusting bolt
at the rear brake caliper.
3. Loosen the locknut on the brake cable.
4. Turn the adjusting nut on the brake cable in di-
rection (a) to increase the cable length, and in
direction (b) to decrease it.1. Brake pedal position
1. Locknut
2. Adjusting bolt
3. Cable length “A”
U1BS60E0.book Page 26 Thursday, April 16, 2009 4:11 PM

8-27
8
TIPIf the cable length cannot be adjusted to specifica-
tion, consult a Yamaha dealer.5. Tighten the locknut on the brake cable.
6. Turn in the adjusting bolt at the rear brake cal-
iper until it feels tight, then turn it out 1/8 turn
and tighten its locknut to the specified torque.
NOTICE: When tightening the locknut,
hold the adjusting bolt with a wrench so
that it does not turn together with the lock-
nut.
[ECB00521]
WARNING
EWB02090Operating with improperly serviced or adjust-
ed brakes could cause the brakes to malfunc-
tion, resulting in reduced braking
performance. This could increase the chance
of a collision or accident. After adjusting the
parking brake free play, block the rear of the
ATV off the ground and spin the rear wheels.
Check to make sure there is no brake drag. If
brake drag is noticed, perform the adjustment
again.EBU24740Brake light switches The operation of the brake light switches must be
checked and, if necessary, adjusted at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
The brake light switch for the brake pedal can be
adjusted as follows, but the other brake light
switches should be adjusted by a Yamaha dealer.
1. Locknut
2. Adjusting nut
Tightening torque:
Locknut (rear brake caliper):
16 Nm (1.6 m·kgf, 11 ft·lbf)
U1BS60E0.book Page 27 Thursday, April 16, 2009 4:11 PM

8-28
8
TIPThe brake light switch is properly adjusted when
the brake light comes on just before braking takes
effect.Turn the adjusting nut while holding the brake light
switch in place. To make the brake light come on
earlier, turn the adjusting nut in direction (a). To
make the brake light come on later, turn the adjust-
ing nut in direction (b).
EBU24820Adjusting the clutch lever free play The clutch lever free play must be checked and, if
necessary, adjusted at the intervals specified in the
periodic maintenance and lubrication chart.
The clutch lever free play should measure 5.0–
10.0 mm (0.20–0.39 in) as shown. If the free play
is incorrect, adjust it as follows.
1. Loosen the locknut at the clutch lever.
1. Brake light switch
2. Brake light switch adjusting nut
1. Locknut
2. Clutch lever free play adjusting bolt
3. Clutch lever free play
U1BS60E0.book Page 28 Thursday, April 16, 2009 4:11 PM

8-29
82. To increase the clutch lever free play, turn the
adjusting bolt at the clutch lever in direction
(a), and to decrease it, turn the bolt in direction
(b).
3. Tighten the locknut at the clutch lever.
If the specified free play cannot be obtained,
proceed with the following steps.
4. Loosen the locknut at the clutch lever.
5. Fully turn the adjusting bolt at the clutch lever
in direction (a) to loosen the clutch cable.
6. Loosen the locknut at the crankcase.
7. To increase the clutch lever free play, turn the
adjusting nut at the crankcase in direction (a),
and to decrease it, turn the nut in direction (b).8. Tighten the locknut at the crankcase and the
clutch lever.
TIPIf the specified free play cannot be obtained as de-
scribed above or if the clutch does not operate cor-
rectly, have a Yamaha dealer check the internal
clutch mechanism.EBU24844Drive chain slack The drive chain slack should be checked before
each ride and adjusted if necessary.
To check the drive chain slack
1. Place the ATV on a level surface.TIPWhen checking and adjusting the drive chain
slack, there should be no weight on the ATV and
all tires must be touching the ground.2. Move the ATV back and forth to locate the
tightest portion of the drive chain, and then
measure the drive chain slack as shown.
1. Locknut
2. Clutch lever free play adjusting nut (crankcase)
Drive chain slack:
25.0–35.0 mm (0.98–1.38 in)
U1BS60E0.book Page 29 Thursday, April 16, 2009 4:11 PM

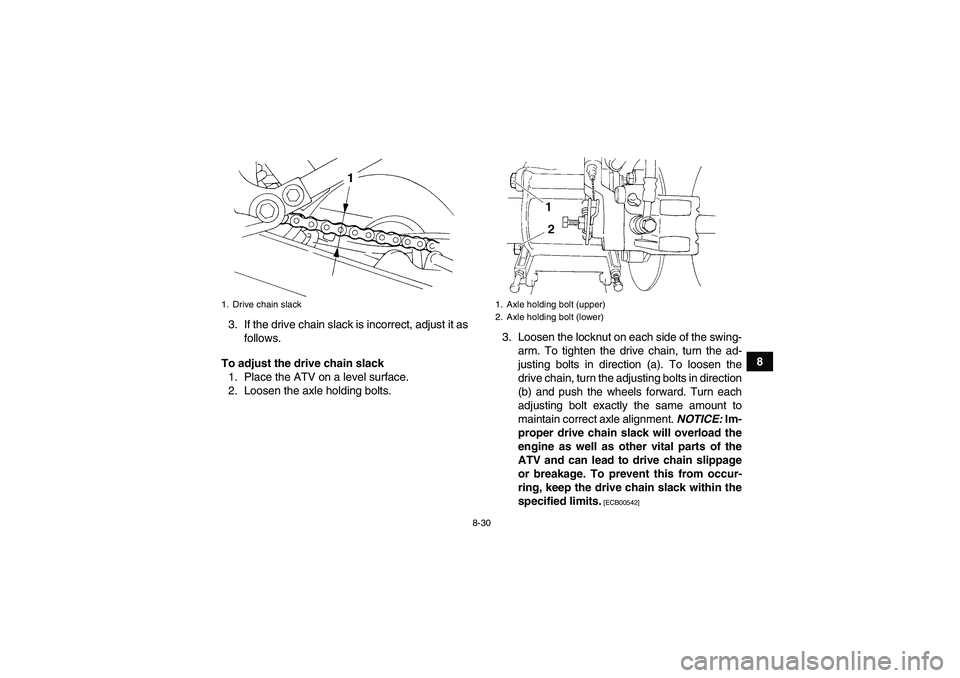

8-30
8 3. If the drive chain slack is incorrect, adjust it as
follows.
To adjust the drive chain slack
1. Place the ATV on a level surface.
2. Loosen the axle holding bolts.3. Loosen the locknut on each side of the swing-
arm. To tighten the drive chain, turn the ad-
justing bolts in direction (a). To loosen the
drive chain, turn the adjusting bolts in direction
(b) and push the wheels forward. Turn each
adjusting bolt exactly the same amount to
maintain correct axle alignment. NOTICE: Im-
proper drive chain slack will overload the
engine as well as other vital parts of the
ATV and can lead to drive chain slippage
or breakage. To prevent this from occur-
ring, keep the drive chain slack within the
specified limits.
[ECB00542]
1. Drive chain slack
1. Axle holding bolt (upper)
2. Axle holding bolt (lower)
U1BS60E0.book Page 30 Thursday, April 16, 2009 4:11 PM

8-31
8
TIPThere are alignment marks on both drive chain
pullers and an alignment mark on each side of the
swingarm. Make sure to align the same alignment
mark on both drive chain pullers with the alignment
mark on either side of the swingarm for proper
wheel alignment.4. Tighten the locknuts and the axle holding bolts
to the specified torques.
EBU24882Lubricating the drive chain The drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenance
and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows.NOTICEECB00561The drive chain must be lubricated after wash-
ing the ATV or riding in the rain or wet areas.1. Clean the drive chain with kerosene and a
small soft brush. NOTICE: To prevent dam-
aging the O-rings, do not clean the drive
chain with steam cleaners, high-pressure
washers or inappropriate solvents.
[ECB00571]
1. Locknut
2. Drive chain slack adjusting bolt
3. Alignment marks
Tightening torques:
Locknut:
16 Nm (1.6 m·kgf, 11 ft·lbf)
Axle holding bolt (upper):
120 Nm (12.0 m·kgf, 85 ft·lbf)
Axle holding bolt (lower):
73 Nm (7.3 m·kgf, 53 ft·lbf)
U1BS60E0.book Page 31 Thursday, April 16, 2009 4:11 PM

8-32
8 2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a
special O-ring chain lubricant. NOTICE: Do
not use engine oil or any other lubricants
for the drive chain, as they may contain
substances that could damage the O-
rings.
[ECB00581]
EBU24901
Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02581
Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could
restrict the operation of controls and lead to
an accident or injury.
Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-
dent or collision.EBU24922Checking and lubricating the brake and
clutch levers The operation of the brake and clutch levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
1. O-ring
Recommended lubricant:
Engine oil
U1BS60E0.book Page 32 Thursday, April 16, 2009 4:11 PM

8-33
8Brake leverClutch lever
EBU28841Checking and lubricating the brake and
shift pedals The operation of the brake and shift pedals should
be checked before each ride, and the pedal pivots
should be lubricated if necessary. Recommended lubricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based greaseRecommended lubricant:
Lithium-soap-based grease
U1BS60E0.book Page 33 Thursday, April 16, 2009 4:11 PM
