2010 YAMAHA YFM350R Owners Manual

8-2

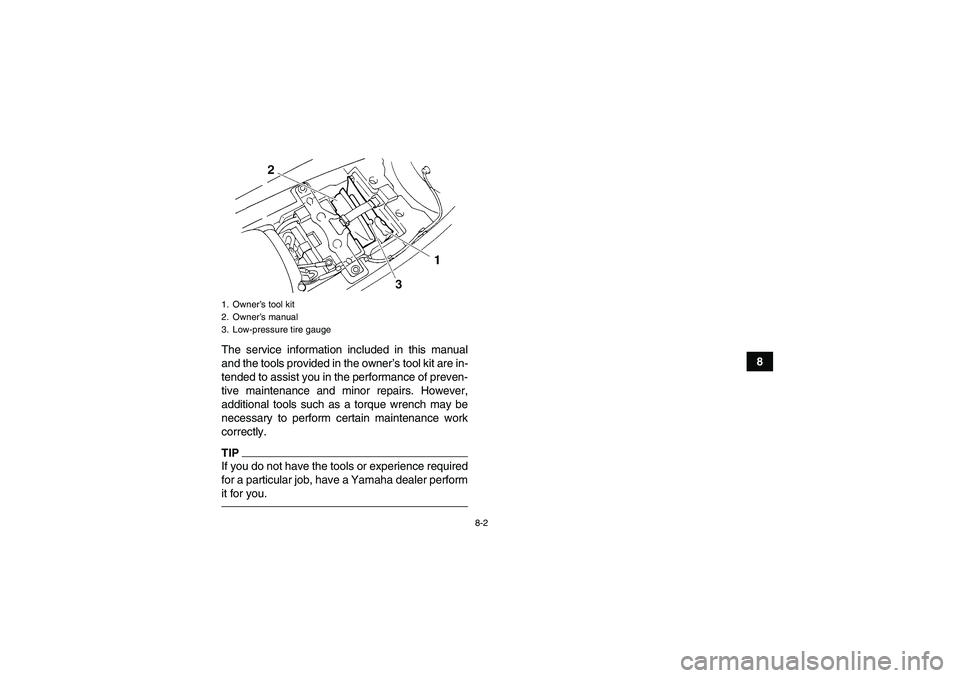

8 The service information included in this manual
and the tools provided in the owner’s tool kit are in-
tended to assist you in the performance of preven-
tive maintenance and minor repairs. However,
additional tools such as a torque wrench may be
necessary to perform certain maintenance work
correctly.
TIPIf you do not have the tools or experience required
for a particular job, have a Yamaha dealer perform
it for you.1. Owner’s tool kit
2. Owner’s manual
3. Low-pressure tire gaugeU1BS60E0.book Page 2 Thursday, April 16, 2009 4:11 PM

8-3
8
EBU21743Periodic maintenance chart for the emission control system TIP
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills.NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
1*Fuel lineCheck fuel hoses for cracks or other damage, and
replace if necessary.√√√
2 Spark plugCheck condition and clean, regap, or replace if
necessary.√√√√√
3*ValvesCheck valve clearance and adjust if necessary.√ √√√
4*CarburetorCheck starter (choke) operation and correct if nec-
essary.
Check engine idling speed and adjust if neces-
sary.√√√√
5*Crankcase breather
systemCheck breather hose for cracks or other damage,
and replace if necessary.√√√
U1BS60E0.book Page 3 Thursday, April 16, 2009 4:11 PM

8-4
8
6*Exhaust systemCheck for leakage and replace gasket(s) if neces-
sary.
Check for looseness and tighten all screw clamps
and joints if necessary.√√√
7 Spark arresterClean.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
U1BS60E0.book Page 4 Thursday, April 16, 2009 4:11 PM

8-5
8
EBU21865General maintenance and lubrication chart TIP
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills.NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
1 Air filter elementClean and replace if necessary.Every 20–40 hours (more often in wet or
dusty areas)
2*ClutchCheck operation and adjust if necessary.√ √√√
3*Front brakeCheck operation and correct if necessary.
Check fluid level and ATV for fluid leakage, and
correct if necessary.√√√√√
Replace brake pads. Whenever worn to the limit
4*Rear brakeCheck operation and correct if necessary.
Check fluid level and ATV for fluid leakage, and
correct if necessary.√√√√√
Replace brake pads. Whenever worn to the limit
U1BS60E0.book Page 5 Thursday, April 16, 2009 4:11 PM

8-6
8
5*Brake hosesCheck for cracks or other damage, and replace if
necessary.√√√√
Replace. Every 4 years
6*Parking brakeCheck operation and adjust if necessary.√√√√√
7*WheelsCheck runout and for damage, and replace if nec-
essary.√ √√√
8*TiresCheck tread depth and for damage, and replace if
necessary.
Check air pressure and balance, and correct if
necessary.√ √√√
9*Wheel hub bearingsCheck for looseness or damage, and replace if
necessary.√ √√√
10*Swingarm pivotsCheck operation and for excessive play, and re-
place bearings if necessary.
Lubricate with lithium-soap-based grease.√√√
11*Upper and lower
arm pivotsLubricate with lithium-soap-based grease.√√√
12 Drive chainCheck chain slack and adjust if necessary.
Check rear wheel alignment and correct if neces-
sary.
Clean and lubricate.√√√√√
13*Drive chain rollersCheck for wear and replace if necessary.√√√
14*Chassis fastenersMake sure that all nuts, bolts, and screws are
properly tightened.√√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
U1BS60E0.book Page 6 Thursday, April 16, 2009 4:11 PM

8-7
8
15*Shock absorber as-
sembliesCheck operation and correct if necessary.
Check for oil leakage and replace if necessary.√√√
16*Rear suspension re-
lay arm and con-
necting arm
pivoting pointsCheck operation and correct if necessary.
Lubricate with lithium-soap-based grease.√√√√
17*Steering shaftLubricate with lithium-soap-based grease.√√√
18*Steering systemCheck operation and repair or replace if damaged.
Check toe-in and adjust if necessary.√√√√√
19 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
20Engine oil filter ele-
mentClean or replace if necessary.√√√
21 Engine oil strainerClean.√√√
22*Moving parts and
cablesLubricate.√√√√
23*Throttle lever hous-
ing and cableCheck operation and correct if necessary.
Check throttle cable free play and adjust if neces-
sary.
Lubricate throttle lever housing and cable.√√√√√
24*Front and rear brake
switchesCheck operation and correct if necessary.√√√√√
25*Lights and switchesCheck operation and correct if necessary.
Adjust headlight beams.√√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U1BS60E0.book Page 7 Thursday, April 16, 2009 4:11 PM

8-8
8

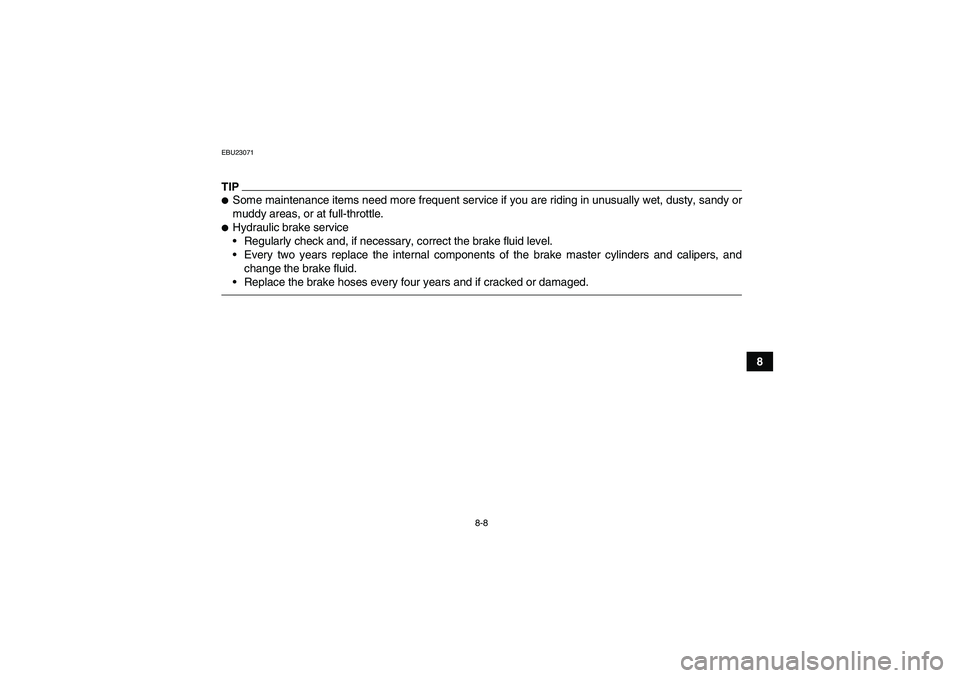

EBU23071TIP
Some maintenance items need more frequent service if you are riding in unusually wet, dusty, sandy or
muddy areas, or at full-throttle.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and
change the brake fluid.
Replace the brake hoses every four years and if cracked or damaged.
U1BS60E0.book Page 8 Thursday, April 16, 2009 4:11 PM

8-9
8
EBU23212Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).1. Spark plug cap
1. Spark plug wrench
