2010 YAMAHA GRIZZLY 700 Owners Manual

10-4
10
Rim size:
12 x 6.0ATRear wheel:Wheel type:
Panel wheel
Rim size:
12 x 7.5ATFront brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Dual disc brake
Operation:
Left hand and right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
180 mm (7.1 in)Rear suspension:Type:
Double wishboneSpring/shock absorber type:
Coil spring/oil damper
Wheel travel:
230 mm (9.1 in)
Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
YTX20L-BS
Voltage, capacity:
12 V, 18.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 35/35 W × 2
Tail/brake light:
12 V, 5.0/21.0 W × 1
Meter lighting:
EL
Neutral indicator light:
LED
Reverse indicator light:
LED
Coolant temperature warning light:
LED
U43P62E0.book Page 4 Tuesday, February 17, 2009 1:09 PM

10-5
10
Engine trouble warning light:
LED
EPS warning light:
LED
Park indicator light:
LED
On-Command four-wheel-drive/differential gear lock
indicator:
LCD
High-range indicator light:
LED
Low-range indicator light:
LED
Differential gear lock indicator light:
LEDFuses:Main fuse:
40.0 A
Fuel injection system fuse:
15.0 A
EPS fuse:
40.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
5.0 A
Ignition fuse:
15.0 A
Auxiliary DC jack fuse:
15.0 A
Four-wheel-drive motor fuse:
15.0 ARadiator fan fuse:
20.0 A
U43P62E0.book Page 5 Tuesday, February 17, 2009 1:09 PM

11-1
11
EBU26000

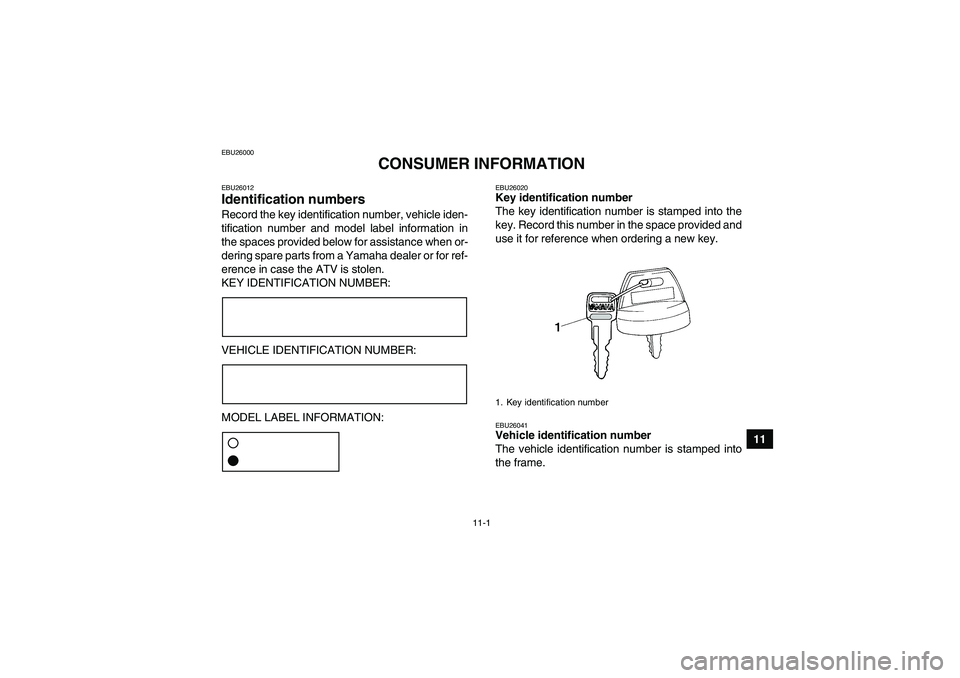

CONSUMER INFORMATION
EBU26012Identification numbers Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EBU26020Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.EBU26041Vehicle identification number
The vehicle identification number is stamped into
the frame.1. Key identification number
U43P62E0.book Page 1 Tuesday, February 17, 2009 1:09 PM

11-2

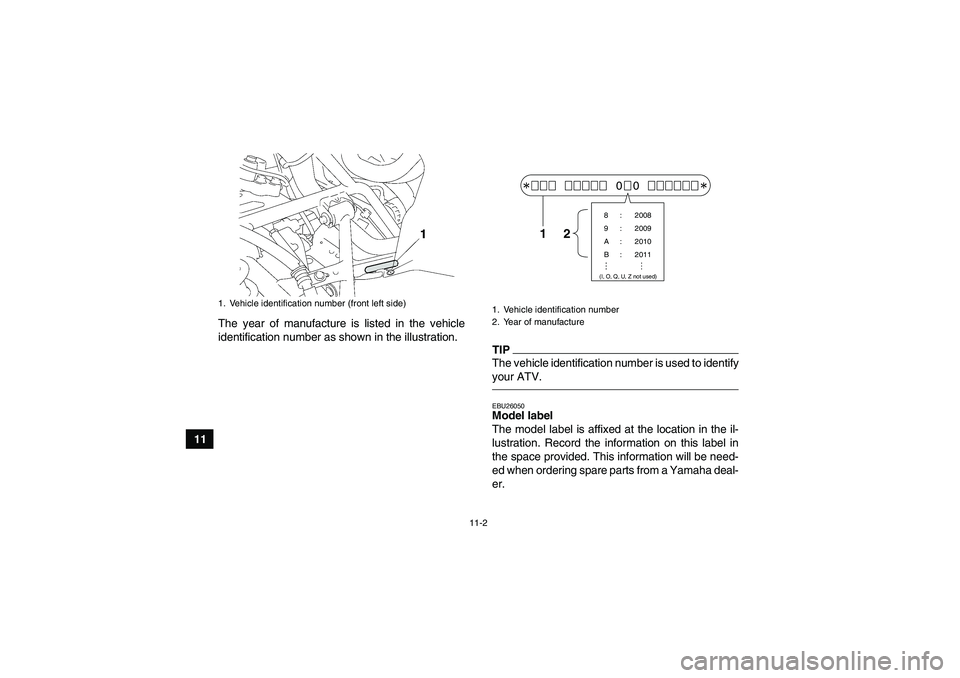

11The year of manufacture is listed in the vehicle
identification number as shown in the illustration.
TIPThe vehicle identification number is used to identify
your ATV.EBU26050Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.
1. Vehicle identification number (front left side)
1. Vehicle identification number
2. Year of manufacture
00
8 : 2008
9 : 2009
A : 2010
B : 2011(I, O, Q, U, Z not used)
12
U43P62E0.book Page 2 Tuesday, February 17, 2009 1:09 PM

11-3
11

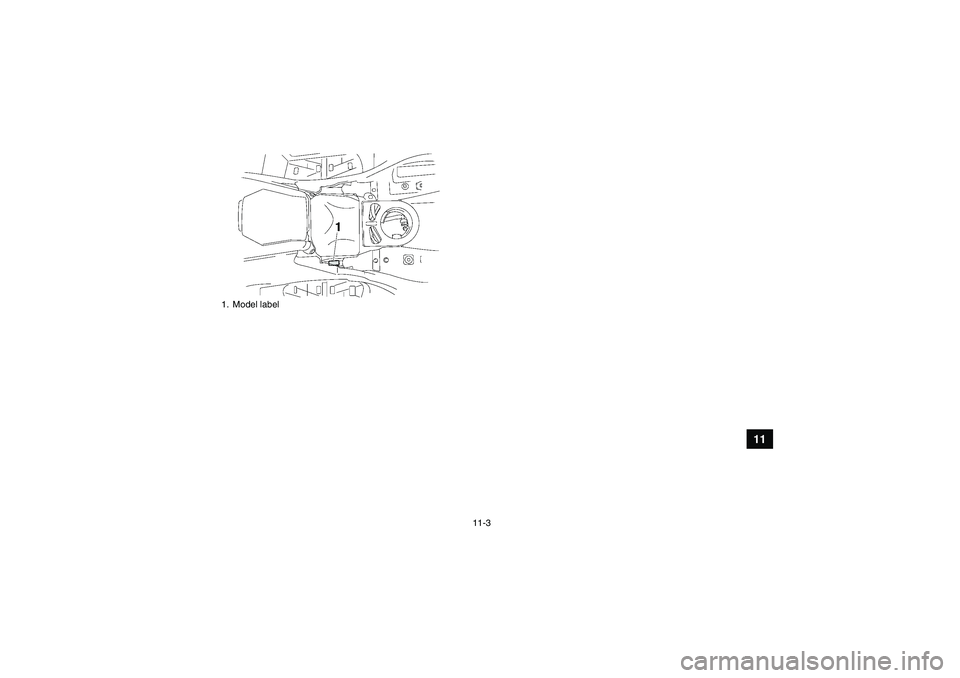

1. Model labelU43P62E0.book Page 3 Tuesday, February 17, 2009 1:09 PM

INDEX
AAccessories and loading ................................................ 6-6
Accessories, auxiliary jack ........................................... 4-23
Air filter element, cleaning ............................................ 8-36
Axle boots .................................................................... 8-49BBattery .......................................................................... 8-53
Brake fluid, changing .................................................... 8-46
Brake fluid level, checking ............................................ 8-45
Brake hose protectors, checking the rear .................... 8-44
Brake lever, front .......................................................... 4-14
Brake levers, checking and lubricating ......................... 8-50
Brake pads, checking the front and rear ...................... 8-43
Brake pedal and rear brake lever ................................. 4-14
Brake pedal, checking and lubricating ......................... 8-51
Brake pedal free play, adjusting ................................... 8-47
Brakes .......................................................................... 8-43
Brakes, front and rear .................................................... 5-3CCables, checking and lubricating ................................. 8-50
Carrier, front ................................................................. 4-21
Carrier, rear .................................................................. 4-21
Chassis fasteners ........................................................... 5-7
Cleaning ......................................................................... 9-1
Coolant .................................................................. 5-3, 8-30
Coolant temperature warning light ................................. 4-2DDifferential gear oil ................................................ 5-3, 8-28Drive select lever .......................................................... 4-15
Drive select lever and driving in reverse ........................ 6-2
Drive select lever safety system cable, adjusting ......... 8-43
EEngine break-in .............................................................. 6-4
Engine oil ....................................................................... 5-3
Engine oil and oil filter cartridge ................................... 8-22
Engine stop switch ......................................................... 4-7
Engine trouble warning light ........................................... 4-3
EPS warning light ........................................................... 4-3FFinal gear oil .......................................................... 5-3, 8-26
Four-wheel-drive/differential gear lock indicator ............ 4-4
Front and rear brake lever free play, checking ............. 8-46
Fuel ....................................................................... 4-16, 5-3
Fuel tank cap ................................................................ 4-15
Fuses, replacing ........................................................... 8-56HHandlebar switches ........................................................ 4-7
Headlight beam, adjusting ............................................ 8-59
Headlight bulb, replacing .............................................. 8-58
High-range indicator light ............................................... 4-4
Horn switch .................................................................... 4-8IIdentification numbers .................................................. 11-1
Indicator lights and warning lights .................................. 4-2
Instruments, lights and switches .................................... 5-7
U43P62E0.book Page 1 Tuesday, February 17, 2009 1:09 PM

KKey identification number ............................................. 11-1LLabel locations ............................................................... 1-1
Light switch .................................................................... 4-8
Low-range indicator light ................................................ 4-4MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-4
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2
Multi-function display ..................................................... 4-5NNeutral indicator light ..................................................... 4-2OOn-Command differential gear lock switch .................. 4-10
On-Command four-wheel-drive switch ........................... 4-9
Override switch .............................................................. 4-8
Owner’s manual and tool kit ........................................... 8-1PPanels, removing and installing ..................................... 8-8
Park indicator light ......................................................... 4-4
Parking ........................................................................... 6-5
Parking on a slope ......................................................... 6-5
Part locations ................................................................. 3-1RRadiator grills, removing .............................................. 8-19
Rear knuckle pivots, lubricating ................................... 8-52
Reverse indicator light ................................................... 4-2
Riding your ATV ............................................................. 7-1
SSafety information .......................................................... 2-1
Seat ............................................................................. 4-18
Shock absorber assemblies, adjusting the front and
rear ............................................................................ 4-21
Spark arrester, cleaning ............................................... 8-40
Spark plug, checking ................................................... 8-20
Specifications ............................................................... 10-1
Speed limiter ................................................................ 4-13
Stabilizer bushes, checking ......................................... 8-52
Starting the engine ......................................................... 6-1
Start switch .................................................................... 4-8
Steering shaft, lubricating ............................................ 8-52
Storage .......................................................................... 9-2
Storage compartments ................................................ 4-18TTail/brake light bulb, replacing ..................................... 8-60
Throttle cable free play, adjusting ................................ 8-42
Throttle lever ......................................................... 4-13, 5-4
Tires ............................................................................... 5-4
Troubleshooting ........................................................... 8-62
Troubleshooting charts ................................................ 8-63VValve clearance ........................................................... 8-43
V-belt case drain plug .................................................. 8-41
Vehicle identification number ....................................... 11-1WWheel hub bearings, checking ..................................... 8-52
Wheel, installing ........................................................... 8-61
Wheel, removing .......................................................... 8-61
