2010 YAMAHA GRIZZLY 700 Owners Manual

8-63
8
EBU27691Troubleshooting charts Starting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the ATV.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the ATV.
The engine does not start.
Have a Yamaha dealer
check the ATV.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Operate the electric starter.
U43P62E0.book Page 63 Tuesday, February 17, 2009 1:09 PM

8-64
8Engine overheating
WARNING
EWB02290Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the rec-
ommended coolant as soon as possible.Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer check
and repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
U43P62E0.book Page 64 Tuesday, February 17, 2009 1:09 PM

9-1
9
EBU25860
CLEANING AND STORAGE
EBU25881Cleaning Frequent, thorough cleaning of your ATV will not
only enhance its appearance but will improve its
general performance and extend the useful life of
many components.
1. Before cleaning the ATV:
a. Block off the end of the exhaust pipe to
prevent water entry. A plastic bag and
strong rubber band may be used.
b. Make sure the spark plug and all filler caps
are properly installed.
2. If the engine case is excessively greasy, apply
degreaser with a paint brush. Do not apply de-
greaser to the wheel axles.
3. Rinse the dirt and degreaser off with a garden
hose. Use only enough pressure to do the job.
WARNING! Wet brakes may have reduced
stopping ability, increasing the chance of
an accident. Test the brakes after washing.
Apply the brakes several times at slow
speeds to let friction dry out the linings.
[EWB02311]
NOTICE: Excessive water pressure
may cause water seepage and deteriora-tion of wheel bearings, brakes, transmis-
sion seals and electrical devices. Many
expensive repair bills have resulted from
improper high-pressure detergent applica-
tions such as those available in coin-oper-
ated car washers.
[ECB00711]
4. Once most of the dirt has been hosed off,
wash all surfaces with warm water and mild,
detergent-type soap. An old toothbrush or bot-
tle brush is handy for hard-to-reach places.
5. Rinse the ATV off immediately with clean wa-
ter and dry all surfaces with a chamois, clean
towel or soft absorbing cloth.
6. Clean the seat with a vinyl upholstery cleaner
to keep the cover pliable and glossy.
7. Automotive type wax may be applied to all
painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
abrasives which may mar the paint or protec-
tive finish. When finished cleaning, start the
engine and let it idle for several minutes.
U43P62E0.book Page 1 Tuesday, February 17, 2009 1:09 PM

9-2
9
EBU27261Storage Short-term
Always store your ATV in a cool, dry place and, if
necessary, protect it against dust with a porous
cover. NOTICE: Storing the ATV in a poorly ven-
tilated room or covering it with a tarp while it is
still wet, will allow water and humidity to seep
in and cause rust. To prevent corrosion, avoid
damp cellars, stables (because of the presence
of ammonia) and areas where strong chemi-
cals are stored.
[ECB00721]
Long-term
Before storing your ATV for several months:
1. Follow all the instructions in the “Cleaning”
section of this chapter.
2. Fill up the fuel tank and add fuel stabilizer (if
available) to prevent the fuel from deteriorat-
ing.3. Perform the following steps to protect the cyl-
inder, piston rings, etc. from corrosion.
a. Remove the spark plug cap and spark
plug.
b. Pour a teaspoonful of engine oil into the
spark plug bore.
c. Install the spark plug cap onto the spark
plug, and then place the spark plug on the
cylinder head so that the electrodes are
grounded. (This will limit sparking during
the next step.)
d. Turn the engine over several times with the
starter. (This will coat the cylinder wall with
oil.)
e. Remove the spark plug cap from the spark
plug, and then install the spark plug and
the spark plug cap.
4. Lubricate all control cables and the pivoting
points of all levers and pedals.
5. Check and, if necessary, correct the tire air
pressure, and then block up the ATV so that
all of its wheels are off the ground. Alternative-
ly, turn the wheels a little every month in order
to prevent the tires from becoming degraded
in one spot. Specified amount:
7.5 ml of stabilizer to each liter of fuel (or 1 oz
of stabilizer to each gallon of fuel)U43P62E0.book Page 2 Tuesday, February 17, 2009 1:09 PM

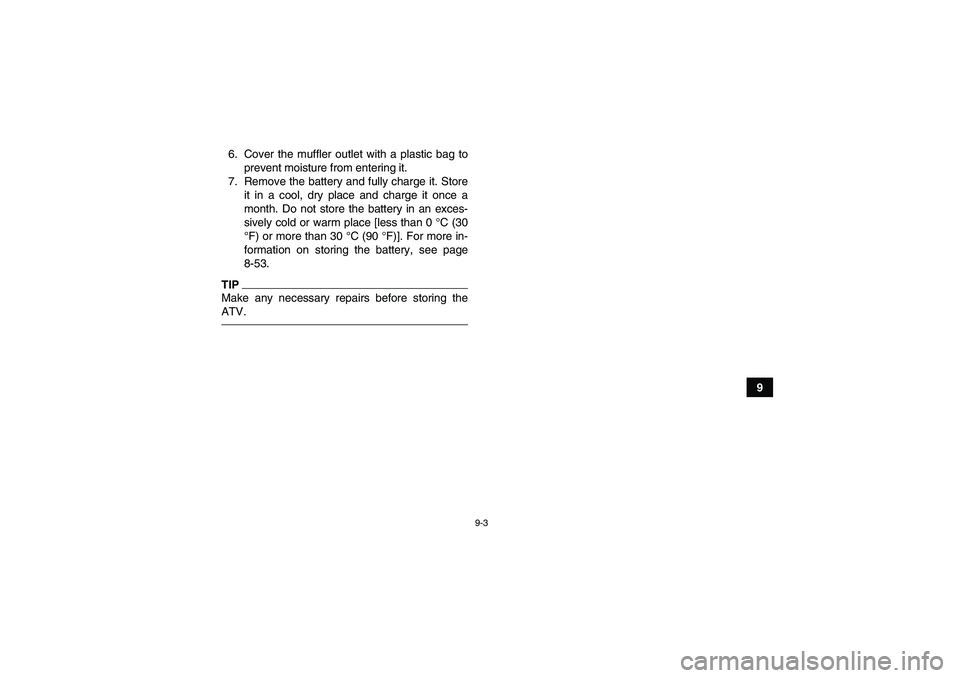

9-3
9 6. Cover the muffler outlet with a plastic bag to
prevent moisture from entering it.
7. Remove the battery and fully charge it. Store
it in a cool, dry place and charge it once a
month. Do not store the battery in an exces-
sively cold or warm place [less than 0 °C (30
°F) or more than 30 °C (90 °F)]. For more in-
formation on storing the battery, see page
8-53.
TIPMake any necessary repairs before storing the
ATV.U43P62E0.book Page 3 Tuesday, February 17, 2009 1:09 PM

10-1
10
EBU25960
SPECIFICATIONS
Dimensions:Overall length:
2065 mm (81.3 in)
Overall width:
1180 mm (46.5 in)
Overall height:
1240 mm (48.8 in)
Seat height:
905 mm (35.6 in)
Wheelbase:
1250 mm (49.2 in)
Ground clearance:
275 mm (10.8 in)
Minimum turning radius:
3200 mm (126 in)Weight:With oil and fuel:
294.0 kg (648 lb)Noise and vibration level:Noise level (77/311/EEC):
YFM7FGPHZ 78.8 dB(A)
YFM7FGPZ 78.8 dB(A)
Vibration on seat (EN1032, ISO5008):
YFM7FGPHZ Will not exceed 0.5 m/s²
YFM7FGPZ Will not exceed 0.5 m/s²
Vibration on handlebar (EN1032, ISO5008):
YFM7FGPHZ Will not exceed 2.5 m/s²
YFM7FGPZ Will not exceed 2.5 m/s²
Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
686 cm³
Bore × stroke:
102.0 × 84.0 mm (4.02 × 3.31 in)
Compression ratio:
9.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sumpEngine oil:Recommended brand:
YAMALUBE
U43P62E0.book Page 1 Tuesday, February 17, 2009 1:09 PM

10-2
10
Type:
SAE 5W-30 or SAE 10W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter cartridge replacement:
2.10 L (2.22 US qt, 1.85 Imp.qt)Final gear oil:Type:
SAE 80 API GL-4 Hypoid gear oil
Quantity:
0.20 L (0.21 US qt, 0.18 Imp.qt)Differential gear oil:Type:
SAE 80 API GL-4 Hypoid gear oilQuantity:
0.22 L (0.23 US qt, 0.19 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the maximum level mark):
0.24 L (0.25 US qt, 0.21 Imp.qt)
Radiator capacity (including all routes):
1.99 L (2.10 US qt, 1.75 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
YFM700FAPZ Unleaded gasoline only
YFM7FGPHZ Regular unleaded gasoline only
YFM7FGPZ Regular unleaded gasoline only
Fuel tank capacity:
20.0 L (5.28 US gal, 4.40 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal, 0.99 Imp.gal)Fuel injection:Throttle body:
Type/quantity:
44EIS/1Spark plug (s):Manufacturer/model:
NGK/LMAR6A-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:
Wet, centrifugal automatic
0 10 30 50 70 90 110 130 ˚F -20 -10 0 10 20 30 40 50 ˚CSAE 5W-30
SAE 10W-40
SAE 20W-50
U43P62E0.book Page 2 Tuesday, February 17, 2009 1:09 PM

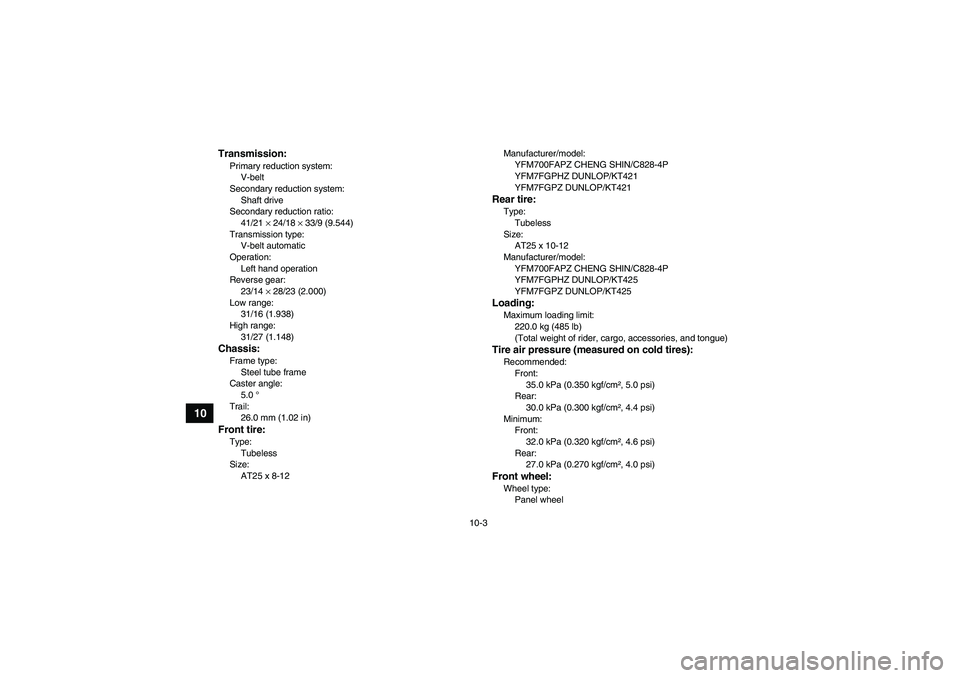

10-3
10
Transmission:Primary reduction system:
V-belt
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
41/21 × 24/18 × 33/9 (9.544)
Transmission type:
V-belt automatic
Operation:
Left hand operation
Reverse gear:
23/14 × 28/23 (2.000)
Low range:
31/16 (1.938)
High range:
31/27 (1.148)Chassis:Frame type:
Steel tube frame
Caster angle:
5.0 °
Trail:
26.0 mm (1.02 in)Front tire:Type:
Tubeless
Size:
AT25 x 8-12Manufacturer/model:
YFM700FAPZ CHENG SHIN/C828-4P
YFM7FGPHZ DUNLOP/KT421
YFM7FGPZ DUNLOP/KT421
Rear tire:Type:
Tubeless
Size:
AT25 x 10-12
Manufacturer/model:
YFM700FAPZ CHENG SHIN/C828-4P
YFM7FGPHZ DUNLOP/KT425
YFM7FGPZ DUNLOP/KT425Loading:Maximum loading limit:
220.0 kg (485 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
35.0 kPa (0.350 kgf/cm², 5.0 psi)
Rear:
30.0 kPa (0.300 kgf/cm², 4.4 psi)
Minimum:
Front:
32.0 kPa (0.320 kgf/cm², 4.6 psi)
Rear:
27.0 kPa (0.270 kgf/cm², 4.0 psi)Front wheel:Wheel type:
Panel wheel
U43P62E0.book Page 3 Tuesday, February 17, 2009 1:09 PM
