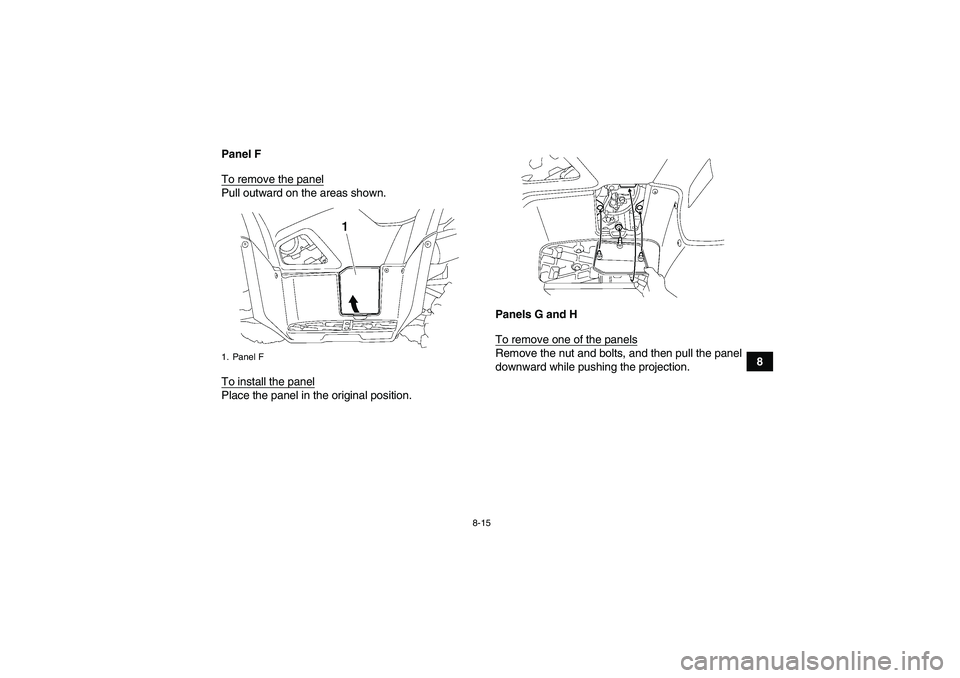

8 Panel F
To remove the panel
Pull outward on the areas shown.
To install the panelPlace the panel in the original position.Panels G and H
To remove one of the panels
Remove the nut and bolts, and then pull the panel
downward while pushing the projection.
1. Panel FU43P62E0.book Page 15 Tuesday, February 17, 2009 1:09 PM

8-16
8

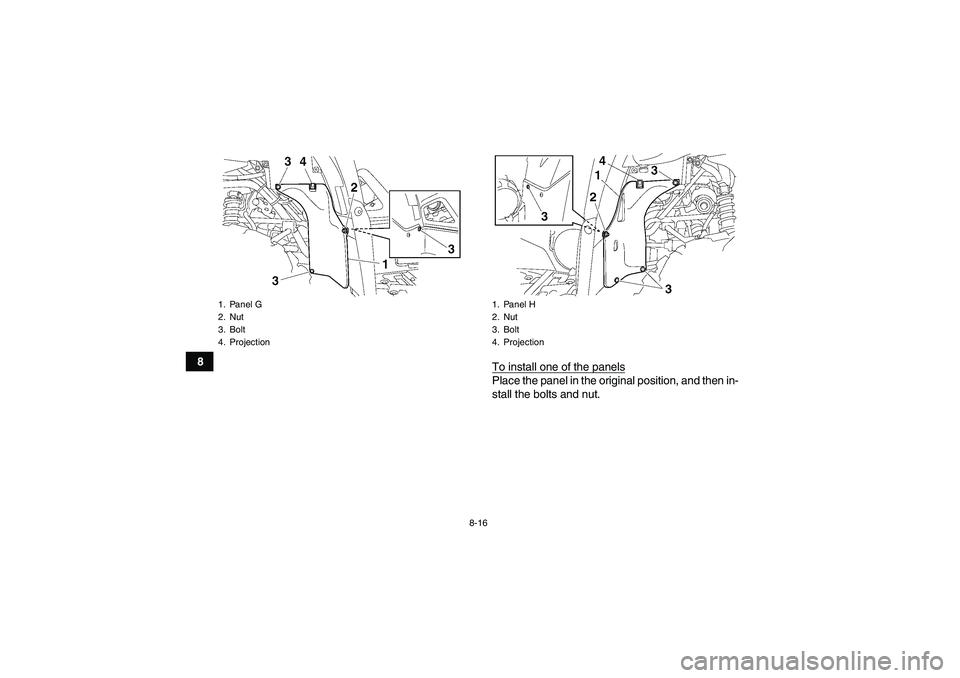

To install one of the panels
Place the panel in the original position, and then in-
stall the bolts and nut.
1. Panel G
2. Nut
3. Bolt
4. Projection
1. Panel H
2. Nut
3. Bolt
4. Projection
U43P62E0.book Page 16 Tuesday, February 17, 2009 1:09 PM

8-17
8

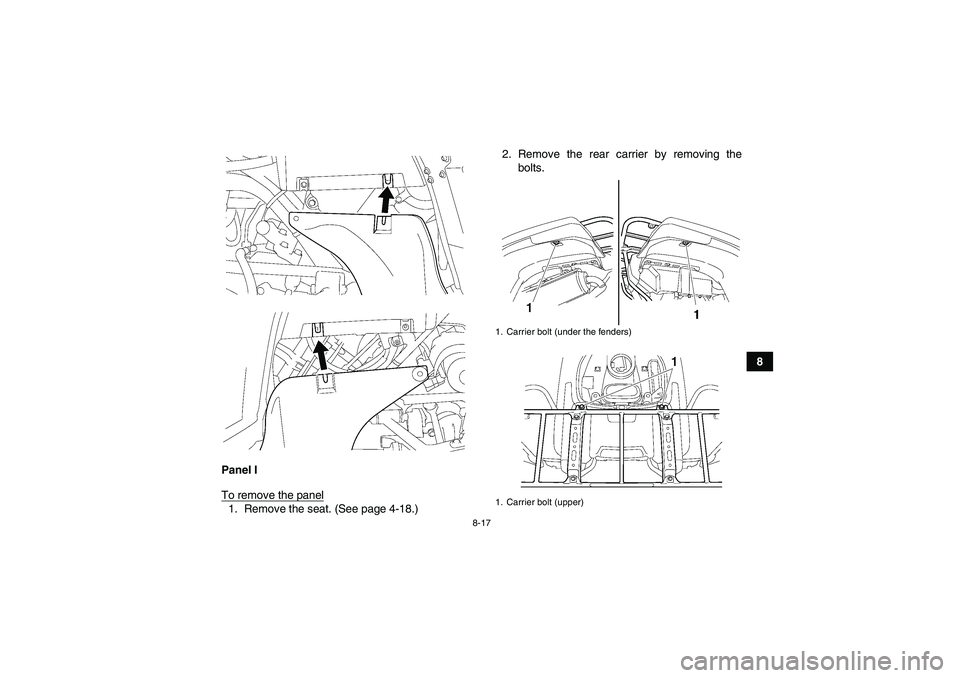

Panel I
To remove the panel
1. Remove the seat. (See page 4-18.)2. Remove the rear carrier by removing the
bolts.
1. Carrier bolt (under the fenders)
1. Carrier bolt (upper)
U43P62E0.book Page 17 Tuesday, February 17, 2009 1:09 PM

8-18
83. Remove the quick fasteners, and then push
inward on the areas shown.
To install the panel
1. Place the panel in the original position, and
then install the quick fasteners.
1. Carrier bolt (lower)
1. Panel I
2. Quick fastener
U43P62E0.book Page 18 Tuesday, February 17, 2009 1:09 PM

8-19
8 2. Install the rear carrier by installing the bolts
and tightening them to the specified torques.
3. Install the seat.

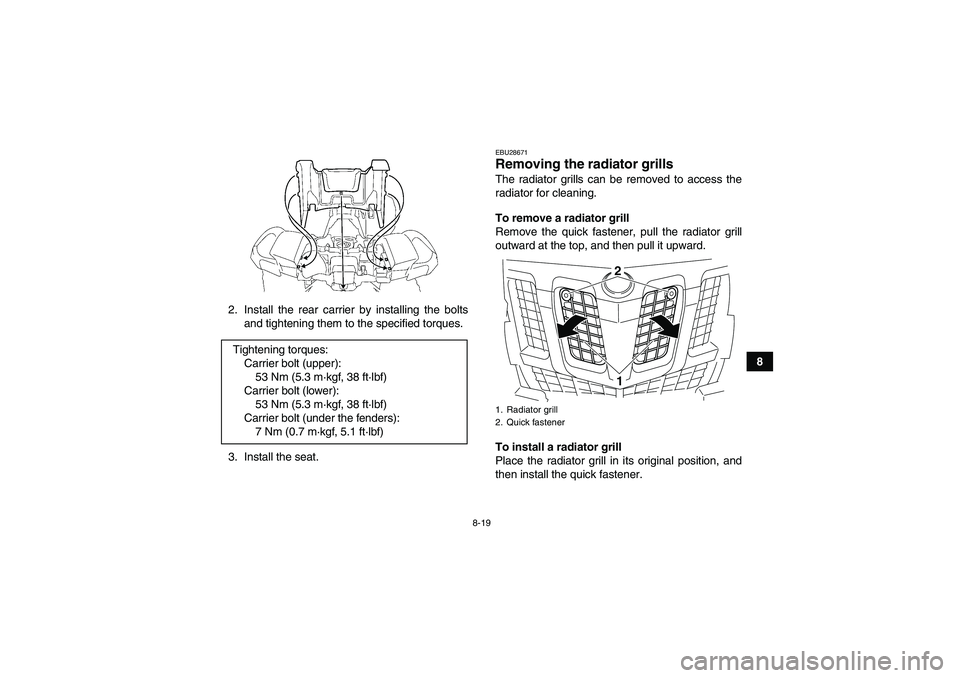

EBU28671Removing the radiator grills The radiator grills can be removed to access the
radiator for cleaning.
To remove a radiator grill
Remove the quick fastener, pull the radiator grill
outward at the top, and then pull it upward.
To install a radiator grill
Place the radiator grill in its original position, and
then install the quick fastener. Tightening torques:
Carrier bolt (upper):
53 Nm (5.3 m·kgf, 38 ft·lbf)
Carrier bolt (lower):
53 Nm (5.3 m·kgf, 38 ft·lbf)
Carrier bolt (under the fenders):
7 Nm (0.7 m·kgf, 5.1 ft·lbf)1. Radiator grill
2. Quick fastener
21
U43P62E0.book Page 19 Tuesday, February 17, 2009 1:09 PM

8-20
8
EBU23211Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).1. Spark plug cap1
1. Spark plug wrench
U43P62E0.book Page 20 Tuesday, February 17, 2009 1:09 PM

8-21
8
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV.2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
To install the spark plug
1. Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.2. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
3. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque. Specified spark plug:
NGK/LMAR6A-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
1. Spark plug gapTightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
U43P62E0.book Page 21 Tuesday, February 17, 2009 1:09 PM

8-22
8
TIPIf a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque as
soon as possible.4. Install the spark plug cap.EBU27463Engine oil and oil filter cartridge The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least 10 minutes until the oil settles
for an accurate reading.
3. Remove panel F. (See page 8-8.)
4. Remove the engine oil dipstick, and then wipe
it off with a clean rag.
5. Insert the dipstick completely into the oil filler
hole, and then remove it again to check the oil
level.1. Engine oil dipstick
