2010 YAMAHA FJR1300A Owners Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3 Ambient temperature mode
This display shows the ambient tem-
perature from –9 °C to 50 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.TIP

If the ambient temperature falls be-
low –9 °C, a lower temperature
than –9 °C will not be displayed.


If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.


The accuracy of the temperature
reading may be affected when
riding slowly [approximately under20 km/h (12.5 mi/h)] or when
stopped at traffic signals, railroad
crossings, etc.
Instantaneous fuel consumption modeThis display shows the distance that
can be traveled on 1.0 Imp.gal of fuel
under the current riding conditions.TIPIf traveling at speeds under 10 km/h
(6.0 mi/h), “_ _._” will be displayed.
Average fuel consumption modeThis display shows the average fuel
consumption since it was last reset.
When the average fuel consumption
mode is selected, the display flashes
for five seconds, and then “AV_ _._
MPG” (average distance that can be
traveled using 1.0 Imp.gal of fuel) is
displayed.TIP

To reset the average fuel con-
sumption display, push the reset
button to select the mode again,
and then push the reset button for
1 second while the display is flash-
ing.
1. Ambient temperature
1. Instantaneous fuel consumption
1. Average fuel consumption
U1CYE0E0.book Page 11 Tuesday, October 27, 2009 11:52 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3


After resetting the average fuel
consumption display, “_ _._” will
be shown for that display until the
vehicle has traveled 1 km (0.6 mi).
NOTICE
ECA15472
If there is a malfunction, “– –.–” will
be displayed. Have a Yamaha dealer
check the vehicle.Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.If a problem is detected in any of those
circuits, the engine trouble warning light
will come on and the multi-function dis-
play will indicate an error code.
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
NOTICE
ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-
age.The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits.
If a problem is detected in the immobi-
lizer system circuits, the immobilizer
system indicator light will flash and the
multi-function display will indicate an
error code when the key is turned to
“ON”.
TIPIf the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this error
appears, try the following.1. Use the code re-registering key to
start the engine.TIPMake sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
1. Error code display
2. Immobilizer system indicator lightU1CYE0E0.book Page 12 Tuesday, October 27, 2009 11:52 AM

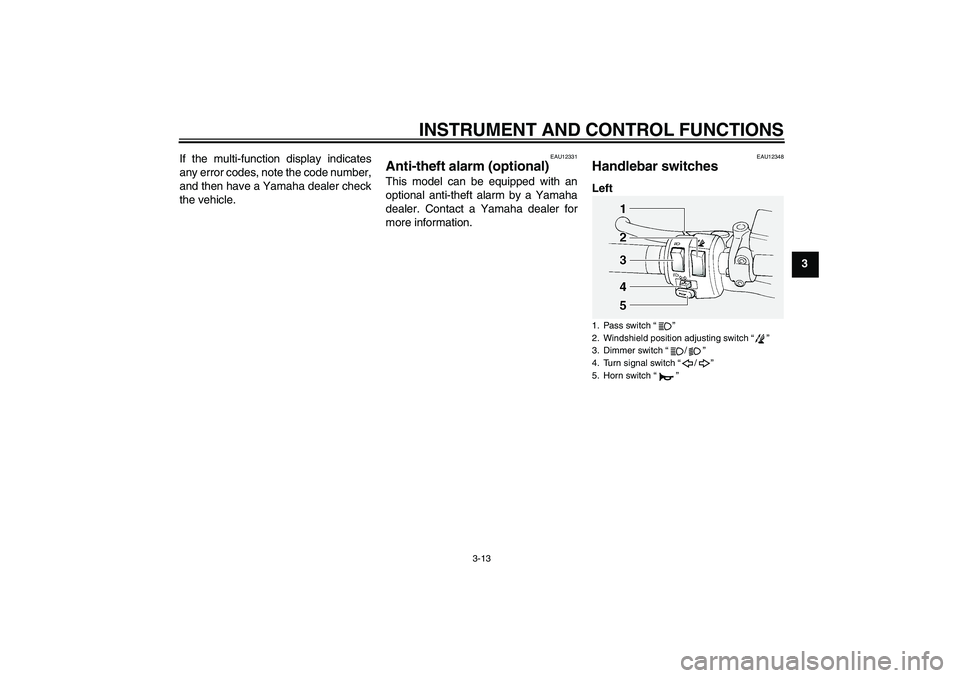

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3 If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12348
Handlebar switches Left1. Pass switch“”
2. Windshield position adjusting switch“”
3. Dimmer switch“/”
4. Turn signal switch“/”
5. Horn switch“”
U1CYE0E0.book Page 13 Tuesday, October 27, 2009 11:52 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3Right
EAU12380
Pass switch“”
Press this switch to flash the head-
lights.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12493
Windshield position adjusting
switch“”
To move the windshield up, push this
switch in direction (a). To move the
windshield down, push the switch in di-
rection (b).TIPWhen the key is turned to “OFF”, the
windshield will automatically return to
the lowest position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch“”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU42340
The engine trouble warning light and
ABS warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
1. Engine stop switch“/”
2. Hazard switch“”
3. Start switch“”
1. Windshield position adjusting switch“”
U1CYE0E0.book Page 14 Tuesday, October 27, 2009 11:52 AM

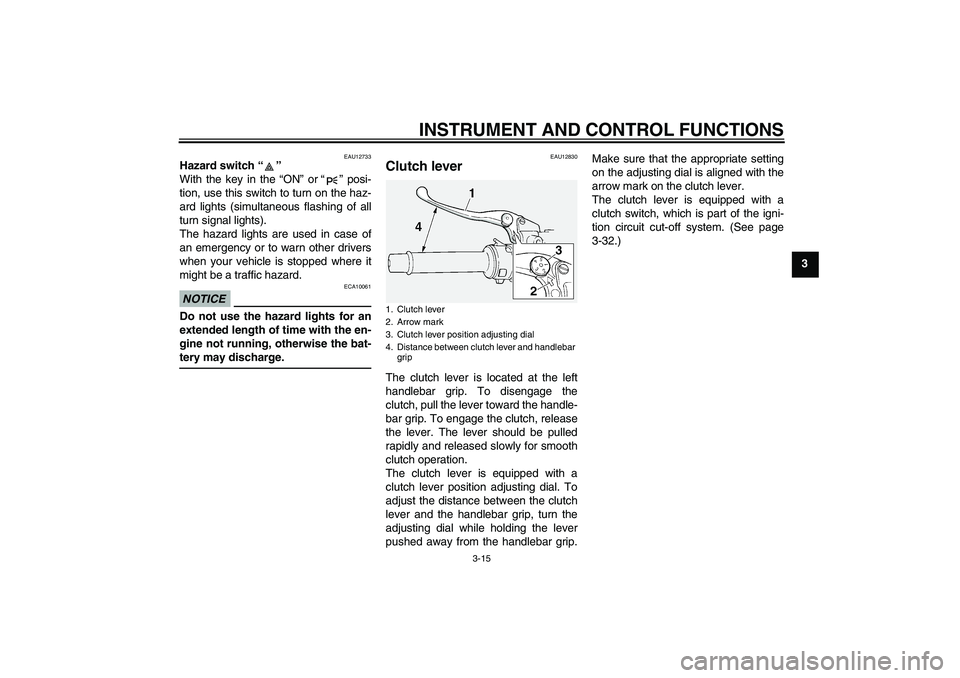

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU12733
Hazard switch“”
With the key in the “ON” or“” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
EAU12830
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch lever position adjusting dial. To
adjust the distance between the clutch
lever and the handlebar grip, turn the
adjusting dial while holding the lever
pushed away from the handlebar grip.Make sure that the appropriate setting
on the adjusting dial is aligned with the
arrow mark on the clutch lever.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-32.)1. Clutch lever
2. Arrow mark
3. Clutch lever position adjusting dial
4. Distance between clutch lever and handlebar
grip
U1CYE0E0.book Page 15 Tuesday, October 27, 2009 11:52 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
EAU12870
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU26823
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
The brake lever is equipped with a
brake lever position adjusting dial. To
adjust the distance between the brake
lever and the handlebar grip, turn the
adjusting dial while holding the lever
pushed away from the handlebar grip.
Make sure that the appropriate setting
on the adjusting dial is aligned with
the“” mark on the brake lever.
EAU39540
Brake pedal The brake pedal is on the right side of
the vehicle.
This model is equipped with a unified
brake system.
When pressing down on the brake ped-
al, the rear brake and a portion of the
front brake are applied. For full braking
performance, apply both the brake le-
ver and the brake pedal simultaneous-
ly.
1. Shift pedal
1. Brake lever
2.“” mark
3. Brake lever position adjusting dial
4. Distance between brake lever and handlebar
grip
1. Brake pedal
U1CYE0E0.book Page 16 Tuesday, October 27, 2009 11:52 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EAU39533
ABS The Yamaha ABS (Anti-lock Brake
System) features a dual electronic con-
trol system, which acts on the front and
rear brakes independently. The ABS is
monitored by an ECU, which will have
recourse to manual braking if a mal-
function occurs.
WARNING
EWA10090


The ABS performs best on long
braking distances.


On certain (rough or gravel)
roads, the braking distance may
be longer with than without the
ABS. Therefore, always keep a
sufficient distance to the vehicle
ahead to match the riding
speed.
TIP

The ABS performs a self-diagno-
sis test for a few seconds each
time the vehicle first starts off after
the key was turned to “ON”. During
this test, a “clicking” noise can be
heard from under the seat, and if
the brake lever or brake pedal areeven slightly applied, a vibration
can be felt at the lever and pedal,
but these do not indicate a mal-
function.


When the ABS is activated, the
brakes are operated in the usual
way. A pulsating action may be felt
at the brake lever or brake pedal,
but this does not indicate a mal-
function.


This ABS has a test mode which
allows the owner to experience the
pulsating at the brake lever or
brake pedal when the ABS is oper-
ating. However, special tools are
required, so please consult your
Yamaha dealer when performing
this test.
NOTICE
ECA16120
Keep any type of magnets (including
magnetic pick-up tools, magnetic
screwdrivers, etc.) away from the
front and rear wheel hubs, otherwise
the magnetic rotors equipped in the
wheel hubs may be damaged, result-
ing in improper performance of the
ABS system.
1. Front wheel hub
1. Rear wheel hub
11
U1CYE0E0.book Page 17 Tuesday, October 27, 2009 11:52 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
EAU13074
Fuel tank cap To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into position
with the key inserted in the lock.
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
TIPThe fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly closed and locked.
WARNING
EWA11091
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13221
Fuel Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.
1. Fuel tank cap lock cover
2. Unlock.U1CYE0E0.book Page 18 Tuesday, October 27, 2009 11:52 AM
