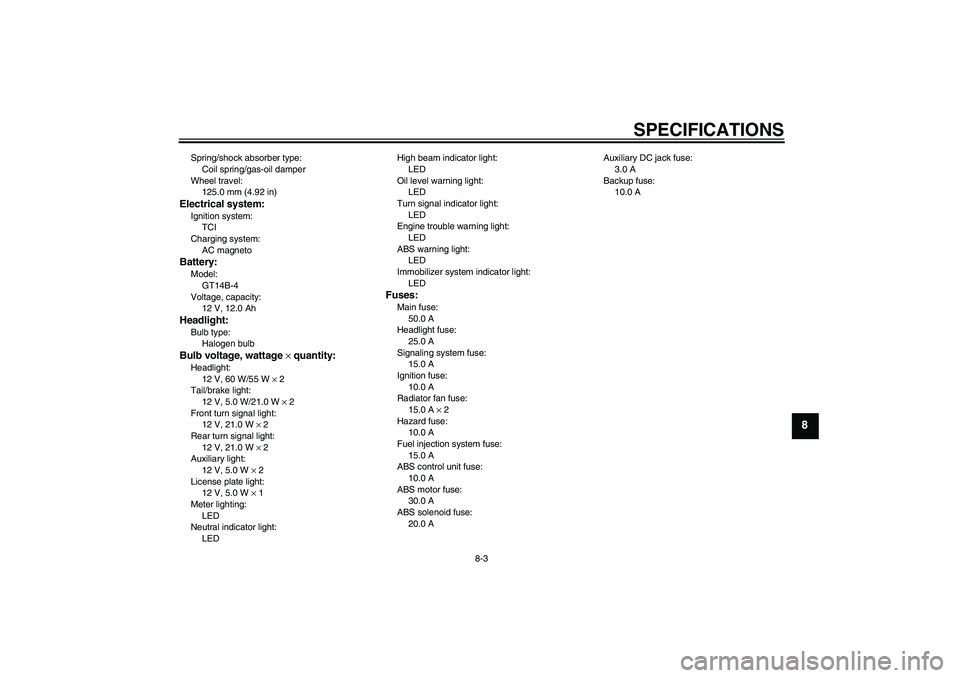

SPECIFICATIONS
8-3
8
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
125.0 mm (4.92 in)Electrical system:Ignition system:
TCI
Charging system:
AC magnetoBattery:Model:
GT14B-4
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LEDHigh beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
15.0 A × 2
Hazard fuse:
10.0 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
20.0 AAuxiliary DC jack fuse:
3.0 A
Backup fuse:
10.0 A
U1CYE0E0.book Page 3 Tuesday, October 27, 2009 11:52 AM

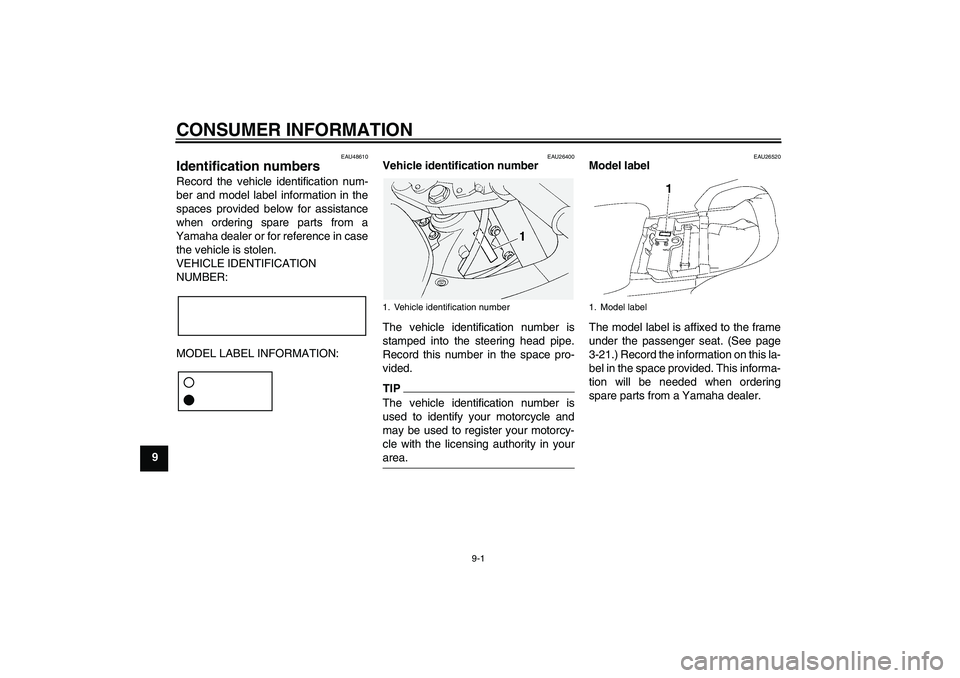

CONSUMER INFORMATION
9-1
9
EAU48610
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26520
Model label
The model label is affixed to the frame
under the passenger seat. (See page
3-21.) Record the information on this la-
bel in the space provided. This informa-
tion will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number
1. Model label
U1CYE0E0.book Page 1 Tuesday, October 27, 2009 11:52 AM

INDEX
AABS ...................................................... 3-17
ABS warning light ................................... 3-5
Accessory box ...................................... 3-25
Air filter element, cleaning .................... 6-15
Anti-theft alarm (optional) ..................... 3-13
Auxiliary DC jack .................................. 3-34
Auxiliary light bulb................................. 6-33BBattery .................................................. 6-28
Brake and clutch fluid levels,
checking ............................................. 6-22
Brake and clutch fluids, changing ......... 6-23
Brake and clutch levers, checking and
lubricating ........................................... 6-25
Brake and shift pedals, checking and
lubricating ........................................... 6-24
Brake lever ........................................... 3-16
Brake lever free play, checking ............ 6-20
Brake light switches .............................. 6-21
Brake pedal .......................................... 3-16CCables, checking and lubricating .......... 6-23
Care ........................................................ 7-1
Catalytic converters .............................. 3-20
Centerstand and sidestand, checking
and lubricating .................................... 6-25
Clutch lever.................................. 3-15, 6-20
Coolant ................................................. 6-13
Cowlings, opening and closing ............. 3-26DDimmer switch ...................................... 3-14EEngine break-in ...................................... 5-3Engine idling speed, checking............... 6-16
Engine oil and oil filter cartridge .............. 6-9
Engine stop switch ................................ 3-14
Engine trouble warning light .................... 3-4
FFinal gear oil.......................................... 6-12
Front and rear brake pads, checking .... 6-21
Front fork, adjusting .............................. 3-28
Front fork, checking...............................6-27
Front turn signal light............................. 6-31
Fuel ....................................................... 3-18
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather/overflow hose .......... 3-20
Fuel tank cap......................................... 3-18
Fuses, replacing .................................... 6-29GGrip warmer adjusting knob ..................3-31HHandlebar position, adjusting ................ 3-26
Handlebar switches ............................... 3-13
Hazard switch........................................ 3-15
Headlight beams, adjusting ................... 3-26
Headlight bulb ....................................... 6-31
High beam indicator light......................... 3-4
Horn switch ........................................... 3-14IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-32
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-5
Indicator and warning lights .................... 3-4LLicense plate light bulb, replacing ......... 6-32
MMain switch/steering lock ........................ 3-2
Maintenance and lubrication, periodic .... 6-3
Maintenance, emission control system ... 6-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-1
Multi-function display .............................. 3-6NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-7
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-14RRear suspension, lubricating ................ 6-26
Rear view mirrors.................................. 3-27
Rider seat height, adjusting .................. 3-22SSafety information ................................... 1-1
Seats..................................................... 3-21
Shifting .................................................... 5-2
Shift pedal ............................................. 3-16
Shock absorber assembly, adjusting .... 3-29
Sidestand .............................................. 3-31
Spark plugs, checking............................. 6-8
Specifications.......................................... 8-1
Speedometer .......................................... 3-5
Starting the engine.................................. 5-1
Start switch ........................................... 3-14
Steering, checking ................................ 6-27
Storage ................................................... 7-3
U1CYE0E0.book Page 1 Tuesday, October 27, 2009 11:52 AM

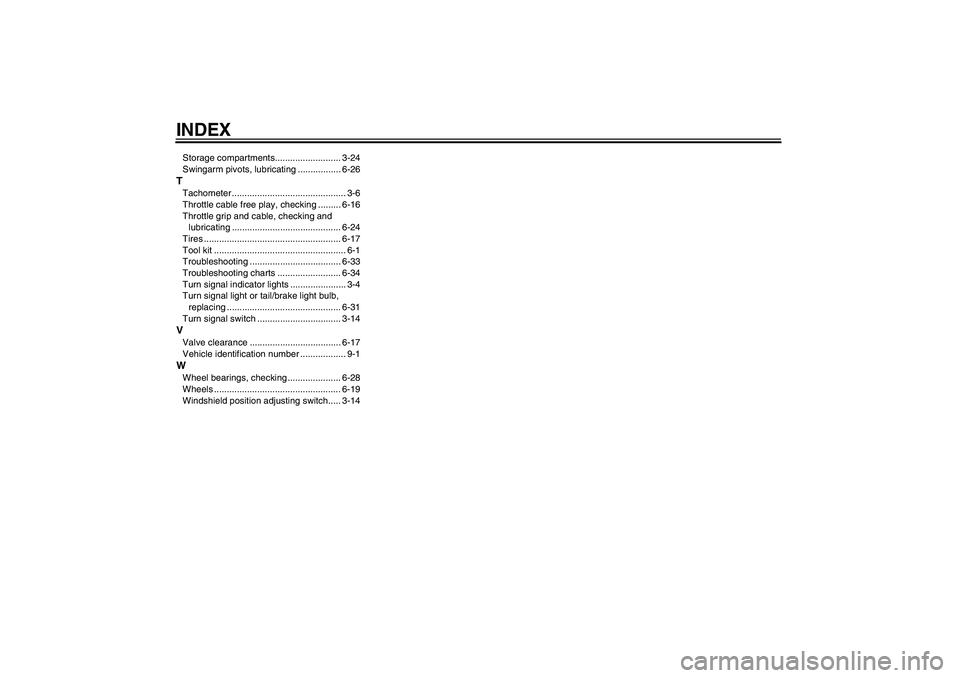

INDEXStorage compartments.......................... 3-24
Swingarm pivots, lubricating ................. 6-26TTachometer ............................................. 3-6
Throttle cable free play, checking ......... 6-16
Throttle grip and cable, checking and
lubricating ........................................... 6-24
Tires ...................................................... 6-17
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-33
Troubleshooting charts ......................... 6-34
Turn signal indicator lights ...................... 3-4
Turn signal light or tail/brake light bulb,
replacing ............................................. 6-31
Turn signal switch ................................. 3-14VValve clearance .................................... 6-17
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-28
Wheels .................................................. 6-19
Windshield position adjusting switch..... 3-14
