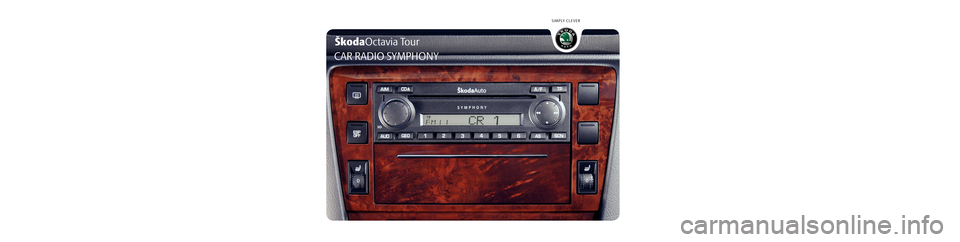

2010 SKODA OCTAVIA TOUR manual radio set

Radio
2RadioRadio - Overview
Rotary/push knob
− switching on and off (pressing)
− Volume control (rotate)
− other function settin gs in various menus
Button for adjusting the sound
Button for setting the volume ratio
Button switching over between the wavebands AM/FM
Button
− Reception of traffic reports
− Menu Setup
Rocker switch ,
− manual station finding, fast station finding
− Select the track in the CD mode, fast forward/backward search in the CD
mode
− Selecting the menu points
Station keys -
− store and select the RDS station
− CD selection
− Enter code
Button automatically stores the station
Button
− fast search in the respective waveband
− Scroll through the contents of the CD
CD-case
CD - eject button
Button for storing traffic reports Equipment which is marked * is only stan
dard on certain model versions or suppli-
able as special equipment for certain models.
Important informationWarrantyThe equipment warranty terms and conditions also apply for new vehicles.
After the expiration of the warranty, a piec e of equipment in need of repair will be
replaced with a reconditioned, original item with spare part warranty. It is, however,
a precondition that the housing has not been damaged and no unauthorised
attempts have been made to carry out repairs.
Note
Damage within the meaning of the warranty must not be the result of improper
handling of the system or from unprofession al repair attempts. It is also essential
that there is no external damage.Operation of radioThe radio should only be used, if the traffic situation permits it.
The volume settings must be selected in such a way that audible signals from the
outside, e.g. a Martins horn from utility vehicles (police cars, ambulances and fire
brigade), can be heard at all times.
Power output
4x20 W
A1A2
AUD
A3
GEO
A4
A/F
A5
TP
A6




A7
1
6
A8
AS
A9
SCN
A10A11A12
AIM
s1tk.book Page 2 Thursday, March 20, 2008 1:56 PM

Radio3
WARNING
Please concentrate fully at all times on your driving! As the driver you are
fully responsible for road safety. Only use the functions of the radio in such
a way that you are always in full co ntrol of your vehicle in all traffic
situations!Using the displayCarefully handle the display because dent s and scratches can occur through pres-
sure of the finger or contact with sharp objects.
The display can be cleaned with a soft cl oth and finger marks can be wiped away
with pure alcohol.
Note
Do not use solvent such as turpentine or petrol as they will corrode the display
surface.Anti-theft protectionAnti-theft codingYour radio is equipped with a convenience co ding. If the radio is being operated for
the first time, the safety code is not only stored in the radio but also in the vehicle.
After disconnecting and reconnecting the batte ry, first of all switch on the ignition
and then the radio.
If you wish to install the radio in another vehicle, the safety code must be entered.
In this case, please do not hesitate to contact a Škoda Service Partner or a Škoda
importer.
As the unit only functions after entering the safety code, this practically excludes its
use after a theft - a contribution to increased anti-theft safety.
Note
•
The code is stored in the instrument cluster. This ensures that it is automatically
decoded (convenience coding). Manual inpu t of the code is normally not neces-
sary.
•
If the unit and the ignition is switched of f, a flashing LED indicates the effective
anti-theft protection.
Enter code– Switch on the radio if the ignition is on. SAFE is displayed and then
1000.
– Enter the safety code using the station keys - .
– Confirm the code by pressing the ke y for a long time or by briefly
pressing the button .If you have confirmed a wrongly entered co de, you can repeat once again the entire
process.
If the code number is entered incorrectl y for the second time, the unit will be
blocked for approx. one hour. The safety co de can only be entered again after one
hour has expired, with the uni t switched on and the ignition key in the ignition lock.
The cycle - two attempts, blocked for an hour - will continue to apply.Basic settingSwitching the unit on and off– The system is switched on or off by turning / pressing the rotary / push knob .If the key is pulled out of the ignition lo ck with the unit switched on, the unit wil
switch off automatically. You can switch on again the unit by pressing the
1
4


A1
s1tk.book Page 3 Thursday, March 20, 2008 1:56 PM

Radio5
First of all the unit attempts to set only alternative frequencies of the selected
station.
If the quality is however so low, that there is a risk of a “program loss”, the unit also
accepts “related” frequencies.
When opting for REG AUTO the change to a regional “related” station can only be
performed if there is a risk of losing the station. When selecting REG OFF, the
receiver can access the regional “related” stations unlimited.
M/S
This function makes it possible that with the aid of the RDS signal, you can automat-
ically switch between an optimal pl ay function for music and language.
PHONE IN*
If your vehicle is equipped with a handsfree system, you can switch on or off the
monophone play function of the mobile phone calls via the loudspeakers of the
vehicle.
PH VOL*
Set the volume for the play function of the telephone calls.
TA VOL
Set the volume for the play functi on of the traffic announcements.
CD SFL
If you select CD SFL D, the tracks on a CD are replayed in random order. If you select
CD SFL M , the tracks in the complete magazine of the external CD changer* are
played in random order.
KEY
If you select KEY ON, the radio switches off after withdrawing the ignition key. If you
select KEY OFF , the radio can only be switched on or off with the control button .
LO U D
In case of low volume level, the function reinforces the range of bass and treble
frequencies. MONO
When the reception is bad it switches over to mono operation.
LO C
If you select
LO C O N, only stations with the stro ngest reception are considered
during station finding. If you select LO C O F F, stations with weak reception are also
considered during station finding.
Radio modeWaveband switch-overYour radio is fitted with the wavebands FM1/AM1 and FM2/AM2, in order to
change, press the button for some considerable time.The process of searching for and storing the radio stationsManual search
– Set the frequency of the desired radio station by pressing the rocker switch or .
Automatic station finding SEEK
– The radio searches for the next radi o station in the selected waveband
by pressing the button or .
Function SCAN
– The radio stations of the current waveband are briefly played (for 10
seconds) by pressing the button .
– This function is ended by pressing the button once again and the current station is replayed.
A1
A/F



SCN
SCN
s1tk.book Page 5 Thursday, March 20, 2008 1:56 PM
