Technical Data
180
Vehicle identification number (VIN)
The vehicle identification num ber - VIN (chassis number) is stamped into the engine
compartment on the right hand shock absorb er dome. This number is also located on
a sign on the lower left hand edge below the windscreen.
Engine number
The engine number is stam ped into the engine block.
Type plate (production plate)
The type plate is located in the lowe r area of the left centre column.
Sticker on inside of fuel filler flap
The stickers are affixed to the inside of the fuel filler flap and contain the following
information:
The prescribed types of fuel,

Ty re s i z e ,

Tyre pressure.
Fuel consumption based on ECE regulations and EC guidelinesDepending on the range of the special equipment, style of driving, traffic situation,
weather influences and vehicl e condition, the consumption values which in practice
result when using the vehicle can deviate from the indicated values.
Urban traffic
The consumption measurement in urban traffic begins with starting of the cold engine.
Afterwards the normal ur ban traffic is simulated.
Non-urban traffic
For the consumption measurement in non-ur ban traffic the vehicle, as in daily
motoring, is accelerated and braked severa l times in all gears. The vehicle speed
changes within the range from 0 to 120 km/h. Combined traffic
The consumption value in the combined traffic consists of 37 % from the value for the
urban traffic and of 63 % from th
e value for the non-urban traffic.
DimensionsDimensions (mm)Engine oil specificationsThe grade of engine oil should be selected in accordance with precise
specifications.The engine of your vehicle has been factory-filled with a high-grade oil which you can
use throughout the year - except in extreme climatic regions.
You can mix various oils together with each ot her when refilling with oil. This does not,
however, apply for models with flexible service intervals (QG1).
Engine oils are, of course, undergoing continuous further development. Thus the
information stated in this Owner's Manual is only correct at the time of publication.
OCTAVIA
COMBI
Length
4572
4572
Width
1769
1769
Width including exterior mirror
2018
2018
Height
1462
1485
a)
a)The value corresponds to the status with rough road package.
1468
1490
a)
Clearance
140
164a)
140
164a)
Wheel base
2578
2578
Tr a c k g a u g e f r o n t / r e a r
1541/1514
1541/1514
s2bs.2.book Page 180 Monday, September 27, 2010 9:53 AM

Technical Data
182
1.4 ltr./59 kW - EU5Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power output
kW per rpm
59/5000
Maximum torque
Nm per rpm
132/3800
Number of cylinders/Displacement (cm
3)
4/1390
OCTAVIA
CO M B I
Maximum speed
km/h
174
172
Acceleration 0 - 100 km/h
s
14,3
14,4
OCTAVIA
COMBI
Urban
8,5
8,5
Ex-urban
5,1
5,1
combined
6,4
6,4
CO2 emissions combined
149
149
s2bs.2.book Page 182 Monday, September 27, 2010 9:53 AM

Technical Data
184
1.6ltr./75kW - EU4, EU2Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power output
kW per rpm
75/5600
Maximum torque
Nm per rpm
148/3800
Number of cylinders/Displacement (cm
3)
4/1595
OCTAVIA
COMBI
Maximum speed
km/h
190
189
Acceleration 0 - 100 km/h
s
12,3
12,4
OCTAVIA
COMBI
Urban
9,6/10,0
a)
a)EU4, EU2
9,7/10,0
a)
Ex-urban
5,5/5,8
a)
5,6/5,8
a)
combined
7,1/7,4
a)
7,2/7,4
a)
CO2 emissions combined
166/176
a)
168/176
a)
s2bs.2.book Page 184 Monday, September 27, 2010 9:53 AM

Technical Data
186
2.0 l/81 kW TDI CR EU4Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power output
kW per rpm
81/4200
Maximum torque
Nm per rpm
250/1500-2500
Number of cylinders/Displacement (cm
3)
4/1968
OCTAVIA
COMBI
Maximum speed
km/h
195
194
Acceleration 0 - 100 km/h
s
11,0
11,1
Urban
6,5
Ex-urban
4,3
combined
5,0
CO2 emissions combined
132
s2bs.2.book Page 186 Monday, September 27, 2010 9:53 AM

Index191
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
GGauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
General view Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Hazard warning light system . . . . . . . . . . . . . . . . . . . 44Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Headlights Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Heated windscreen washer nozzles . . . . . . . . . . . . 47 Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . 72
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . 73
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
IIgnition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Interior light Luggage compartment . . . . . . . . . . . . . . . . . . . . . 46
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Interior monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Intermittent wiping . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108JJacking points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 165, 166KKey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30LLashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Leather care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134 Lifting jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159, 164
Lighting of the interior of the vehicle . . . . . . . . . . . . 45
Lights
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 172
converting/masking over . . . . . . . . . . . . . . . . . 123
Range adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 43
switching on and off . . . . . . . . . . . . . . . . . . . . . . . 42
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Lights and Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Lock Central locking system . . . . . . . . . . . . . . . . . . . . . 33
lock Central locking system . . . . . . . . . . . . . . . . . . . . . 33
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Locking and unlocking from inside . . . . . . . . . . . . . 33
Low beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Lugagge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 35, 57 Folding hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Luggage rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42, 44 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Manual shifting of gears . . . . . . . . . . . . . . . . . . . . . . . 80
Memory for the on-board computer . . . . . . . . . . . . 18
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
s2bs.2.book Page 191 Monday, September 27, 2010 9:53 AM

Škoda Auto pursues a policy of constant product and model development. We trust
that you will understand that changes to models in terms of shape, equipment and
engineering, may be introduced at any time . The information about scope of delivery,
appearance, performances, di mensions, weight, fuel consumption, standards and
functions of the vehicle is only correct at the time of publication. Certain items of
equipment might only be installed later on (information given by the local authorised
Škoda Service Partner) and only envisaged fo r particular markets. It is therefore not
possible for legal claims to be made based on the data, illustrations and descriptions
contained in this Owner's Manual. Reprinting, reproduction or translation, eith
er in whole or in part, is not permitted
without the written consent of Škoda Auto.
Škoda Auto expressly reserves all rights relating to copyright laws.
We reserve the right to make changes to this document.
Issued by: ŠKODA AUTO a.s.
© ŠKODA AUTO a.s. 2010s2bs.2.book Page 196 Monday, September 27, 2010 9:53 AM

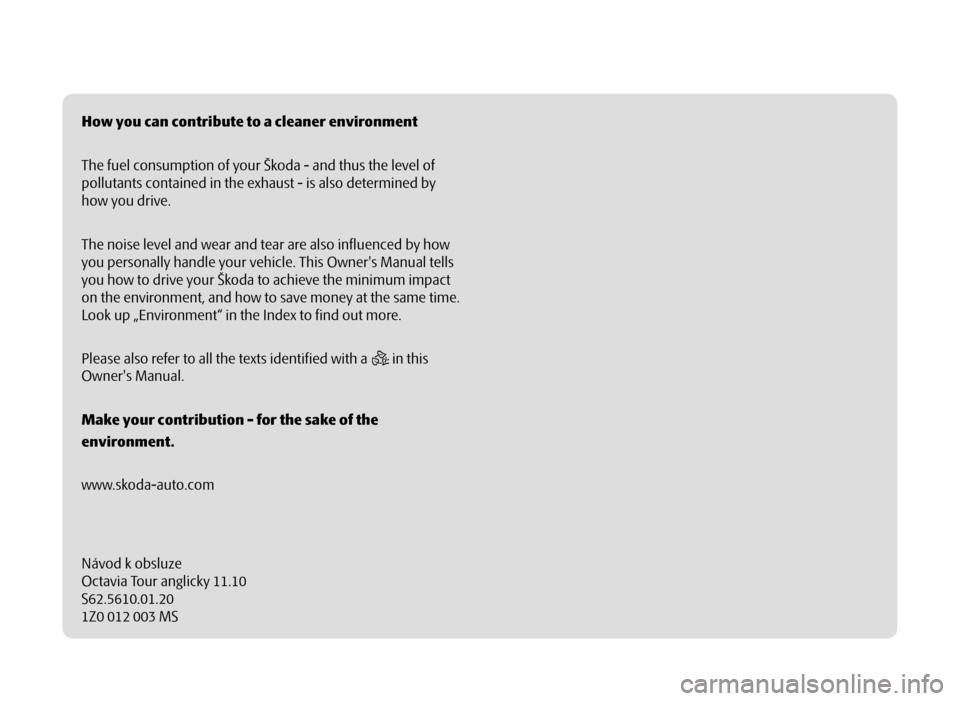

How you can contribute to a cleaner environment
The fuel consumption of your Škoda - and thus the level of
pollutants contained in the exhaust - is also determined by
how you drive.
The noise level and wear and tear are also influenced by how
you personally handle your vehicle. This Owner's Manual tells
you how to drive your Škoda to achieve the minimum impact
on the environment, and how to save money at the same time.
Look up „Environment“ in the Index to find out more.
Please also refer to all the texts identified with a
in this
Owner's Manual.
Make your contribution - for the sake of the
environment.
