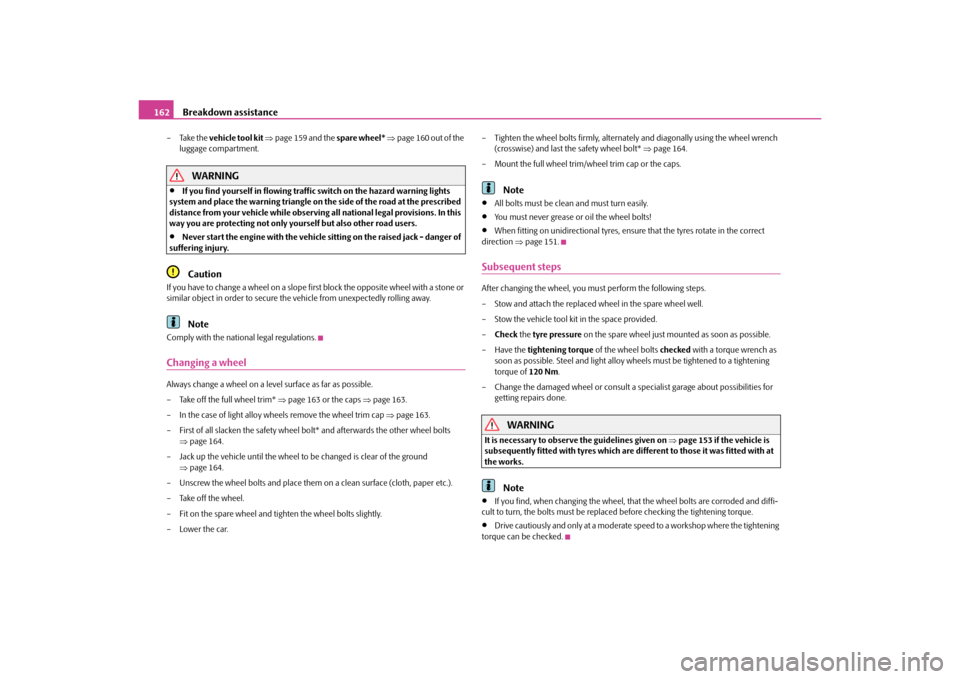

Breakdown assistance
162
–Take the vehicle tool kit  page 159 and the spare wheel* page 160 out of the
luggage compartment.
WARNING

If you find yourself in flowing traffic switch on the hazard warning lights
system and place the warning triangle on the side of the road at the prescribed
distance from your vehicle while observing all national legal provisions. In this
way you are protecting not only yourself but also other road users.

Never start the engine with the vehicle si tting on the raised jack - danger of
suffering injury.Caution
If you have to change a wheel on a slope first block the opposite wheel with a stone or
similar object in order to secure the vehicle from unexpec tedly rolling away.
Note
Comply with the national legal regulations.Changing a wheelAlways change a wheel on a level surface as far as possible.
– Take off the full wheel trim* page 163 or the caps page 163.
– In the case of light alloy wheels remove the wheel trim cap page 163.
– First of all slacken the safety wheel bo lt* and afterwards the other wheel bolts
 page 164.
– Jack up the vehicle until the wheel to be changed is clear of the ground page 164.
– Unscrew the wheel bolts and place them on a clean surface (cloth, paper etc.).
– Take off the wheel.
– Fit on the spare wheel and ti ghten the wheel bolts slightly.
–Lower the car. – Tighten the wheel bolts firmly, alternatel
y and diagonally using the wheel wrench
(crosswise) and last the safety wheel bolt* page 164.
– Mount the full wheel trim/wheel trim cap or the caps.
Note

All bolts must be clean and must turn easily.

You must never grease or oil the wheel bolts!

When fitting on unidirectional tyres, ensu re that the tyres rotate in the correct
direction page 151.
Subsequent stepsAfter changing the wheel, you mu st perform the following steps.
– Stow and attach the replaced wheel in the spare wheel well.
– Stow the vehicle tool kit in the space provided.
– Check the tyre pressure on the spare wheel just mounted as soon as possible.
– Have the tightening torque of the wheel bolts checked with a torque wrench as
soon as possible. Steel and light alloy wheels must be tightened to a tightening
torque of 120 Nm.
– Change the damaged wheel or consult a sp ecialist garage about possibilities for
getting repairs done.
WARNING
It is necessary to observe the guidelines given on page 153 if the vehicle is
subsequently fitted with tyres which are di fferent to those it was fitted with at
the works.
Note

If you find, when changing the wheel, that the wheel bolts are corroded and diffi-
cult to turn, the bolts must be replaced before checking the tightening torque.

Drive cautiously and only at a moderate speed to a workshop where the tightening
torque can be checked.
s2bs.2.book Page 162 Monday, September 27, 2010 9:53 AM

Breakdown assistance165
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

Not positioning the lifting jack* at the specified points can result in damage
to the vehicle. The jack can also slip off if it does not have sufficient grip - risk of
injury!

It is important to support the vehicle with suitable supporting blocks if you
wish to work under the lifted vehicle - risk of injury!
Securing wheels against being stolen*
You need a special adapter for sl ackening the safety wheel bolts.– Pull off the full wheel trim/cap from the wheel hub or cap from the safety wheel
bolt.
– Insert the adapter with its toothed side fu lly into the inner toothing of the safety
wheel bolt right down in such a way that only the outer hexagon is jutting out
 fig. 139 .
– Insert the wheel wrench* fully onto the adapter .
– Slacken the wheel bolt, or tighten it firmly page 164.
– Reinstall the full wheel trim/wheel cap afte r removing the adapter or place the cap
onto the safety wheel bolt.
– Have the tightening torque checked with a torque wrench as soon as possible.
Steel and light alloy wheels must be tightened to a tightening torque of 120 Nm .The safety wheel bolts on vehicles fitted wi
th them (one safety wheel bolt per wheel)
can only be loosened or tighten up by using the adapter provided.
It is meaningful to note th e code number hammered into the rear side of the adapter
or the rear side of the safety wheel bolts. You can obtain a replacement adapter from
an authorised Škoda Service Partner, if necessary, by quoting this number.
We recommend that you always carry the ad apter for the wheel bolts with you in the
vehicle. It should be stow ed in the vehicle tool kit.
Caution
Damage can occur to the adapter and safety wh eel bolt if the safety wheel bolt is tight-
ened up too much.
Note
The set of safety wheel bolts can be obta ined from an authorised Škoda Service
Par tner.Jump-startingInitial stepsYou can use the battery of another vehicle fo r jump-starting yours if the engine does
not start because the battery on your vehicle is flat. You will require jump-start cables
for this purpose.
Both batteries must have a rated voltage of 12 V. The capacity (Ah) of the battery
supplying the power must not be significantly less than the capacity of the discharged
battery in your vehicle.
Jump-start cables
Only use jump-start cables which have an adequately large cross-section and insu-
lated terminal clamps. Please pay attention to the manufacturer's instructions.
Positive cable - colour coding in the majority of cases red.
Negative cable - colour coding in the majority of cases black.
WARNING (continued)
Fig. 139 Safety wheel bolt with adapter
AB
AA
AB
s2bs.2.book Page 165 Monday, September 27, 2010 9:53 AM

Fuses and light bulbs169
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Fuses and light bulbsElectric fusesReplacing fuses
Defect fuses must be replaced.Individual electrical circuits are protected by fuses. The fuses are located on the left
side of the dash panel behind the safety cover and under the cover in the engine
compartment on the left.
– Switch the ignition off and also the electrical component affected.
– Use a screwdriver to take off the fuse cover on the side of the dash panel fig. 143
or the fuse cover in the engine compartment page 170.
– Find out which fuse belongs to the relevant component page 171, “Fuse assign-
ment in the dash panel” or page 170, “Fuse assignment in engine compart-
ment”.
– Take the plastic clip out of it s fixture in the fuse cover, insert it onto the respective
fuse and pull out this fuse.
– Defect fuses can be detected by their melted metal strips. Replace the defect fuse by a new fuse of the same ampere number.
– Fit on the fuse cover again. We recommend that you always have the
small box of replacement fuses in your
vehicle. You can obtain repl acement fuses from Škoda original accessories or from a
specialist garage
8).
Colour coding of fuses
Caution

Never attempt to “repair” fuses and also do not replace them with a fuse of a higher
amperage - risk of fire! This may also caus e damage at another part of the electrical
system.

Have the electrical system checked as quickly as possible by a specialist garage if a
newly inserted fuse blows again after a short time.
Fig. 143 Fuse cover: left side of the dash
panel
8)The small box with replacement fuses is part of the basic equipping of the vehicle in some coun-
tries.
Colour
Maximum amperage
light brown
5
brown
7.5
red
10
blue
15
yellow
20
white
25
green
30
orange
40
red
50
s2bs.2.book Page 169 Monday, September 27, 2010 9:53 AM

Index189
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Index
AAbroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Active driver-steering recommendation . . . . . . . 113
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52, 86
Adjusting the steering wheel . . . . . . . . . . . . . . . . . . . 77
Air conditioning system Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Climatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . 76
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Alternator Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Antilock brake system . . . . . . . . . . . . . . . . . . . . . . . . 115
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . 37
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Automatic vehicle wash systems . . . . . . . . . . . . . . 129
Automatic wiper/washer system . . . . . . . . . . . . . . . 47
Avoiding damage to your vehicle . . . . . . . . . . . . . . 123
BBattery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 146
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Inspecting the electrolyte level . . . . . . . . . . . . . 148
Operation in winter . . . . . . . . . . . . . . . . . . . . . . . 148
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Belt Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 139 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Bulbs
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Button for the central locking system . . . . . . . . . . . 33
Buttons on the driver's door Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
CCatalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . . 31lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Changing the engine oil . . . . . . . . . . . . . . . . . . . . . . 142
Changing wheels around . . . . . . . . . . . . . . . . . . . . 153
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 149 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Check engine oil level . . . . . . . . . . . . . . . . . . . . . . . 141
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Child safety seat on the front passenger seat . . . . . . . . . . . . . . . 104
Safety information . . . . . . . . . . . . . . . . . . . . . . . 103
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 Classification into groups . . . . . . . . . . . . . . . . . 105
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Use of child safety seats . . . . . . . . . . . . . . . . . . 106
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . 103
s2bs.2.book Page 189 Monday, September 27, 2010 9:53 AM

Index
190
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Cockpit
General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Convenience operation . . . . . . . . . . . . . . . . . . . . . . . . 41
Converting/masking over headlights . . . . . . . . . . 123
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143 replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Coolant quantity Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Coolant temperature/coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Correct seated position . . . . . . . . . . . . . . . . . . . . . . . . 86
Counter for distance driven . . . . . . . . . . . . . . . . . . . . 16
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cup holder front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63DDaylight driving lights . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Deactivatingan airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . 101 Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . . 46
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . . 131
Detachable towing device . . . . . . . . . . . . . . . . . . . . 126
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Diesel engines
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . 79
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Door Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Driving economically . . . . . . . . . . . . . . . . . . . . . . . . 119
EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Electric power-operated window Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . 41
Electrically adjustable exterior mirror . . . . . . . . . . 50
Electronic Differential Lock . . . . . . . . . . . . . . . . . . . 112
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . . 31
Electronic stability programme . . . . . . . . . . . . . . . 111
Electronic stability programme (ESP) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Emergency wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Engine starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Engine compartment Safety information . . . . . . . . . . . . . . . . . . . . . . . 140
Engine coolant temperature display . . . . . . . . . . . . 16 Engine electronics
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Engine oil level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . 15
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Environmental compatibility . . . . . . . . . . . . . 119, 122
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Exhaust gas Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Exterior mirror heater . . . . . . . . . . . . . . . . . . . . . . . . . 50
FFirst-aid box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Fixing net Combi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Octavia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
s2bs.2.book Page 190 Monday, September 27, 2010 9:53 AM
