2010 SKODA OCTAVIA TOUR ECO mode

Heating and air conditioning system75
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Set ClimaticRecommended settings of Climatic controls for the respective operating modes:
Setup
Setting of the control dial
Button
Air outlet vents 3
Defrosting the windscreen and
side windows
To the right up to the
stop
3

Switched off
Do not switch on
Open and align with the side window
Free windscreen and side win-
dows from mist
Desired tempera-ture
2 or 3

switched on
Do not switch on
Open and align with the side window
The fastest heating
To the right up to the stop
3

Switched off
briefly switched on
Opening
Comfortable heating
Desired tempera-
ture
2 or 3

 
Switched off
Do not switch on
Opening
the fastest cooling
To the left up to the stop
briefly4, then 2or 3

switched on
briefly switched on
Opening
optimal cooling
Desired tempera-ture
1, 2 or 3

switched on
Do not switch on
open and align to the roof
Fresh air mode - ventilation
To the left up to the
stop
Desired position

Switched off
Do not switch on
Opening
AA
AB
AC
A2
A3
s2bs.2.book Page 75 Monday, September 27, 2010 9:53 AM

Heating and air conditioning system
76
Recirculated air mode
In recirculated air mode air is sucked out of the interior of the vehicle
and then fed back into the interior.Recirculated air mode prevents polluted air outside the vehicle from getting into the
vehicle, for example when driving through a tunnel or when standi ng in a traffic jam.Switching recirculated air mode on– Press the button page 74, fig. 82 the warning light lights up in the
button.Switching recirculated air mode off– Once again press the button . The wa rning light in the button goes out.
The recirculated air mode is switched off automatically if the air distribution control
is in position
  page 74, fig. 82 . You can also switch recirculated air mode on again
from this setting by repeatedly pressing pushbutton .
WARNING
You should not leave recirculated air mode on over a longer period of time, as
“stale” air may result in fatigue in the driver and occupants, divert your atten-
tion and also cause the windows to mist up. The risk of having an accident
increases. Switch recirculated air mode off as soon as the windows begin
misting up.Using the air conditioning system economicallyThe compressor on the air conditioning syst em uses power from the engine when in
cooling mode which will effect the fuel consumption.
It recommended to open the windows or the doors of a vehicle for which the interior
has been strongly heated through the effect of direct sunlight in order to allow the
heated air to escape.
The cooling system should not be switched on while travelling when the window is
open. The desired interior temperature can also be achieved without switching in the cooling
system just by switching to fresh air mode.
For the sake of the environment
When you economize on fuel, you
also reduce pollutant emissions.Operational malfunctionsIf the cooling system does not operate at outside temperatures higher than +5 °C,
there is a problem in the system. The reasons for this may be:
The fuse on the air conditioning system has blown. Check the fuse, replace it if
necessary page 169.

The cooling system has switched off auto matically for a short time because the
coolant temperature of the engine is too hot  page 16.
If you are not able to rectify the operational problem yourself, or if the cooling capacity
decreases, switch the cooling system off. Contact a specialist garage.

A3

AC

s2bs.2.book Page 76 Monday, September 27, 2010 9:53 AM

Starting-off and Driving81
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING

Please note that the handbrake must be fully released. A handbrake which
is only partially released can result in the rear brakes overheating which will
have a negative effect on the operation of the brake system - risk of accident! In
addition this can result in premature wear of the rear brake pads.

Never leave children unattended in the vehicle. Children might, for
example, release the handbrake or take the vehicle out of gear. The vehicle
might then move off - risk of accident!Caution
Each time the vehicle is parked, first of all apply the handbrake and then additionally
engage the 1st gear.Rear parking aid*The parking aid provides a warning of obstacles behind the vehicle.The audible parking aid determines the distan ce from the rear bumper to an obstacle
behind the car with the aid of ultrasound sensors. These ultrasound sensors are inte-
grated in the rear bumper.
Range of sensors
The clearance warning begins at a distance of about 160 cm from the obstacle (area
 fig. 87 ). The interval between the warning signals becomes shorter as the clearance
is reduced. A continuous tone sounds from
a distance of approx. 30 cm (area ) - danger area.
Do not reverse any further after this signal sounds! If the vehicle is equipped with
a factory-fitted towing device*, the border of the danger area - continuous tone -
extends 5 cm further behind the vehicle. The vehicle can be extended through an
installed detachable towing device.
On vehicles equipped with a factory-fitted radio*, the distance to the obstruction is
shown graphically in the display. On vehicles with a factory-fitted towing device, the
sensors are deactivated when towing a traile r. The driver is informed about this by a
graphic display (vehicle towing a trailer) in the radio* display. The factory-fitted radio*
can be set so that the play function volume decreases when activating the parking aid,
see Owner's Manual radio*. This improves the audibility of the parking aid.
Activating
The parking aid is activated automatically when reverse gear is engaged and the igni-
tion is turned on. This is confirmed by a brief acknowledgement signal.
Deactivating
The parking aid is deactivated by ta king the car out of reverse gear.
WARNING

The parking aid is not a substitute for the driver paying proper attention and
it is always the driver's responsibility to take care when parking the vehicle or
carrying out similar manoeuvres.

You should therefore satisfy yourself, before reversing, that there is no small
obstacle, such as a rock, thin post, trai ler drawbar etc., behind your vehicle.
Such obstacles might not be within the range detected by the sensors.

Under certain circumstances, surfaces of certain objects and types of
clothing cannot reflect the signal of the parking aid. Thus, such objects or
people may not be recognised by the sensors of the parking aid.Note

The parking aid does not operate if you are towing a trailer (applies to models
which feature a factory-fitted towing device*).
Fig. 87 Parking aid: Detection range of
rear sensors
AA
AB
s2bs.2.book Page 81 Monday, September 27, 2010 9:53 AM

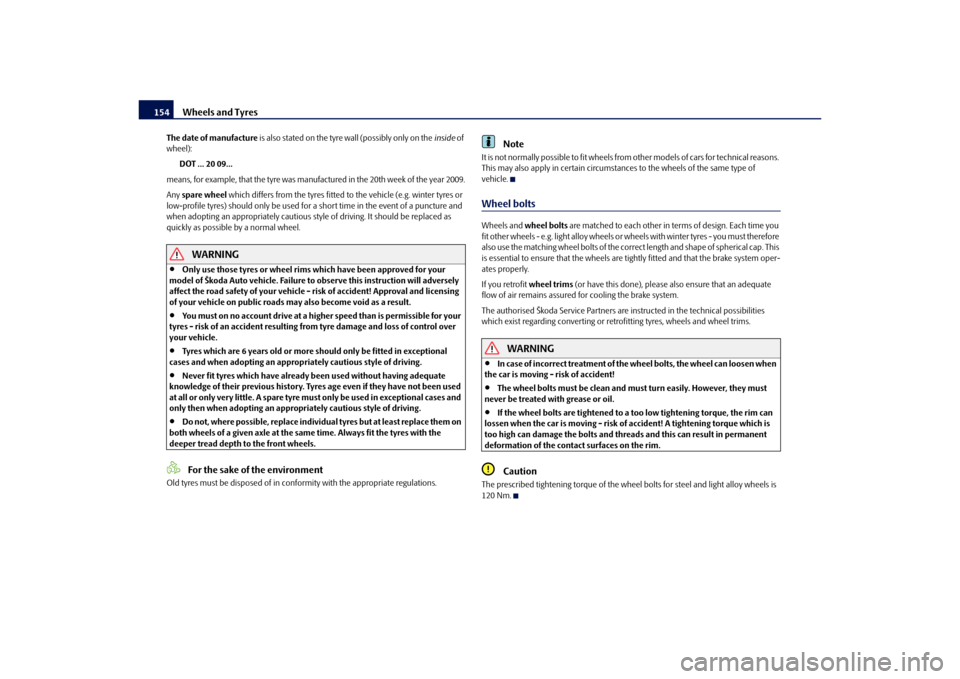

Wheels and Tyres
154
The date of manufacture is also stated on the tyre wall (possibly only on the inside of
wheel):
DOT ... 20 09...
means, for example, that the tyre was ma nufactured in the 20th week of the year 2009.
Any spare wheel which differs from the tyres fitted to the vehicle (e.g. winter tyres or
low-profile tyres) should only be used for a short time in the event of a puncture and
when adopting an appropriately cautious styl e of driving. It should be replaced as
quickly as possible by a normal wheel.
WARNING

Only use those tyres or wheel rims which have been approved for your
model of Škoda Auto vehicle. Failure to observe this instruction will adversely
affect the road safety of your vehicle - risk of accident! Approval and licensing
of your vehicle on public roads ma y also become void as a result.

You must on no account drive at a high er speed than is permissible for your
tyres - risk of an accident resulting from tyre damage and loss of control over
your vehicle.

Tyres which are 6 years old or more should only be fitted in exceptional
cases and when adopting an approp riately cautious style of driving.

Never fit tyres which have already been used without having adequate
knowledge of their previous history. Tyre s age even if they have not been used
at all or only very little. A spare tyre must only be used in exceptional cases and
only then when adopting an appropriately cautious style of driving.

Do not, where possible, replace individu al tyres but at least replace them on
both wheels of a given axle at the same time. Always fit the tyres with the
deeper tread depth to the front wheels.For the sake of the environment
Old tyres must be disposed of in conf ormity with the appropriate regulations.
Note
It is not normally possible to fit wheels from other models of cars for technical reasons.
This may also apply in certain circumstance s to the wheels of the same type of
vehicle.Wheel boltsWheels and wheel bolts are matched to each other in terms of design. Each time you
fit other wheels - e.g. light alloy wheels or wheels with winter tyres - you must therefore
also use the matching wheel bolts of the corr ect length and shape of spherical cap. This
is essential to ensure that the wheels are tightly fitted and that the brake system oper-
ates properly.
If you retrofit wheel trims (or have this done), please also ensure that an adequate
flow of air remains assured for cooling the brake system.
The authorised Škoda Service Partners are instructed in the technical possibilities
which exist regarding converting or retrofitting tyres, wheels and wheel trims.
WARNING

In case of incorrect treatment of the wheel bolts, the wheel can loosen when
the car is moving - risk of accident!

The wheel bolts must be clean and must turn easily. However, they must
never be treated with grease or oil.

If the wheel bolts are tightened to a too low tightening torque, the rim can
lossen when the car is moving - risk of accident! A tightening torque which is
too high can damage the bolts and threads and this can result in permanent
deformation of the contact surfaces on the rim.Caution
The prescribed tightening torque of the wheel bolts for steel and light alloy wheels is
120 Nm.
s2bs.2.book Page 154 Monday, September 27, 2010 9:53 AM

Fuses and light bulbs171
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Fuse assignment in the dash panelCertain electrical components are only stan dard on certain vehicle model versions or
only suppliable as optional equipment for certain models.
F15
Lambda probe
glow plug system relay
10
5
F16
Central control unit, right main headlight, right rear light
unit
30
F17
Horn
15
F18
Amplifier for digital sound processor
30
F19
Front window wiper
30
F20
Wa te r pump
valve for fuel dosing
High-pressure pump
10
20
15
F21
Lambda probe
Vacuum pump
10/15 20
F22
Clutch pedal switch, brake pedal switch
5
F23
Secondary air pump
Air mass meter
Fuel high pressure pump
5
10
15
F24
Activated charcoal filter, exha ust gas recirculation valve,
radiator fan
10
F25
Pump for ABS
30/40
F26
Central control unit, left main headlight, left rear light unit
30
F27
Secondary air pump
Glow plug system
40
50
F28
Not assigned
F29
Power supply terminal 30 (con tinuous current supply from
the battery)
50
F30
Te r m i n a l X
a)
50
a)In order not to drain the battery unnecessarily wh en starting the engine, the electrical compo-
nents of this terminal are automatically switched off.No.
Power consumer
Amperes
No.
Power consumer
Amperes
1
Diagnostic socket, Engine control unit, Electrical fuel
pump
10
2
Control unit for ABS, ESP
5
3
Airbag
5
4
Heating, air conditioning, reve rsing lights, interior rear
view mirror dimming, te lephone preinstallation
5
5
Control unit for headlamp beam adjustment
5
6
Instrument cluster, Control unit for automatic gearbox,
Control unit for electromechanical power steering, Parking
aid; Haldex clutch
5
7
Not assigned
8
Not assigned
9
Not assigned
10
Not assigned
11
Not assigned
12
Central locking control unit
10
Fig. 146 Schematic representation of
the fuse carrier in the dash panel
s2bs.2.book Page 171 Monday, September 27, 2010 9:53 AM

Technical Data181
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Authorised Škoda Service Partners are inform
ed by Škoda Auto about current changes.
This why you should always have engine oi l changed by an authorised Škoda Service
Par tner.
The specifications (VW standards) stated in the following must be indicated separately
or together with other specifications on the bottle.
Engine oil specifications for models with flexible service intervals (QG1)
Engine oil specifications for vehicles with fixed service intervals (QG2)
If the oils specified above are not available, oils according to ACEA A2 or ACEA A3 can
be used once for refilling. ACEA A3.
If the oils specified above are not available, oils according to ACEA B3 or ACEA B4 can
be used once for refilling.
Caution
Only the previously-mentioned oils may be used on vehicles with flexible service inter-
vals (QG1). We recommend always refilling with oil of the same specification since this
will maintain the properties of the oil. In ex ceptional cases, you must top up only once
engine oil complying with Specification VW 502 00 (only for petrol engines) or Specifi-
cation VW 505 01 (only for diesel engines) to maximum 0.5 litres. You must not use
other engine oils - risk of engine damage!
Note

Before a long drive we recommend that you purchase and carry with you engine
oil which complies with the specification for your vehicle. Consequently, you will
always have the correct engine oil for refilling.

We recommend using a preser vative from the Škoda original accessories offered
by your Škoda dealer.

For further information - see Service schedule.
Petrol engines
Specification
Filling level
a)
a)Oil capacity with oil filter change. Inspect oil leve l when filling; do not fill up too much. The oil
level must be between the markings page 141.1.4 ltr./59 kW - EU5
VW 503 00, VW 504 00
3,2
1.6 ltr./75 kW - EU4, EU2
VW 503 00, VW 504 00
4,5
Diesel engine
Specification
Filling level
a)
2.0 l/81 kW TDI CR EU4
VW 507 00
4,3
Petrol engines
Specification
Filling level
a)
a)Oil capacity with oil filter change. Inspect oil leve l when filling; do not fill up too much. The oil
level must be between the markings page 141.1.4 ltr./59 kW - EU5
VW 501 01, VW 502 00
3,2
1.6 ltr./75 kW - EU4, EU2
VW 501 01, VW 502 00
4,5
Diesel engine
Specification
Filling level
a)
2.0 l/81 kW TDI CR EU4
VW 507 00
4,3
s2bs.2.book Page 181 Monday, September 27, 2010 9:53 AM

Index189
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Index
AAbroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Active driver-steering recommendation . . . . . . . 113
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52, 86
Adjusting the steering wheel . . . . . . . . . . . . . . . . . . . 77
Air conditioning system Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Climatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . 76
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Alternator Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Antilock brake system . . . . . . . . . . . . . . . . . . . . . . . . 115
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . 37
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Automatic vehicle wash systems . . . . . . . . . . . . . . 129
Automatic wiper/washer system . . . . . . . . . . . . . . . 47
Avoiding damage to your vehicle . . . . . . . . . . . . . . 123
BBattery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 146
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Inspecting the electrolyte level . . . . . . . . . . . . . 148
Operation in winter . . . . . . . . . . . . . . . . . . . . . . . 148
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Belt Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 139 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Bulbs
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Button for the central locking system . . . . . . . . . . . 33
Buttons on the driver's door Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
CCatalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . . 31lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Changing the engine oil . . . . . . . . . . . . . . . . . . . . . . 142
Changing wheels around . . . . . . . . . . . . . . . . . . . . 153
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 149 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Check engine oil level . . . . . . . . . . . . . . . . . . . . . . . 141
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Child safety seat on the front passenger seat . . . . . . . . . . . . . . . 104
Safety information . . . . . . . . . . . . . . . . . . . . . . . 103
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 Classification into groups . . . . . . . . . . . . . . . . . 105
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Use of child safety seats . . . . . . . . . . . . . . . . . . 106
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . 103
s2bs.2.book Page 189 Monday, September 27, 2010 9:53 AM
