2010 SKODA FABIA light

Lights and Visibility
52The turn signal
  and main beam lever

The parking lights and headlight flas
her are also switched on and off
using the turn signal and main beam lever.The turn signal and main beam le
ver perform the following functions:
Right
 and left
 turn signal light
– Push the lever upwa
rds or downwards
fig. 40
.
– If you only wish to flash three times (the
so-called convenience turn signal*), push
the lever briefly up to the upper or lower pressure point and release it.
– Turn signal for changing lanes - in order to
only flash briefly, move the lever up or
down to the pressure point and hold it in this position.
Main beam

– Switch on the low beam. – Push the lever forwards.– Pull the lever back into the initial positi
on in order to switch the main beam off
again.
Headlight flasher

– Pull the lever towards the steering wheel (spring-tensioned position) - the main
beam and warning light
 in the instrument cluster come on.
Parking light

– Switch off the ignition. – Push the lever up or down - the right-hand
or left-hand parking light is switched
on.
Information concerning the function of the lights.
The
turn signal system
only operates when the ignition is switched on. The corre-
sponding warning light
 or  in the instrument cluster also flashes.

The turn signal is automatically cancelled after negotiating a curve.

The side light and rear light on the appropriate side of the vehicle are switched on
when the
parking light
is selected. The parking light function only operates if the igni-
tion is switched off.
An acoustic warning signal will sound when
the driver's door is opened if the lever
is not in the middle position after removing the ignition key from the ignition lock. The acoustic warning signal will stop just as
soon as the driver's door is closed.
Caution
Use main beam or the headlight flasher only
if this does not risk dazzling other road
users.
Note

If you have switched on the right or left turn signal light and you switch off the igni-
tion, the parking light is no
t automatically switched on.

Use only in accordance with the legal
requirements the described lighting and
signal systems.
Fig. 40 Turn signal and main beam lever
s3j8.a.book Page 52 Tuesday, April 20, 2010 1:10 PM

Lights and Visibility
53
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Interior lightingLighting of the interior of the vehicle front/rear* - typ 1Door contact switching mechanism (front and rear* doors)– Press the switch to the right, the symbol
 appears
fig. 41
.
Switching the interior light on– Press the switch to the left, the symbol
 appears.
Switching the interior light off– Press the switch into
the middle position
O.
Reading lights

– Press on one of the switches
fig. 41
in order to switch the right or left reading
light on or off.
On vehicles with central locking, the interi
or light is switched on for about 30 seconds
when the vehicle is unlocked, when a door is
opened or after withdrawing the ignition
key (if the relevant switch is in the door co
ntact position). The inner light goes out out
immediately after the ignition is switched on. A time delay switch* causes
the inner lighting on vehicl
es without a central locking
system stays on for a few seconds after the doors have been closed. The inner light goes out out immediately after the ignition is switched on.
The interior lighting is switched off after
about 10 minutes when a door has been left
open in order to avoid discharg
ing the battery of the vehicle.
Front interior lighting - without reading lightsThe rear interior lighting
fig. 42
is actuated by moving the switch to the symbol
,
O or to the middle position
.
The same principles apply for th
e interior lighting at the rear as for the for the interior
lighting at the front
page 53.
Note
We recommend having the bulb re
placed by a specialist garage.
Rear interior lighting* - type 2
Fig. 41 Detail of the headliner: Interior lighting front / rear
AAAAAA
AB
Fig. 42 Roof liner lightFig. 43 Roof liner light
s3j8.a.book Page 53 Tuesday, April 20, 2010 1:10 PM

Lights and Visibility
54The rear interior lighting is op
erated by pressi
ng the button
page 53, fig. 43
.
The button has two positions for the interior li
ghting at the rear. In the first position, the
interior lighting is switched on permanently, in the second position (after pressing) it is switched via the door contacts.
Note
We recommend having the bulb replaced by a specialist garage.Luggage compartment lightThe lighting comes on automatically when th
e boot lid is opened. If the lid remains
open for more than about 10
minutes, the luggage compartment lighting switches off
automatically.VisibilityRear window heater– You can switch the rear window heater
on or off by pressing the switch
 fig. 44
- the indicator light in the switch comes on or goes out.
The rear window heater only operates when the engine is running. The rear wind
ow heater
switches
off automatically after 7 minutes.
If the on-board voltage drops, the rear window
heater is switched off automatically, the
warning light flashes in the button.
For the sake of the environment
As soon as the window is de-iced or free fr
om mist, the heating should be switched off.
The reduced current consumption will have a favourable effect on fuel economy  page 149, “Saving electricity”.Sun visorsYou can pull the sun visor for the driver or front passenger out of the fixture and swivel it toward the door in the direction of the arrow
fig. 45
.
The vanity mirrors* in the sun visors are provided with covers. Push the cover in direc- tion of arrow .
WARNING
The sun visors must not be swivelled to the side windows into the deployment area of the head airbags if any objects, su
ch as ball-point pens
etc. are attached
to them. This might result in injuries to the occupants if the head airbag is deployed.
Fig. 44 Switch for rear window heater

Fig. 4 Sun visor: swivelling outA1
A2
s3j8.a.book Page 54 Tuesday, April 20, 2010 1:10 PM

Lights and Visibility
55
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Windshield wiper and wash systemWindshield wiper You can operate the windscreen wipers and automatic wipe/wash using the windscreen wiper lever.The windscreen wiper lever
fig. 46
has the following positions:
Finger-operated wiping– If you wish to wipe the windscreen only
briefly
, push the lever into the sprung
position .
Intermittent wiping– Position the lever up into position . – Set with the switch the desired brea
k between the individual wiper strokes
Slow wipe– Position the lever up into position .Fast wipe– Position the lever up into position .
Automatic wipe/wash for windscreen– Pull the lever towards the steering wheel into the spring-tensioned position ,
the wash system and the windscreen wipers will operate.
– Release the lever. The windscreen wash system stops and the wiper continues for
another 1 - 3 wiper strokes (depending on
the period of spraying of the wind-
screen).
Wiping the rear window pane– Push the lever away from the st
eering wheel into position
fig. 46
, the wide-
screen wiper will operate every 6 seconds.
Automatic wipe/wash for the rear window pane– Push the lever away from the steering wheel into the spring-tensioned position ,
the windscreen wiper and wash system will operate.
– Letting go of the lever will cause the windscreen wash system to stop and the wiper
to continue for another 1 - 3 wiper strokes
(depending on the period of spraying of
the windscreen).
The lever will stay in position after releasing it
.
Switching windscreen wipers off– Move the lever back into
its home position .
The windscreen wipers and the windscreen washer system only operate if the ignition is switched on. The rear window will be wiped again if the window wipers are on when reverse gear is selected. The windscreen washer nozzles for the windscreen are heated* when the ignition is switched on. Top up with wash liquid
page 176.
WARNING

Properly maintained windscreen wiper blades are essential for clear visi-
bility and safe driving
page 56.
Fig. 46 Windscreen wiper lever
A4
A1
AA
A2A3
A5
A6
A7
A6
A0
s3j8.a.book Page 55 Tuesday, April 20, 2010 1:10 PM

Lights and Visibility
56
Do not use the windscreen washer sy
stem at low temperatures, without
heating the windscreen beforehand.
Otherwise the window cleaner could
freeze on the windscreen and re
strict the view to the front.

In the event of a freezing up of the wi
ndscreen, first of al
l eliminate the ice
 page 157 and then operate the windscr
een wiper otherwise the windscreen
wiper blades could be damaged.
Caution
In frosty weather, please firs
t of all check whether the windscreen wiper blades are not
frozen to the windscreen before switching
them on. Switching on windscreen wipers
when the blades are frozen to the windscreen may result in damage both to the blades and the motor of the windscreen wipers!
Note
The content of the windscreen wiper reserv
oir is 3.5 litres. On vehicles which are
equipped with a headlight cleaning system*, the content of the reservoir is 5.4 litres.Headlight cleaning system*The headlights are being cleaned after the windscreen washer system has been oper- ated for the fifth time, the low beam or main
beam are switched on as well as the wind-
screen wiper lever is held in the position
page 55, fig. 46
for about 1 second.
You should remove stubborn dirt (such as in
sect residues) from the headlight lenses at
regular intervals, for example when refuelling
. Please refer to the following guidelines
 page 158, “The headlight lenses”. You should remove any snow from the fixtur
es of the washer nozzles and clear ice in
winter with a de-icing spray in order to
ensure proper operation of the cleaning
system.
Replacing wiper blades for the windscreen wipersTaking off the wiper blade– Fold windscreen wiper arm away from the windscreen. – Press the locking button, in order to un
lock the wiper blade and pull off in the
direction of arrow.
Attaching a wiper blade– Push the wiper blade until it locks up to the stop. – Check whether the wiper blade is correctly attached.– Fold the windscreen wiper ar
m back onto the windscreen.
Wiper blades in proper condition are essentia
l to obtain good visibility. Wiper blades
should not be allowed to become dirtied by
dust, insect remains and preserving wax.
Juddering or smearing of the wiper blades co
uld then be due to wax residues left on
the windscreen by vehicle washing in automa
tic vehicle wash systems. It is therefore
important to
degrease
the lips of the wiper blades after every pass through an
auto-
matic vehicle wash system
.
WARNING

If the windscreen wipers are handled ca
relessly, there is a risk of damage to
the windscreen.
WARNING (continued)
A5
Fig. 47 Wiper blade for the windscreen wiper
s3j8.a.book Page 56 Tuesday, April 20, 2010 1:10 PM

Lights and Visibility
57
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data


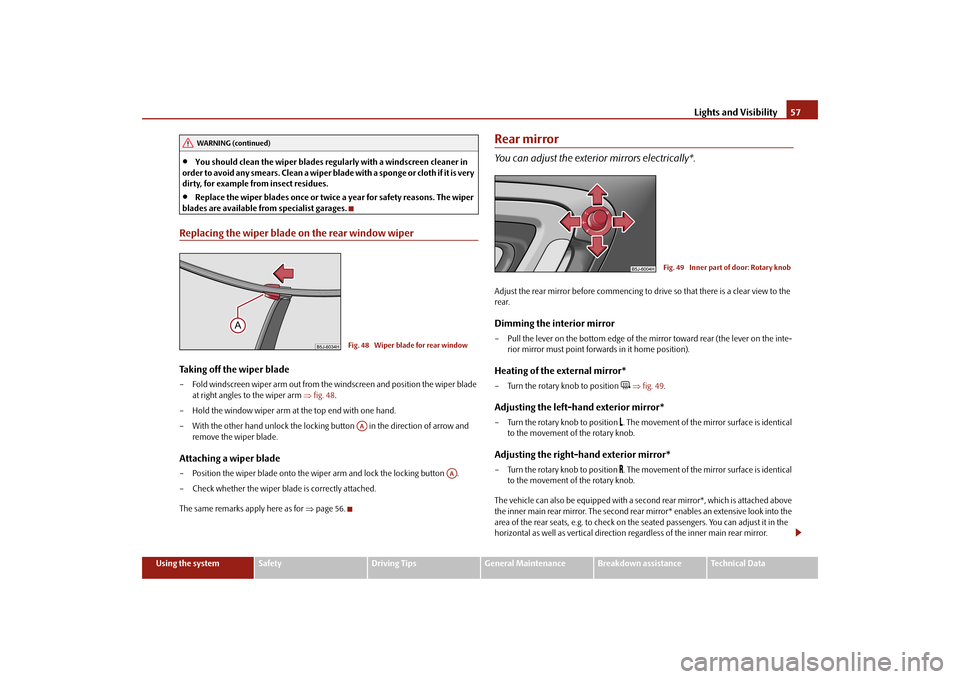

You should clean the wiper blades regu
larly with a windscreen cleaner in
order to avoid any smears. Clean a wiper blad
e with a sponge or cloth if it is very
dirty, for example from insect residues.
Replace the wiper blades once or twice a year for safety reasons. The wiper
blades are available from specialist garages.Replacing the wiper blade on the rear window wiperTaking off the wiper blade– Fold windscreen wiper arm out from the windscreen and position the wiper blade
at right angles to the wiper arm
fig. 48
.
– Hold the window wiper arm at the top end with one hand.– With the other hand unlock the locking button in the direction of arrow and
remove the wiper blade.
Attaching a wiper blade– Position the wiper blade onto the wiper arm and lock the locking button . – Check whether the wiper bl
ade is correctly attached.
The same remarks apply here as for
page 56.
Rear mirrorYou can adjust the exterior mirrors electrically*.Adjust the rear mirror before commencing to drive so that there is a clear view to the rear.Dimming the interior mirror– Pull the lever on the bottom edge of the mirror toward rear (the lever on the inte-
rior mirror must point forwards in it home position).
Heating of the external mirror*– Turn the rotary knob to position
 fig. 49
.
Adjusting the left-hand exterior mirror*– Turn the rotary knob to position
. The movement of the mirror surface is identical
to the movement of the rotary knob.
Adjusting the right-hand exterior mirror*– Turn the rotary knob to position
. The movement of the mirror surface is identical
to the movement of the rotary knob.
The vehicle can also be equipp
ed with a second rear mirror*, which is attached above
the inner main rear mirror. Th
e second rear mirror* enables an extensive look into the
area of the rear seats, e.g. to check on the seated passengers. You can adjust it in the horizontal as well as vertical direction re
gardless of the inner main rear mirror.
WARNING (continued)
Fig. 48 Wiper blade for rear windowAA
AA
Fig. 49 Inner part of door: Rotary knob
s3j8.a.book Page 57 Tuesday, April 20, 2010 1:10 PM

Lights and Visibility
58The exterior mirror heater only op
erates when the engine is running.
WARNING

Convex (curved outward) or spherical (differently curved) exterior mirrors
increase the vision field. They do, howe
ver, make objects appear smaller in the
mirror. These mirrors are only of limited
use, therefore, for estimating distances
to the following vehicles.
Use whenever possible the interior rear
mirror, for estimating the distances
to the following vehicles.
Note

Do not touch the surfaces of the exterior mirrors if the exterior mirror heater is
switched on.
You can set the exterior mirrors by hand, if
the power setting function fails at any
time by pressing on the edge of the mirror surface.
Contact your specialist garage if a fault ex
ists with the power setting of the exterior
mirrors.s3j8.a.book Page 58 Tuesday, April 20, 2010 1:10 PM

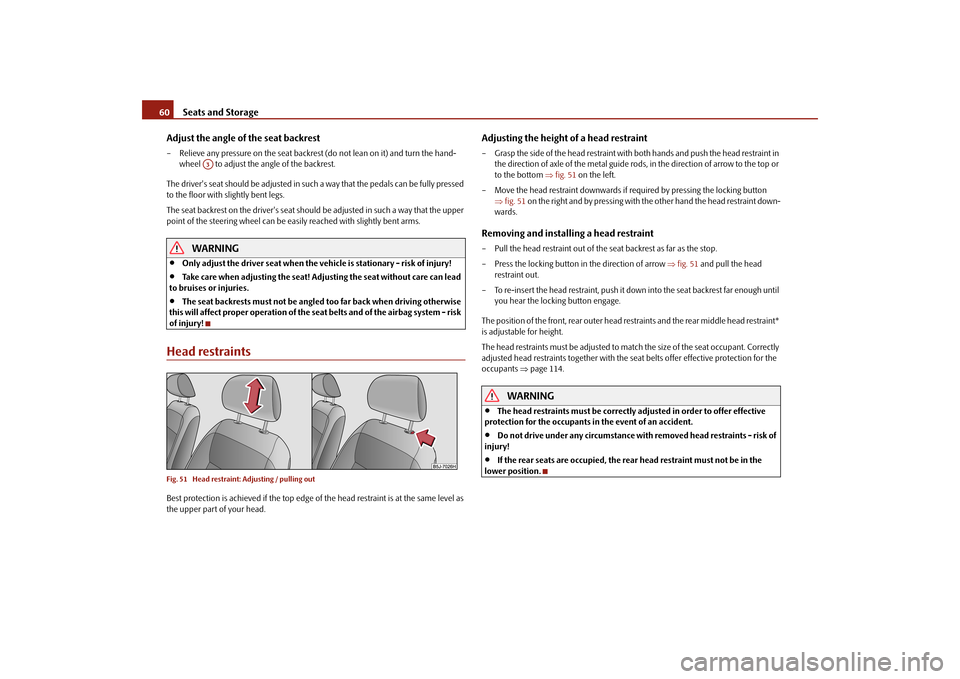

Seats and Storage
60 Adjust the angle of the seat backrest– Relieve any pressure on the seat backrest
(do not lean on it) and turn the hand-
wheel to adjust the angle of the backrest.
The driver's seat should be adjusted in such a way that the pedals can be fully pressed to the floor with slightly bent legs. The seat backrest on the driver's seat should
be adjusted in such a way that the upper
point of the steering wheel can be easi
ly reached with slightly bent arms.
WARNING

Only adjust the driver seat when the vehicle is stationary - risk of injury!

Take care when adjusting the seat! Adjusting the seat without care can lead
to bruises or injuries.
The seat backrests must not be angled too far back when driving otherwise
this will affect proper operation of the se
at belts and of the airbag system - risk
of injury!Head restraintsFig. 51 Head restraint: Adjusting / pulling outBest protection is achieved if the top edge of
the head restraint is at the same level as
the upper part of your head.
Adjusting the height of a head restraint– Grasp the side of the head restraint with both hands and push the head restraint in
the direction of axle of the metal guide rods, in the direction of arrow to the top or to the bottom
fig. 51
on the left.
– Move the head restraint downwards if required by pressing the locking button
 fig. 51
on the right and by pressing with the other hand the head restraint down-
wards.
Removing and installing a head restraint– Pull the head restraint out of the seat backrest as far as the stop. – Press the locking button in the direction of arrow
fig. 51
and pull the head
restraint out.
– To re-insert the head restraint, push it do
wn into the seat backrest far enough until
you hear the locking button engage.
The position of the front, rear outer head restraints and the rear middle head restraint* is adjustable for height. The head restraints must be adjusted to ma
tch the size of the seat occupant. Correctly
adjusted head restraints together with the
seat belts offer effective protection for the
occupants
page 114.
WARNING

The head restraints must be correctly adjusted in order to offer effective
protection for the occupants in the event of an accident.
Do not drive under any circumstance with removed head restraints - risk of
injury!
If the rear seats are occupied, the rear
head restraint must not be in the
lower position.
A3
s3j8.a.book Page 60 Tuesday, April 20, 2010 1:10 PM
