2010 PORSCHE CAYENNE PORSCHE CAYNNE 2010 1.G Information Manual

The new Cayenne
To the point

At this point, it would be very
tempting for us to wax lyrical
about our new models. How­
ever, we prefer to devote our
time to the essentials – our
customers’ requirements. The
brief was clear: a lighter, more
efficient and more dynamic
vehicle offering greater safet y
and enhanced comfort. In short:
more Porsche than ever before.
The new Cayenne. To the point.
The new Cayenne 6
Model range 12
Design 14
Cayenne 16
Cayenne Diesel 18
Cayenne S 20
Cayenne S Hybrid 22
Cayenne Turbo 24
Drive systems and chassis 26
Engines 28

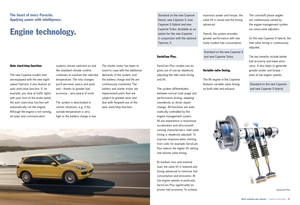

Engine technology 36
Tr ansmis sion 42
Off ­road capabilit y 48
Chassis 50
Safety and environment 58
Safet y 60
Environment 70
Comfort and transport 76
Comfort 78
Driver assistance systems 102
Tra n s p o rt 10 6
Personalisation 110
Factory collection 125
Service 126
Summary 128
Technical data 130
Index 136

(PDLS, p. 61). For greater comfort
and performance, the car is
equipped as standard with eight­
speed
Tiptronic S (p. 42)
, while
Porsche Torque Vectoring Plus
(PT V Plus, p. 50) enhances driving
dynamics and stabilit y.
As always, we’ve focused on
what ’s really important. To the
point: the new Cayenne models.
Tiptronic
S (p. 42) and VarioCam
Plus (p. 37). The interaction
bet ween all components has
also been optimised.
Another of our principles: high
performance should never come
at the expense of comfort or
safet y, and this is something we
have kept to. Even with a car
offering the phenomenal output
of the new Cayenne Turbo. Its
4.8 ­litre V8 powerplant develops
500 hp, which is guaranteed to
set pulse rates climbing and
send a shiver down the spine –
both natural reactions in a
turbocharged Porsche. Standard
active safet y features include
Bi ­Xenon headlights with the
Porsche Dynamic Light System
Sometimes that means us

venturing of f in unusual directions
– as with the first Cayenne to be
fit ted with a diesel engine, for
example. However, it has become
clear that even with a new drive
system, the Cayenne can continue
to remain true to the trusted
Porsche principle.
The new Cayenne and new

Cayenne S are now more powerful
and ef ficient, while also delivering
exceptional capabilit y of f road.
The result: greater driving pleasure
with reduced fuel consumption
and CO2 emissions. On and off road.
This has also been achieved
through the use of advanced
technologies such as direct fuel
injection (DFI, p. 38), eight ­speed
As usual, the critics were ready to
have their say, as with every new
product we create. Can it still be
considered a Porsche? Why have
they done that? The questions

are always the same. As is our
answer: we do what we feel
is in the best interest of our
customers.
(p. 36). For increased comfort
and safet y, Lane Change Assist
(LCA, p. 105) and adaptive

cruise control (p. 104) are

available as an option. Ensuring
a phenomenal sound experience
in every seat position is the
optional Burmester
® High ­End
Surround Sound System (p. 94).
One thing is for sure: the new
Cayenne models are guaranteed
to surprise.
The most innovative – and there ­
fore in keeping with the rest of
the Porsche family – is the new
Cayenne S Hybrid. Its parallel full
hybrid system (p. 28) harnesses
the power of an electric machine
(motor/generator) and an internal
combustion engine. This provides
several clear benefits for the
driver: outstanding sportscar
performance combined with
excellent fuel economy.
Once again, t ypically Porsche.
Versatilit y combined with
superlative performance and
exceptional handling. These are
character traits shared by the
entire Cayenne model range. We
have simply honed and refined
them. For each individual model.
And we have also extended the
range of drives. The Cayenne
now comes in a wider choice of
variants, each one more dynamic,
practical and comfortable than
ever before. And also more
ef ficient. Fuel consumption has
been reduced by up to 23 %
and CO
2 emissions by up to
26 % (depending on the model).
This was achieved thanks to
the Cayenne models being

considerably lighter, with each
one weighing up to 185 kg less
than the respective previous
model. They also feature a host
of advanced technologies such
as the auto start /stop function
Those who develop talent reap the reward.
Sometimes in more ways than one.
The Cayenne models.
12 · The new Cayenne | Model range

The front wheel arches are
extremely well defined, while
the ‘power­domed’ engine lid
further underlines the sheer
power and resolution within –
this is particularly dominant
on the Cayenne Turbo. Other
distinguishing features include
the visibly drawn ­in flanks. The sharper profile exudes
eagerness and determination,
which is further emphasised by
the dynamic rear roof pillars
and flowing coupé
­like silhouet te.
The rear wheel arches are t ypical
of a sportscar, streamlined and
muscular, while the contoured
roof spoiler pays homage to the
Carrera GT. Further proof of how
harmoniously our performance
concept has been integrated into
our design philosophy – across
the entire model range. The tapered rear screen and
streamlined rear section underline
the flared wheel arches – for a
t ypically distinctive rear view.
The exterior is unmistakably
Porsche. The inside too. But not in
the way you are used to perhaps.
The desire to achieve greater
agilit y, flexibilit y and everyday
practicalit y has led to a complete
revision of the interior (p. 78
onwards): clearly inspired by the
Carrera GT, the centre console
now rises to meet the dashboard
– for an even more involving
drive.
The rear cabin area is larger and
more variable than before. It
features split ­folding seats with
fore/aft adjustment and adjust ­
able backrest angle – for extra
legroom and greater comfort.
In addition, a wide range of
new materials has been used.
Practically every thing has been
changed. But one thing remains
the same: the focus on you and
your passengers.
The contours of the front section
draw the eye, reflecting the car’s
excellent dynamics at first glance.
The elongated engine lid is clearly
reminiscent of Porsche racecars
from the 1960s.
When you look at someone’s face,
you see much more than their
external features. We are proud to
say, it ’s the same with the new
Cayenne models. In fact, what you
see is more sports performance
than ever before.
Children can give you a great deal of joy.
Even more so when they’ve inherited your finest characteristics.
Design.
The new Cayenne
| Design · 15
14 · The new Cayenne | Design

When we launched the first
Cayenne in 2002, it was met with
great scepticism. Can it still be
considered a Porsche at all? Our
reply: never before in the history
of the company, has a model
gone from 0 to 100,000 sold
units so quickly. And even more
importantly, the Cayenne has
conquered the SUV market by
demonstrating that exceptional
sportscar performance is not
just restricted to the road.
The basic concept is therefore
the same. We’ve just continued to
improve it: the new Cayenne is
now lighter – up to 165 kg1) depend­
ing
on the specification – and also
more dynamic, more comfortable,
and closer to the road than ever
before. Without detracting from
the
qualities required for off ­road
driving or towing heav y loads.
Its naturally aspirated 3.6 ­litre
V6 engine features direct fuel
injection (DFI, p. 38), variable
valve timing on both inlet and
exhaust, and a variable resonance
intake manifold – for a generous
output and excellent fuel
economy. In other words: we have enhanced the performance,
while significantly lowering the
weight, fuel consumption and CO
2
emissions. The figures speak for
themselves: maximum torque of
400 Nm, 220 kW (300 hp), a top
speed of 230 km/ h (143 mph)
and the abilit y to accelerate from
0 to 100 km/ h (62 mph) in
7.5 se conds. With both fuel con­
sumption and CO
2 emissions

reduced by 20 %.
1), 2) Delivering
this power to the road efficiently,
Porsche Traction Management
(PTM, p. 44) combines active all ­
wheel drive
with an electron ically
variable

multi ­plate clutch, auto ­
matic brake dif ferential (ABD) and
anti ­slip regulation (ASR). PTM
ensures the perfect distribution of
drive torque to all four wheels,
whether on long straights, through
tight corners or on surfaces with
dif ferent friction coef ficients: for
dynamic handling
and increased
traction. Drive is transmit ted
through a high ­performance

six ­speed manual gearbox (p. 42),
which ensures optimum progres ­
sion through the gears. The gear
lever throw is short and precise,
with only minimal driver ef fort
required. In addition to the standard
18
­inch Cayenne wheels and
new larger brakes, the Cayenne
can be fit ted with the optional
Porsche Ceramic Composite
Brake (PCCB, p. 64) – for out ­
standing brake performance.
Another key advantage: a total
weight saving of approximately
50 % compared with equivalent
cast ­iron discs.
The generous standard equipment
includes partial ­leather seats,
climate control, the CDR ­31 audio
system with touchscreen, cruise
control and automatic headlight
activation. For added comfort,
there’s also a ‘Welcome Home’
lighting function. When you arrive
at a destination af ter dark, the
headlights remain illuminated for
a user ­defined period, lighting
your path from the car.
In terms of enhancing the
agility
and practicalit y of the
new
Cayenne, the goal we set

ourselves was very clear: even
more Porsche. Let ’s be honest,
would you have expected any ­
thing else?
Everything has changed. Apart from the concept.
The new Cayenne.
1) Compared to previous model.2) The data presented here was recorded using the Euro 5 test procedure (715/2007/ EC and 692/2008/ EC) and the NEDC (New European Driving
Cycle). The respective figures were not recorded on individual vehicles and do not constitute part of the of fer. This data is provided solely
for the purposes of comparison bet ween the respective models. Provisional data only. Of ficial data unavailable at the time of publication.
For more information on individual models and final data, please contact your Porsche Centre.
The new Cayenne | Cayenne · 17
16 · The new Cayenne | Cayenne

Boasting outstanding perform­
ance and ef ficiency, the new
Cayenne Diesel is ideal for longer
journeys – offering high levels
of torque, while fuel consumption
remains low.
Its 3.0 ­litre V6 turbo ­diesel engine
is powerful and refined. The unit
generates 176 kW (240 hp) and
maximum torque of 550 Nm.
The sprint to 100 km/ h (62 mph)
requires just 7.8 seconds. Top
speed is 218 km/ h (135 mph).
In addition, both fuel consumption
and CO
2 emissions have been
reduced by up to 20 %.
1), 2)
Direct fuel injection comes
courtesy of a common ­rail

injection system. The injection
pressure of up to 1,800 bar en ­sures optimum distribution of the
air/fuel mixture – for enhanced
dynamics. The piezoelectric
injection valves enable multiple
injections for each power stroke
to deliver efficient combustion.
The turbocharger on the new
Cayenne Diesel features Variable
Turbine Geometry (V TG, p. 40),
generating a higher output and
impressive torque, even at low
engine speeds.
Now standard equipment, the
new eight
­speed Tiptronic S
includes gearshift controls on
the steering wheel. Transmit ting
the high torque of the Cayenne
Diesel smoothly and ef fectively,
the eight gears are designed to
facilitate both economical driving
with low fuel consumption and
performance driving with em­
phatic acceleration. Porsche Traction Management
(PTM) permanent all
­wheel
drive with self ­locking centre
dif ferential transmits the car’s
power to all four wheels with
optimum precision and control.
Available as a no ­cost option,
the 100 ­litre fuel tank enhances
the range to well over 1,000 km
(approx. 620 miles) while keeping
the engine rpm and noise levels
l o w.
The new Cayenne Diesel: proof
that a 100 ­metre sprinter can
also run a marathon.
The only thing running low on long journeys:
fuel consumption.
The new Cayenne Diesel.
1) Compared to previous model.2) The data presented here was recorded using the Euro 5 test procedure (715/2007/ EC and 692/2008/ EC) and the NEDC (New European Driving
Cycle). The respective figures were not recorded on individual vehicles and do not constitute part of the of fer. This data is provided solely
for the purposes of comparison bet ween the respective models. Provisional data only. Of ficial data unavailable at the time of publication.
For more information on individual models and final data, please contact your Porsche Centre.
The new Cayenne | Cayenne Diesel · 19
18 · The new Cayenne | Cayenne Diesel

The Porsche ‘S’ has long been
a mark of heightened sports per­
formance and abundant reserves
of power. On the Cayenne S, it
also stands for strength, agilit y
and efficiency.
At the heart of the car is a natur­
ally aspirated 4.8 ­litre V8 engine
featuring direct fuel injection
(DFI, p. 38), VarioCam Plus (p. 37)
and a t wo ­stage intake manifold.
This helps to keep fuel consump ­
tion and emissions low, while
ensuring maximum output. In
short: 294 kW (400 hp), maximum
torque of 500 Nm and a top
speed of 258 km/ h (160 mph).
The Cayenne S accelerates from
0 to 100 km/ h (62 mph) in as
lit tle as 5.9 seconds. Fuel con ­
sumption has been reduced by
up to 23 % and CO
2 emissions by
as much as 26 %.
1), 2) The weight
of the car has also been lowered
by 180 kg
1). Drive is transmit ted to the road
with smoothness and precision
by the eight
­speed Tiptronic S,
which is now standard equipment
and includes gearshif t controls
on the steering wheel. The result:
optimum use of the available
power reserves.
Of course, to apply exceptional
power like this ef fectively, it
needs to be harnessed and con ­
trolled. For example, by Porsche
Traction Management (PTM,
p. 44). On the new Cayenne S,
this active all ­wheel drive system
features an electronically variable,
map ­controlled multi ­plate clutch,
an automatic brake differential
(ABD, p. 44) and anti ­slip regu­
lation (ASR, p. 44). Working
in conjunction with advanced
Porsche Stabilit y Management
(PSM, p. 66), PTM ensures the
required torque split in every
driving scenario. On or of f road. During performance driving,

as well as on leisurely journeys
or when towing heav y loads.
The black slats on the air intakes
make them appear larger, and
the car wider. Other distinctive
features include the 18 ­inch
Cayenne S III wheels.
The Porsche ‘S’. A mark to which
the new Cayenne S holds true.
Distinctly new, yet holding true – to Porsche.
The new Cayenne S.
1) Compared to previous model.2) The data presented here was recorded using the Euro 5 test procedure (715/2007/ EC and 692/2008/ EC) and the NEDC (New European Driving
Cycle). The respective figures were not recorded on individual vehicles and do not constitute part of the of fer. This data is provided solely
for the purposes of comparison bet ween the respective models. Provisional data only. Of ficial data unavailable at the time of publication.
For more information on individual models and final data, please contact your Porsche Centre.
The new Cayenne | Cayenne S · 21
20 · The new Cayenne | Cayenne S
