2010 Peugeot Partner Owner's Manual

9.24

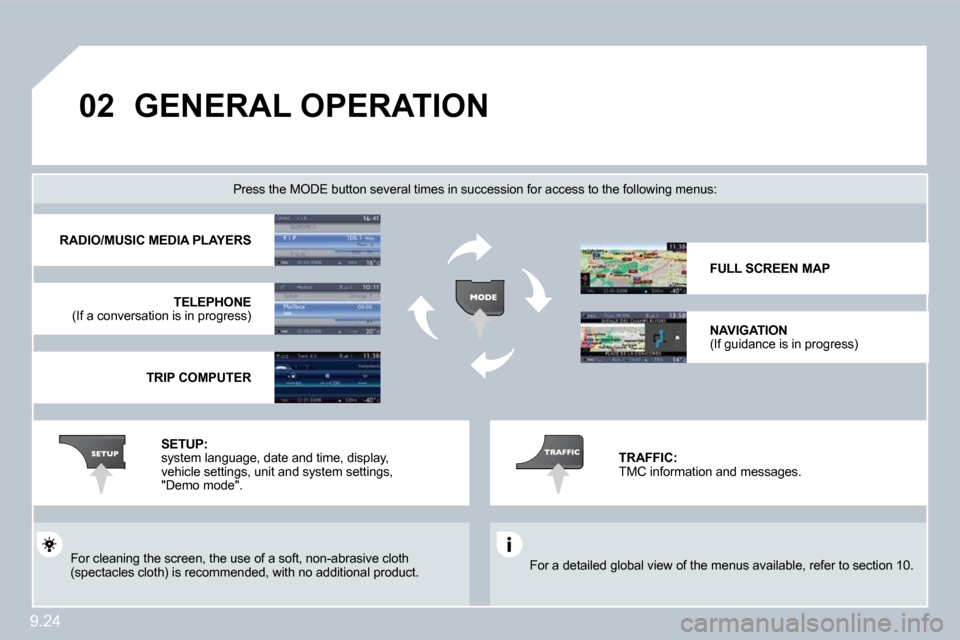

02GENERAL OPERATION
For a detailed global view of the menus available, refer to section 10.
Press the MODE button several times in succession for access to the following menus:
For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no addition al product.
RADIO / MUSIC MEDIA PLAYERS
TELEPHONE (If a conversation is in progress)
TRIP COMPUTER
FULL SCREEN MAP
NAVIGATION (If guidance is in progress)
SETUP: system language, date and time, display, vehicle settings, unit and system settings,"Demo mode".
TRAFFIC: TMC information and messages.

9.25
02
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
1
2
1
2
2
2
2
2
2
2
1
1
1
1
1
1

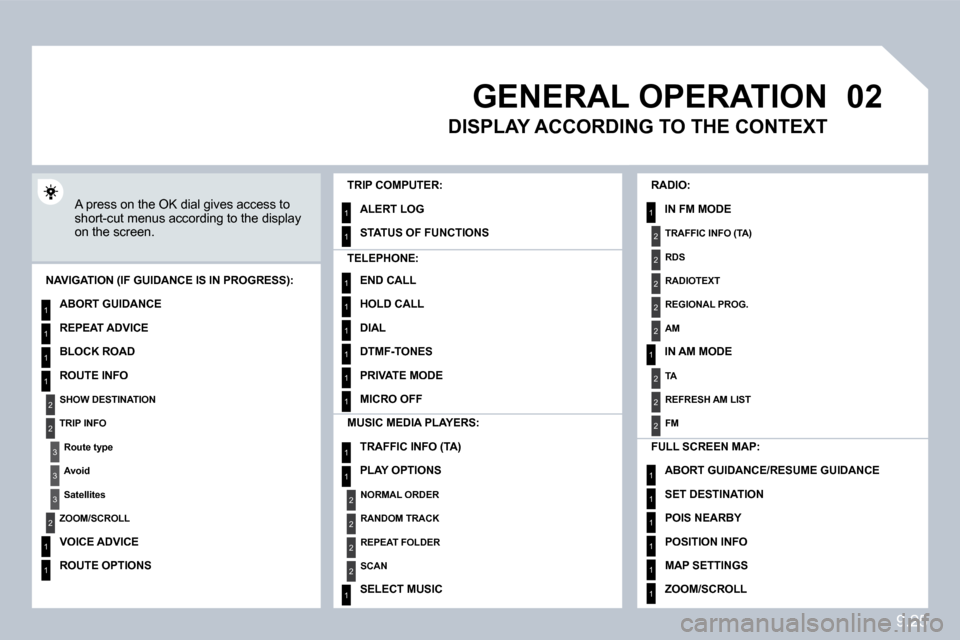

GENERAL OPERATION
A press on the OK dial gives access to short-cut menus according to the display on the screen.
TRIP COMPUTER:
ALERT LOG
STATUS OF FUNCTIONS
MUSIC MEDIA PLAYERS:
TRAFFIC INFO (TA)
PLAY OPTIONS
NORMAL ORDER
RANDOM TRACK
REPEAT FOLDER
SCAN
SELECT MUSIC
NAVIGATION (IF GUIDANCE IS IN PROGRESS):
ABORT GUIDANCE
REPEAT ADVICE
BLOCK ROAD
ROUTE INFO
SHOW DESTINATION
TRIP INFO
Route type
Avoid
Satellites
ZOOM/SCROLL
VOICE ADVICE
ROUTE OPTIONS
RADIO:
IN FM MODE
TRAFFIC INFO (TA)
RDS
RADIOTEXT
REGIONAL PROG.
AM
IN AM MODE
TA
REFRESH AM LIST
FM
FULL SCREEN MAP:
ABORT GUIDANCE/ RESUME GUIDANCE
SET DESTINATION
POIS NEARBY
POSITION INFO
MAP SETTINGS
ZOOM/SCROLL
TELEPHONE:
END CALL
HOLD CALL
DIAL
DTMF-TONES
PRIVATE MODE
MICRO OFF
DISPLAY ACCORDING TO THE CONTEXT

9.26
03
1
2
3
6
5
4
NAVIGATION - GUIDANCE
SELECTING A DESTINATION
Press the NAV button again or select the "Navigation" Menu function and press the dial to confi rm.
Select the "Destination input" function and press the dial to confi rm.
Press the NAV button.
Select the letters of the town one by one confi rming each time by pressing the dial.
Once the country has been selected, turn the dial and select the town function. Press the dial to confi rm.
"NAVIGATION" MENU
DESTINATION INPUT
Insert the SD card in the front panel reader and leave it there to use the Navigation functions. The navigation SD card data must not be modifi ed. Map data updates are available from PEUGEOT dealer s.
ADDRESS INPUT
A pre-set list (by entering the fi rst few letters) of the towns in the A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed via the LIST butto n ontton on the virtual keypad.
Select the "Address input" function Select the "Address input" function and press the dial to confi rm.
The list of the last 20 destinations appears under the "Navigation" The list of the last 20 destinations appears under the "Navigation" Menu function.

9.27
7
8
10
9

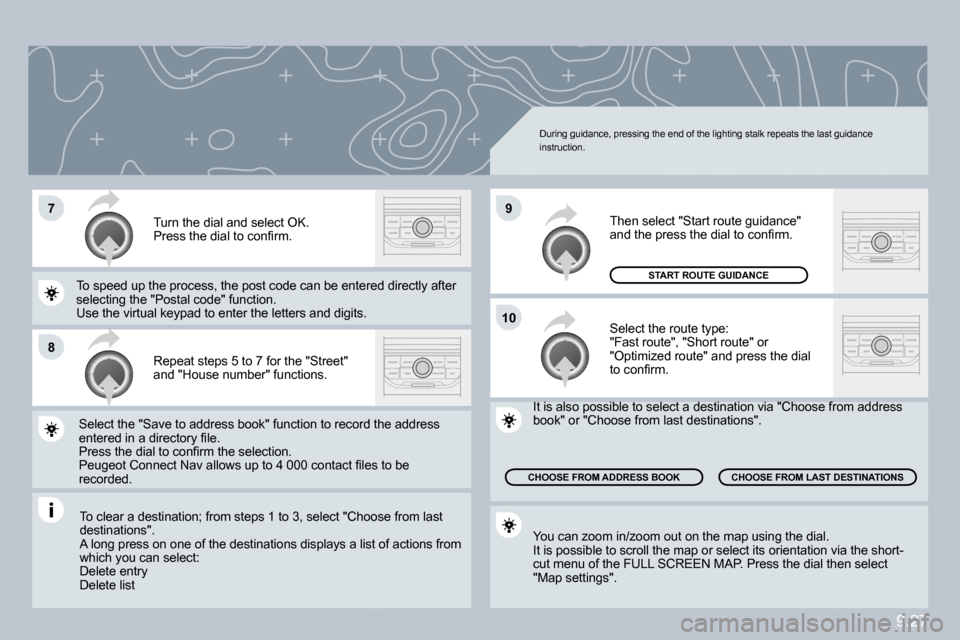

To clear a destination; from steps 1 to 3, select "Choose from last To clear a destination; from steps 1 to 3, select "Choose from last destinations". A long press on one of the destinations displays a list of actions from A long press on one of the destinations displays a list of actions from which you can select: Delete entry Delete list
Repeat steps 5 to 7 for the "Street" and "House number" functions.
Turn the dial and select OK. Press the dial to confi rm.
Select the "Save to address book" function to reco rd thord the address entered in a directory fi le.Press the dial to confi rm the selection. Peugeot Connect Nav allows up to 4 000 contact fi l es to be Peugeot Connect Nav allows up to 4 000 contact fi les to be recorded.
To speed up the process, the post code can be ente redtered directly after selecting the "Postal code" function. Use the virtual keypad to enter the letters and digits. Select the route type: "Fast route", "Short route" or "Optimized route" and press the dial to confi rm.
Then select "Start route guidance" and the press the dial to confi rm.
You can zoom in/zoom out on the map using the dial . It is possible to scroll the map or select its orientation via the short- It is possible to scroll the map or select its orientation via the short-cut menu of the FULL SCREEN MAP. Press the dial the n select cut menu of the FULL SCREEN MAP. Press the dial then select "Map settings".
It is also possible to select a destination via "Choose from address It is also possible to select a destination via "Choose from address It is also possible to select a destination via "Choose from address book" or "Choose from last destinations".
CHOOSE FROM LAST DESTINATIONS CHOOSE FROM LAST DESTINATIONS CHOOSE FROM ADDRESS BOOK
START ROUTE GUIDANCE
During guidance, pressing the end of the lighting stalk repeats the last guidance instruction.

9.28
03
5
6
7
1
2
3
4
NAVIGATION - GUIDANCE
ROUTE OPTIONS
Select the "Route dynamics" function. This function gives access to the "Traffi c independent" or "Semi-dynamic" options.
Select the "Avoidance criteria" function. This function provides access to the AVOID options (motorways, toll roads, ferries).
Turn the dial and select the Turn the dial and select the "Recalculate" function to take into account the route options selected. Press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and press the dial to confi rm.
Select the "Route type" function and press the dial to confi rm. This function allows you to change the route type.
Select the "Route options" function and press the dial to confi rm.
RECALCULATE
AVOIDANCE CRITERIA
ROUTE DYNAMICS
ROUTE TYPE
ROUTE OPTIONS
"NAVIGATION" MENU
The route selected by the Peugeot Connect Nav audio/telephone depends directly on the route options. Changing these options may change the route comple tely.

9.29
5
6
7
1
2
3
4
ADDING A STOPOVER
Enter a new address, for example.
Once the new address has been entered, select OK and press the dial to confi rm.
Select "Recalculate" and press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and press the dial to confi rm.
Select the "Add stopover" function(5 stopovers maximum) and press the dial to confi rm.
Select the "Stopovers" function and press the dial to confi rm.
OK
ADDRESS INPUT
RECALCULATE
ADD STOPOVER
STOPOVERS
"NAVIGATION" MENU
The stopover must be completed or deleted in order for the guidance The stopover must be completed or deleted in order for the guidance to continue to the next destination. Otherwise, the Peug Peugeot Connect Navigation will always return you to the previous s topovtopover.
Stopovers can be added to the route once the destination has been selected.

9.30
03
1
2
3
4
7
85
6
NAVIGATION - GUIDANCE
SEARCHING FOR POINTS OF INTEREST
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and press the dial to confi rm.
Select the "POI nearby" function to search for POIs around the vehicle.
Select the "POI search" function and press the dial to confi rm.
POI NEARBY
POI SEARCH
"NAVIGATION" MENU
POI IN COUNTRY
POI NEAR DESTINATION
POI IN CITY
POI NEAR ROUTE
Select the "POI in city" function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the "POI near route" function to search for POIs near the route.
Select the "POI in country" function to search for POIs in the country required.
Select the "POI near destination" function to search for POIs near the point of arrival of the route.
A list of cities present in the country selected can be accbe accessed via the LIST button on the virtual keypad.
The points of interest (POIs) indicate all of the service locations in the vicinity (hotels, various businesses, airports...).

9.31

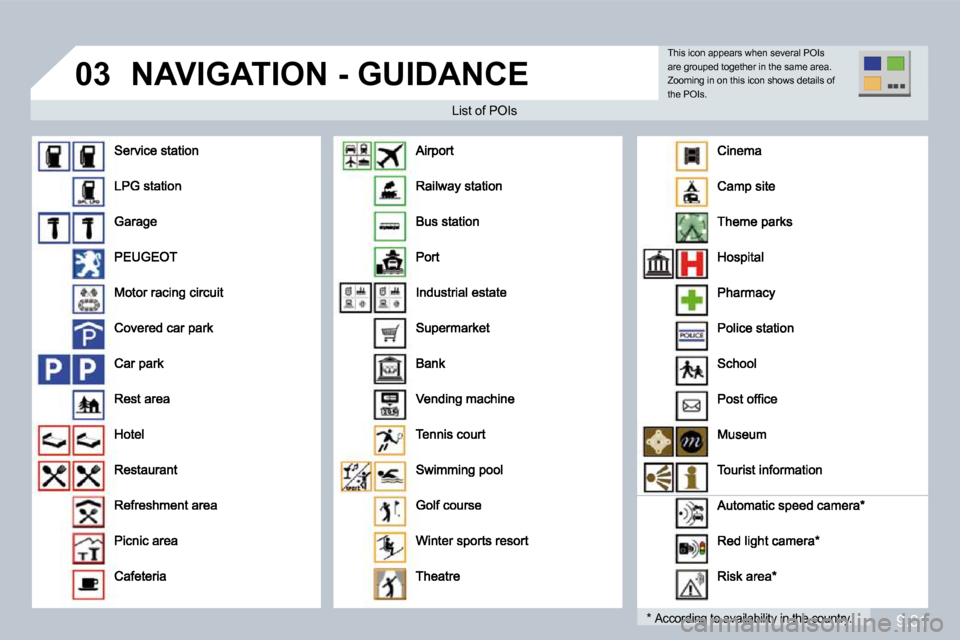

03 NAVIGATION - GUIDANCE
List of POIs List of POIs
* According to availability in the country. According to availability in the country.
This icon appears when several POIs are grouped together in the same area. Zooming in on this icon shows details of the POIs.
