2010 Peugeot Partner Owner's Manual

9.32
03
6
4
5
1
2
3
Select the "Navi volume" function and turn the dial to set the volume of each voice synthesiser (traffi c information, alert messages…).
Select "Set parameters for risk areas" to gain access to the "Display on map", "Visual alert" and "Sound alert" functions.
Select the "POI categories on Map" function to select the POIs to be displayed on the map by default.
NAVI VOLUME
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and press the dial to confi rm.
Select the "Settings" function and press the dial to confi rm.
"NAVIGATION" MENU
SETTINGS
POI CATEGORIES ON MAP
SET PARAMETERS FOR RISK AREAS
NAVIGATION - GUIDANCE
Contact a PEUGEOT dealer for details of the procedure for obtaining the RISK AREA POIs. Updating of the RISK AREA POIs requires an SDHC (H igh Capacity) compatible reader.

9.33
04
1
2
5
4
3

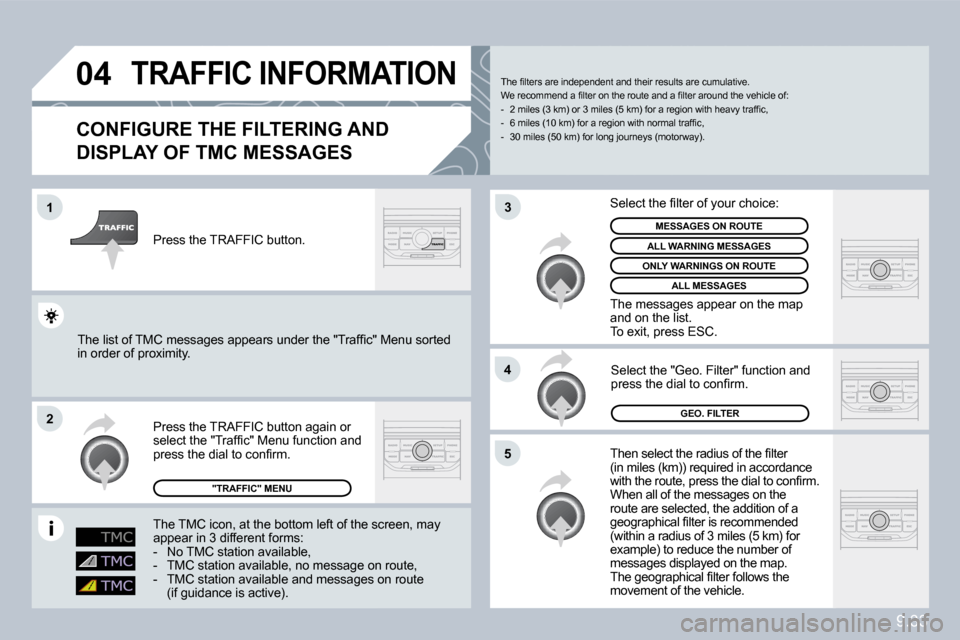

TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND
DISPLAY OF TMC MESSAGES
Then select the radius of the fi lter(in miles (km)) required in accordance with the route, press the dial to confi rm. When all of the messages on the route are selected, the addition of a geographical fi lter is recommended (within a radius of 3 miles (5 km) for example) to reduce the number of messages displayed on the map. The geographical fi lter follows the movement of the vehicle.
Press the TRAFFIC button again or select the "Traffi c" Menu function and press the dial to confi rm.
Press the TRAFFIC button.
The fi lters are independent and their results are cumulative. We recommend a fi lter on the route and a fi lter ar ound the vehicle of: - 2 miles (3 km) or 3 miles (5 km) for a region with heavy traffi c, - 6 miles (10 km) for a region with normal traffi c, - 30 miles (50 km) for long journeys (motorway).
Select the "Geo. Filter" function and press the dial to confi rm.
The list of TMC messages appears under the "Traffi c" Menu sorted The list of TMC messages appears under the "Traffi c" Menu sorted in order of proximity.
Select the fi lter of your choice:
ALL MESSAGES
ONLY WARNINGS ON ROUTE
ALL WARNING MESSAGES
MESSAGES ON ROUTE
The messages appear on the map and on the list. To exit, press ESC.
"TRAFFIC" MENU
The TMC icon, at the bottom left of the screen, may The TMC icon, at the bottom left of the screen, may appear in 3 different forms: - No TMC station available, - TMC station available, no message on route, - TMC station available, no message on route, - TMC station available and messages on route - TMC station available and messages on route(if guidance is active).
GEO. FILTER

9.34
11
2
3
05
SELECTING A STATION
When the current radio station is displayed on the screen, press the dial.
The radio source short-cuts menu appears and provides access to The radio source short-cuts menu appears and provides access to the following short-cuts:
Select the function required and press the dial to confi rm to gain access to the corresponding settings.
TRAFFIC INFO (TA)
The RDS, if displayed, allows you to continue listening to the same The RDS, if displayed, allows you to continue listening to the same station by automatic retuning to alternative freque ncies. However, in station by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assured certain conditions, coverage of an RDS station may not be assured throughout the entire country as radio stations do not cover 100 % of throughout the entire country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the stathe station during a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. Thi s phenomenon is a normal result of the way in which radio waves are transmitted and does n ot in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE - TRAFFIC INFO
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning the dial and press to confi rm.
AM
REGIONAL PROG.
RADIOTEXT
RDS
While listening to the radio, press one of the buttons to select the previous or next station on the list.
Press one of the buttons on the numeric keypad for more than Press one of the buttons on the numeric keypad for more than 2 seconds to store the current station. Press the button on the numeric keypad to recall the stored radio Press the button on the numeric keypad to recall the stored radio station.
RADIO
A long press of one of the buttons starts the automatic search for a station with a lower or higher frequency.

9.35
06MUSIC MEDIA PLAYERS
CD, MP3/WMA CD, MP3/WMA SD CARD
INFORMATION AND ADVICE
If the GPS is used, the navigation SD card must remain in the Peugeot Connect Nav reader. In this case, it is not possible to play an SD card containing MP3 fi les.
In order to be able to play a recorded CDR or CDRW , wRW, when recording it is preferable to select the ISO 9660 level 1, 2 or Joliet recording it is preferable to select the ISO 9660 level 1, 2 or Joliet standard. If the disc is recorded in another format it may not be played If the disc is recorded in another format it may not be played correctly. It is recommended that the same recording standard is always used It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is In the particular case of a multi-session CD, the Joliet standard is recommended.
The Peugeot Connect Nav will only play audio fi les with the The Peugeot Connect Nav will only play audio fi les with the extension ".mp3" with a speed of between 8 Kbps and 320 Kbps and extension ".mp3" with a speed of between 8 Kbps and 320 Kbps and the extension ".wma" with a speed of between 5 Kbps and 384 Kbps. the extension ".wma" with a speed of between 5 Kbps and 384 Kbps. It also supports the VBR (Variable Bit Rate) mode. No other type of fi le (.mp4, .m3u...) can be played.
The MP3 format, an abbreviation of MPEG 1,2 & 2.5 Audio Layer 3 The MP3 format, an abbreviation of MPEG 1,2 & 2.5 Audio Layer 3 and the WMA format, an abbreviation of Windows Medi a Audio and and the WMA format, an abbreviation of Windows Media Audio and the property of Microsoft, are audio compression standards which the property of Microsoft, are audio compression standards which permit the recording of several tens of music fi les on a single disc. permit the recording of several tens of music fi les on a single disc.
It is advisable to restrict fi le names to 20 characters, without using of It is advisable to restrict fi le names to 20 characters, without using of special characters (e.g. : " " ? ; ù) to avoid any playing aying and displaying problems.
During play, exit the SD Card mode before removing the SD card During play, exit the SD Card mode before removing the SD card from its reader.
To avoid any risk of theft, remove the SD card when you leave your To avoid any risk of theft, remove the SD card when you leave your vehicle with the roof open.

9.36
1
2
3
5
4
6

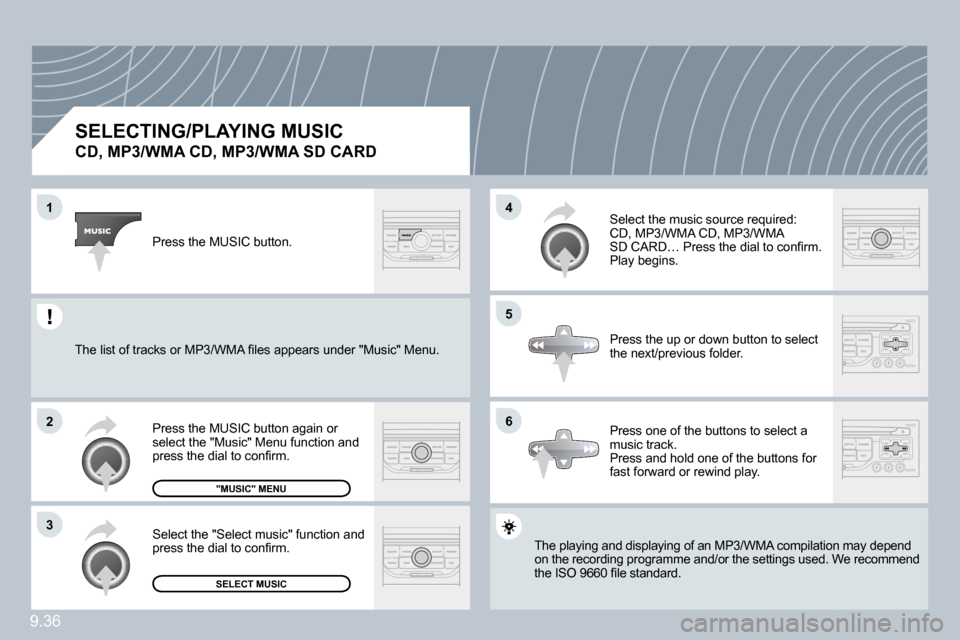

SELECTING/PLAYING MUSIC
CD, MP3/WMA CD, MP3/WMA SD CARD
The playing and displaying of an MP3/WMA compilation may depend The playing and displaying of an MP3/WMA compilation may depend on the recording programme and/or the settings used. We recommend on the recording programme and/or the settings used. We recommend the ISO 9660 fi le standard.
Press the MUSIC button.
Select the "Select music" function and press the dial to confi rm.
Press the up or down button to select the next/previous folder.
Select the music source required: CD, MP3/WMA CD, MP3/WMA SD CARD… Press the dial to confi rm. Play begins.
SELECT MUSIC
Press the MUSIC button again or select the "Music" Menu function and press the dial to confi rm.
Press one of the buttons to select a music track. Press and hold one of the buttons for fast forward or rewind play. "MUSIC" MENU
The list of tracks or MP3/WMA fi les appears under "Music" Menu. The list of tracks or MP3/WMA fi les appears under "Music" Menu.

9.37
1
2
3
4
1
4
06
2
3
5
Connect the portable equipment (MP3/WMA player…) Connect the portable equipment (MP3/WMA player…)to the audio sockets (white and red, RCA type) in the glo the glove boxusing a JACK/RCA audio cable.
Press the MUSIC button then press it again or select the "Music" Menu function and press the dial to confi rm.
Select the AUX music source and press the dial to confi rm. Play begins automatically.
Select the "External device" function and press the dial to activate it.
EXTERNAL DEVICE
Insert one or more CDs in the changer. Press the MUSIC button.
Press one of the buttons on the numeric keypad to select the corresponding CD.
Select the "Changer" music source and press the dial to confi rm.
The display and management of the controls is via the portable The display and management of the controls is via the portable equipment.
CHANGER
Select the "Select music" function and press the dial to confi rm.
USING THE EXTERNAL DEVICE (AUX)
AUDIO/RCA CABLE NOT SUPPLIED
CD CHANGER
PLAYING A CD (NOT MP3/WMA COMPATIBLE)
SELECT MUSIC
Press the MUSIC button again or select the "Music" Menu function and press the dial to confi rm.
"MUSIC" MENU
MUSIC MEDIA PLAYERS

9.38
07
1
4
3
2
1
2
The services available depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telephone’s manual an d your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.
BLUETOOTH TELEPHONE
CONNECTING A TELEPHONE
For reasons of safety and because they require pro longrolonged attention on the part of the driver, the operations for pairing the B the Bluetooth mobile telephone to the hands-free system of the Pe ugeot Connect mobile telephone to the hands-free system of the Peugeot Connect Nav must be carried out with the vehicle stationary. The ignition must Nav must be carried out with the vehicle stationary. The ignition must be on.
Activate the telephone’s Bluetooth function. The last telephone connected is reconnected automatically. Enter the authentication code on the telephone. The code to be entered is displayed on the screen.
To change the telephone connected, press the PHONE button, then select "Phone" Menu and press the dial to confi rm.
Once the telephone has been connected, Peugeot Cont Connect Nav can synchronise the address book and the call list. This syncis synchronisation may take a few minutes.
Select "Connect phone". Select the telephone and press to confi rm.
The list of telephones connected previously (4 max imum) appears The list of telephones connected previously (4 maximum) appears on the multifunction screen. Select the telephone required for a new on the multifunction screen. Select the telephone required for a new connection.
Press the PHONE button.
For a fi rst connection, select "Search phone" and press the dial to confi rm. Then select the name of the telephone.
SEARCH PHONE
CONNECT PHONE

9.39
2
3
11
2
3
Press the end of the steering mounted control to accept the call or end the call in progress.
Select the "Yes" tab to accept or "No" to refuse and confi rm by pressing the dial.
RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a superimposed display An incoming call is announced by a ring and a superimposed display on the multifunction screen.
YES
To hang up, press the PHONE button or press the dial and select "End call" then confi rm by pressing the dial.
END CALL
Press the PHONE button.
Press the end of the steering wheel control for more than two Press the end of the steering wheel control for more than two seconds to gain access to the address book.
It is also possible to select a number from the address book. You can It is also possible to select a number from the address book. You can select "Dial from address book". The Peugeot Connec t Nav permits select "Dial from address book". The Peugeot Connect Nav permits the recording of up to 4 000 entries.
Select "Dial number", then dial the telephone number using the virtual keypad.
Select the "Phone" Menu function and press the dial to confi rm.
DIAL NUMBER
"PHONE" MENU
The list of the last 20 calls made and received in the vehicle appears The list of the last 20 calls made and received in the vehicle appears under "Phone" Menu. You can select a number and pre ss the dial to under "Phone" Menu. You can select a number and press the dial to make the call.
NO
