2010 PEUGEOT 807 Owners Manual

Accesses
20
Changing the remote control
battery
Battery ref.: CR1620/3 volts.
The information "battery fl at" is given
by an audible signal, accompanied by
a message on the multifunction display.
To replace the battery, unclip the
casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
re-programme the remote control. Programming the remote
control
Following changing of the
remote control battery or
disconnection of the vehicle
battery, the remote control may
have to be reprogrammed.
Do not discard the remote control
batteries, they contain metals which
are harmful to the environment.
Take them to a PEUGEOT dealer, or to
any other approved collection point. Wait at least one minute
before using the remote
control.
Insert the key in the ignition
switch with the buttons
(padlocks) of the remote control
facing you.
Switch on the ignition.
Press the locking padlock for at
least fi ve seconds within the next
ten seconds.
Switch off the ignition.
Wait at least one minute before using
the remote control.
The remote control is now working
again.

Accesses
READY TO SET OFF
2
21
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system as
soon as the ignition has been switched
off and therefore prevents starting of
the vehicle by anyone who does not
have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
If the system does not function
correctly, the central locking button
indicator light, situated on the courtesy
light console, fl ashes rapidly when the
ignition is switched on (2nd notch).
In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible. Good practice
If the keys are lost
A PEUGEOT dealer will be able
to retrieve the key code and the
transponder code to order a replacement
key if you show him your V5 registration
certifi cate and personal identifi cation.
Key, remote control
Take care not to allow the key to come
into contact with grease, dust, rain or a
damp environment.
A heavy object attached to the key
(key ring, ...) weighing on the shaft
of the key in the switch may cause a
malfunction.
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is
a possibility that it may unlock your
vehicle, without you being aware of it.
Do not repeatedly press the buttons of
your remote control out of range and
out of sight of your vehicle. You run
the risk of stopping it from working and
the remote control would have to be
reprogrammed.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,
except for reprogramming.
Do not make any modifi cations to the
electronic engine immobiliser system. Safety
In the event of a serious impact the
doors are unlocked automatically
to permit access by the emergency
services.
Remove the ignition key when you
leave the vehicle, even for a short time,
if there are children on board.
Purchasing a second-hand vehicle
Ensure that you are given the anti-theft
socket for alloy wheels (remember to
note the code engraved on the head of
the socket).
Have the key codes memorised by
a PEUGEOT dealer, to ensure that
the keys in your possession are the
only ones which can start the vehicle.

Accesses
22
ALARM
If fi tted on your vehicle, this provides
two types of protection:
- exterior protection: it sounds if a door, the tailgate or the bonnet is
opened.
- interior protection: it sounds if the volume inside the passenger
compartment changes (breaking of
a window or a movement inside the
vehicle).

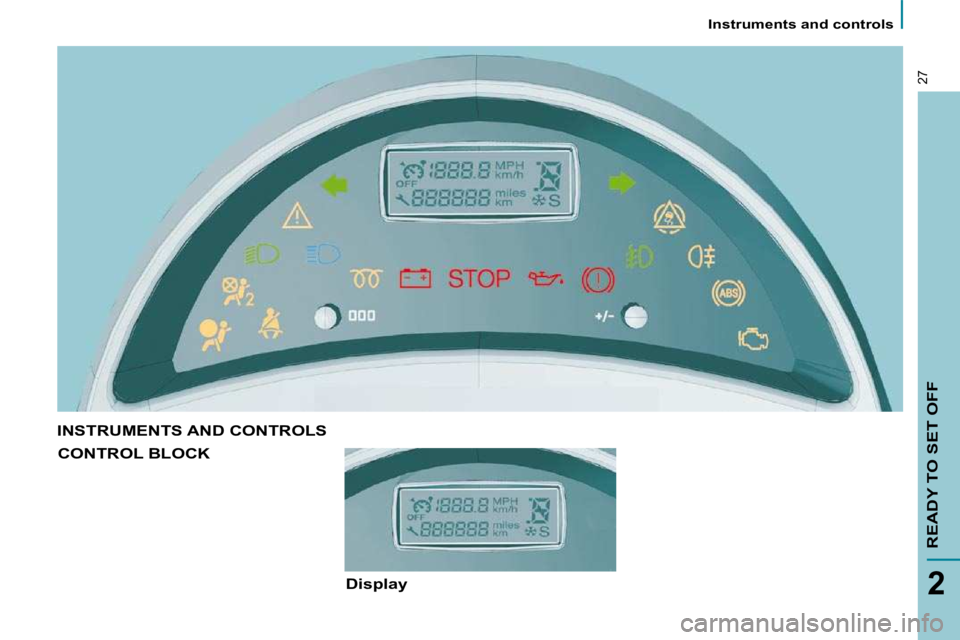

A red indicator light, located in the
centre of the fascia, indicates the
information detailed below. To lock your vehicle without setting
the alarm, insert the key in the
lock then lock the vehicle (e.g. for
washing).
When the alarm is triggered, the siren
sounds and the direction indicator
lights fl ash for thirty seconds.
Warning - alarm triggered: the red indicator
light fl ashes rapidly, insert the key and
switch on the ignition to switch it off.
When the alarm has been triggered ten
times in succession (on the eleventh time)
the alarm is deactivated. Repeat the rules
for setting the alarm. - Close the sunroofs,
- Switch off the ignition,
- In the next ten seconds, press
button A , located on the left-hand
side of the fascia, until the red
indicator light is on continuously,
- Get out of the vehicle,
- Within the next fi ve minutes, set the alarm by locking or deadlocking using
the remote control (the red indicator
light fl ashes once a second).
Do not make any modifi cations
to the alarm system as this could
cause faults.
Setting the alarm
- Switch off the ignition and get out of
the vehicle.
- Set the alarm within fi ve minutes of getting out of the vehicle, by locking
or deadlocking using the remote
control (the red indicator light
fl ashes once per second). Disarming
Unlock the vehicle with the remote
control (the red indicator light goes out).
To set the alarm with exterior
protection only
If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle, you
should choose exterior protection only. Incorrect operation
When the ignition is switched on, if the red
indicator light remains on for ten seconds,
there is a fault in the siren connection.
Consult a PEUGEOT dealer to have the
system checked.
Automatic setting of the alarm
If fi tted on your vehicle, the alarm is set
automatically 2 minutes after the last
door or the tailgate is closed.
To prevent triggering of the alarm when
a door or the tailgate is opened, it is
imperative to press the remote control
unlocking button again. When the alarm is set but the
remote control does not operate:
- Unlock the doors with the key and open the door. The alarm is
triggered.
- Switch on the ignition in the next ten seconds. The alarm is
disarmed.

Accesses
READY TO SET OFF
23
DOORS
Automatic central locking
The doors can lock automatically when
you are driving (at a speed of more
than 6 mph (10 km/h)).
You can activate or deactivate this
function. To deactivate
With the ignition on, press
and hold the padlock.
Deactivation of the function
is accompanied by an audible
signal.
Opening the doors from outside Opening the doors
from inside
If the vehicle is locked or
deadlocked from the outside, the
red warning light fl ashes and the
padlock does not function. In this case,
use the key or the remote control to
unlock from the outside.
The door opening switches do
not function when the vehicle is
deadlocked. Locking/Unlocking from
the inside
Press the padlock, the red
warning light comes on when
the vehicle is locked and switches off
when it is unlocked.
This locks/unlocks the doors and the
tailgate.
To activate
With the ignition on, press
and hold the padlock.
Activation of the function is
accompanied by an audible signal and
a message on the display . "Door open" alert
If a door or the tailgate is not closed
properly:
-
when the engine is running , you
are warned by a graphic and a
message on the display for a few
seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
the service warning light comes on.
It is accompanied by an audible
signal, a message and a graphic on
the display for a few seconds.

Accesses
24
Opening/Closing using
the remote control
Press one of the buttons to
open or close the corresponding
rear door (right or left).
Opening/Closing from
the front
Press the corresponding
control.
An audible signal accompanies the
opening and closing of the door.
ELECTRIC SLIDING SIDE DOORS
Remember to close the sliding
doors when your vehicle is parked
for long periods, the electric open
door monitoring system consumes
power.
On a steep gradient, guide the side
door manually to assist closing.
Opening/Closing from
row 2
Press the corresponding
control. General recommendations
It is imperative that the doors are
only operated when the vehicle is
stationary.
Always ensure that the door is
operated safely. Check that no person,
animal or object is preventing the
required operation, either inside or
outside the vehicle.
Do not lean through an open window,
do not leave any object protruding
through the door during opening or
closing.
Do not leave children or pets near the
opening and closing controls without
supervision.
Obstacle detection
The detection system is triggered
when an obstacle which has a certain
physical resistance hinders the
movement of the door.
If an obstacle is detected during:
- closing of the door, the door opens
fully,
- opening of the door, the door stops.
When the obstacle has been removed,
complete or restart the action using the
remote control or the interior controls.
Failure to observe these
recommendations may result in injury
or damage if part of the body or an
object becomes jammed or caught.

Accesses
READY TO SET OFF
2
25
ELECTRIC CHILD SAFETY
Simultaneous locking or
unlocking of the tailgate and the
doors
The tailgate is locked or unlocked by
the remote control or the driver’s door
or passenger door lock.
To open, operate the handle C and lift
the tailgate. Tailgate release
The tailgate locks automatically
when the vehicle is being driven
at more than 6 mph (10 km/h) and
unlocks when one of the front doors is
opened.
TAILGATE
"Tailgate open" warning
When the engine is running or the
vehicle is being driven, you are warned
if the tailgate is not closed correctly by
a diagram on the display, accompanied
by an audible signal. This enables the tailgate to be
unlocked in the event of a central
locking fault.
- Fold back a row 2 rear seat,
- Fold back a row 3 rear seat or the
bench seat to gain access to the
lock from inside the boot,
- Insert a small screwdriver into hole D in the lock and push it
towards the left to unlock the
tailgate.
B - Electric
This disarms all the electrical controls
in the rear:
- electric windows,
- sliding side doors,
- sunroofs in rows 2 and 3.
With the ignition on, press button
B .
A message appears on the display,
accompanied by an audible signal,
indicating the status of the function:
activated or not activated.
Always check the status before setting off.
This safety system is independent of
the central locking.
In the event of a serious impact, the
doors are unlocked automatically
to permit access by the emergency
services.
Always remove the ignition key
when leaving the vehicle, even for
a short time.

Accesses
26
SUNROOFS
You have three sunroofs each with an
independent control.
However, the front passenger’s control
can also operate the two rear sunroofs
simultaneously.

To partially open the roof: press and
hold part A of the control.

To open the roof completely: press
part A of the control briefl y.

To close it completely: press part B
of the control briefl y to slide it, then
press the control again continuously to
close it completely. Malfunction
In the event of a malfunction, unwanted
opening of the roof on closing (for
example, in the presence of ice),
following reconnection of the battery or
if the sunroof does not close:
- press
A until the roof is fully open,
- press B within one second to close
the roof,
- if the roof does not close, press B
several times until the roof is fully
closed,
- release then continue to press the control B for approximately fi ve
seconds after closing of the roof.

The safety auto-reverse function is
not active during these operations. Disarming of the row 2 and
3 controls
Press the rear electrical functions
disarming switch.
The sunroof shutter is manual.
To open it, lift the handle and slide
it rearwards.
To close it, slide it forwards until the
handle locks.

Good practice
Do not open the sunroofs
immediately after a shower or
immediately after washing the car.
Always ensure that the sunroofs are
closed correctly before leaving the
vehicle.
In the event of contact during operation
of the roof, you must reverse the
movement of the roof. To do this, press
the switch concerned.
When the driver operates the roof
switch, he must ensure that no one is
preventing correct closing of the roof.
Be aware of children when operating
the roof.
The driver must ensure that the
passengers use the sunroof correctly.
Safety auto-reverse
When the sunroof is sliding closed
and meets an obstacle, it stops then
partially opens again.

Instruments and controls
READY TO SET OFF
2
27
INSTRUMENTS AND CONTROLS
CONTROL BLOCK
Display
