90
Driving safety
TYRE UNDER-INFLATION
DETECTION
Sensors check the tyre pressure during
driving, and trigger a warning in the
event of a malfunction (speed greater
than approx.15 mph [25 km/h]) or
puncture.
An outline representing one or more
w h e e l s fl a s h i n g i n d i c a t e s t h e l o c a t i o n
of the wheel or wheels concerned. Flat tyre
The SERVICE warning light
comes on, accompanied
by the message "Tyre(s)
d e fl a t e d " , an outline on the display,
and an audible signal.
Check the tyre pressure as soon as
possible. If the damaged tyre is temporarily
stored in the boot, it will again emit
this message to remind you of the
necessity of having it repaired. This will
prevent another warning of the same
type being displayed.
Sensor(s) not detected
The SERVICE warning light
comes on, accompanied
by the message "X tyre
pressure sensor(s) missing" , an
outline on the display and an audible
signal.
U n d e r - i n fl a t i o n d e t e c t i o n i s a b s e n t
from one (or several) tyre(s). Consult a
PEUGEOT dealer to replace the faulty
sensor(s). This message is also displayed
when one of the tyres is away
from the vehicle (being repaired)
or when a wheel without a sensor is
fi t t e d .
All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h t h i s
system must be carried out by a
PEUGEOT dealer.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is a driving aid which does
not take the place of the vigilance or
the responsibility of the driver.
This system does not remove the
need to have the tyre pressure
checked regularly (including the spare
wheel), to ensure that the dynamic
performance of the vehicle remains at
its best and to avoid premature wear
of the tyres, in particular in the case
of arduous driving (heavy load, high
speed).
The system may temporarily be
disturbed by radio broadcasts on a
frequency close to it.
Puncture
The STOP warning light
comes on, accompanied
by the message
"Punctured tyre(s)" , an outline on the
display and an audible signal.
Stop immediately, avoiding any sudden
movement of the steering wheel and
the brakes.
Change the damaged (punctured or
v e r y d e fl a t e d ) t y r e , a n d h a v e t h e t y r e
pressure checked as soon as possible.
Refer to the "Changing a wheel"
section of chapter 7.
Page 109 of 237
107
Other accessories
ACCESSORIES
5
OTHER ACCESSORIES
These accessories and parts, after
being tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide choice of recommended
accessories and original parts is offered
by the PEUGEOT Marque. To avoid any jamming under the
pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s are positioned correctly,
- never place one mat on top of another.
Compatible portable equipment
For the hands-free kit audio
e q u i p m e n t , t h e fi t t i n g o f a n R C A
a u x i l i a r y s o c k e t i s o f f e r e d s p e c i fi c a l l y
by the Network.
The audio cable for connection to
the auxiliary socket (RCA yellow-red
located in the glove box) is also offered
by the network.
Following connection of the cable and
selection of the AUX mode, via the
source button, your portable equipment
is ready to operate.
Set the portable equipment to half
volume to avoid saturating the audio
system sound. Then use the audio
system volume button. Audio systems, telephone,
hands-free kit, speakers, CD
changer, navigation system,
DVD player, ...
Alloy wheels, trims,
aluminium interior trim kit,
m u d fl a p s , . . .
Seat covers compatible with
side air bags, mats, boot tray,
sunroof, luggage net, door
d e fl e c t o r s , c o o l b o x s e c u r e d
on the slides, clip armrest, load
carrying roof bars, roof box,
snow chains, ski carrier, tailgate
bicycle carrier, interior bicycle carrier,
b o o s t e r s e a t s a n d c h i l d s e a t s , I s o fi x
seats, side sun blinds and rear blind, ...
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y a
PEUGEOT dealer. T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not
recommended by PEUGEOT
may result in a failure of your vehicle’s
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g . Y o u
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning triangle
and replacement bulbs available in the
vehicle. Screenwash, interior and
exterior maintenance
and cleaning products,
replacement bulbs, ...
When using a tailgate bicycle
carrier, deactivate the rear
wiper from the display
c o n fi g u r a t i o n m e n u .
Before installing a
radiocommunication transmitter with
aerial, contact a PEUGEOT dealer who
w i l l i n f o r m y o u o f t h e s p e c i fi c a t i o n s o f
t h e t r a n s m i t t e r s w h i c h c a n b e fi t t e d ,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
A further range is also available,
structured around comfort, leisure and
maintenance:
Anti-theft alarm, window
e n g r a v i n g , fi r s t a i d k i t , s a f e t y
jacket, rear parking assistance,
warning triangle, ...
Page 144 of 237
9.4
2
8
1 6
1 8 1 7 711 1 4 3
5 9 4
1 5 1 2
1 3
61
10
01

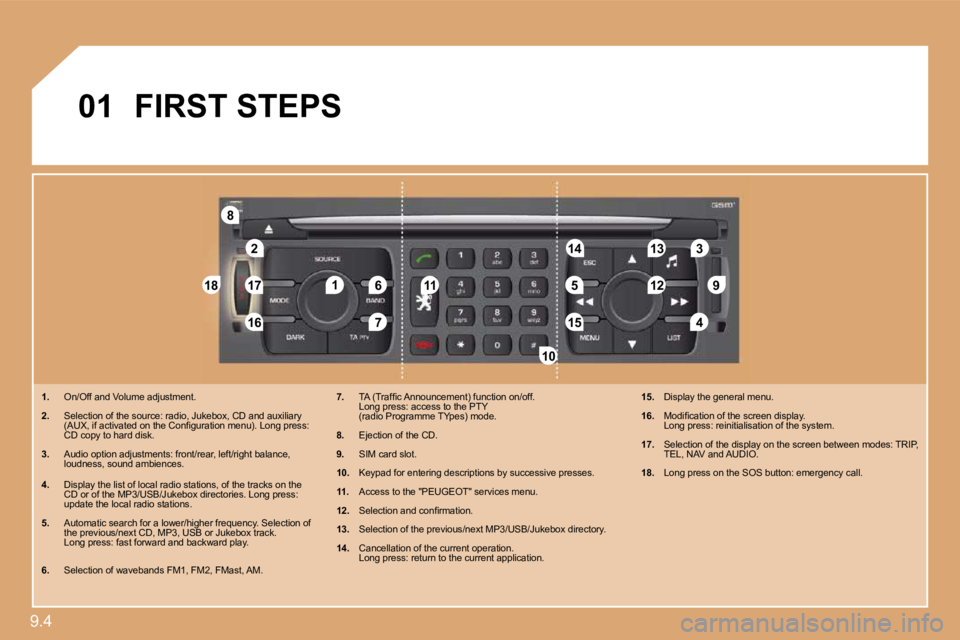

FIRST STEPS
1 . On/Off and Volume adjustment.
2 . Selection of the source: radio, Jukebox, CD and a
uxiliary ( A U X , i f a c t i v a t e d o n t h e C o n fi g u r a t i o n m e n u ) . L o n g p r e s s : CD copy to hard disk.
3 . Audio option adjustments: front/rear, left/right balance, loudness, sound ambiences.
4 . Display the list of local radio stations, of the tracks on the CD or of the MP3/USB/Jukebox directories. Long pres s: update the local radio stations.
5 . Automatic search for a lower/higher frequency. Selection of the previous/next CD, MP3, USB or Jukebox track. Long press: fast forward and backward play.
6 . Selection of wavebands FM1, FM2, FMast, AM.
7 . T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . Long press: access to the PTY (radio Programme TYpes) mode.
8 . Ejection of the CD.
9 . SIM card slot.
1 0 . Keypad for entering descriptions by successive presses.
1 1 . Access to the "PEUGEOT" services menu.
1 2 . S e l e c t i o n a n d c o n fi r m a t i o n .
1 3 . Selection of the previous/next MP3/USB/Jukebox di rectory.
1 4 . Cancellation of the current operation. Long press: return to the current application.
1 5 . Display the general menu.
1 6 . M o d i fi c a t i o n o f t h e s c r e e n d i s p l a y . Long press: reinitialisation of the system.
1 7 . Selection of the display on the screen between modes: TRIP, TEL, NAV and AUDIO.
1 8 . Long press on the SOS button: emergency call.
Page 146 of 237
9.6

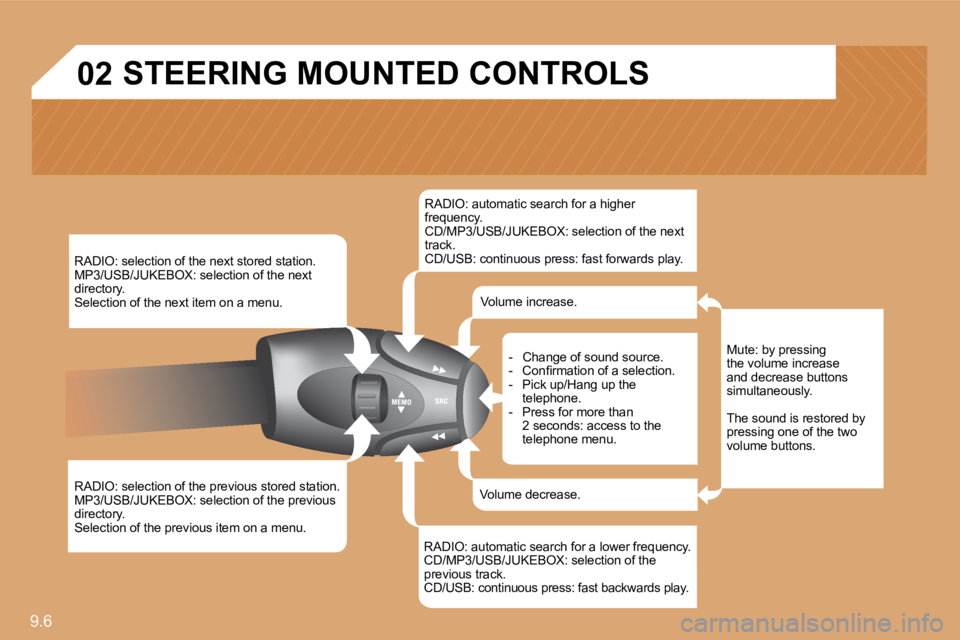

0 2 STEERING MOUNTED CONTROLS
RADIO: selection of the next stored station. MP3/USB/JUKEBOX: selection of the next directory. Selection of the next item on a menu.
RADIO: selection of the previous stored station. MP3/USB/JUKEBOX: selection of the previous directory. Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. CD/MP3/USB/JUKEBOX: selection of the next track. CD/USB: continuous press: fast forwards play.
RADIO: automatic search for a lower frequency. CD/MP3/USB/JUKEBOX: selection of the previous track. CD/USB: continuous press: fast backwards play.
- Change of sound source. - C o n fi r m a t i o n o f a s e l e c t i o n . - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.
Volume increase.
Volume decrease.
Mute: by pressing the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.
Page 147 of 237
9.7
0 3
°
> COLOUR SCREEN
This displays the following information, via the audio control panel: - time, - date, - ambient temperature (if there is a risk of ice, you are warned by a message), - audio source displays (radio, CD, jukebox, ... ), - telematic system displays (telephone, services , ...), - check of openings (doors, boot, ...), - warning messages (e.g.: "Fuel level low") and vehicle function status messages (e.g.: "Auto lighting activated") displaye d temporarily, - trip computer information, - GPS (Europe) satellite navigation system information.
The system uses the complete and detailed NAVTEQ m aps installed directly on the equipment's hard disk. Updates of the maps of the UK and of the other Euro pean countries, offered by our partner NAVTEQ, are available from the PEUGEOT network.
S c r e e n c o n fi g u r a t i o n : r e f e r t o t h e s e c t i o n - S c r e e n m e n u m a p .
Telephone
Orange Time:
Date:
Page 148 of 237
9.8
0 3 SCREEN AND MAIN MENU
MAP: orientation, details, display. AUDIO FUNCTIONS: radio, CD, Jukebox, options.
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended without any additional product.
TELEMATIC: telephone, directory, SMS.
CONFIGURATION: vehicle, display, time, languages, voice, auxiliary socket (AUX) display, time, languages, ages,
parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS: warnings log, status of the functions.
NAVIGATION GUIDANCE: GPS, stages, options.
TRAFFIC INFORMATION: TMC information, messages.
Long press on MENU: help.
Page 149 of 237
9.9
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

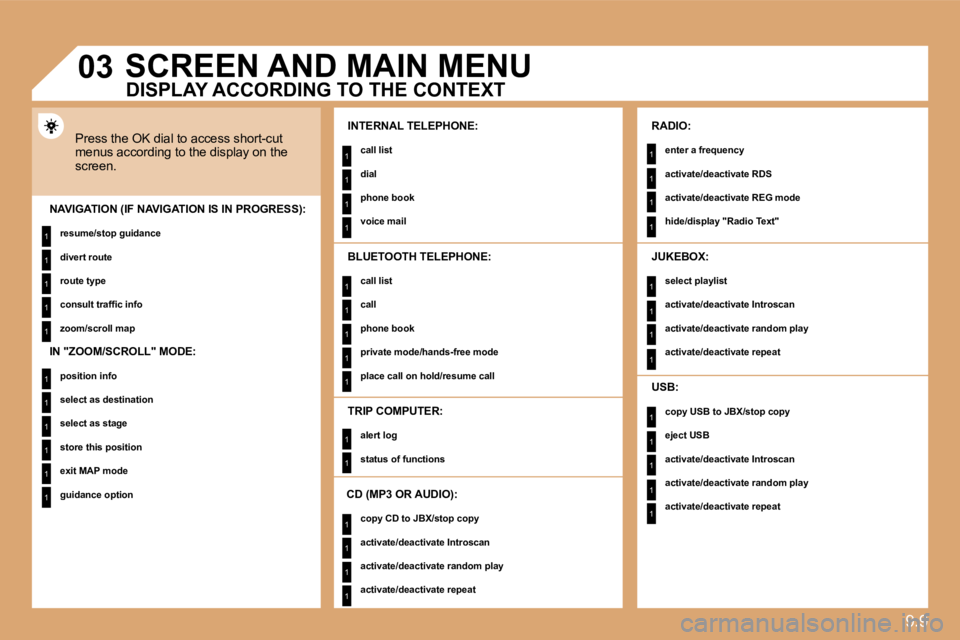

0 3 SCREEN AND MAIN MENU
Press the OK dial to access short-cut menus according to the display on the screen.
INTERNAL TELEPHONE:
c a l l l i s t
d i a l
p h o n e b o o k
v o i c e m a i l NAVIGATION (IF NAVIGATION IS IN PROGRESS):
r e s u m e / s t o p g u i d a n c e
d i v e r t r o u t e
r o u t e t y p e
c o n s u l t t r a f fi c i n f o
z o o m / s c r o l l m a p
TRIP COMPUTER:
a l e r t l o g
s t a t u s o f f u n c t i o n s
BLUETOOTH TELEPHONE:
c a l l l i s t
c a l l
p h o n e b o o k
p r i v a t e m o d e / h a n d s - f r e e m o d e
p l a c e c a l l o n h o l d / r e s u m e c a l l
C D ( M P 3 O R A U D I O ) :
c o p y C D t o J B X / s t o p c o p y
a c t i v a t e / d e a c t i v a t e I n t r o s c a n
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y
a c t i v a t e / d e a c t i v a t e r e p e a t
RADIO:
e n t e r a f r e q u e n c y
a c t i v a t e / d e a c t i v a t e R D S
a c t i v a t e / d e a c t i v a t e R E G m o d e
h i d e / d i s p l a y " R a d i o T e x t "
JUKEBOX:
s e l e c t p l a y l i s t
a c t i v a t e / d e a c t i v a t e I n t r o s c a n
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y
a c t i v a t e / d e a c t i v a t e r e p e a t
USB:
c o p y U S B t o J B X / s t o p c o p y
e j e c t U S B
a c t i v a t e / d e a c t i v a t e I n t r o s c a n
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y
a c t i v a t e / d e a c t i v a t e r e p e a t
DISPLAY ACCORDING TO THE CONTEXT
I N " Z O O M / S C R O L L " M O D E :
p o s i t i o n i n f o
s e l e c t a s d e s t i n a t i o n
s e l e c t a s s t a g e
s t o r e t h i s p o s i t i o n
e x i t M A P m o d e
g u i d a n c e o p t i o n
Page 162 of 237
9.22
0 5
2
1
3
2
1

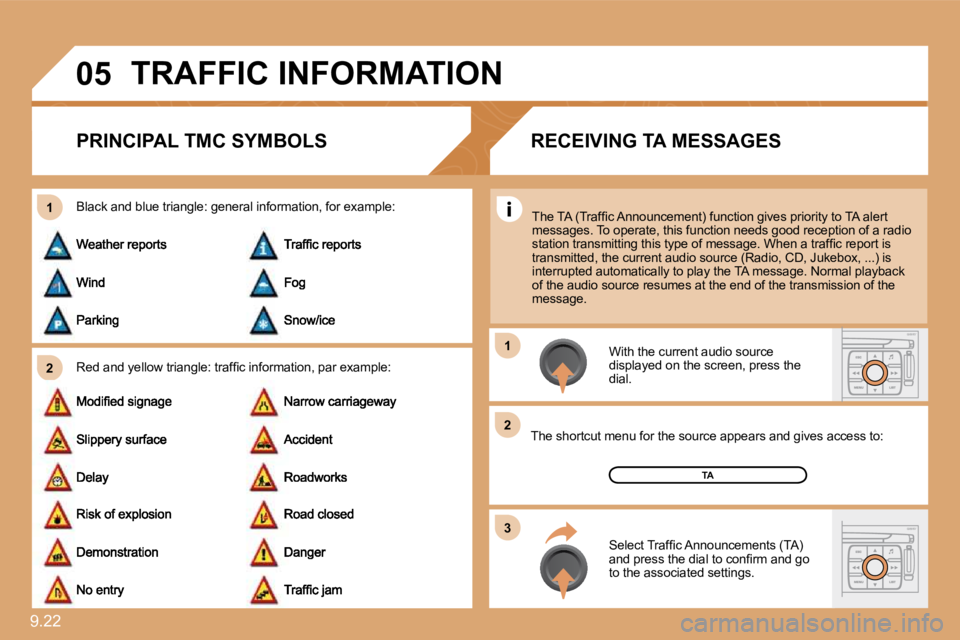

TRAFFIC INFORMATION
PRINCIPAL TMC SYMBOLS
R e d a n d y e l l o w t r i a n g l e : t r a f fi c i n f o r m a t i o n , p a r
e x a m p l e :
Black and blue triangle: general information, for example:
With the current audio source displayed on the screen, press the dial.
The shortcut menu for the source appears and give s acces access to:
S e l e c t T r a f fi c A n n o u n c e m e n t s ( T A ) a n d p r e s s t h e d i a l t o c o n fi r m a n d g o to the associated settings.
TA
T h e T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n g i v e s p r i o r i t y t o T A a l e r t messages. To operate, this function needs good rece ption of a radio s t a t i o n t r a n s m i t t i n g t h i s t y p e o f m e s s a g e . W h e n a t r a f fi c r e p o r t i s transmitted, the current audio source (Radio, CD, J ukebox, ...) is interrupted automatically to play the TA message. N ormal playback of the audio source resumes at the end of the transmission of the message.
RECEIVING TA MESSAGES
