2010 PEUGEOT 807 Owners Manual

Diesel technical data
134 DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS
(in mm - in kg)

Model codes EARHRH EBRHRH
EA___H

EA___J
EB___H

EB___J
7 seats 8 seats 7 seats 8 seats

Engine
2.0 HDi PEF 2.0 HDi PEF
Wheelbase(s) (at full load) 2 823 - - on Axle 1 1 570 - -
on Axle 2 1 548 - -
Length 4 727
Width 1 850
Height at kerb weight without roof bars 1 745 to 1 759
with fi xed roof bars 1 854 to 1 863
Kerb weight 1 854 to 1 957 1 818 to 1 983 - -
on Axle 1 1 121 to 1 157 1 117 to 1 161 - -
on Axle 2 733 to 800 701 to 822 - -

135
Diesel technical data
TECHNICAL DATA
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load ment ioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is above 45 °C, restrict the towed wei ght.

Model codes EARHRH EBRHRH
EA___H

EA___J
EB___H

EB___J
7 seats 8 seats 7 seats 8 seats

Engine
2.0 HDi PEF 2.0 HDi PEF
Gross train weight (GTW) 3 945 - -
Gross vehicle weight (GVW) 2 530 - - on Axle 1 1 256 1 263 - -
on Axle 2 1 274 1 267 - -
Gross weight
on Axle 1 1 270 - -
on Axle 2 1 300 - -
Gross towed weight 1 850 - -
Gross weight of unbraked trailer 750 - -
Gross weight on towing attachment 76 - -

136
Dimensions
DIMENSIONS (IN MM)
To fi nd out more about dimensions: refer to the "Dimensions, weights and
towing loads" section for diesel engines in chapter 8.

137
8
Dimensions
TECHNICAL DATA

138
Dimensions

9.2

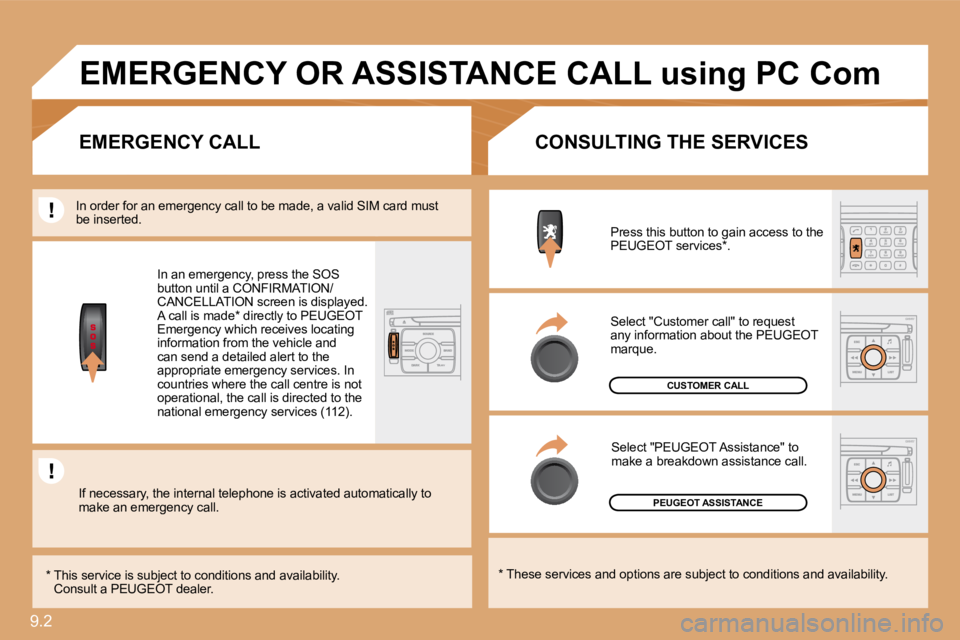

PEUGEOT ASSISTANCE
CUSTOMER CALL
* These services and options are subject to conditions and availability.
CONSULTING THE SERVICES EMERGENCY CALL
Press this button to gain access to the PEUGEOT services * .
Select "Customer call" to request any information about the PEUGEOT marque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
In an emergency, press the SOS button until a CONFIRMATION/CANCELLATION screen is displayed. A call is made * directly to PEUGEOT Emergency which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries where the call centre is not operational, the call is directed to the national emergency services (112).
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
If necessary, the internal telephone is activated automautomatically to make an emergency call.
In order for an emergency call to be made, a vali d SIM c SIM card must be inserted.
EMERGENCY OR ASSISTANCE CALL using PC Com

9.33
PC Com
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE
JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
The PC Com is coded in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT dealer for confi guration of the system.
For safety reasons, it is imperative that the driver carries out operations which require prolonged attention wh ile the vehicle is stationary. When the engine is switched off and to prevent discharging of the battery, the PC Com may switch o ff after a few minutes.
CONTENTS

9.4
2
8
16
18 17711 14 3
5 9 4
15 12
13
61
10
01
FIRST STEPS
1. On/Off and Volume adjustment.
2. Selection of the source: radio, Jukebox, CD and a
uxiliary (AUX, if activated on the Confi guration menu). Long press: CD copy to hard disk.
3. Audio option adjustments: front/rear, left/right balance, loudness, sound ambiences.
4. Display the list of local radio stations, of the tracks on the CD or of the MP3/USB/Jukebox directories. Long pres s: update the local radio stations.
5. Automatic search for a lower/higher frequency. Selection of the previous/next CD, MP3, USB or Jukebox track. Long press: fast forward and backward play.
6. Selection of wavebands FM1, FM2, FMast, AM.
7. TA (Traffi c Announcement) function on/off. Long press: access to the PTY (radio Programme TYpes) mode.
8. Ejection of the CD.
9. SIM card slot.
10. Keypad for entering descriptions by successive presses.
11. Access to the "PEUGEOT" services menu.
12. Selection and confi rmation.
13. Selection of the previous/next MP3/USB/Jukebox di rectory.
14. Cancellation of the current operation. Long press: return to the current application.
15. Display the general menu.
16. Modifi cation of the screen display. Long press: reinitialisation of the system.
17. Selection of the display on the screen between modes: TRIP, TEL, NAV and AUDIO.
18. Long press on the SOS button: emergency call.
