Page 105 of 237
103
Towing a trailer
ACCESSORIES
5
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Refer to the administrative
documents (V5, ...) or to the Diesel
"Dimensions, weights and towed
loads" section of chapter 8.
Distribution of loads: distribute the
load in the trailer so that the heaviest
loads are as close as possible to the
axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
Dimension A = 0.96 m
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.
Page 137 of 237
Diesel technical data
134 DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS
(in mm - in kg)
Model codes EARHRH EBRHRH
EA___H
EA___J
EB___H
EB___J
7 seats 8 seats 7 seats 8 seats
Engine
2.0 HDi PEF 2.0 HDi PEF
Wheelbase(s) (at full load) 2 823 - - on Axle 1 1 570 - -
on Axle 2 1 548 - -
Length 4 727
Width 1 850
Height at kerb weight without roof bars 1 745 to 1 759
w i t h fi x e d r o o f b a r s 1 854 to 1 863
Kerb weight 1 854 to 1 957 1 818 to 1 983 - -
on Axle 1 1 121 to 1 157 1 117 to 1 161 - -
on Axle 2 733 to 800 701 to 822 - -
Page 139 of 237
136

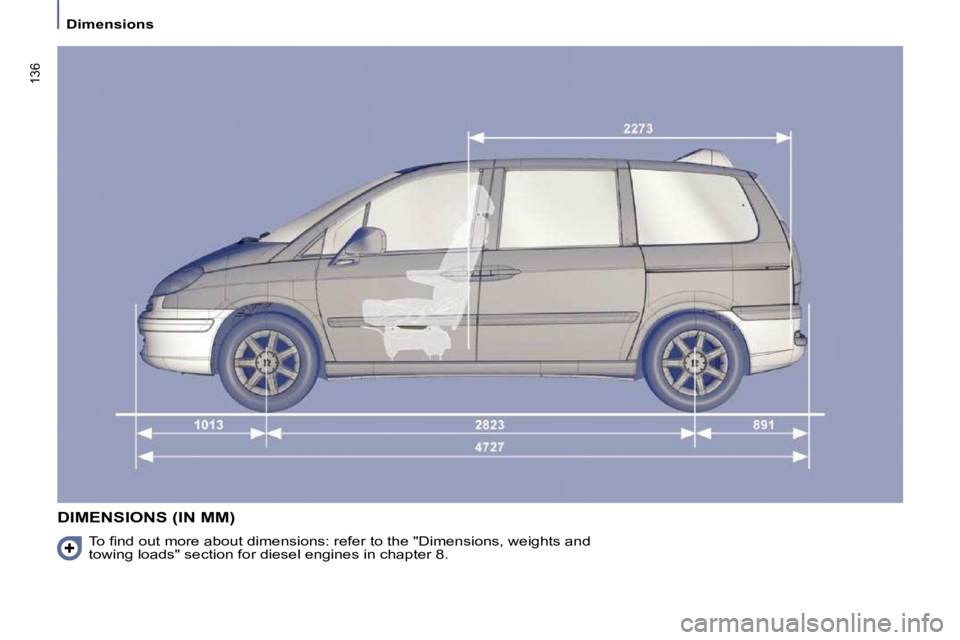

Dimensions
DIMENSIONS (IN MM)
T o fi n d o u t m o r e a b o u t d i m e n s i o n s : r e f e r t o t h e " D i m e n s i o n s , w e i g h t s a n d
t o w i n g l o a d s " s e c t i o n f o r d i e s e l e n g i n e s i n c h a p t e r 8 .
Page 140 of 237
137
8
Dimensions
TECHNICAL DATA
