FAMILIARISATION Sunroof (Saloon)
This roof improves the ventilation and
light in the passenger compartment.
70
68
103
102
Tyre under-inflation detection
This system checks the pressure of the
tyres while driving and warns you if a
malfunction occurs. Rear screen (SW)
This rear screen provides remarkable
accessibility and makes the loading
of objects easier without opening the
boot.
Visual and audible front and
rear parking sensors
This system warns you if an obstacle
is detected in front of or behind the
vehicle in forward or reverse gear.
Page 2 of 249
FAMILIARISATION
Remote control key
A. Unfolding/folding the key.
B. Unlocking the vehicle
(brief press).
C. Unlocking and partial opening of the
boot (saloon) or of the rear screen
(SW)
(long press).
Also...
D. Normal locking
(a single press)
or
deadlocking of the vehicle
(two presses in succession).
Fuel tank
1. O p e n i n g t h e f u e l fi l l e r fl a p .
2. O p e n i n g a n d h o o k i n g t h e f u e l fi l l e r
cap.
Tank capacity: approximately 67 litres.
A. Interior release lever
B. Exterior safety catch.
61
72 106
Bonnet
Page 3 of 249
FAMILIARISATION
Press the button and raise the boot
lid.
68
68
With the rear screen closed, to open the
boot , pull the handle A then raise the
tailgate.
Boot (SW) Rear screen (SW) Panoramic sunroof (SW)
71
1. Opening the blind.
2. Closing the blind.
Boot (Saloon)
With the tailgate closed, to open the
rear screen , pull the handle B then
raise the rear screen.
The tailgate and the rear
screen cannot both be open
at the same time.
Page 22 of 249
1
23
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
system warning lamp
This indicates the absence or malfunc-
tion of one or more tyre pressure sen-
sors or a system fault.
Consult a PEUGEOT dealer.
Electronic engine
immobiliser warning lamp
This indicates an electronic engine im-
mobiliser system malfunction.
Consult a PEUGEOT dealer. Front brake pad wear
warning lamp
This indicates that the brake pads are
worn.
For your safety, have them replaced
by a PEUGEOT dealer.
F u e l fi l l e r c a p w a r n i n g l a m p
(according to version)
With the engine running, this indicates
t h a t t h e f u e l fi l l e r c a p i s i n c o r r e c t l y fi t -
ted or absent.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h).
W a t e r i n d i e s e l fi l t e r
warning lamp
This indicates the presence of water in
t h e d i e s e l fi l t e r . T h e r e i s a r i s k o f d a -
mage to the injection system.
Contact a PEUGEOT dealer as soon
as possible. Door/boot open warning
lamp
With the engine running, this indicates
that an opening has not been closed
correctly.
An illustration on the multifunction
s c r e e n i d e n t i fi e s t h e o p e n i n g ( s ) c o n -
cerned.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h). Airbag warning lamp
This indicates an airbag fault.
Consult a PEUGEOT dealer.
Automatic headlamp beam
adjustment system warning
lamp
This indicates that the automatic head-
lamp height adjuster is faulty.
Consult a PEUGEOT dealer.
Engine oil pressure warning
lamp
This indicates that the engine oil pres-
sure is too low.
It is linked with the STOP warning
lamp.
Stop as soon as it is safe to do so if it
comes on while the engine is running.
If the engine oil level is low, top up the
oil and contact a PEUGEOT dealer as
soon as possible.
Page 55 of 249
3COMFORT
53
REAR SEATS (SALOON)
Note: the seat cushion 1 can be re-
moved with care to increase the vol-
u m e o f t h e l o a d s p a c e .
S q u e e z e t h e s e a t c u s h i o n fi x i n g s t o
d e t a c h t h e m f r o m t h e i r f a s t e n i n g s .
W h e n r e p o s i t i o n i n g :
f o l d u p t h e s e a t b a c k 2 and lock it
(the red marker of control 3 should
n o l o n g e r b e v i s i b l e ) ,
f o l d u p t h e s e a t 1 ,
r e fi t t h e h e a d r e s t r a i n t s i f t h e y w e r e
r e m o v e d . Locking/unlocking the access
to the boot via the rear seats
Y o u r v e h i c l e ' s b o o t c a n b e i s o l a t e d
f r o m t h e p a s s e n g e r c o m p a r t m e n t .
The red indicator on the control
3
s h o u l d n o l o n g e r b e v i s i b l e . I f i t i s ,
p u s h t h e s e a t f u l l y .
I n s e r t t h e i g n i t i o n k e y i n t h e l o c k 4 .
T a k e c a r e n o t t o t r a p t h e s e a t
b e l t a n d t o p o s i t i o n t h e t o n g u e
o f e a c h s t r a p c o r r e c t l y i n i t s
r e s p e c t i v e c l a s p b e f o r e f o l d i n g
d o w n t h e s e a t b a c k . T h i s w i l l e n a b l e
y o u t o r e p o s i t i o n t h e s e a t b a c k s w i t h
t h e i r s e a t b e l t s a n d c l a s p s r e a d y t o a c -
c o m m o d a t e y o u r r e a r p a s s e n g e r s .
To fold down the rear left seat or the
r e a r r i g h t s e a t , a l w a y s s t a r t w i t h t h e
seat cushion, never with the seat back
( r i s k o f d a m a g e ) :
m o v e t h e f r o n t s e a t ( s ) f o r w a r d i f
n e c e s s a r y ,
p l a c e t h e h e a d r e s t r a i n t s i n t h e l o w
p o s i t i o n o r r e m o v e t h e m i f n e c e s -
s a r y ,
C h e c k t h a t t h e s e a t b e l t s t r a p i s p o s i -
t i o n e d c o r r e c t l y a t t h e s i d e o f t h e s e a t
back,
Ensure that the outer seat belt tongues
a r e e n g a g e d i n t h e i r c l a p s ( t h e c e n t r e
s e a t b e l t m u s t n o t b e f a s t e n e d ) ,
lift the front of the seat cushion 1 ,
tilt the seat cushion 1 against the
f r o n t s e a t ( s ) ,
p u l l c o n t r o l 3 forwards to unlock
the seat back 2 ,
fold down the seat back 2 .
Page 63 of 249
4ACCESS
Using the key
Lock the vehicle (the direction indi-
cators come on for approximately
two seconds).
T u r n i n g t h e k e y a g a i n w i t h i n fi v e
seconds deadlocks the vehicle
(the direction indicators come on
for approximately two seconds).
REMOTE CONTROL KEY
The key allows you, from the driver's
side, to lock or unlock the doors, the
b o o t a n d t h e f u e l fi l l e r fl a p a n d f o l d a n d
unfold the door mirrors and indepen-
dently it allows you to open or close
the glove box, lock or unlock the ac-
cess to the boot via the rear seats (407
Saloon) and switch on the ignition.
The remote control has the same
functions as the key as well as partial
opening of the boot (Saloon) or the
rear screen (407SW).
It is part of the key and is used for re-
mote locking and unlocking.
If one of the doors or the boot is open,
the central locking does not work. Unlocking and partial opening of
the boot (saloon) or rear screen
(407SW)
Press and hold button D .
This action also unlocks the doors.
Unfolding/folding the key
To unfold or fold the key, press button A . Locking
Press button B .
The direction indicators come on for
approximately two seconds and the
door mirrors fold.
Press and hold button B to close the
windows and sunroof automatically in
addition to locking.
Unlocking
Press button C .
T h e d i r e c t i o n i n d i c a t o r s fl a s h r a p i d l y
and the door mirrors unfold.
The "Folding of the door mirrors" func-
tion can be deactivated by a PEUGEOT
dealer. Permanent locking of the boot
(saloon)
Deadlocking
This renders the external and internal
door controls inoperative.
Do not operate the deadlocking
function if there is anyone inside
the vehicle.
Note: if the vehicle is locked
and unlocking is activated
inadvertently without a door
being opened within the next
30 seconds, the vehicle will lock au-
tomatically. This function can be acti-
vated or deactivated via the
" p e r s o n a l i s a t i o n - c o n fi g u -
r a t i o n " m e n u a n d " D e fi n e
the vehicle parameters" on
the multifunction screen.
Press button D on the remote
control key.
This will unlock the boot only.
Page 64 of 249
4ACCESS
62
Using the remote control
Pressing button B locks the vehicle
(the direction indicators come on
for approximately two seconds).
A s e c o n d p r e s s w i t h i n fi v e s e c o n d s
deadlocks the vehicle (the direc-
tion indicators come on for approx-
imately two seconds).
LOCKING/UNLOCKING FROM THE INSIDE
MANUAL LOCKING (EMERGENCY MODE)
Automatic central locking of
the doors
The doors can lock automatically
while driving (speed above 6 mph
[10 km/h]).
Press and hold the button to activate
or deactivate this function. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left in
the ignition.
LOCATING YOUR VEHICLE
To locate your vehicle, if you have
locked or deadlocked it, in a car park:
press button B on the remote con-
trol, the courtesy lamps come on
a n d t h e d i r e c t i o n i n d i c a t o r s fl a s h
for a few seconds.
Note: driving with the doors
locked may make access to
the passenger compartment by
the emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
If the vehicle is deadlocked,
the button is not active. In this
case, use the key or the re-
mote control to unlock.
Press the button.
This allows the doors and the boot to
be locked or unlocked. Driver's door
Insert the key in the lock to lock or unlock
the door.
Passenger doors
To lock, insert the key in the control
located on the edge of the door then
turn to the right.
Page 67 of 249
4ACCESS
62

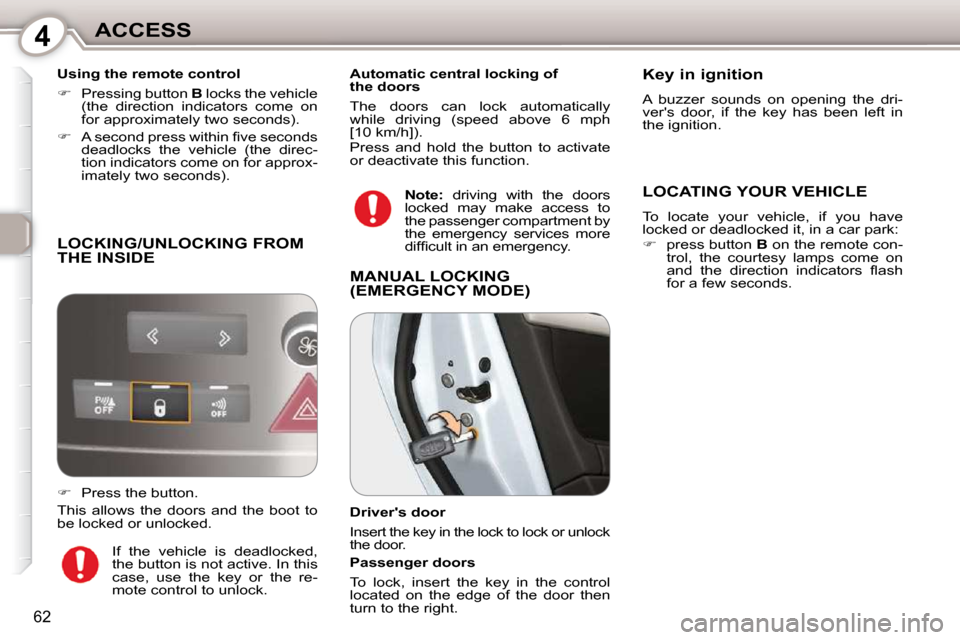

Using the remote control
Pressing button B locks the vehicle
(the direction indicators come on
for approximately two seconds).
A s e c o n d p r e s s w i t h i n fi v e s e c o n d s
deadlocks the vehicle (the direc-
tion indicators come on for approx-
imately two seconds).
LOCKING/UNLOCKING FROM THE INSIDE
MANUAL LOCKING (EMERGENCY MODE)
Automatic central locking of
the doors
The doors can lock automatically
while driving (speed above 6 mph
[10 km/h]).
Press and hold the button to activate
or deactivate this function. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left in
the ignition.
LOCATING YOUR VEHICLE
To locate your vehicle, if you have
locked or deadlocked it, in a car park:
press button B on the remote con-
trol, the courtesy lamps come on
a n d t h e d i r e c t i o n i n d i c a t o r s fl a s h
for a few seconds.
Note: driving with the doors
locked may make access to
the passenger compartment by
the emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
If the vehicle is deadlocked,
the button is not active. In this
case, use the key or the re-
mote control to unlock.
Press the button.
This allows the doors and the boot to
be locked or unlocked. Driver's door
Insert the key in the lock to lock or unlock
the door.
Passenger doors
To lock, insert the key in the control
located on the edge of the door then
turn to the right.
