INSTRUMENTS and CONTROLS
Warning
lamp is on Cause Actions/Observations
Diesel
preheating Fixed This comes on when the
ignition switch is in the
ON position. Wait until this goes off before starting.
The duration for which this is on is determined by
the exterior climatic conditions.
Parking brake/
B r a k e fl u i d l e v e l Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then goes off.
It is accompanied by a message on the
instrument panel screen.
The parking brake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel screen. Release the parking
brake to switch off the warning lamp.
T h e b r a k e fl u i d l e v e l i s
too low. It is accompanied by a message on the
i n s t r u m e n t p a n e l s c r e e n . T o p u p w i t h b r a k e fl u i d
and contact a PEUGEOT dealer.
Emission
control system Fixed or
fl a s h i n g This comes on or
fl a s h e s i f t h e s y s t e m
fails. Consult a PEUGEOT dealer.
It should go off a few seconds after starting the
engine.
Battery charge Fixed
This comes on if a
charging circuit fault
occurs. It should go off when the engine is started.
It is accompanied by a message on the
instrument panel screen. Check the battery
terminals (refer to the "Battery" section).
Page 4 of 215
1
INSTRUMENTS and CONTROLS
Warning
lamp is on Cause Actions/Observations
Driver's
seat belt not fastened Fixed The driver has not
fastened or has
unfastened their seat
belt. This is accompanied by a message on the
instrument panel screen.
Fasten the driver's seat belt.
ABS Fixed
This comes on if an
anti-lock braking system
fault occurs. It is accompanied by a message on the
instrument panel screen. The vehicle retains
conventional braking without assistance but
you are advised to stop. Have it checked by a
PEUGEOT dealer.
Airbags and
pretensioners Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then goes off.
It should go off when the engine is started. If it
d o e s n o t g o o f f , c o n t a c t a P E U G E O T d e a l e r .
This comes on if an
airbag or pretensioner
fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer without delay.
Dynamic
stability control system (ASC) Fixed This comes on if a
dynamic stability control
system fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer without delay.
Page 5 of 215
1
INSTRUMENTS and CONTROLS
E a c h t i m e t h e e n g i n e i s s t a r t e d : a s e r i e s o f w a r n i n g l a m p s a n d / o r m e s s a g e s c o m e o n , a p p l y i n g a c h e c k i n g s e l f t e s t . T h e y g o
off after a few seconds. Engine running: the warning lamp o r the message becomes a warning if it remains on continuously
o r fl a s h e s . T h i s i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n t h e s c r e e n . D o n o t i g n o r e t h e s e
warnings.
The messages displayed may differ between the type 1 instrument panel and the type 2 instrument panel.
W h e n t h e c a u s e o f t h e a p p e a r a n c e o f t h e w a r n i n g l a m p o r w a r n i n g m e s s a g e h a s b e e n r e c t i fi e d , t h e w a r n i n g d i s a p p e a r s
f r o m t h e s c r e e n a u t o m a t i c a l l y . I f t h e c a u s e o f t h e w a r n i n g i s n o t r e c t i fi e d , y o u c a n r e t u r n t o t h e p r e v i o u s s c r e e n a t a n y t i m e
by pressing the INFO button on the dashboard.
The symbol "!" is displayed.
To return to the previous screen (with the "!" s y m b o l ) , y o u m u s t p r e s s t h e INFO button several times.
INSTRUMENT PANELINSTRUMENT PANEL DISPLAYS
Warning messages (ignition at "OFF")
You can close the warning messages which show these symbols in ord
er to move on to the next screen.
T o d o t h i s , p r e s s t h e INFO button according to the symbol displayed.
Press b r i e fl y . Press and hold .
S y m b o l s w h i c h a p p e a r i n t h e t o p r i g h t c o r n e r o f t h e s c r
e e n .
Message is on Cause Solution - action Observations
K e y i n
ignition Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.
Lighting
l e f t
on Fixed You have forgotten to
switch off the vehicle
lighting. Switch off the vehicle
lighting by placing the
stalk at OFF.
An intermittent audible
signal is heard.
Page 6 of 215
1
INSTRUMENTS and CONTROLS
Warning messages (ignition at "ON")
Message is on Cause Solution - action Observations
ABS Fixed Anti-lock braking system
(ABS) fault. Consult a PEUGEOT
dealer. The vehicle retains
conventional braking
without assistance but
you are advised to stop.
Braking
system Fixed
Associated warning
lamp.
T h e l e v e l o f b r a k e fl u i d i n
the reservoir is too low. S t o p a n d t o p u p , o t h e r w i s e
contact a PEUGEOT dealer. If the message remains
o n a f t e r t o p p i n g u p ,
contact a PEUGEOT
dealer.
Associated warning
lamp.
Braking system fault. Consult a PEUGEOT
dealer.
You must
stop.
Parking brake
on Fixed You have moved off with
the parking brake still
applied. Release the parking brake.
Coolant
temperature Flashing
High engine
temperature. If the message
fl a s h e s ,
wait for the engine to cool
b e f o r e t o p p i n g u p t h e l e v e l ,
if necessary.
You must
s t o p y o u r
vehicle
as soon as it
is
s a f e
to
do so
.
Flashing
If the message fl a s h e s
and t h e s e r v i c e w a r n i n g
light comes on , c o n t a c t
a PEUGEOT dealer
without delay.
Seat belt Fixed The driver has not fastened
or has unfastened his seat
belt. Fasten your seat belt. There is an intermittent
audible signal above
5 mph (8 km/h).
Page 7 of 215
1
!
INSTRUMENTS and CONTROLS
Message is on Cause Solution - action Observations
Airbags Fixed Fault in the airbags or
pretensioners. Consult a PEUGEOT
dealer.
Service Fixed Problem in one of the
systems which does not
h a v e a s p e c i fi c m e s s a g e . Stop the vehicle and
contact a PEUGEOT
dealer. T o i d e n t i f y t h e p r o b l e m ,
contact a PEUGEOT
dealer.
Engine oil
pressure Fixed Engine oil pressure too
low or fault in the engine
lubrication system. Stop the vehicle and
contact a PEUGEOT
dealer.
Engine oil level Fixed Engine oil level too low. Stop the vehicle and
check the level using the
dipstick. I f t h e r e i s a l a c k o f o i l ,
top up the level.
Low fuel
warning Fixed The fuel level is low. Refuel as soon as
possible.
Fuel system Fixed Fuel system fault. Consult a PEUGEOT
dealer.
Opening
not closed correctly Fixed One of the doors or the
tailgate is not closed
correctly. Close the door or the
tailgate. The opening concerned
is indicated on the
screen.
Page 9 of 215

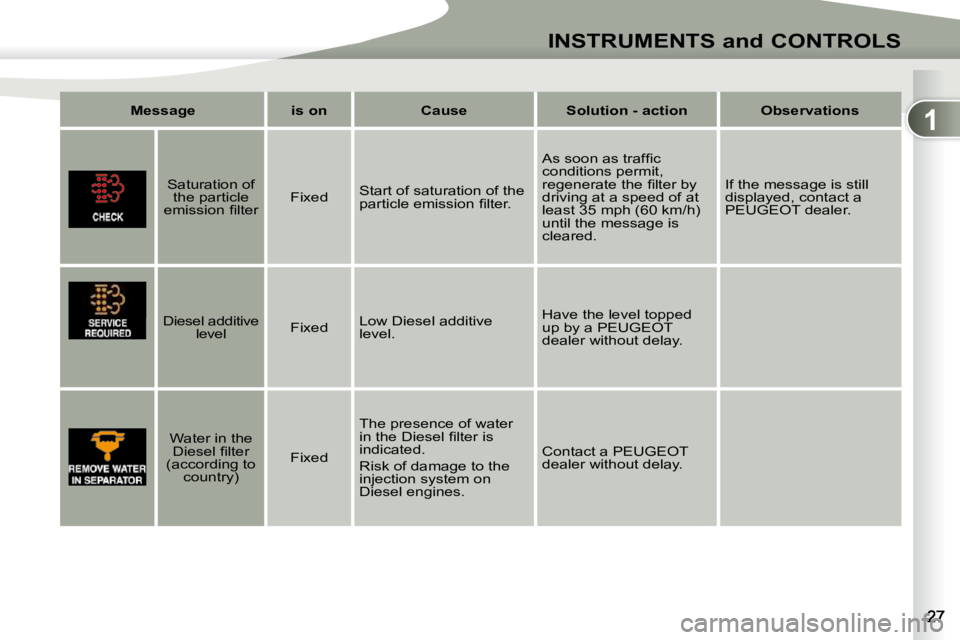

1
INSTRUMENTS and CONTROLS
Message is on Cause Solution - action Observations
Saturation of
the particle
e m i s s i o n fi l t e r Fixed
Start of saturation of the
p a r t i c l e e m i s s i o n fi l t e r . A s s o o n a s t r a f fi c
c o n d i t i o n s p e r m i t ,
r e g e n e r a t e t h e fi l t e r b y
driving at a speed of at
least 35 mph (60 km/h)
until the message is
cleared. If the message is still
d i s p l a y e d , c o n t a c t a
PEUGEOT dealer.
Diesel additive
level Fixed Low Diesel additive
level. Have the level topped
up by a PEUGEOT
dealer without delay.
Water in the D i e s e l fi l t e r
(according to country) Fixed The presence of water
i n t h e D i e s e l fi l t e r i s
indicated.
Risk of damage to the
injection system on
Diesel engines. Contact a PEUGEOT
dealer without delay.
Page 11 of 215
1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1
of the screen and the
trip distance in zone 2
(refer to the "Distance
recorders" section).
Distance recorder (A and B)
INFORMATION IN THE INFORMATION IN THE
INSTRUMENT PANEL SCREEN
I n f o r m a t i o n d i s p l a y
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
b u t t o n , l o c a t e d o n t h e d a s h b o a r d t o t h e
r i g h t o f t h e i n s t r u m e n t p a n e l , t o d i s p l a y
the various information in succession:
- d i s t a n c e r e c o r d e r A ,
- d i s t a n c e r e c o r d e r B ,
- s e r v i c e i n d i c a t o r ,
- c o o l a n t t e m p e r a t u r e ,
- r a n g e ,
- t r i p c o m p u t e r ,
- setting menu. This displays the distance
and the number of months
remaining before the
next service in line with
with the manufacturer's
servicing schedule (refer
to the "Service indicator"
section).
Service indicator
When the engine is
r u n n i n g , t h i s i n d i c a t e s
the temperature of the
coolant (refer to the
"Coolant temperature
indicator" section).
Coolant temperature When the engine is
r u n n i n g , t h i s i n d i c a t e s
the number of miles
(kilometres) which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles (kilometres) travelled
(refer to the "Range" section).
Range
This indicates the average
f u e l c o n s u m p t i o n , t h e
average speed and the
current fuel consumption
(refer to the "Trip
computer" section).
Trip computer
When the vehicle is
s t a t i o n a r y , t h i s a l l o w s
the user to change the
following settings (refer
to the "Setting menu"
section):
- t h e d i s p l a y l a n g u a g e ,
- the temperature dis- p l a y u n i t s ,
- t h e f u e l c o n s u m p t i o n u n i t s ,
- the option to reset the average fuel consumption and the average
s p e e d ,
- the break (rest) reminder display interval.
Setting menu
Page 12 of 215
1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1 of
the screen and the trip
distance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its service
life and the distance travelled in a day
or other period until it is reset to zero by
the driver.
Zero reset
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
button for more than 2 seconds until
zeros appear. When the engine is
r u n n i n g , t h i s i n d i c a t e s
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
l o c a t e d o n t h e r i g h t , t h e t e m p e r a t u r e i s
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
You must
s t o p y o u r v e h i c l e
as soon
as it
is
s a f e t o d o s o
.
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , t h i s i n d i c a t e s
the distance which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles/
kilometres travelled.
RANGE
When the range is less than 30 miles
(50 km) , d a s h e s a r e d i s p l a y e d .
Refuel as soon as possible. The display
of the range is updated.
T o a v o i d a n y r i s k o f s c a l d i n g ,
unscrew the cap by two turns to
allow the pressure to drop.
W h e n t h e p r e s s u r e h a s d r o p p e d ,
remove the cap and top up the
l e v e l , i f n e c e s s a r y .
Consult a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e
following a change in the style
o f d r i v i n g o r t h e r e l i e f , r e s u l t i n g
in a reduction in the current fuel
consumption.
I f y o u o n l y a d d a f e w l i t r e s , t h e
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
W h e n y o u d i s c o n n e c t t h e b a t t e r y ,
the previous fuel consumption
data is lost and the value
displayed will be different from
that displayed before the battery
was disconnected. The distance
displayed must be considered
an approximate indication.
