1
INSTRUMENTS and CONTROLS
INSTRUMENT PANELINSTRUMENT PANEL
3. Instrument panel screen:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Trip computer information.
- Cruise control setting.
- Dashboard lighting and parameter settings.
- Fuel level.
- Ambient temperature.
- Transmission mode.
Panel grouping together the dials and
warning/indicator lamps. These inform
the driver of the activation/deactivation
of a system or of the occurrence of a
fault.
Screen type 1
Screen type 2
1. Rev counter.
2. Speedometer.
Page 10 of 215
1
INSTRUMENTS and CONTROLS
Prevention messages
I n f o r m a t i o n m e s s a g e s ( i g n i t i o n a t " O N " )
Message is on S t a t u s o f t h e s y s t e m
2WD two wheel
drive system Flashing When the "2WD" (2 wheel drive) mode is selected using
the transmission mode selector.
4WD four wheel
drive system Flashing When the "4WD" (4 wheel drive) mode is selected using
the transmission mode selector.
This mode is the default mode.
4WD LOCK four
wheel drive system Flashing When the "LOCK" (4 wheel drive) mode is selected using
the transmission mode selector.
Ambient
temperature Fixed This indicates the ambient temperature.
When the vehicle is stationary or if the speed is below 12 mp
h
(20 km/h) the temperature displayed may not be the true
temperature.
D i s p l a y is on Cause Solution - action Observations
Service
indicator Fixed Informs the driver of
the time remaining
before the vehicle's
scheduled service. Consult a
PEUGEOT dealer.
This is displayed for a
few seconds when the ignition
is switched on.
Break
advised Fixed Informs the driver that
they should stop to
take a break. You are advised to
take a break. This is displayed when the
driving time that you set
previously is reached.
An audible signal is heard
3 times and is then heard
every 5 minutes until the
vehicle stops.
Page 16 of 215
1
INSTRUMENTS and CONTROLS

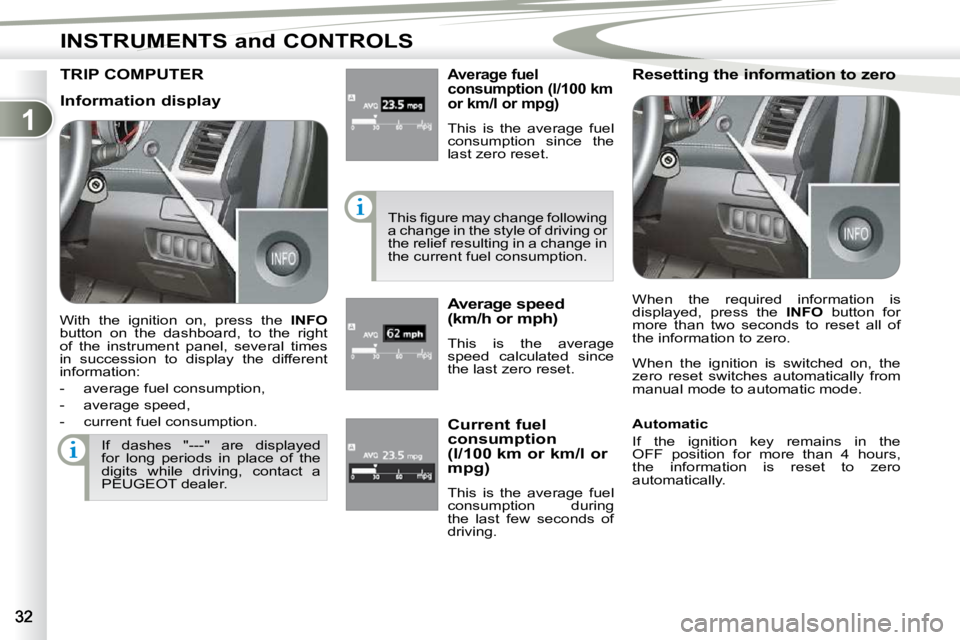

TRIP COMPUTER A v e r a g e f u e l
consumption (l/100 km
or km/l or mpg)
This is the average fuel
consumption since the
last zero reset.
T h i s fi g u r e m a y c h a n g e f o l l o w i n g
a change in the style of driving or
the relief resulting in a change in
the current fuel consumption. Average speed
(km/h or mph)
This is the average
speed calculated since
the last zero reset. R e s e t t i n g t h e i n f o r m a t i o n t o z e r o
W h e n t h e i g n i t i o n i s s w i t c h e d o n , t h e
zero reset switches automatically from
manual mode to automatic mode.
If dashes "---" are displayed
for long periods in place of the
d i g i t s w h i l e d r i v i n g , c o n t a c t a
PEUGEOT dealer. C u r r e n t f u e l
consumption
(l/100 km or km/l or
mpg)
This is the average fuel
consumption during
the last few seconds of
driving.
I n f o r m a t i o n d i s p l a y
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
b u t t o n o n t h e d a s h b o a r d , t o t h e r i g h t
o f t h e i n s t r u m e n t p a n e l , s e v e r a l t i m e s
in succession to display the different
information:
- a v e r a g e f u e l c o n s u m p t i o n ,
- a v e r a g e s p e e d ,
- current fuel consumption. W h e n t h e r e q u i r e d i n f o r m a t i o n i s
d i s p l a y e d , p r e s s t h e
INFO button for
more than two seconds to reset all of
the information to zero.
Automatic
If the ignition key remains in the
O F F p o s i t i o n f o r m o r e t h a n 4 h o u r s ,
the information is reset to zero
automatically.
Page 18 of 215
1
INSTRUMENTS and CONTROLS

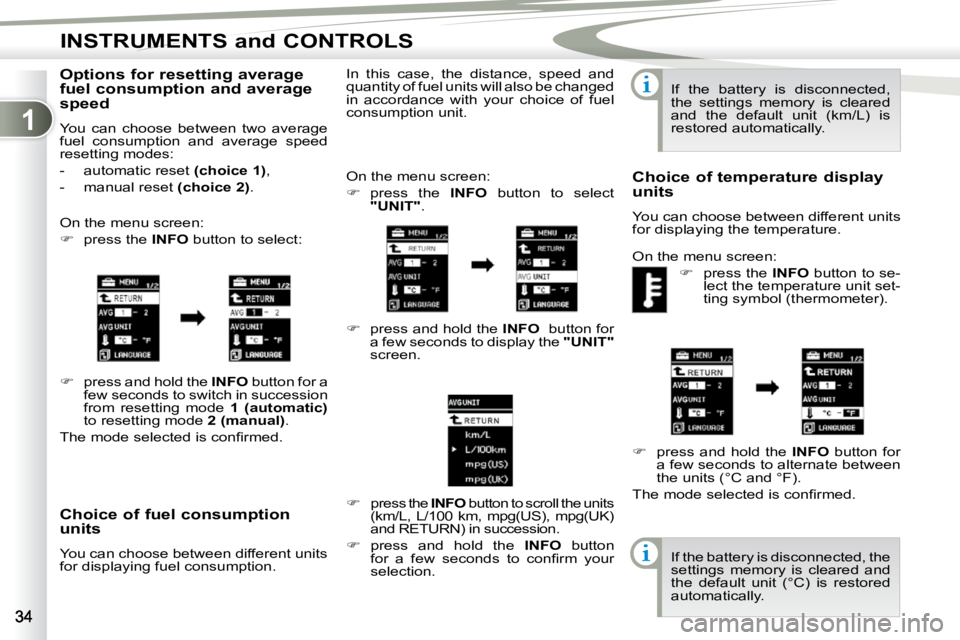

C h o i c e o f f u e l c o n s u m p t i o n
units
You can choose between different units
for displaying fuel consumption. On the menu screen:
press the INFO button to select
"UNIT" .
press and hold the INFO button for
a few seconds to display the "UNIT"
screen.
press the INFO button to scroll the units
( k m / L , L / 1 0 0 k m , m p g ( U S ) , m p g ( U K )
and RETURN) in succession.
press and hold the INFO button
f o r a f e w s e c o n d s t o c o n fi r m y o u r
selection.
I n t h i s c a s e , t h e d i s t a n c e , s p e e d a n d
q u a n t i t y o f f u e l u n i t s w i l l a l s o b e c h a n g e d
in accordance with your choice of fuel
consumption unit.
I f t h e b a t t e r y i s d i s c o n n e c t e d ,
the settings memory is cleared
and the default unit (km/L) is
restored automatically.
C h o i c e o f t e m p e r a t u r e d i s p l a y
units
You can choose between different units
for displaying the temperature.
On the menu screen:
press the INFO button to se-
lect the temperature unit set-
ting symbol (thermometer).
press and hold the INFO button for
a few seconds to alternate between
the units (°C and °F).
T h e m o d e s e l e c t e d i s c o n fi r m e d .
I f t h e b a t t e r y i s d i s c o n n e c t e d , t h e
settings memory is cleared and
the default unit (°C) is restored
automatically.
O p t i o n s f o r r e s e t t i n g a v e r a g e
f u e l c o n s u m p t i o n a n d a v e r a g e
speed
You can choose between two average
fuel consumption and average speed
resetting modes:
- automatic reset ( choice 1) ,
- manual reset (choice 2) .
On the menu screen:
press the INFO button to select:
press and hold the INFO button for a
few seconds to switch in succession
from resetting mode 1
(automatic)
to resetting mode 2 (manual) .
T h e m o d e s e l e c t e d i s c o n fi r m e d .
Page 21 of 215
1
INSTRUMENTS and CONTROLS
MONOCHROME SCREEN MONOCHROME SCREEN
This provides the following information:
- t h e t i m e ,
- audio system information (refer to the "Audio and Telematics" section). Setting the time
The digital clock can be set in
auto-
matic mode or in manual mode . Selecting the Setting
Select the
automatic mode or the
manual mode as follows:
Press button A "PWR" to switch on
the audio system.
Access the setting mode by pressing
button B "TUNE" for approximately
2 seconds.
Press button B "TUNE" several
times to scroll through the various
menus and select the CT menu
(clock time).
The order of the menus is the
following: AF/CT/REG/TP-S/PTY
display language/SCV/PHONE/
Functions setting mode OFF.
Automatic mode
This mode permits automatic setting
of the local time using the signal from
RDS stations.
The symbol
"CT" appears on the
screen.
Manual mode
This mode permits manual setting of
t h e t i m e u s i n g t h e a u d i o e q u i p m e n t
buttons.
It can also be used when the "Automatic
m o d e " d i s p l a y s a n i n a c c u r a t e t i m e , w h e n
the local RDS stations are broadcasting
from a different time zone.
Page 22 of 215
1
INSTRUMENTS and CONTROLS
Set the time using the buttons as
indicated below:
with the ignition on or in the ACC
( A c c e s s o r i e s ) p o s i t i o n , p r e s s a n d
hold the CLOCK button until the
t i m e d i s p l a y fl a s h e s .
Press the appropriate button to set
the time:
Button
H: to set the hours
The hours digits scroll when you press
this button.
Button M: to set the minutes
The minutes digits scroll when you
press this button.
Button 00: to reset the minutes to
zero.
- from 1 to 29 min
: rounded down to
t h e p r e v i o u s h o u r ,
- from 30 to 59 min: rounded up to
the next hour.
A f t e r s e t t i n g t h e t i m e , p r e s s t h e
DISP button; the time display stops
fl a s h i n g .
Manual mode
Automatic mode
I n t h i s m o d e , s e t t i n g i s a u t o m a t i c u s i n g
the signal from the RDS radio stations. The digital clock does not display
seconds.
When the "minutes" display is
s e t o r r e s e t t o z e r o , t h e c l o c k
starts at the zero second of the
minute selected.
The time setting is lost if the
battery is disconnected.
Turn button B "TUNE" to the left or
to the right to select "CT ON" (auto-
matic mode) or "CT OFF" (manual
mode).
A f t e r s e l e c t i n g t h e m o d e , y o u c a n
exit the "Functions setting mode"
menu by pressing button B "TUNE"
for approximately 2 seconds.
If no action is carried out within
1 0 s e c o n d s , t h e s y s t e m w i l l e x i t
the "Functions setting mode"
menu automatically.
Page 66 of 215
3
ACCESS
The electric window switches
c a n b e c o n fi g u r e d v i a t h e c o l o u r
screen "Equipment" menu.
The electric window switches
remain operational for approxi-
mately 30 seconds after the
ignition is switched off and the
switch on the driver's door re-
mains operational for a further
30 seconds when the door is
opened.
The windows can no longer be
opened or closed after the driver's
door is closed.
The rear windows do not lower
fully.

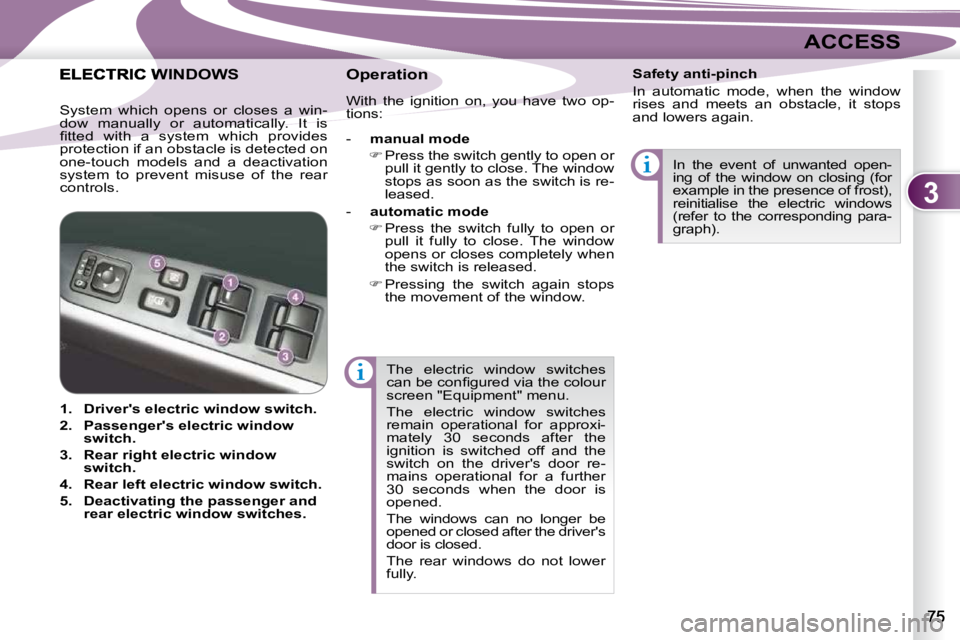

ELECTRIC WINDOWS
1. Driver's electric window switch.
2. Passenger's electric window
switch.
3. Rear right electric window
switch.
4. Rear left electric window switch.
5. Deactivating
the passenger and
rear electric window switches. In the event of unwanted open-
ing of the window on closing (for
example in the presence of frost),
reinitialise the electric windows
(refer to the corresponding para-
graph).
Safety anti-pinch
In automatic mode, when the window
rises and meets an obstacle, it stops
and lowers again.
Operation
With the ignition on, you have two op-
tions:
-
manual mode
Press the switch gently to open or
pull it gently to close. The window
stops as soon as the switch is re-
leased.
- automatic mode
Press the switch fully to open or
pull it fully to close. The window
opens or closes completely when
the switch is released.
Pressing the switch again stops
the movement of the window.
System which opens or closes a win-
dow manually or automatically. It is
fi t t e d w i t h a s y s t e m w h i c h p r o v i d e s
protection if an obstacle is detected on
one-touch models and a deactivation
system to prevent misuse of the rear
controls.
Page 106 of 215
7
DRIVING
Stopping - Starting on a slope
Do not use the accelerator pedal to
immobilise the vehicle on a slope,
apply the
parking brake
instead.
When starting on a slope, accelerate
gradually while releasing the parking
brake.
Switching to sequential mode
Once you have moved off, you can
switch to sequential mode by selecting
position +/- .
"D" disappears and the gears engaged
appear in succession on the instrument
panel screen.
The gear change requests are only car-
ried out if the engine speed permits it.
Take your foot off the accelerator pedal
gently to engage the gear. Switching to automated mode
Automated mode
After using the sequential mode, you
can return to the automated mode by
selecting position
D .
"D" appears on the instrument panel
screen.
The gearbox then operates in auto-
active mode, without any action on the
part of the driver.
It continuously selects the gear most
suited to the conditions of:
- driving style,
- road characteristics,
- vehicle load.
To optimise driving comfort and obtain
the most suitable gear, avoid sharp vari-
ations in the pressure on the accelerator
pedal.
Auto sequential mode
In the automated mode, you can take
over control temporarily at any time us-
ing the steering mounted controls.
The use of these controls permits manual
selection of the gears in situations which
require a faster changedown than that
offered in automated mode (arrival at a
roundabout, exit from a car park with a
steep gradient, overtaking...).
Stopping the vehicle
Before switching off the engine, you
can:
- move to position N to leave the
gearbox in neutral.
- l e a v e a g e a r e n g a g e d , s u c h a s fi r s t or reverse.
In both cases, you must apply the park-
ing brake to immobilise the vehicle.
Operating anomaly
With the ignition on, if the message
"Slow down" or "Maintenance re-
quired" appears on the multifunction
screen, this indicates a gearbox mal-
function.
When a message is displayed, carry
out the following operations:
- slow down and stop your vehicle in a safe place,
- place the lever in position N and let
the engine run,
- open the bonnet to allow the engine to cool.
If the message disappears for a long
period, you can set off again.
If the message remains displayed or ap-
pears frequently, contact a PEUGEOT
dealer without delay.
P r e s s t h e b r a k e p e d a l fi r m l y
while starting the engine.
Start the engine. "N" appears on the
instrument panel screen.
S e l e c t fi r s t g e a r ( p o s i t i o n D or +/- ) or
reverse (position R ).
Release the parking brake.
Release the brake pedal then accelerate.
"D" or "1" or "R" appear on the instru-
ment panel screen. The gearbox engages the gear re-
quested if the engine speed permits it.
The gear engaged appears.
To return to the automated mode, press
the back of the
"+/OFF" control for
approximately 2 seconds.
At low speeds, when approaching a
s t o p o r t r a f fi c l i g h t s f o r e x a m p l e , t h e
g e a r b o x c h a n g e s d o w n t o fi r s t g e a r
automatically.
