3
ACCESS

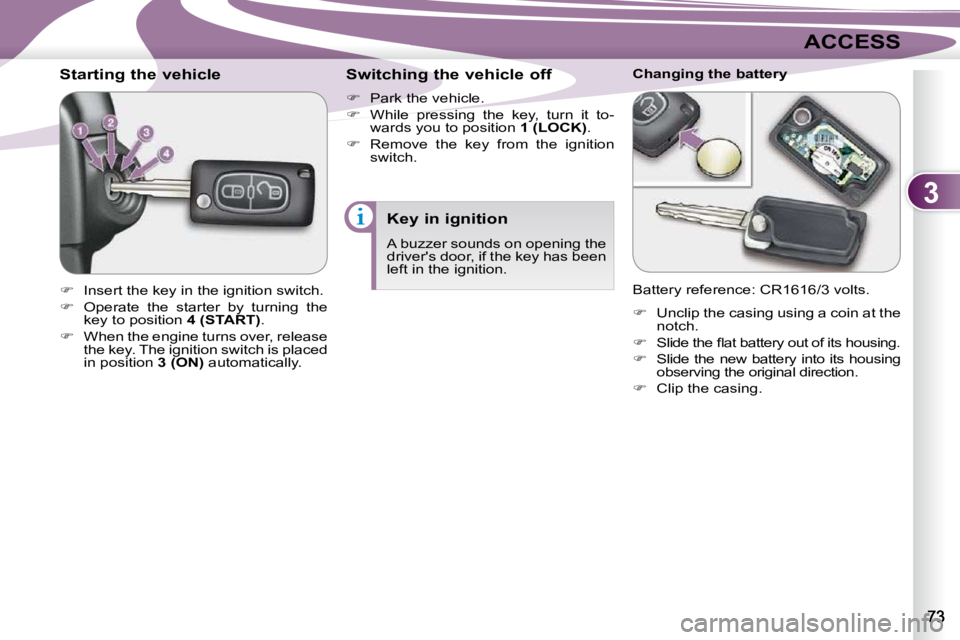

Starting the vehicle
Insert the key in the ignition switch.
Operate the starter by turning the
key to position 4 (START) .
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off
Park the vehicle.
While pressing the key, turn it to-
wards you to position 1 (LOCK) .
Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s h o u s i n g .
Slide the new battery into its housing
observing the original direction.
Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been
left in the ignition.
3
ACCESS
Starting the vehicle
Insert the key in the ignition switch.
Operate the starter by turning the
key to position 4 (START) .
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off
Park the vehicle.
While pressing the key, turn it to-
wards you to position 1 (LOCK) .
Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s h o u s i n g .
Slide the new battery into its housing
observing the original direction.
Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been
left in the ignition.
3
ACCESS

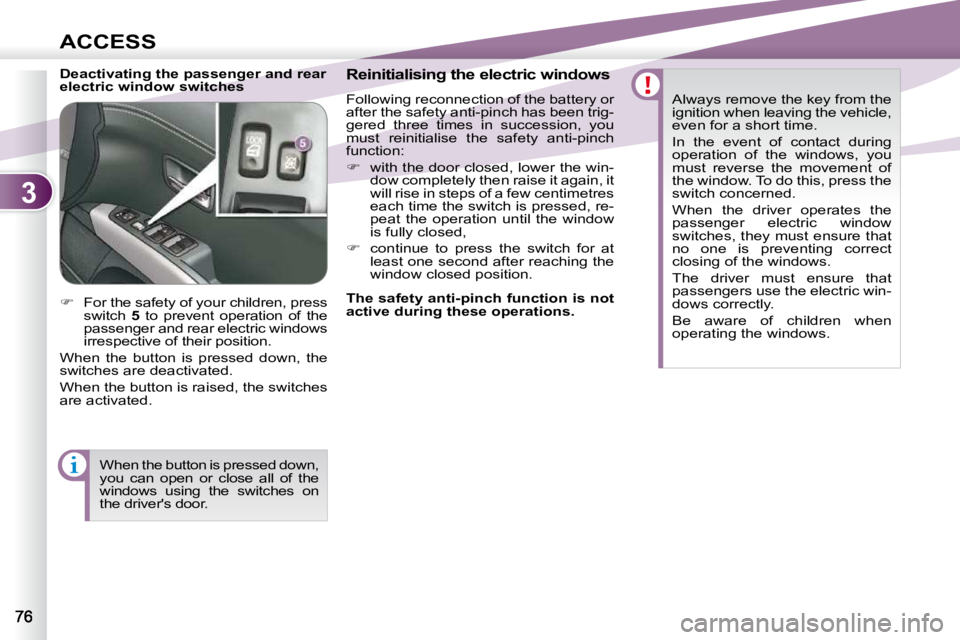

Deactivating the passenger and rear
electric window switches Reinitialising the electric windows
Following reconnection of the battery or
after the safety anti-pinch has been trig-
gered three times in succession, you
must reinitialise the safety anti-pinch
function:
with the door closed, lower the win-
dow completely then raise it again, it
will rise in steps of a few centimetres
each time the switch is pressed, re-
peat the operation until the window
is fully closed,
continue to press the switch for at
least one second after reaching the
window closed position. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of
the window. To do this, press the
switch concerned.
When the driver operates the
passenger electric window
switches, they must ensure that
no one is preventing correct
closing of the windows.
The driver must ensure that
passengers use the electric win-
dows correctly.
Be aware of children when
operating the windows.
For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down, the
switches are deactivated.
When the button is raised, the switches
are activated.
When the button is pressed down,
you can open or close all of the
windows using the switches on
the driver's door.
The safety
anti
-
pinch
function is not
active during these operations.
