11
AUDIO EQUIPMENT and TELEMATICS
RADIO
Selecting radio mode Press the "PWR" button
or the "AM/FM" button to
switch on the radio.
Disconnecting the battery terminals
clears the stored radio stations.
Selecting the waveband
Press the "AM/FM" button
several times in succession
to select the waveband; it
changes in the following
order: FM1/FM2/FM3/MW/
LW/FM1...
Automatic station search Press the "SEEK " or
"SEEK " button to search
the lower frequencies or the
higher frequencies respec-
tively. Manual station search
Turn the "TUNE" dial re-
spectively to the left to
search the lower frequen-
cies or to the right to search
the higher frequencies.
Manual station storing
Press one of the six buttons "1" to "6"
until an audible signal is heard.
The sound cuts out then becomes au-
dible again when the station has been
stored.
The number of the button and the as-
sociated radio frequency appear on the
screen. Automatic station storing
Press the "AM/FM" button
for more than two seconds.
Recalling stored stations
Press one of the six buttons "1" to "6".
The station corresponding to the wave-
band selected appears on the screen.
The search begins automatically and
s t o p s a t t h e fi r s t s t a t i o n f o u n d . The six stations offering the best recep-
t i o n a r e s t o r e d a n d c l a s s i fi e d f r o m t h e
weakest to the strongest on the six cor-
responding buttons.
You can store up to six stations on each
waveband.
Storing a new station replaces the pre-
vious station. Stations can only be stored automati-
cally on wavebands FM3, MW and LW.
Storing new stations replaces the previ-
ous stations.
This storing can be activated auto-
matically irrespective of the waveband
selected.
To recall the pre-set stored set-
ting, press the button and re-
lease it within two seconds.
Page 159 of 215
11
AUDIO EQUIPMENT and TELEMATICS

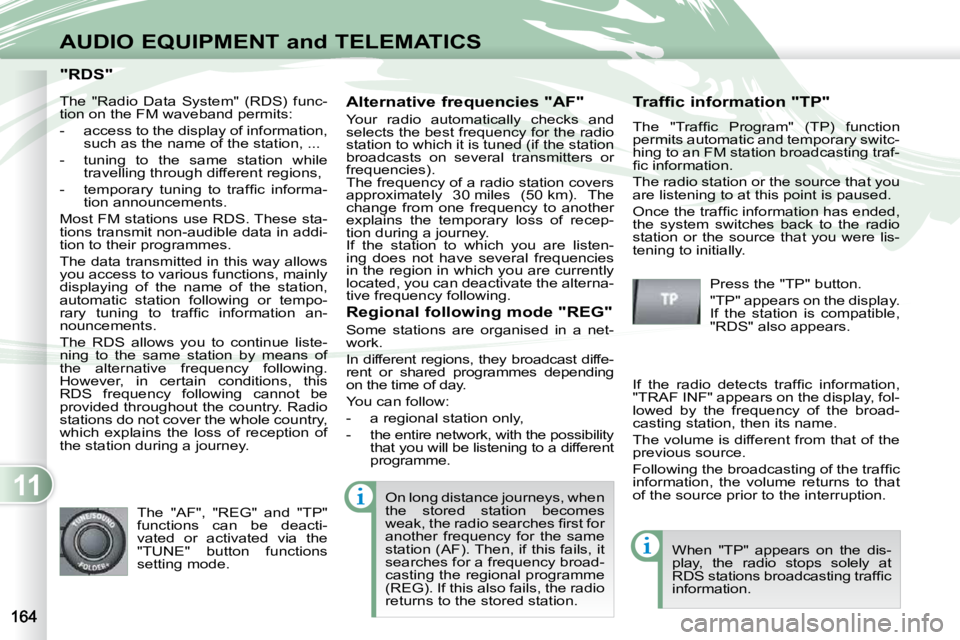

"RDS" "RDS"
Alternative frequencies "AF"
Your radio automatically checks and
selects the best frequency for the radio
station to which it is tuned (if the station
broadcasts on several transmitters or
frequencies).
The frequency of a radio station covers
approximately 30 miles (50 km). The
change from one frequency to another
explains the temporary loss of recep-
tion during a journey.
If the station to which you are listen-
ing does not have several frequencies
in the region in which you are currently
located, you can deactivate the alterna-
tive frequency following. Traffic information "TP"
T h e " T r a f fi c P r o g r a m " ( T P ) f u n c t i o n
permits automatic and temporary switc-
hing to an FM station broadcasting traf-
fi c i n f o r m a t i o n .
The radio station or the source that you
are listening to at this point is paused.
O n c e t h e t r a f fi c i n f o r m a t i o n h a s e n d e d ,
the system switches back to the radio
station or the source that you were lis-
tening to initially.
Regional following mode "REG"
Some stations are organised in a net-
work.
In different regions, they broadcast diffe-
rent or shared programmes depending
on the time of day.
You can follow:
- a regional station only,
- the entire network, with the possibility that you will be listening to a different
programme.
The "AF", "REG" and "TP"
functions can be deacti-
vated or activated via the
"TUNE" button functions
setting mode. Press the "TP" button.
"TP" appears on the display.
If the station is compatible,
"RDS" also appears.
I f t h e r a d i o d e t e c t s t r a f fi c i n f o r m a t i o n ,
"TRAF INF" appears on the display, fol-
lowed by the frequency of the broad-
casting station, then its name.
The volume is different from that of the
previous source.
F o l l o w i n g t h e b r o a d c a s t i n g o f t h e t r a f fi c
information, the volume returns to that
of the source prior to the interruption. When "TP" appears on the dis-
play, the radio stops solely at
R D S s t a t i o n s b r o a d c a s t i n g t r a f fi c
information.
On long distance journeys, when
the stored station becomes
w e a k , t h e r a d i o s e a r c h e s fi r s t f o r
another frequency for the same
station (AF). Then, if this fails, it
searches for a frequency broad-
casting the regional programme
(REG). If this also fails, the radio
returns to the stored station.
The "Radio Data System" (RDS) func-
tion on the FM waveband permits:
- access to the display of information,
such as the name of the station, ...
- tuning to the same station while travelling through different regions,
- t e m p o r a r y t u n i n g t o t r a f fi c i n f o r m a - tion announcements.
Most FM stations use RDS. These sta-
tions transmit non-audible data in addi-
tion to their programmes.
The data transmitted in this way allows
you access to various functions, mainly
displaying of the name of the station,
automatic station following or tempo-
r a r y t u n i n g t o t r a f fi c i n f o r m a t i o n a n -
nouncements.
The RDS allows you to continue liste-
ning to the same station by means of
the alternative frequency following.
However, in certain conditions, this
RDS frequency following cannot be
provided throughout the country. Radio
stations do not cover the whole country,
which explains the loss of reception of
the station during a journey.
Page 160 of 215
11
AUDIO EQUIPMENT and TELEMATICS
Themed type of programme
"PTY"
Some stations offer the option of liste-
ning to a themed type of programme as
a priority, selected from the list avail-
able below:
NEWS, AFFAIRS, INFO, SPORT, EDUCATE,
DRAMA, CULTURE, SCIENCE, VARIED, POP M,
ROCK M, EASY M, LIGHT M, CLASSICS,
OTHER M, WEATHER, FINANCE, CHILDREN,
SOCIAL, RELIGION, PHONE IN, TRAVEL,
LEISURE, JAZZ, COUNTRY, NATION M
,
OLDIES, FOLK M, DOCUMENT.
Emergency broadcasts
"ALERT"
An emergency broadcast automatically
and temporarily interrupts the FM station
or the source that you are listening to.
The message "ALERT" appears on the
display and the volume is different from
that of the previous source.
Following the emergency broadcast, the
message disappears and the volume
returns to that of the source prior to the
interruption. Search for a "PTY" broadcast
Press the "PTY" button.
Turn the "TUNE" dial to se-
lect the type of programme
required.
Two seconds later, the radio searches
for a broadcast which corresponds to
your selection; the type of PTY selected
fl a s h e s o n t h e d i s p l a y .
Once the station has been found, its
name appears on the display.
You can press the "SEEK " or "SEEK "
b u t t o n s t o fi n d a n o t h e r s t a t i o n .
If no station is found corre-
sponding to your selected type
of programme, "NONE" appears
o n t h e d i s p l a y f o r fi v e s e c o n d s
and the radio returns to the pre-
vious station.
Storing a "PTY" programme
You can store up to six PTY programmes.
Each new programme stored replaces
the previous one. To recall the pre-set memory
setting, press the button and re-
lease it within two seconds.
Changing the display language of
the "PTY" programme Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button several times in
succession; the functions setting mode
changes in the following order:
AF/CT/REG/TP-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial to the left or to the
right to select the language (ENGLISH,
FRANCAIS, DEUTSCH, SVENSK,
ESPAGNOL, ITALIANO).
The sound cuts out then becomes au-
dible again when the programme has
been stored.
The number of the button and the asso-
ciated PTY programme appear on the
display.
Turn the "TUNE" dial to set
the PTY programme to be
stored.
Press one of the six but-
tons "1" to "6" for more than
two seconds.
Page 161 of 215
11
AUDIO EQUIPMENT and TELEMATICS
CD PLAYER CD PLAYER
This can play audio CDs (CD-DA, CD-
Text, CD-R/RW) or MP3 CDs. If the player already con-
tains a disc, press the "CD"
button.
"CD", the track number and
the playing time appear on the screen.
Functions setting mode
This permits activation or deactivation
of the functions below.
Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button
several times in succession;
the functions setting mode changes in
the following order:
AF/CT/REG/TO-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial respectively to the
left to deactivate the function ("OFF") or
to the right to activate it ("ON").
The "PHONE" is not operational
at present.
The functions setting mode is
deactivated after approximately
10 seconds without any action. Selecting CD mode
After inserting a disc, printed face up-
wards, the player starts automatically.
Ejecting a disc
Press this button to remove
the disc from the player.
The system automatically
switches to radio mode. Fast search
Press and hold button " "
or " " to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is re-
leased.
Selecting a track
Press button " " or " " to
select the previous or next
track respectively.
Repeating a track Press the "RPT" button to
repeat the play of the cur-
rent track. "RPT" appears
on the screen.
To exit this mode, press this button
again.
Random playing of a disc
Press the "RDM" button
to start random play of the
tracks on the disc. "RDM"
appears on the screen.
To exit this mode, press this button
again.
Insert circular compact discs
only.
8 cm compact discs must be in-
serted in the centre of the player
slot.
Once ejected, if the compact
disc is not removed within
fi f t e e n s e c o n d s , i t i s r e l o a d e d
into the player. Audio CDs
Page 162 of 215
11
AUDIO EQUIPMENT and TELEMATICS
CD PLAYER CD PLAYER
This can play audio CDs (CD-DA, CD-
Text, CD-R/RW) or MP3 CDs. If the player already con-
tains a disc, press the "CD"
button.
"CD", the track number and
the playing time appear on the screen.
Functions setting mode
This permits activation or deactivation
of the functions below.
Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button
several times in succession;
the functions setting mode changes in
the following order:
AF/CT/REG/TO-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial respectively to the
left to deactivate the function ("OFF") or
to the right to activate it ("ON").
The "PHONE" is not operational
at present.
The functions setting mode is
deactivated after approximately
10 seconds without any action. Selecting CD mode
After inserting a disc, printed face up-
wards, the player starts automatically.
Ejecting a disc
Press this button to remove
the disc from the player.
The system automatically
switches to radio mode. Fast search
Press and hold button " "
or " " to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is re-
leased.
Selecting a track
Press button " " or " " to
select the previous or next
track respectively.
Repeating a track Press the "RPT" button to
repeat the play of the cur-
rent track. "RPT" appears
on the screen.
To exit this mode, press this button
again.
Random playing of a disc
Press the "RDM" button
to start random play of the
tracks on the disc. "RDM"
appears on the screen.
To exit this mode, press this button
again.
Insert circular compact discs
only.
8 cm compact discs must be in-
serted in the centre of the player
slot.
Once ejected, if the compact
disc is not removed within
fi f t e e n s e c o n d s , i t i s r e l o a d e d
into the player. Audio CDs
Page 163 of 215
11
AUDIO EQUIPMENT and TELEMATICS
MP3/TAG ID3 CD
Playing the beginning of each track Press the "SCAN" button to
s t a r t p l a y b a c k o f t h e fi r s t t e n
seconds of each track on
the disc. "SCAN" appears
on the screen and the corresponding
t r a c k n u m b e r fl a s h e s .
To exit this mode, press this button
again. The CD player and the CD changer
are compatible with the playing of MP3
fi l e s .
These must be recorded in ISO 9660
Level 1/Level 2, Joliet or Romeo for-
mat on CD ROMs, CD-Rs or CD-RWs.
The CDs can contain a maximum of
2 5 5 fi l e s a n d 1 0 0 f o l d e r s o n 1 6 l e v e l s .
The Tag ID3 version 1 can be displayed
w h i l e p l a y i n g M P 3 fi l e s .
In the case of compact discs
containing both CD-DA and MP3
fi l e s , p l a y a u t o m a t i c a l l y b e g i n s
w i t h t h e C D - D A fi l e s .
To switch play between the two
t y p e s o f fi l e , p r e s s t h e " C D " b u t -
ton for more than two seconds
until an audible signal is heard.
While using these compact
discs, the "Repeat", "Random
play" and "Playing of the begin-
ning of the tracks" functions are
o n l y a p p l i e d t o fi l e s o f t h e s a m e
format.
Selecting an MP3 folder Turn the "FOLDER" dial
respectively to the right to
select a folder in ascending
order or to the left to select a
folder in descending order.
Press the "DISP" button
several times in succession;
the CD-Text information ap-
pears in the following order:
DISC NAME/TRACK NAME/NORMAL
DISPLAY MODE.
CD-TEXT DISPLAY CD-TEXT DISPLAY
If the information exceeds
12 characters, press the
"PAGE" button to see the
rest.
In the absence of CD-Text information
to be displayed, "NOTITLE" appears on
the screen.
The CD player and the CD changer are
compatible with the display of CD-Text
information.
On CD-R/RWs, the quality of the
playback sound depends on the
encoding software, the burning
device and the burning speed
used.
Page 164 of 215
11
AUDIO EQUIPMENT and TELEMATICS
When play begins, "READING" appears
in the screen then disappears to make
way for the folder number, the track
number, the playing time and "MP3".
Playing the beginning of each track
Press the "SCAN" button
t o s t a r t p l a y i n g t h e fi r s t t e n
seconds of each track in
all of the folders. "SCAN"
appears in the screen and the corre-
s p o n d i n g t r a c k n u m b e r fl a s h e s .
To exit this mode, press this button again.
MP3/Tag ID3 display
Press the "DISP" button
several times in succession;
the MP3 information ap-
pears in the following order:
FOLDER NAME/TRACK NAME/NORMAL
DISPLAY MODE.
If the information exceeds
12 characters, press the
"PAGE" button to see the
rest.
In the absence of MP3 or Tag ID3 in-
formation to be displayed, "NOTITLE"
appears in the screen.
Press the "DISP" button for
more than two seconds to
activate the Tag ID3 infor-
mation. "TAG" appears in
the screen.
Press the "DISP" button several times
in succession; the Tag ID3 information
appears in the following order:
ALBUM NAME/TRACK NAME/ARTIST
NAME/NORMAL DISPLAY MODE. To deactivate this information, press
the "DISP" button again for more than
two seconds.

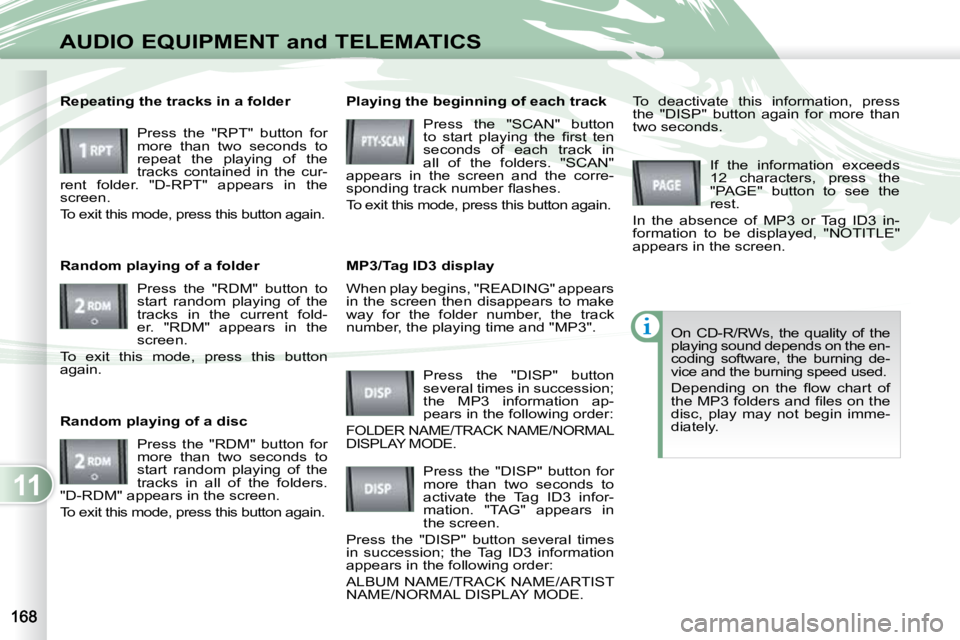

Repeating the tracks in a folder
Press the "RPT" button for
more than two seconds to
repeat the playing of the
tracks contained in the cur-
rent folder. "D-RPT" appears in the
screen.
To exit this mode, press this button again.
Random playing of a folder
Press the "RDM" button to
start random playing of the
tracks in the current fold-
er. "RDM" appears in the
screen.
To exit this mode, press this button
again.
Random playing of a disc
Press the "RDM" button for
more than two seconds to
start random playing of the
tracks in all of the folders.
"D-RDM" appears in the screen.
To exit this mode, press this button again. On CD-R/RWs, the quality of the
playing sound depends on the en-
coding software, the burning de-
vice and the burning speed used.
D e p e n d i n g o n t h e fl o w c h a r t o f
t h e M P 3 f o l d e r s a n d fi l e s o n t h e
disc, play may not begin imme-
diately.
Page 165 of 215
11
AUDIO EQUIPMENT and TELEMATICS
Selecting changer mode If the changer already
contains a disc, press the
"CD" button.
"CD", the disc and track
numbers and the playing time appear
in the screen.
After inserting at least one disc, printed
face upwards, the changer starts auto-
matically.
Ejecting a disc P r e s s t h i s b u t t o n b r i e fl y t o
remove the current disc
from the changer. Once ejected, if the compact
d i s c i s n o t r e m o v e d w i t h i n fi f -
teen seconds it is re-loaded into
the changer.
Loading a disc
Press the "LOAD" button
b r i e fl y . " W A I T " a p p e a r s o n
the display.
When the changer is ready,
the indicator lamp on the "LOAD" button
comes on and "LOAD DISC N° (1-6)"
appears in the screen.
If several slots are empty, select one
using one of the "DISC" buttons.
The CD changer can hold up to 6 CDs.
Insert circular compact discs only.
8 cm compact discs cannot be
played by the changer. Loading all of the discs Ejecting all of the discs
Press this button for more
than two seconds. The cur-
rent disc is ejected.
Once this disc has been removed, the
next disc is ejected automatically in its
turn.
Repeat these steps until unloading is
complete.
Selecting a disc Press one of the "DISC" but-
tons several times in suc-
cession until you reach the
disc required. The symbol of
the disc selected appears in
the screen.
See also "CD-Text display" and "MP3/
Tag ID3 CD".
Press the "LOAD" button for
more than two seconds.
The changer selects an
empty slot number from the
lowest to the highest and switches to
waiting for loading mode.
"LOAD DISC N° (1-6)" appears on the
display; insert the disc in the corre-
sponding slot.
The changer automatically selects the
next empty slot number and returns to
waiting for loading mode.
Repeat these steps until loading is
complete. Play begins with the last disc
inserted.
CD CHANGER
