The total distance is
displayed in zone 1 of
the screen and the trip
distance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its service
life and the distance travelled in a day
or other period until it is reset to zero by
the driver.
Zero reset
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
button for more than 2 seconds until
zeros appear. When the engine is
r u n n i n g , t h i s i n d i c a t e s
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
l o c a t e d o n t h e r i g h t , t h e t e m p e r a t u r e i s
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
You must
s t o p y o u r v e h i c l e
as soon
as it
is
s a f e t o d o s o
.
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , t h i s i n d i c a t e s
the distance which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles/
kilometres travelled.
RANGE
When the range is less than 30 miles
(50 km) , d a s h e s a r e d i s p l a y e d .
Refuel as soon as possible. The display
of the range is updated.
T o a v o i d a n y r i s k o f s c a l d i n g ,
unscrew the cap by two turns to
allow the pressure to drop.
W h e n t h e p r e s s u r e h a s d r o p p e d ,
remove the cap and top up the
l e v e l , i f n e c e s s a r y .
Consult a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e
following a change in the style
o f d r i v i n g o r t h e r e l i e f , r e s u l t i n g
in a reduction in the current fuel
consumption.
I f y o u o n l y a d d a f e w l i t r e s , t h e
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
W h e n y o u d i s c o n n e c t t h e b a t t e r y ,
the previous fuel consumption
data is lost and the value
displayed will be different from
that displayed before the battery
was disconnected. The distance
displayed must be considered
an approximate indication.
Page 29 of 215
2
COMFORT
For even air distribution, take care not
to obstruct the exterior air intake grille
located at the bottom of the windscreen,
the vents, the air outlets under the front
seats and the air extractor located be-
h i n d t h e fl a p s i n t h e b o o t . The water formed by the air conditioning
c o n d e n s a t i o n i s d i s c h a r g e d v i a a n o p e n -
i n g p r o v i d e d f o r t h i s p u r p o s e . T h e r e f o r e ,
a p u d d l e o f w a t e r m a y f o r m u n d e r n e a t h
t h e v e h i c l e w h e n s t a t i o n a r y .
I f t h e s y s t e m d o e s n o t p r o d u c e c o l d a i r ,
do not use it and have it checked by a
P E U G E O T d e a l e r . AUTOMATIC REGULATION OF TIC REGULATION OF
THE AIR CONDITIONING
D o n o t c o v e r t h e t e m p e r a t u r e a n d h u m i d i t y
sensor
2 and the sunshine sensor 7 .
They are required for regulation of the
a i r c o n d i t i o n i n g .
Advice on operation
In hot weather, in order to obtain
intense ventilation, it is advis-
able to use vents 1 and 4 o n l y .
If, when the vehicle has been
p a r k e d i n t h e s u n f o r a l o n g t i m e ,
t h e i n t e r i o r t e m p e r a t u r e r e m a i n s
v e r y h i g h , fi r s t v e n t i l a t e t h e p a s -
s e n g e r c o m p a r t m e n t f o r a f e w
m i n u t e s . Switch off the air conditioning
when the climatic conditions
p e r m i t .
Use of the automatic regulation of the
a i r c o n d i t i o n i n g i s r e c o m m e n d e d . I t p e r -
m i t s a u t o m a t i c a n d o p t i m i s e d c o n t r o l o f
a l l o f t h e f o l l o w i n g f u n c t i o n s : a i r fl o w ,
p a s s e n g e r c o m p a r t m e n t t e m p e r a t u r e
and air distribution, by means of various
s e n s o r s ( a m b i e n t t e m p e r a t u r e , i n t e r i o r
t e m p e r a t u r e , s u n s h i n e ) , s o p r e v e n t i n g
the need for you to change your set-
t i n g s o t h e r t h a n t h e v a l u e d i s p l a y e d .
I n c e r t a i n c a s e s o f p a r t i c u l a r l y a r d u o u s
use (towing the maximum load on a
s t e e p g r a d i e n t i n h o t w e a t h e r ) , s w i t c h -
ing off the air conditioning saves engine
p o w e r a n d t h e r e f o r e i m p r o v e s t h e t o w -
i n g c a p a c i t y .
C l o s e t h e w i n d o w s t o b e n e fi t f r o m t h e
f u l l e f f e c t i v e n e s s o f t h e a i r c o n d i t i o n i n g .
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t -
m e n t fi l t e r i s i n g o o d c o n d i t i o n . H a v e
t h e fi l t e r e l e m e n t s r e p l a c e d p e r i o d i c a l l y .
If you drive in a dusty environment, re-
p l a c e i t t w i c e a s o f t e n .
The air conditioning system does not
contain chlorine and is not harmful to
t h e o z o n e l a y e r .
O p e r a t e t h e a i r c o n d i t i o n i n g s y s t e m f o r
5 to 10 minutes, once or twice a month,
t o k e e p i t i n g o o d w o r k i n g o r d e r .
1. C e n t r a l v e n t s .
2. T e m p e r a t u r e s e n s o r .
3. A i r o u t l e t t o p a s s e n g e r f o o t w e l l s .
4. S i d e v e n t s .
5. Front window demisting/defrosting
v e n t s .
6. Windscreen demisting/defrosting
v e n t s .
7. S u n s h i n e s e n s o r .
Page 31 of 215
2
COMFORT
AUTOMATIC AIR
CONDITIONING
Automatic operation
S e t t h e t e m p e r a t u r e c o n t r o l d i a l 3 to
t h e t e m p e r a t u r e r e q u i r e d .
P l a c e t h e a i r fl o w c o n t r o l d i a l 2 in
the "AUTO" p o s i t i o n .
Place the air distribution adjustment
dial 1 in the "AUTO" p o s i t i o n . When the engine is cold, to avoid
an excessive distribution of cold
air, the ventilation will reach its
o p t i m u m l e v e l g r a d u a l l y .
On entering the vehicle, the in-
t e r i o r t e m p e r a t u r e m a y b e m u c h
c o l d e r ( o r w a r m e r ) t h a n t h e
c o m f o r t t e m p e r a t u r e . T h e r e i s
n o n e e d t o c h a n g e t h e t e m p e r a -
t u r e d i s p l a y e d i n o r d e r t o r e a c h
t h e c o m f o r t r e q u i r e d r a p i d l y .
The automatic regulation of the
a i r c o n d i t i o n i n g w i l l o p e r a t e t o
c o r r e c t t h e t e m p e r a t u r e d i f f e r -
e n c e a s q u i c k l y a s p o s s i b l e .
1. Air distribution adjustment
2. A i r fl o w a d j u s t m e n t
3. T e m p e r a t u r e a d j u s t m e n t
4. Rear screen demisting/defrosting
5. Air conditioning On/Off
6. Intake of exterior air/Recirculation
of interior air
In automatic mode:
w h e n t h e t e m p e r a t u r e i s s e t t o m a x -
i m u m ( R a p i d h e a t i n g ) , t h e i n t a k e o f
exterior air is activated and the air
c o n d i t i o n i n g s t o p s .
w h e n t h e t e m p e r a t u r e i s s e t t o
m i n i m u m ( R a p i d c o o l i n g ) , t h e a i r
recirculation is activated and the air
c o n d i t i o n i n g o p e r a t e s .
The system controls the air distribu-
t i o n , a i r fl o w , t e m p e r a t u r e a n d a i r i n t a k e
to ensure the level of comfort and ad-
e q u a t e a i r c i r c u l a t i o n i n t h e p a s s e n g e r
c o m p a r t m e n t . N o f u r t h e r a c t i o n o n y o u r
p a r t i s r e q u i r e d .
Page 38 of 215
2
COMFORT
Head restraint height adjustment Front armrest
Heated seats adjustment
The adjustment is correct when
t h e t o p o f t h e h e a d r e s t r a i n t i s
a l i g n e d w i t h t h e t o p o f t h e h e a d
o f t h e s e a t e d p e r s o n .
N e v e r d r i v e w i t h t h e r e m o v e d
head restraints in the vehicle as
they could be thrown around the
v e h i c l e o n s h a r p b r a k i n g . T h e y
m u s t b e i n p l a c e a n d a d j u s t e d
c o r r e c t l y .
After installing the head restraint,
check that the height adjustment
b u t t o n i s l o c k e d c o r r e c t l y .
You can move the console housing cover
i n o r d e r t o u s e i t a s a n a r m r e s t .
With the engine running , tilt the but-
t o n t o t h e p o s i t i o n r e q u i r e d .
T h e t e m p e r a t u r e o f t h e s e a t i s r e g u l a t -
e d a u t o m a t i c a l l y .
T h e r e a r e t w o s e t t i n g p o s i t i o n s :
- " H I " : H i g h h e a t i n g
- "LO": Low heating
When the button is in the intermediate
p o s i t i o n , t h e h e a t i n g i s s w i t c h e d o f f .
T h e i n d i c a t o r l a m p s A come on when
t h e s y s t e m i s a c t i v a t e d . T o r a i s e t h e h e a d r e s t r a i n t , p u l l i t u p -
w a r d s .
T o l o w e r t h e h e a d r e s t r a i n t , p u s h i t
d o w n w a r d s p r e s s i n g t h e h e i g h t a d j u s t -
m e n t b u t t o n a t t h e s a m e t i m e .
To remove the head restraint, bring it to
t h e u p p e r m o s t p o s i t i o n t h e n r e m o v e i t
p r e s s i n g t h e h e i g h t a d j u s t m e n t b u t t o n
a t t h e s a m e t i m e .
T o r e fi t t h e h e a d r e s t r a i n t , e n g a g e t h e
stems of the head restraint in the holes
p r e s s i n g t h e h e i g h t a d j u s t m e n t b u t t o n
a t t h e s a m e t i m e .
Page 47 of 215
2
COMFORT
DOOR MIRRORS DOOR MIRRORS
Electric folding/unfolding
- from inside, with the ignition switch i n t h e " O N " o r " A C C " p o s i t i o n :
b y p r e s s i n g t h e c o n t r o l C .
- from inside, with the ignition switch i n t h e " L O C K " p o s i t i o n :
b y p r e s s i n g t h e c o n t r o l C, w i t h i n
30 seconds.
- from outside using the remote control:
b y p r e s s i n g t h e " c l o s e d p a d -
l o c k b u t t o n b r i e fl y 3 t i m e s t o f o l d
them,
b y p r e s s i n g t h e " o p e n p a d l o c k "
b u t t o n b r i e fl y 3 t i m e s t o u n f o l d
t h e m .
Adjustment
The mirrors can be adjusted when the
i g n i t i o n s w i t c h i s i n t h e " O N " o r " A C C "
p o s i t i o n .
Move control A to the right or to the left
t o s e l e c t t h e c o r r e s p o n d i n g m i r r o r .
Direct control B in all four directions
t o a d j u s t t h e m i r r o r .
W h e n a d j u s t m e n t i s c o m p l e t e , r e t u r n
control A t o t h e c e n t r a l p o s i t i o n . If you switch the engine off then
re-start it with the mirrors fol-
ded, they will unfold automati-
cally when the vehicle reaches
2 0 m p h ( 3 0 k m / h ) .
If the mirrors have been folded
manually or electrically after
starting the engine, they are not
u n f o l d e d a u t o m a t i c a l l y .
In this case:
Press the control C to unfold
t h e m .
If you have folded the mirrors
using the control
C , you must
use this control to unfold them,
otherwise the mirrors will not be
l o c k i n p l a c e c o r r e c t l y .
The folding and unfolding of
the door mirrors can be con-
fi g u r e d v i a t h e c o l o u r s c r e e n
" E q u i p m e n t " m e n u o r d e a c t i v a t -
e d b y a P E U G E O T d e a l e r .
T h e m i r r o r s c a n a l s o b e f o l d e d m a n u a l l y .
Page 52 of 215
2
COMFORT

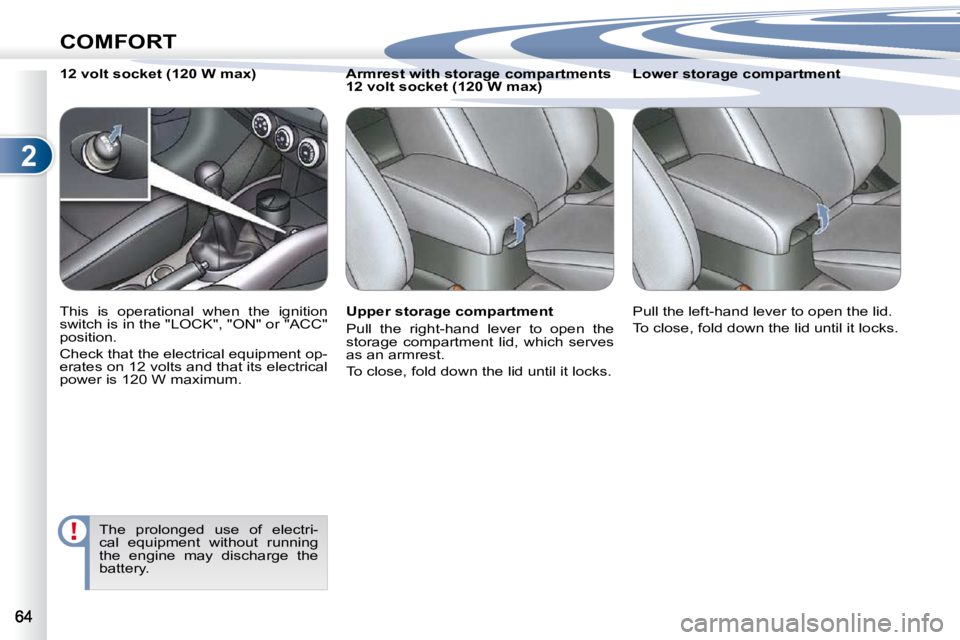

A r m r e s t w i t h s t o r a g e c o m p a r t m e n t s
12 volt socket (120 W max)
Upper storage compartment
P u l l t h e r i g h t - h a n d l e v e r t o o p e n t h e
s t o r a g e c o m p a r t m e n t l i d , w h i c h s e r v e s
a s a n a r m r e s t .
T o c l o s e , f o l d d o w n t h e l i d u n t i l i t l o c k s .
12 volt socket (120 W max)
L o w e r s t o r a g e c o m p a r t m e n t
P u l l t h e l e f t - h a n d l e v e r t o o p e n t h e l i d .
T o c l o s e , f o l d d o w n t h e l i d u n t i l i t l o c k s .
T h i s i s o p e r a t i o n a l w h e n t h e i g n i t i o n
s w i t c h i s i n t h e " L O C K " , " O N " o r " A C C "
p o s i t i o n .
C h e c k t h a t t h e e l e c t r i c a l e q u i p m e n t o p -
erates on 12 volts and that its electrical
p o w e r i s 1 2 0 W m a x i m u m .
T h e p r o l o n g e d u s e o f e l e c t r i -
c a l e q u i p m e n t w i t h o u t r u n n i n g
the engine may discharge the
b a t t e r y .
Page 60 of 215
3
ACCESS
The vehicle will relock automati-
cally after thirty seconds unless
a door or the tailgate is opened.
This function prevents inadvert-
ent unlocking.
The duration which precedes
the automatic relocking of the
v e h i c l e c a n b e c o n fi g u r e d v i a
the colour screen "Equipment"
menu.

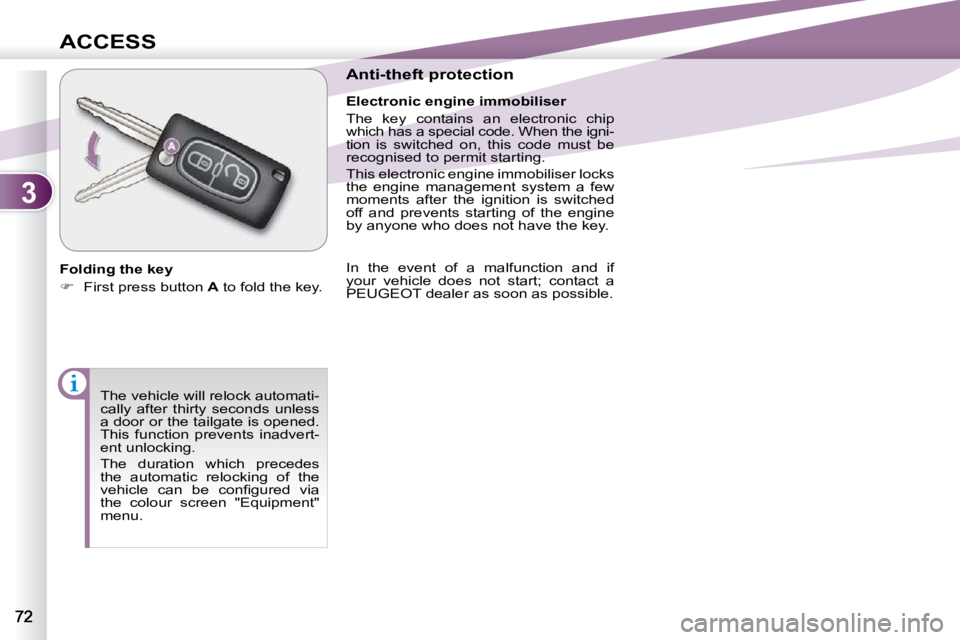

Folding the key
First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the igni-
tion is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
PEUGEOT dealer as soon as possible.
Page 61 of 215
3
ACCESS
Starting the vehicle
Insert the key in the ignition switch.
Operate the starter by turning the
key to position 4 (START) .
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off
Park the vehicle.
While pressing the key, turn it to-
wards you to position 1 (LOCK) .
Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s h o u s i n g .
Slide the new battery into its housing
observing the original direction.
Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been
left in the ignition.
