3
ACCESS

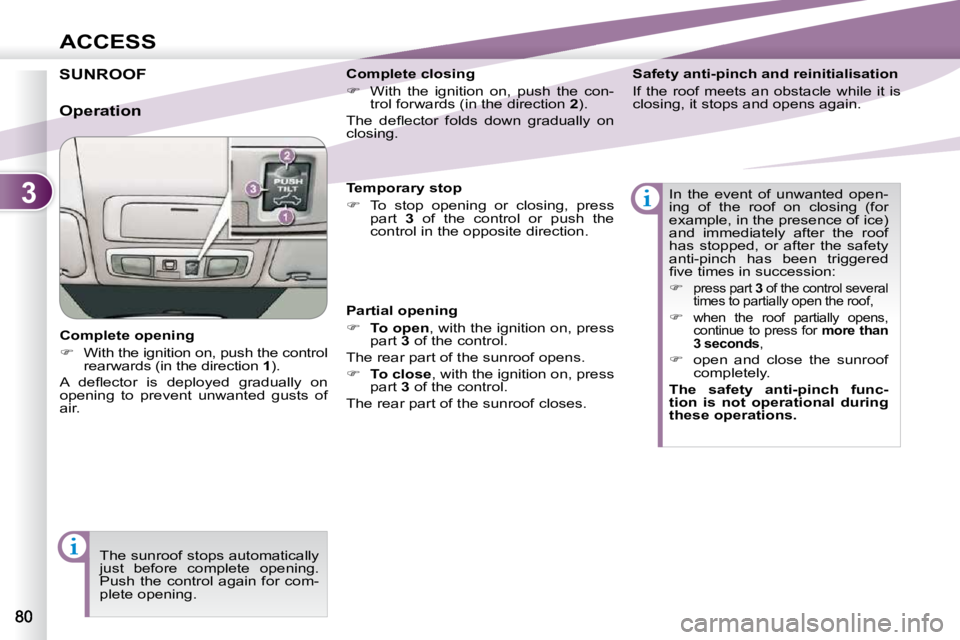

SUNROOF
Complete opening
With the ignition on, push the control
rearwards (in the direction 1 ).
A d e fl e c t o r i s d e p l o y e d g r a d u a l l y o n
opening to prevent unwanted gusts of
air.
Operation
Complete closing
With the ignition on, push the con-
trol forwards (in the direction 2 ).
T h e d e fl e c t o r f o l d s d o w n g r a d u a l l y o n
closing.
Partial opening
To open , with the ignition on, press
part 3 of the control.
The rear part of the sunroof opens.
To close , with the ignition on, press
part 3 of the control.
The rear part of the sunroof closes. In the event of unwanted open-
ing of the roof on closing (for
example, in the presence of ice)
and immediately after the roof
has stopped, or after the safety
anti-pinch has been triggered
fi v e t i m e s i n s u c c e s s i o n :
press part 3 of the control several
times to partially open the roof,
when the roof partially opens,
continue to press for more than
3 seconds ,
open and close the sunroof
completely.
The
safety
anti
-
pinch
func-
tion is not
operational during
t
hese operations.
The sunroof stops automatically
just before complete opening.
Push the control again for com-
plete opening. Temporary stop
To stop opening or closing, press
part 3 of the control or push the
control in the opposite direction. Safety anti-pinch and reinitialisation
If the roof meets an obstacle while it is
closing, it stops and opens again.
Page 74 of 215
3
ACCESS

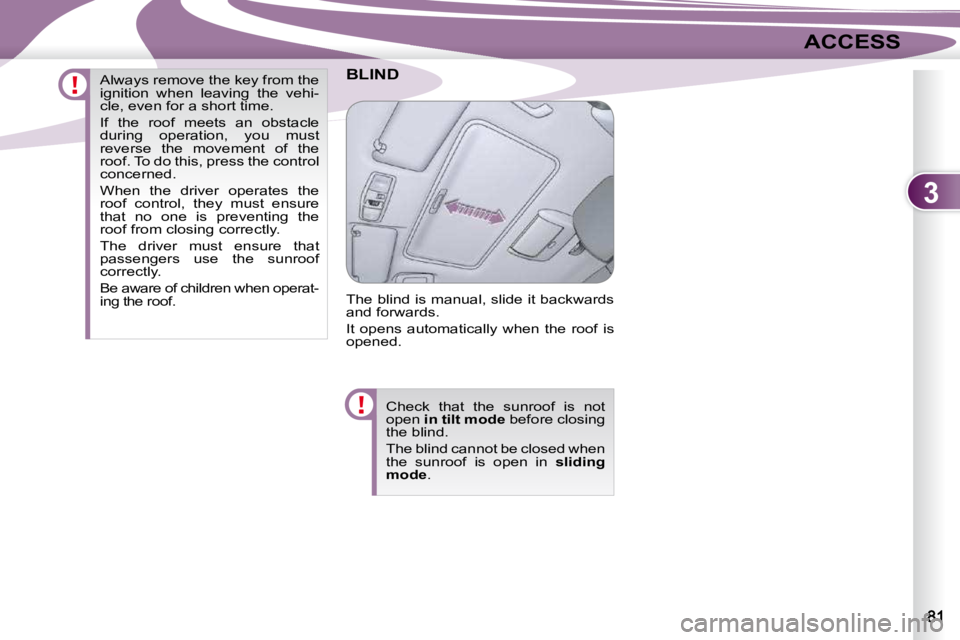

BLIND
The blind is manual, slide it backwards
and forwards.
It opens automatically when the roof is
opened. Check that the sunroof is not
open in tilt mode before closing
the blind.
The blind cannot be closed when
the sunroof is open in sliding
mode .
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle
during operation, you must
reverse the movement of the
roof. To do this, press the control
concerned.
When the driver operates the
roof control, they must ensure
that no one is preventing the
roof from closing correctly.
The driver must ensure that
passengers use the sunroof
correctly.
Be aware of children when operat-
ing the roof.
Page 75 of 215
3
ACCESS
BLIND
The blind is manual, slide it backwards
and forwards.
It opens automatically when the roof is
opened. Check that the sunroof is not
open in tilt mode before closing
the blind.
The blind cannot be closed when
the sunroof is open in sliding
mode .
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle
during operation, you must
reverse the movement of the
roof. To do this, press the control
concerned.
When the driver operates the
roof control, they must ensure
that no one is preventing the
roof from closing correctly.
The driver must ensure that
passengers use the sunroof
correctly.
Be aware of children when operat-
ing the roof.
Page 138 of 215
9
PRACTICAL INFORMATION
Dashboard fuses
T h e f u s e b o x e s a r e p l a c e d i n t h e l o w e r
d a s h b o a r d b e h i n d t h e g l o v e b o x .
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions
1 * 30 A Heating.
2 15 A Brake lamps, third brake lamp, built-in systems
interface.
3 10 A Rear foglamps.
4 30 A Windscreen wipers and screenwash.
5 10 A Diagnostic socket.
6 20 A Central locking, door mirrors.
7 15 A Audio system, telematics, multifunction screen,
hands-free kit.
8 7.5 A Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.
9 15 A Multifunction screen, instrument panel.
10 15 A Built-in systems interface.
11 15 A Rear wiper.
12 7.5 A Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13 - Not used.
14 10 A Ignition switch.
15 20 A Sunroof.
16 10 A Door mirrors, audio system, telematics.
Page 143 of 215
9
PRACTICAL INFORMATION
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.

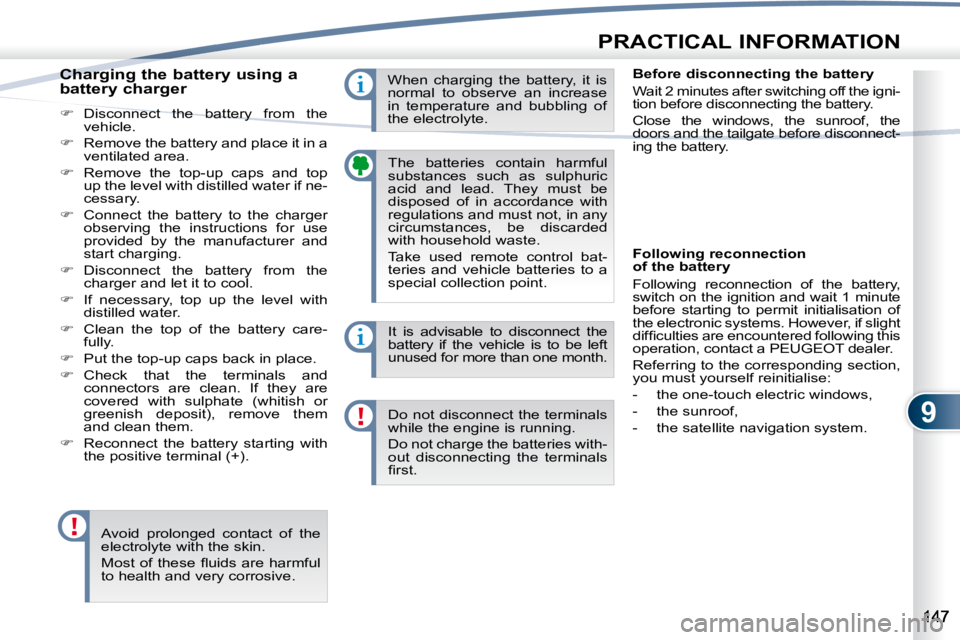

Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Remove the battery and place it in a
ventilated area.
Remove the top-up caps and top
up the level with distilled water if ne-
cessary.
Connect the battery to the charger
observing the instructions for use
provided by the manufacturer and
start charging.
Disconnect the battery from the
charger and let it to cool.
If necessary, top up the level with
distilled water.
Clean the top of the battery care-
fully.
Put the top-up caps back in place.
Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
greenish deposit), remove them
and clean them.
Reconnect the battery starting with
the positive terminal (+). It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t .
Avoid prolonged contact of the
electrolyte with the skin.
M o s t o f t h e s e fl u i d s a r e h a r m f u l
to health and very corrosive. When charging the battery, it is
normal to observe an increase
in temperature and bubbling of
the electrolyte.
Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows, the sunroof, the
doors and the tailgate before disconnect-
ing the battery.
Following reconnection
of the battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if slight
d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w i n g t h i s
operation, contact a PEUGEOT dealer.
Referring to the corresponding section,
you must yourself reinitialise:
- the one-touch electric windows,
- the sunroof,
- the satellite navigation system.
