INSTRUMENTS and CONTROLS

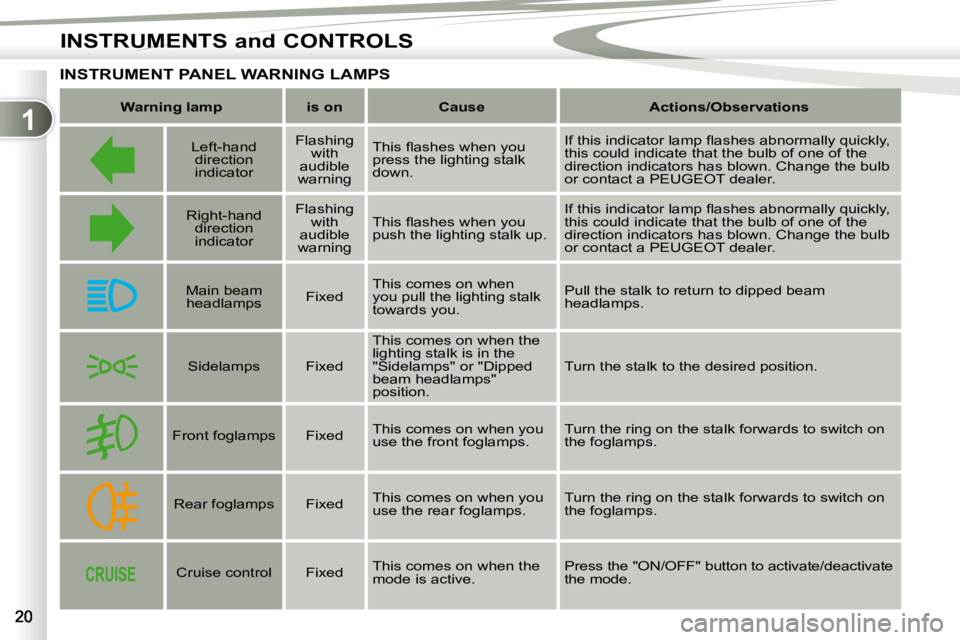

INSTRUMENT PANEL WARNING LAMPS
Warning lamp is on Cause Actions/
Observations
Left-hand
direction
indicator Flashing
with
audible
warning T h i s fl a s h e s w h e n y o u
press the lighting stalk
down. I f t h i s i n d i c a t o r l a m p fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the bulb of one of the
direction indicators has blown. Change the bulb
or contact a PEUGEOT dealer.
Right-hand
direction
indicator Flashing
with
audible
warning T h i s fl a s h e s w h e n y o u
push the lighting stalk up. I f t h i s i n d i c a t o r l a m p fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the bulb of one of the
direction indicators has blown. Change the bulb
or contact a PEUGEOT dealer.
Main beam
headlamps Fixed This comes on when
you pull the lighting stalk
towards you. Pull the stalk to return to dipped beam
headlamps.
Sidelamps Fixed This comes on when the
lighting stalk is in the
"Sidelamps" or "Dipped
beam headlamps"
position. Turn the stalk to the desired position.
Front foglamps Fixed This comes on when you
use the front foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.
Rear foglamps Fixed This comes on when you
use the rear foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.
Cruise control Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/deactivate
the mode.
Page 29 of 215
2
COMFORT
For even air distribution, take care not
to obstruct the exterior air intake grille
located at the bottom of the windscreen,
the vents, the air outlets under the front
seats and the air extractor located be-
h i n d t h e fl a p s i n t h e b o o t . The water formed by the air conditioning
c o n d e n s a t i o n i s d i s c h a r g e d v i a a n o p e n -
i n g p r o v i d e d f o r t h i s p u r p o s e . T h e r e f o r e ,
a p u d d l e o f w a t e r m a y f o r m u n d e r n e a t h
t h e v e h i c l e w h e n s t a t i o n a r y .
I f t h e s y s t e m d o e s n o t p r o d u c e c o l d a i r ,
do not use it and have it checked by a
P E U G E O T d e a l e r . AUTOMATIC REGULATION OF TIC REGULATION OF
THE AIR CONDITIONING
D o n o t c o v e r t h e t e m p e r a t u r e a n d h u m i d i t y
sensor
2 and the sunshine sensor 7 .
They are required for regulation of the
a i r c o n d i t i o n i n g .
Advice on operation
In hot weather, in order to obtain
intense ventilation, it is advis-
able to use vents 1 and 4 o n l y .
If, when the vehicle has been
p a r k e d i n t h e s u n f o r a l o n g t i m e ,
t h e i n t e r i o r t e m p e r a t u r e r e m a i n s
v e r y h i g h , fi r s t v e n t i l a t e t h e p a s -
s e n g e r c o m p a r t m e n t f o r a f e w
m i n u t e s . Switch off the air conditioning
when the climatic conditions
p e r m i t .
Use of the automatic regulation of the
a i r c o n d i t i o n i n g i s r e c o m m e n d e d . I t p e r -
m i t s a u t o m a t i c a n d o p t i m i s e d c o n t r o l o f
a l l o f t h e f o l l o w i n g f u n c t i o n s : a i r fl o w ,
p a s s e n g e r c o m p a r t m e n t t e m p e r a t u r e
and air distribution, by means of various
s e n s o r s ( a m b i e n t t e m p e r a t u r e , i n t e r i o r
t e m p e r a t u r e , s u n s h i n e ) , s o p r e v e n t i n g
the need for you to change your set-
t i n g s o t h e r t h a n t h e v a l u e d i s p l a y e d .
I n c e r t a i n c a s e s o f p a r t i c u l a r l y a r d u o u s
use (towing the maximum load on a
s t e e p g r a d i e n t i n h o t w e a t h e r ) , s w i t c h -
ing off the air conditioning saves engine
p o w e r a n d t h e r e f o r e i m p r o v e s t h e t o w -
i n g c a p a c i t y .
C l o s e t h e w i n d o w s t o b e n e fi t f r o m t h e
f u l l e f f e c t i v e n e s s o f t h e a i r c o n d i t i o n i n g .
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t -
m e n t fi l t e r i s i n g o o d c o n d i t i o n . H a v e
t h e fi l t e r e l e m e n t s r e p l a c e d p e r i o d i c a l l y .
If you drive in a dusty environment, re-
p l a c e i t t w i c e a s o f t e n .
The air conditioning system does not
contain chlorine and is not harmful to
t h e o z o n e l a y e r .
O p e r a t e t h e a i r c o n d i t i o n i n g s y s t e m f o r
5 to 10 minutes, once or twice a month,
t o k e e p i t i n g o o d w o r k i n g o r d e r .
1. C e n t r a l v e n t s .
2. T e m p e r a t u r e s e n s o r .
3. A i r o u t l e t t o p a s s e n g e r f o o t w e l l s .
4. S i d e v e n t s .
5. Front window demisting/defrosting
v e n t s .
6. Windscreen demisting/defrosting
v e n t s .
7. S u n s h i n e s e n s o r .
Page 32 of 215
2
COMFORT

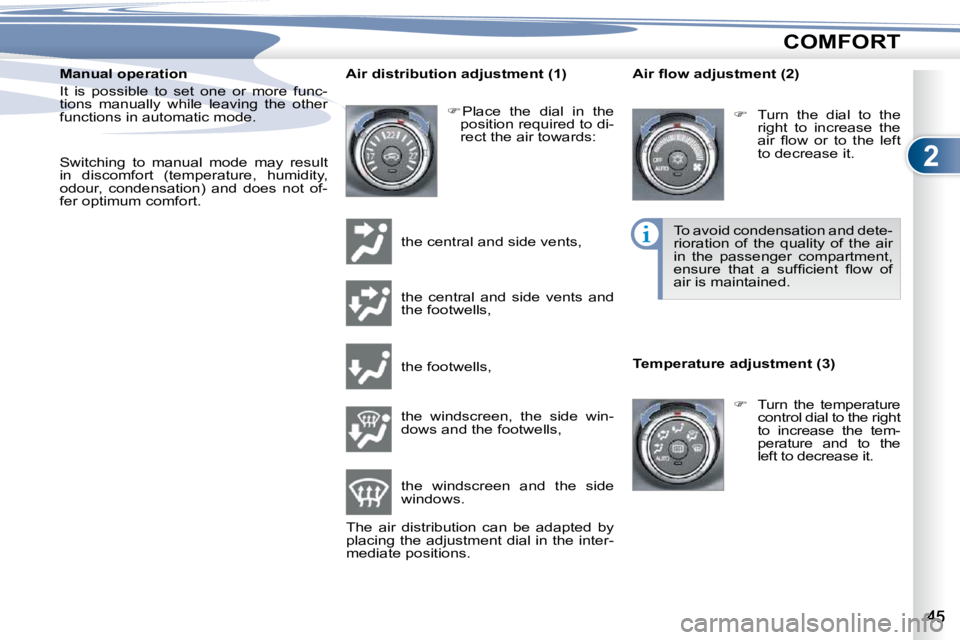

Manual operation
I t i s p o s s i b l e t o s e t o n e o r m o r e f u n c -
tions manually while leaving the other
f u n c t i o n s i n a u t o m a t i c m o d e .
Switching to manual mode may result
i n d i s c o m f o r t ( t e m p e r a t u r e , h u m i d i t y ,
o d o u r , c o n d e n s a t i o n ) a n d d o e s n o t o f -
f e r o p t i m u m c o m f o r t . Air distribution adjustment (1)
A i r fl o w a d j u s t m e n t ( 2 )
Turn the dial to the
right to increase the
a i r fl o w o r t o t h e l e f t
t o d e c r e a s e i t .
Place the dial in the
p o s i t i o n r e q u i r e d t o d i -
rect the air towards:
T u r n t h e t e m p e r a t u r e
control dial to the right
to increase the tem-
p e r a t u r e a n d t o t h e
l e f t t o d e c r e a s e i t .
To avoid condensation and dete-
rioration of the quality of the air
i n t h e p a s s e n g e r c o m p a r t m e n t ,
e n s u r e t h a t a s u f fi c i e n t fl o w o f
a i r i s m a i n t a i n e d .
the central and side vents,
the central and side vents and
the footwells,
the footwells,
the windscreen, the side win-
dows and the footwells,
the windscreen and the side
w i n d o w s .
T h e a i r d i s t r i b u t i o n c a n b e a d a p t e d b y
p l a c i n g t h e a d j u s t m e n t d i a l i n t h e i n t e r -
m e d i a t e p o s i t i o n s . Temperature adjustment (3)
Page 39 of 215
2
COMFORT

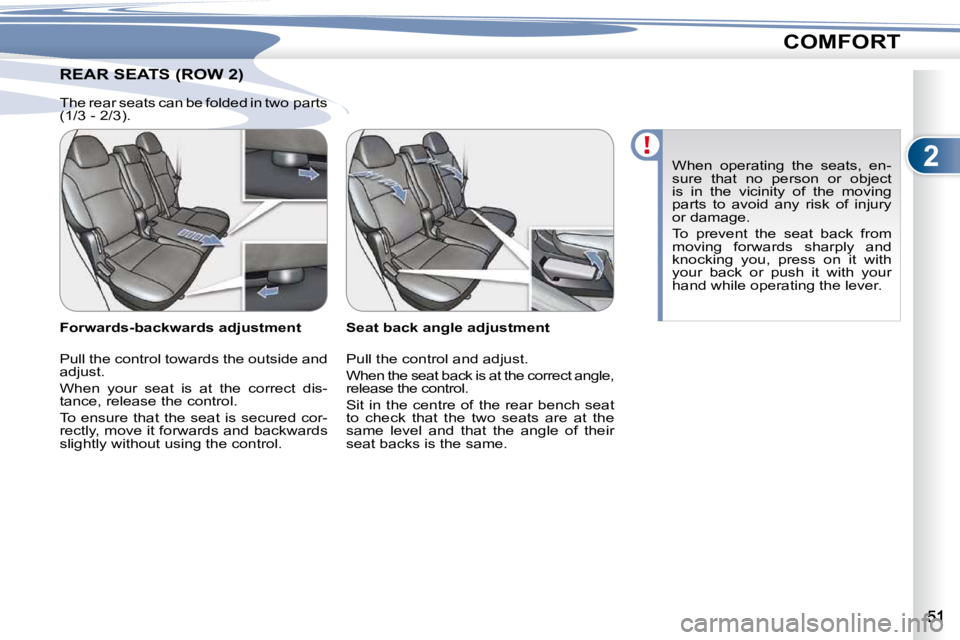

REAR SEATS (ROW 2) REAR SEATS (ROW 2)
Seat back angle adjustment
P u l l t h e c o n t r o l a n d a d j u s t .
When the seat back is at the correct angle,
r e l e a s e t h e c o n t r o l .
Sit in the centre of the rear bench seat
to check that the two seats are at the
same level and that the angle of their
s e a t b a c k s i s t h e s a m e .
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Pull the control towards the outside and
a d j u s t .
When your seat is at the correct dis-
t a n c e , r e l e a s e t h e c o n t r o l .
To ensure that the seat is secured cor-
rectly, move it forwards and backwards
s l i g h t l y w i t h o u t u s i n g t h e c o n t r o l . W h e n o p e r a t i n g t h e s e a t s , e n -
s u r e t h a t n o p e r s o n o r o b j e c t
is in the vicinity of the moving
p a r t s t o a v o i d a n y r i s k o f i n j u r y
o r d a m a g e .
T o p r e v e n t t h e s e a t b a c k f r o m
m o v i n g f o r w a r d s s h a r p l y a n d
k n o c k i n g y o u , p r e s s o n i t w i t h
y o u r b a c k o r p u s h i t w i t h y o u r
h a n d w h i l e o p e r a t i n g t h e l e v e r .
T h e r e a r s e a t s c a n b e f o l d e d i n t w o p a r t s
( 1 / 3 - 2 / 3 ) .
Page 44 of 215
2
COMFORT

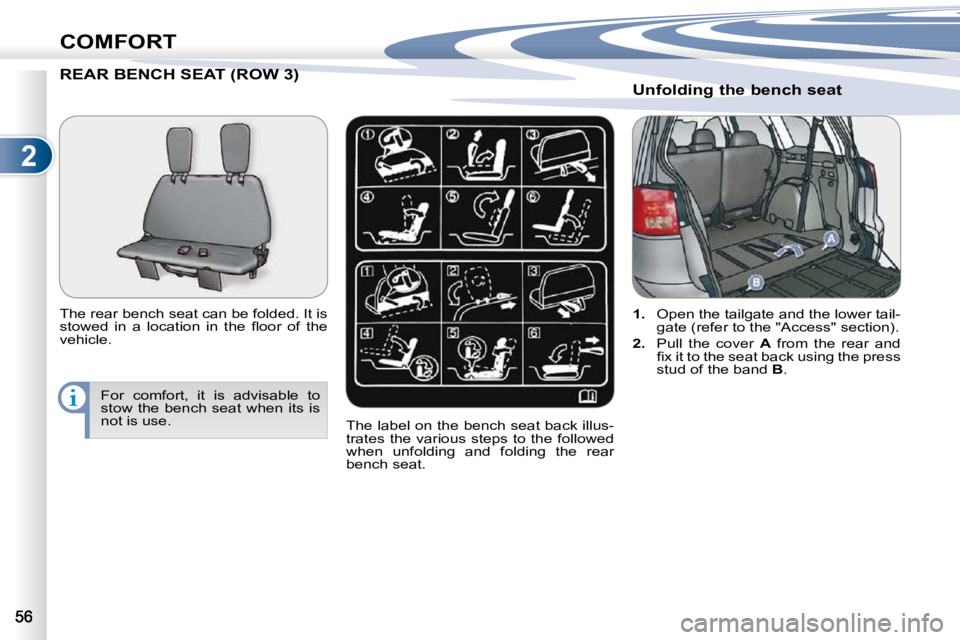

REAR BENCH SEAT (ROW 3) T (ROW 3)
T h e r e a r b e n c h s e a t c a n b e f o l d e d . I t i s
s t o w e d i n a l o c a t i o n i n t h e fl o o r o f t h e
v e h i c l e . The label on the bench seat back illus-
t r a t e s t h e v a r i o u s s t e p s t o t h e f o l l o w e d
when unfolding and folding the rear
b e n c h s e a t .
1. O p e n t h e t a i l g a t e a n d t h e l o w e r t a i l -
g a t e ( r e f e r t o t h e " A c c e s s " s e c t i o n ) .
2. Pull the cover A from the rear and
fi x i t t o t h e s e a t b a c k u s i n g t h e p r e s s
stud of the band B .
Unfolding the bench seat
For comfort, it is advisable to
stow the bench seat when its is
n o t i s u s e .
Page 57 of 215
2
COMFORT

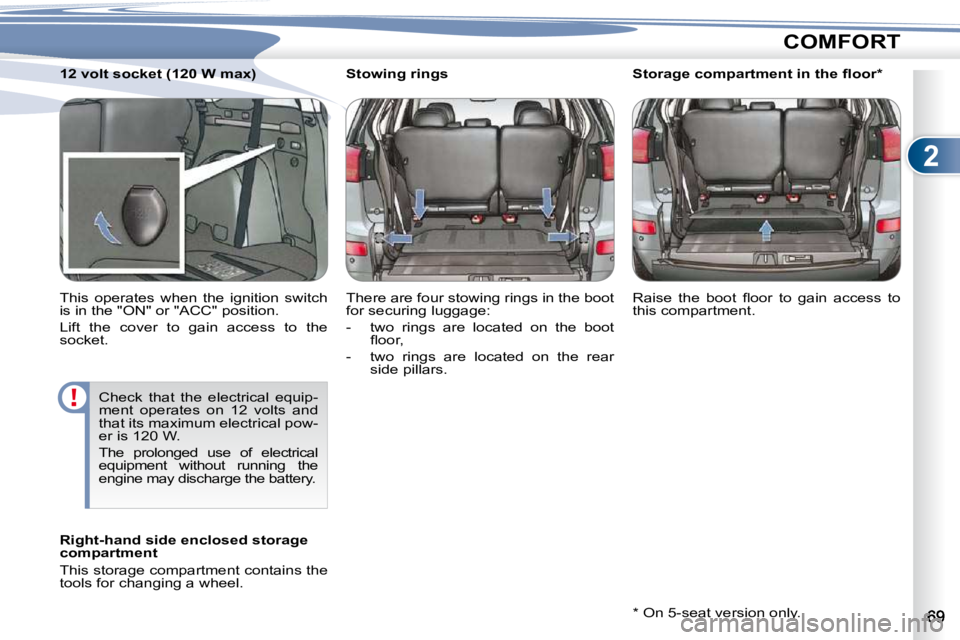

S t o w i n g r i n g s
There are four stowing rings in the boot
for securing luggage:
- two rings are located on the boot
fl o o r ,
- two rings are located on the rear s i d e p i l l a r s .
* O n 5 - s e a t v e r s i o n o n l y .
R a i s e t h e b o o t fl o o r t o g a i n a c c e s s t o
t h i s c o m p a r t m e n t .
R i g h t - h a n d s i d e e n c l o s e d s t o r a g e
compartment
T h i s s t o r a g e c o m p a r t m e n t c o n t a i n s t h e
t o o l s f o r c h a n g i n g a w h e e l . S t o r a g e c o m p a r t m e n t i n t h e fl o o r *
12 volt socket (120 W max)
T h i s o p e r a t e s w h e n t h e i g n i t i o n s w i t c h
i s i n t h e " O N " o r " A C C " p o s i t i o n .
Lift the cover to gain access to the
s o c k e t .
C h e c k t h a t t h e e l e c t r i c a l e q u i p -
m e n t o p e r a t e s o n 1 2 v o l t s a n d
t h a t i t s m a x i m u m e l e c t r i c a l p o w -
e r i s 1 2 0 W .
T h e p r o l o n g e d u s e o f e l e c t r i c a l
e q u i p m e n t w i t h o u t r u n n i n g t h e
e n g i n e m a y d i s c h a r g e t h e b a t t e r y .
Page 58 of 215
2
COMFORT

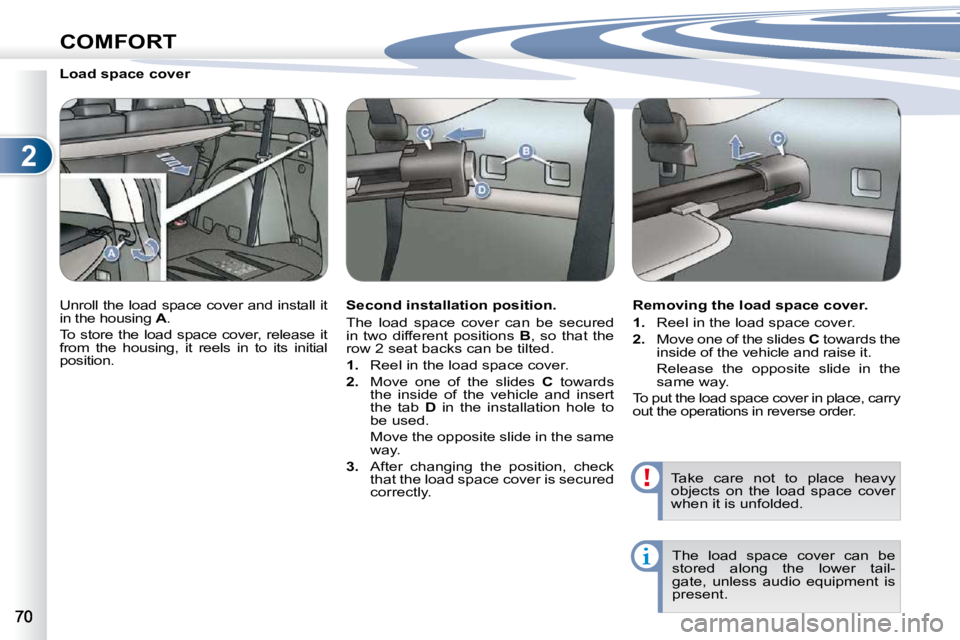

Load space cover
U n r o l l t h e l o a d s p a c e c o v e r a n d i n s t a l l i t
in the housing A .
T o s t o r e t h e l o a d s p a c e c o v e r , r e l e a s e i t
from the housing, it reels in to its initial
p o s i t i o n . Second installation position.
T h e l o a d s p a c e c o v e r c a n b e s e c u r e d
i n t w o d i f f e r e n t p o s i t i o n s
B , so that the
r o w 2 s e a t b a c k s c a n b e t i l t e d .
1. R e e l i n t h e l o a d s p a c e c o v e r .
2. Move one of the slides C towards
the inside of the vehicle and insert
the tab D in the installation hole to
b e u s e d .
M o v e t h e o p p o s i t e s l i d e i n t h e s a m e w a y .
3. A f t e r c h a n g i n g t h e p o s i t i o n , c h e c k
t h a t t h e l o a d s p a c e c o v e r i s s e c u r e d
c o r r e c t l y . Removing the load space cover.
1. R e e l i n t h e l o a d s p a c e c o v e r .
2. Move one of the slides C towards the
i n s i d e o f t h e v e h i c l e a n d r a i s e i t .
R e l e a s e t h e o p p o s i t e s l i d e i n t h e s a m e w a y .
T o p u t t h e l o a d s p a c e c o v e r i n p l a c e , c a r r y
o u t t h e o p e r a t i o n s i n r e v e r s e o r d e r .
T a k e c a r e n o t t o p l a c e h e a v y
o b j e c t s o n t h e l o a d s p a c e c o v e r
w h e n i t i s u n f o l d e d . T h e l o a d s p a c e c o v e r c a n b e
stored along the lower tail-
g a t e , u n l e s s a u d i o e q u i p m e n t i s
p r e s e n t .
Page 94 of 215
6
SAFETY

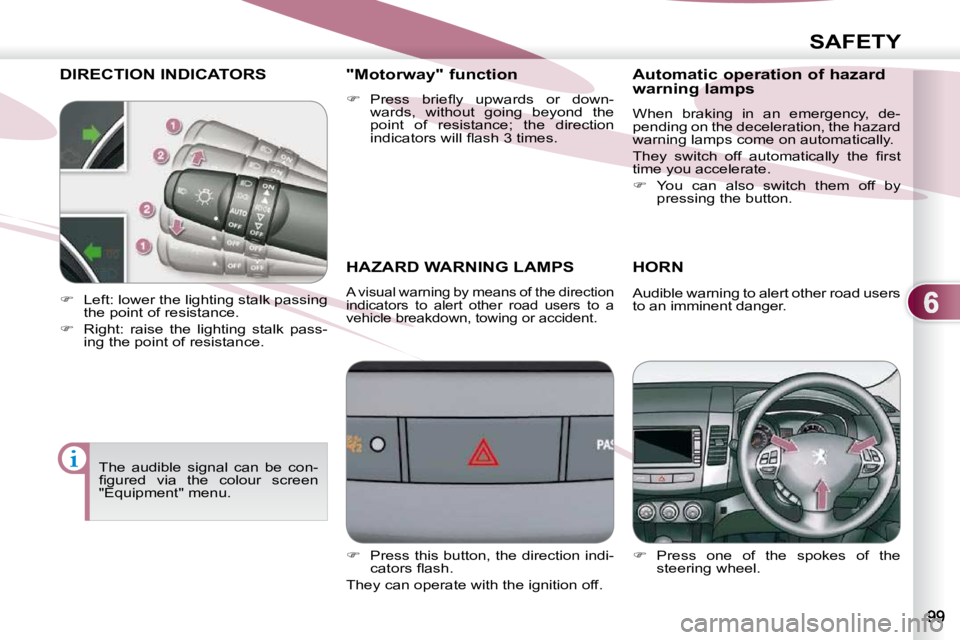

DIRECTION INDICATORS
HAZARD WARNING LAMPS
A visual warning by means of the direction
indicators to alert other road users to a
vehicle breakdown, towing or accident.
HORN
Press one of the spokes of the
steering wheel.
Left: lower the lighting stalk passing
the point of resistance.
Right: raise the lighting stalk pass-
ing the point of resistance. "Motorway" function
P r e s s b r i e fl y u p w a r d s o r d o w n -
wards, without going beyond the
point of resistance; the direction
i n d i c a t o r s w i l l fl a s h 3 t i m e s .
Audible warning to alert other road users
to an imminent danger.
The audible signal can be con-
fi g u r e d v i a t h e c o l o u r s c r e e n
"Equipment" menu.
Press this button, the direction indi-
c a t o r s fl a s h .
They can operate with the ignition off. Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
T h e y s w i t c h o f f a u t o m a t i c a l l y t h e fi r s t
time you accelerate.
You can also switch them off by
pressing the button.
