6
SAFETY

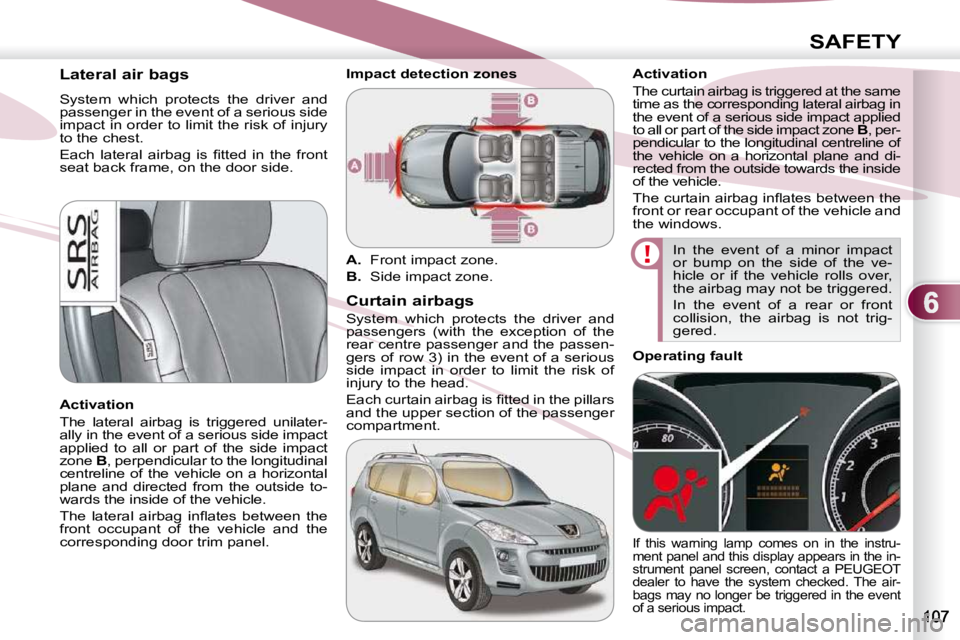

Lateral air bags
System which protects the driver and
passenger in the event of a serious side
impact in order to limit the risk of injury
to the chest.
E a c h l a t e r a l a i r b a g i s fi t t e d i n t h e f r o n t
seat back frame, on the door side.
Activation
The lateral airbag is triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
T h e l a t e r a l a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim panel. Curtain airbags
System which protects the driver and
passengers (with the exception of the
rear centre passenger and the passen-
g e r s o f r o w 3 ) i n t h e e v e n t o f a s e r i o u s
side impact in order to limit the risk of
injury to the head.
E a c h c u r t a i n a i r b a g i s fi t t e d i n t h e p i l l a r s
and the upper section of the passenger
compartment. Activation
The curtain airbag is triggered at the same
time as the corresponding lateral airbag in
the event of a serious side impact applied
to all or part of the side impact zone
B , per-
pendicular to the longitudinal centreline of
the vehicle on a horizontal plane and di-
rected from the outside towards the inside
of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact
or bump on the side of the ve-
hicle or if the vehicle rolls over,
the airbag may not be triggered.
In the event of a rear or front
collision, the airbag is not trig-
gered.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Operating fault
If this warning lamp comes on in the instru-
ment panel and this display appears in the in-
strument panel screen, contact a PEUGEOT
dealer to have the system checked. The air-
bags may no longer be triggered in the event
of a serious impact.
Page 104 of 215
7
DRIVING
When the vehicle is being
driven, the display of this
message indicates that
the parking brake is still on
or has not been properly
released.

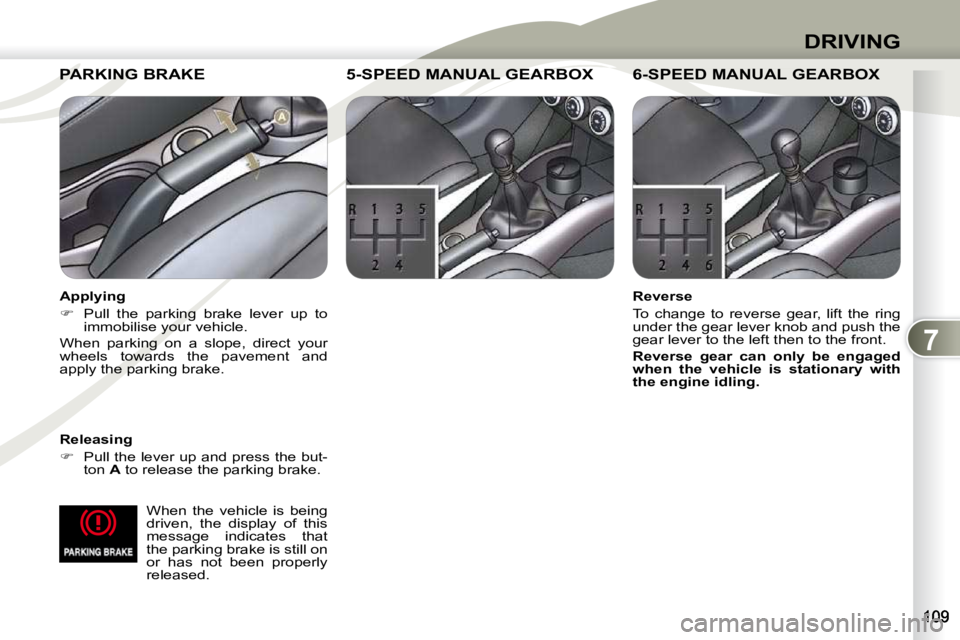

PARKING BRAKE PARKING BRAKE
Releasing
Pull the lever up and press the but-
ton A to release the parking brake.
5-SPEED MANUAL GEARBOX 5-SPEED MANUAL GEARBOX 5-SPEED MANUAL GEARBOX
Reverse
To change to reverse gear, lift the ring
under the gear lever knob and push the
gear lever to the left then to the front.
Reverse gear can only be engaged
when the vehicle is stationary with
the engine idling. Applying
Pull the parking brake lever up to
immobilise your vehicle.
When parking on a slope, direct your
wheels towards the pavement and
apply the parking brake.
6-SPEED MANUAL 6-SPEED MANUAL GEARBOX
Page 112 of 215
7
DRIVING
Operating faults
If the selected transmission mode dis-
p l a y fl a s h e s , t h e v e h i c l e s w i t c h e s a u t o -
matically to front "2WD" transmission
mode.
It is then no longer possible to select the
transmission mode using the control A . Do not subject the vehicle to ex-
cessive conditions while driving.
As the engine torque is applied
to all four wheels, the condition
of the tyres has a considerable
impact on the performance of
the vehicle.
Ensure that all four tyres are in
good condition.
Avoid driving the vehicle in
sandy or muddy areas or in
other areas in which the wheels
could spin.
Spinning the wheels places the
transmission components under
pressure and could cause a se-
rious malfunction.
Do not drive the vehicle through
deep water.
Avoid driving over excessively
uneven terrain (risk of scraping
under the body or of grounding
on crossing a bridge).
Have your vehicle towed on a
fl a t b e d .
The vehicle must not be towed
with the front or rear wheels on
the ground even if it is in front
"2WD" (2 wheel drive) mode.
If the message "SLOW DOWN" is dis-
played on the instrument panel, let the
transmission cool down then wait for the
display to clear before setting off again.
If "4WD" and "LOCK" are displayed
alternately and if "MAINTENANCE
REQUIRED" is displayed on the
instrument panel, the system has
failed and the safety system has been
activated.
Contact a PEUGEOT dealer without
delay.
Page 115 of 215
7
DRIVING
AUDIBLE REAR PARKING
SENSORS
It detects obstacles (person, vehicle,
tree, gate, ...) located behind the vehi-
cle, but it cannot detect obstacles locat-
ed immediately below the bumper. Activation
The parking sensors are activated by
engaging reverse gear.
The proximity information is indicated
by an audible signal which becomes
more frequent as the vehicle approaches
the obstacle.
When a certain distance between the
rear of the vehicle and the obstacle is
reached, the audible signal becomes
continuous:
An object such as a stake, a road
works cone or any other similar
object may be detected at the
beginning of the manoeuvre but
may no longer be detected when
the vehicle moves closer to it.
Location of the sensors
T h e v e h i c l e i s fi t t e d w i t h f o u r s e n s o r s :
- two side sensors
A
- two central sensors B . Vehicle only
V e h i c l e fi t t e d w i t h a t o w b a r
Detection zones
The detection zones differ depending
o n w h e t h e r t h e v e h i c l e i s fi t t e d w i t h a
towbar.
If you select towbar mode, the towbar
zone
C is excluded from the detection
zones.
The parking sensor system can-
not, in any circumstances, take
the place of the need for vigi-
lance and responsibility on the
part of the driver.
Sensors
Distance between
vehicle and
obstacle less than:
Side A Approximately
25 cm
Central B
without towbar Approximately
40 cm
Central B
with towbar Approximately
60 cm
System consisting of proximity sensors
installed in the rear bumper.
Page 116 of 215
7
DRIVING
REVERSING CAMERAREVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour image is provided on the
navigation screen with indication of the
limit of the rear bumper and of the gen-
eral direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor lamp on button
A fl a s h e s w h e n r e -
verse gear is engaged.
Consult a PEUGEOT dealer.
In bad weather or in winter, check
that the sensors are not covered
with mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator lamp goes
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator lamp
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the
system.
Press button A again for a few seconds
and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal:
- double s i g n a l o n v e h i c l e s fi t t e d w i t h
a towbar,
- single signal on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the dis-
tance required to open the lower
tailgate.
Page 117 of 215
7
DRIVING
REVERSING CAMERAREVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour image is provided on the
navigation screen with indication of the
limit of the rear bumper and of the gen-
eral direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor lamp on button
A fl a s h e s w h e n r e -
verse gear is engaged.
Consult a PEUGEOT dealer.
In bad weather or in winter, check
that the sensors are not covered
with mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator lamp goes
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator lamp
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the
system.
Press button A again for a few seconds
and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal:
- double s i g n a l o n v e h i c l e s fi t t e d w i t h
a towbar,
- single signal on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the dis-
tance required to open the lower
tailgate.
Page 118 of 215
8
CHECKS
Bonnet stay
OPENING THE BONNET
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly latched.
From outside: move the safety catch
to the left then raise the bonnet. Secure the stay in its housing to hold
the bonnet open.
Before closing the bonnet, replace the
stay in its clip.
This operation must only be carried out
when the vehicle is stationary.
When the engine is hot, handle the ex-
terior safety catch and the bonnet stay
with care (risk of burns).
From inside: pull the release lever A ,
on the right-hand side below the door,
towards you. I f y o u r u n o u t o f f u e l , fi l l t h e t a n k a n d o p -
erate the starter until the engine starts.
Several attempts may be needed be-
fore the engine re-starts.
Page 124 of 215
8
CHECKS
Manual gearbox Refer to the servicing booklet
for details of gearbox mainte-
nance.
Brake pads Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn. Brake disc wear
For information on checking
brake disc wear, contact a
PEUGEOT dealer.
Parking brake If the parking brake travel is
too long or if you notice a loss
of effectiveness of this sys-
tem, the parking brake must
be adjusted, even between
two services.
This system must be checked by a
PEUGEOT dealer.
Only use products recommended by
PEUGEOT or products of equivalent
q u a l i t y a n d s p e c i fi c a t i o n s . In order to optimise the opera-
tion of units as important as
the braking system, PEUGEOT
s e l e c t s a n d o f f e r s v e r y s p e c i fi c
products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compart-
ment is strictly
prohibited .
Transfer box and rear
differential
Refer to the servicing booklet
for details of the service inter-
