7
DRIVING
REVERSING CAMERAREVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour image is provided on the
navigation screen with indication of the
limit of the rear bumper and of the gen-
eral direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor lamp on button
A fl a s h e s w h e n r e -
verse gear is engaged.
Consult a PEUGEOT dealer.
In bad weather or in winter, check
that the sensors are not covered
with mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator lamp goes
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator lamp
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the
system.
Press button A again for a few seconds
and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal:
- double s i g n a l o n v e h i c l e s fi t t e d w i t h
a towbar,
- single signal on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the dis-
tance required to open the lower
tailgate.
Page 117 of 215
7
DRIVING
REVERSING CAMERAREVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour image is provided on the
navigation screen with indication of the
limit of the rear bumper and of the gen-
eral direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor lamp on button
A fl a s h e s w h e n r e -
verse gear is engaged.
Consult a PEUGEOT dealer.
In bad weather or in winter, check
that the sensors are not covered
with mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator lamp goes
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator lamp
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the
system.
Press button A again for a few seconds
and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal:
- double s i g n a l o n v e h i c l e s fi t t e d w i t h
a towbar,
- single signal on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the dis-
tance required to open the lower
tailgate.
Page 143 of 215
9
PRACTICAL INFORMATION
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Remove the battery and place it in a
ventilated area.
Remove the top-up caps and top
up the level with distilled water if ne-
cessary.
Connect the battery to the charger
observing the instructions for use
provided by the manufacturer and
start charging.
Disconnect the battery from the
charger and let it to cool.
If necessary, top up the level with
distilled water.
Clean the top of the battery care-
fully.
Put the top-up caps back in place.
Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
greenish deposit), remove them
and clean them.
Reconnect the battery starting with
the positive terminal (+). It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t .
Avoid prolonged contact of the
electrolyte with the skin.
M o s t o f t h e s e fl u i d s a r e h a r m f u l
to health and very corrosive. When charging the battery, it is
normal to observe an increase
in temperature and bubbling of
the electrolyte.
Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows, the sunroof, the
doors and the tailgate before disconnect-
ing the battery.
Following reconnection
of the battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if slight
d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w i n g t h i s
operation, contact a PEUGEOT dealer.
Referring to the corresponding section,
you must yourself reinitialise:
- the one-touch electric windows,
- the sunroof,
- the satellite navigation system.
Page 148 of 215
9
PRACTICAL INFORMATION
T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which are
not recommended by PEUGEOT
may result in a failure of your
vehicle's electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n -
ing. You are advised to contact
a your dealer to be shown the
range of recommended equip-
ment and accessories.
ACCESSORIES ACCESSORIES
"Protection": "Touring":
"In-car technology":
"Styling":
"Universal":
* To prevent any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . Depending on the country in
which the vehicle is sold, it is
compulsory to have a high vis-
ibility jacket, warning triangle
and spare bulbs available in the
vehicle.
anti-theft alarm, window etch-
i n g , w h e e l s e c u r i t y b o l t s , fi r s t
aid kit, warning triangle, high
visibility jacket, stolen vehicle
tracking system, anti-skid cov-
e r s , t y r e u n d e r - i n fl a t i o n d e t e c -
tion, rear parking sensors. mats * , boot tray, dog guard,
P V C d o o r s i l l s , c o o l b o x .
For leisure pursuits: roof bars,
bicycle carrier on roof bars,
s k i c a r r i e r , r o o f b o x , b o o s t e r
seats and child seats, side
blinds.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
MP3/USB audio systems,
a u d i o - t e l e p h o n e , a m p l i fi e r s ,
satellite navigation systems,
hands-free kit, speakers, DVD
player, connection kit for MP3
player or portable CD player,
rear parking sensors, alarm. d o o r d e fl e c t o r s , r e a r s t y l i n g
strips, 18 inch alloy wheels,
c h r o m e d e x t e r i o r m i r r o r s h e l l s ,
chromed door handle shells,
diffuser on rear bumper, side
protection mouldings, aluminium
boot sill.
s c r e e n w a s h , i n t e r i o r a n d e x -
terior maintenance and clean-
ing products.
It is advisable to contact a
PEUGEOT dealer before install-
ing accessory radio communica-
t i o n t r a n s m i t t e r s w i t h a n e x t e r n a l
aerial on your vehicle.
The PEUGEOT network will pro-
v i d e t h e s p e c i fi c a t i o n s ( f r e q u e n c y
b a n d , m a x i m u m o u t p u t p o w e r ,
aerial position, special installa-
tion conditions) of the transmitters
w h i c h c a n b e fi t t e d , i n a c c o r d a n c e
with the Motor Vehicle Electro-
magnetic Compatibility Directive
(2004/104/EC).
You can obtain a wide range of
accessories and original parts from the
PEUGEOT network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle
a n d b e n e fi t f r o m P E U G E O T ' s r e c o m -
mendation and warranty.
The product range offered by PEUGEOTAccessories is structured around 5 categories: PROTECTION - TOURING - IN-CAR TECHNOLOGY - STYLING -
UNIVERSAL.
Page 168 of 215
11
AUDIO EQUIPMENT and TELEMATICS
AUDIO: selection of Audio-video
(FM, CD, music server, ...) or
Navigation (map) display.
VOL: adjustment of audio-video
volume. OPEN: tilts the
screen and permits
access to the CD/
DVD. A second press closes the screen. SCALE: changing the scale of the
map.
E N T : c o n fi r m s t h e c h o i c e o f t h e
item selected on the screen.
F o r c e r t a i n o p e r a t i o n s , c o n fi r m a -
tion is given by contact with the
touch screen.
Scrolling the map displayed or
selection of an item.
For safety reasons, the driver
must only carry out opera-
tions which require prolonged
attention with the vehicle sta-
tionary.
AUDIO-TELEMATIC SYSTEM AUDIO-TELEMATIC SYSTEM
Changing the audio-video source
(FM, CD, music server, ...).
Mute on/off.
Next or previous selection for:
- a radio station,
- an audio track (CD),
- a chapter (DVD).
M o v e a fi n g e r o v e r t h e s c r e e n t o o p e r a t e
the system.
Use the buttons offered on the screen.
POWER: audio system on/off
(only).
Setting the audio volume.
Page 170 of 215
11
AUDIO EQUIPMENT and TELEMATICS
NAVIGATION - GUIDANCE NAVIGATION - GUIDANCE
What is the navigation system and
the GPS?
The satellite navigation system guides
the driver to the destination that he has
set in accordance with a chosen route.
Initially, it searches for the destination
required by the user, then it calculates
t h e r o u t e a n d fi n a l l y i t p r o v i d e s t h e v i s u a l
and audible guidance instructions. What precautions should be
observed in order to make best use
of the system?
Do not place anything on or near the
GPS aerial.
Do not use any digital communication
equipment (personal computers, etc.)
near the GPS aerial.
D o n o t a f fi x a n y r e fl e c t i v e fi l m s o r fi l m s
containing carbon to the windows.
The GPS (Global Position-
ing System) consists of
several satellites distributed
around the earth. They con-
tinuously transmit digital sig-
nals which travel at the speed of light,
on 2 different frequencies.
At any given time, the system receives
its position in relation to the satellites
detected and the time of transmission
of the signal.
This enables the telematic unit to cal-
culate its position and therefore that of
the vehicle.
A repositioning process using the map
database stored on the hard disk allows
the vehicle to be positioned on the road
network, so improving the accuracy of
the vehicle location function. What is a point of interest (POI)?
Up to 40 different icons may
be displayed (refer to the
section "Points of interest
icon").
T h e y a r e c l a s s i fi e d i n 5 g r o u p s a n d
i d e n t i fi e d b y o n e c o l o u r f o r e a c h g r o u p :
- S h o p s , fi n a n c e a n d b u s i n e s s e s (Green),
- Vehicles and travel (Dark blue),
- Restaurants (Orange),
- Public places and emergency servi- ces (Brown),
- Entertainment and attractions (Blue).
GPS
The system's measurements may be
inaccurate if the vehicle is:
- in a tunnel or underground car park,
- underneath a two-level motorway,
- in an area with several very high buildings,
- surrounded by closely planted trees.
Depending on the vehicle's situation
and the reception of the GPS informa-
tion, the displayed information may dis-
appear from the screen temporarily. A point of interest (POI) is
represented by an icon on
the map, it represents an
airport, a station, a town
hall, ...
Page 179 of 215

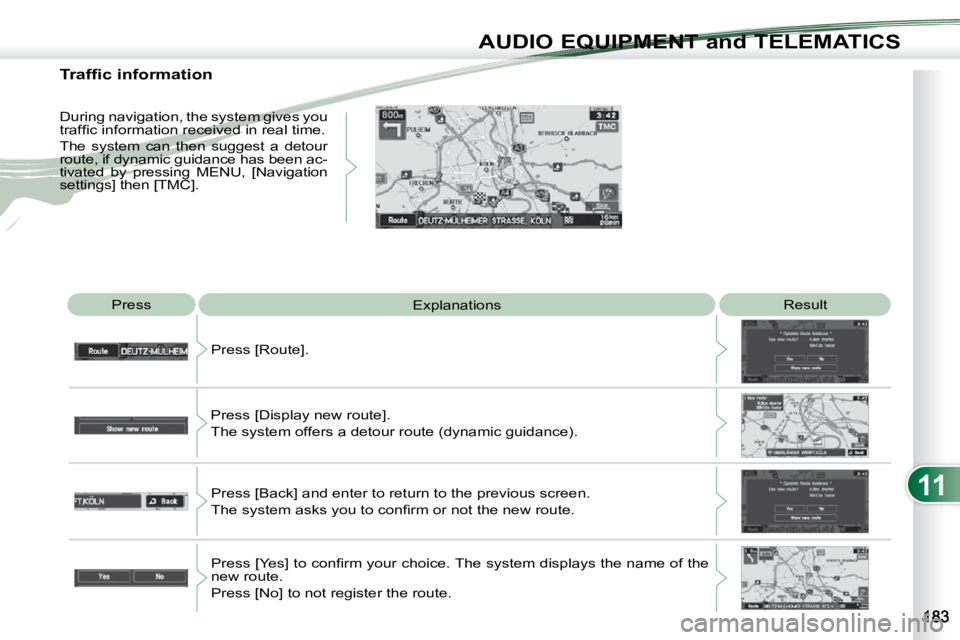

![PEUGEOT 4007 2010 Owners Manual 11
AUDIO EQUIPMENT and TELEMATICS
Press Explanations Result
Press [Route].
Press [Display new route].
The system offers a detour route (dynamic guidance). Press [Back] and enter to return](/manual-img/29/58327/w960_58327-178.png "PEUGEOT 4007 2010 Owners Manual 11
AUDIO EQUIPMENT and TELEMATICS
Press Explanations Result
Press [Route].
Press [Display new route].
The system offers a detour route (dynamic guidance). Press [Back] and enter to return")
11
AUDIO EQUIPMENT and TELEMATICS
Press Explanations Result
Press [Route].
Press [Display new route].
The system offers a detour route (dynamic guidance). Press [Back] and enter to return to the previous screen.
T h e s y s t e m a s k s y o u t o c o n fi r m o r n o t t h e n e w r o u t e .
P r e s s [ Y e s ] t o c o n fi r m y o u r c h o i c e . T h e s y s t e m d i s p l a y s t h e n a m e o f t h e
new route.
Press [No] to not register the route.
Traffic information
During navigation, the system gives you
t r a f fi c i n f o r m a t i o n r e c e i v e d i n r e a l t i m e .
The system can then suggest a detour
route, if dynamic guidance has been ac-
tivated by pressing MENU, [Navigation
settings] then [TMC].
Page 184 of 215
11
AUDIO EQUIPMENT and TELEMATICS
CD player
Your Audio-Telematic system allows you
to listen to audio CDs (CDDA, CD-Text,
CD-R/RW) or MP3 and WMA CDs.
Playing an audio CD When the audio CD is
inserted in the player,
playing of the tracks is
automatic and they can
be recorded onto the
hard disk.
Simultaneous access to the music rec-
ognition service "Gracenote CDDB" on
the hard disk permits display of the title
information. Switching off the engine or removing
the CD during recording will result in
the tracks being faulty.
The operation of the navigation system
may slow down during recording.
The recording speed may be slower
than 4x due to the processing load on
the equipment or the condition of the
audio CD.
If jumps or other errors occur, return to
the beginning of the track and start the
recording again.
Even if there is no gap between the
tracks on the CD, a brief silence be-
tween tracks is stored on the hard disk.
What is the Gracenote CDDB?
Copyright
Your Audio equipment may allow you
to listen to music which is usually pro-
tected by copyright in accordance with
current national and international stand-
ards. Please consult these standards
and comply with them.
Recording onto the music server
The tracks of audio CDs (not
MP3/WMA) can be recorded
onto the hard disk at approximately
4x speed (e.g.: 60 minutes converted
to 15 minutes) and stored on the music
server.
The sounds recorded may be altered
by the noise present and the quality of
the sound may differ from the original.
The tracks recorded on the music server
cannot be reproduced on another me-
dium (CD-R/RW, HDD, etc...).
Previously recorded tracks cannot be
recorded again from the same CD. The title information for the
track currently being played
can be obtained from the
"Gracenote CDDB" database
stored on the hard disk.
The Gracenote company uses this
standard to identify the music and the
associated information such as:
- the title of the album,
- the name of the artist,
- the title of the tracks,
- the genre, ...
For further details, consult the site:
www.gracenote.com.
The Gracenote CDDB database incor-
porated in this equipment cannot guar-
antee the content of the data 100 %.
You can update this database using a
DVD sold separately.
