1
INSTRUMENTS and CONTROLS
Warning

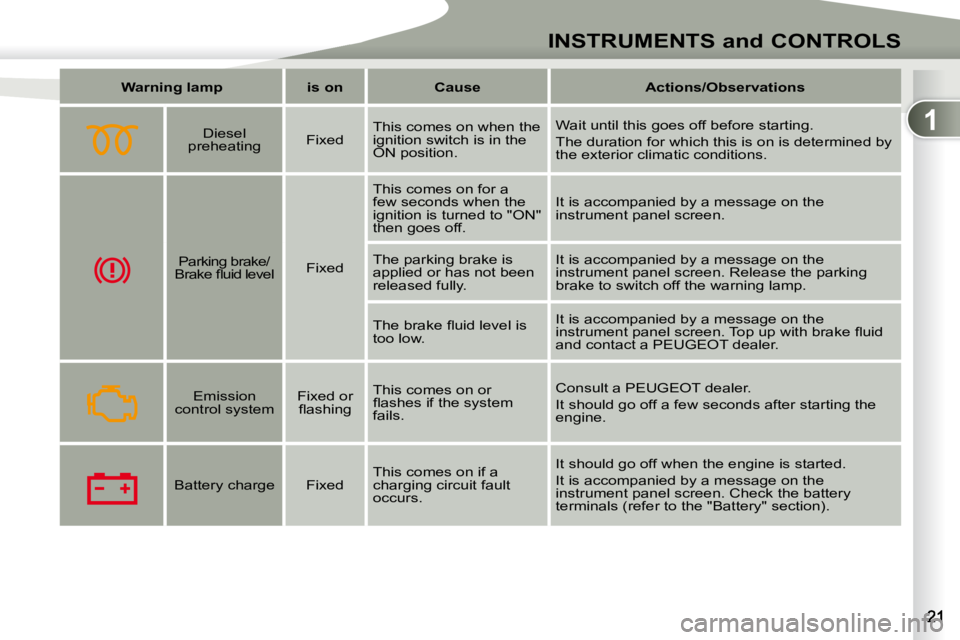

lamp is on Cause Actions/Observations
Diesel
preheating Fixed This comes on when the
ignition switch is in the
ON position. Wait until this goes off before starting.
The duration for which this is on is determined by
the exterior climatic conditions.
Parking brake/
B r a k e fl u i d l e v e l Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then goes off.
It is accompanied by a message on the
instrument panel screen.
The parking brake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel screen. Release the parking
brake to switch off the warning lamp.
T h e b r a k e fl u i d l e v e l i s
too low. It is accompanied by a message on the
i n s t r u m e n t p a n e l s c r e e n . T o p u p w i t h b r a k e fl u i d
and contact a PEUGEOT dealer.
Emission
control system Fixed or
fl a s h i n g This comes on or
fl a s h e s i f t h e s y s t e m
fails. Consult a PEUGEOT dealer.
It should go off a few seconds after starting the
engine.
Battery charge Fixed
This comes on if a
charging circuit fault
occurs. It should go off when the engine is started.
It is accompanied by a message on the
instrument panel screen. Check the battery
terminals (refer to the "Battery" section).
Page 4 of 215
1
INSTRUMENTS and CONTROLS

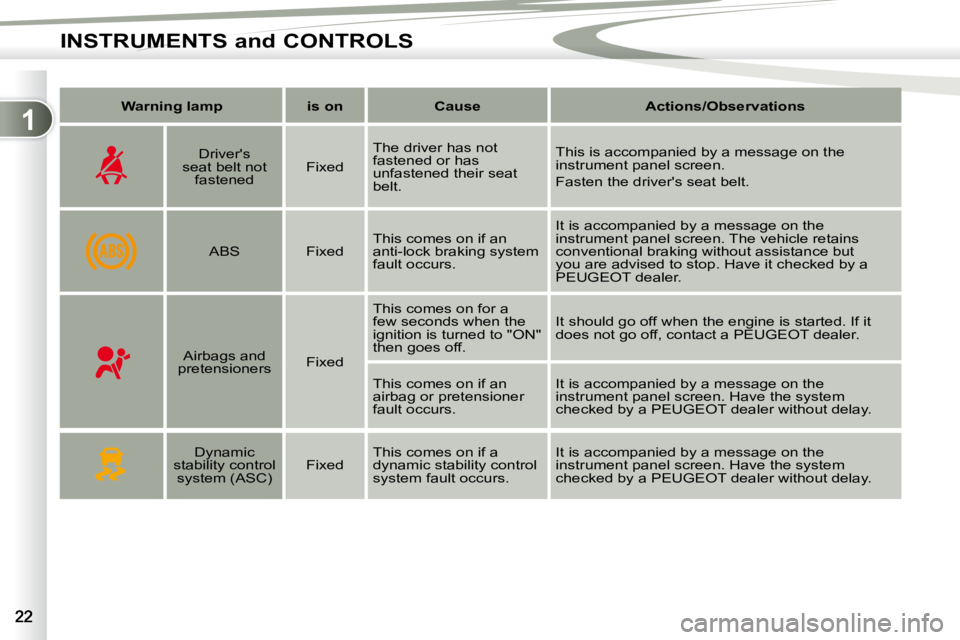

Warning
lamp is on Cause Actions/Observations
Driver's
seat belt not fastened Fixed The driver has not
fastened or has
unfastened their seat
belt. This is accompanied by a message on the
instrument panel screen.
Fasten the driver's seat belt.
ABS Fixed
This comes on if an
anti-lock braking system
fault occurs. It is accompanied by a message on the
instrument panel screen. The vehicle retains
conventional braking without assistance but
you are advised to stop. Have it checked by a
PEUGEOT dealer.
Airbags and
pretensioners Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then goes off.
It should go off when the engine is started. If it
d o e s n o t g o o f f , c o n t a c t a P E U G E O T d e a l e r .
This comes on if an
airbag or pretensioner
fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer without delay.
Dynamic
stability control system (ASC) Fixed This comes on if a
dynamic stability control
system fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer without delay.
Page 7 of 215
1
!
INSTRUMENTS and CONTROLS

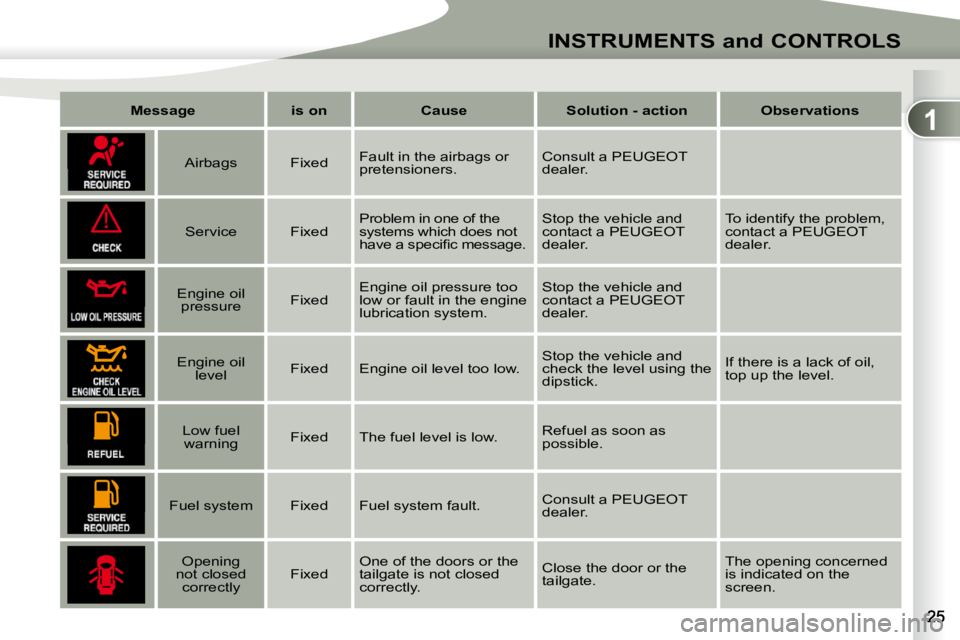

Message is on Cause Solution - action Observations
Airbags Fixed Fault in the airbags or
pretensioners. Consult a PEUGEOT
dealer.
Service Fixed Problem in one of the
systems which does not
h a v e a s p e c i fi c m e s s a g e . Stop the vehicle and
contact a PEUGEOT
dealer. T o i d e n t i f y t h e p r o b l e m ,
contact a PEUGEOT
dealer.
Engine oil
pressure Fixed Engine oil pressure too
low or fault in the engine
lubrication system. Stop the vehicle and
contact a PEUGEOT
dealer.
Engine oil level Fixed Engine oil level too low. Stop the vehicle and
check the level using the
dipstick. I f t h e r e i s a l a c k o f o i l ,
top up the level.
Low fuel
warning Fixed The fuel level is low. Refuel as soon as
possible.
Fuel system Fixed Fuel system fault. Consult a PEUGEOT
dealer.
Opening
not closed correctly Fixed One of the doors or the
tailgate is not closed
correctly. Close the door or the
tailgate. The opening concerned
is indicated on the
screen.
Page 29 of 215
2
COMFORT
For even air distribution, take care not
to obstruct the exterior air intake grille
located at the bottom of the windscreen,
the vents, the air outlets under the front
seats and the air extractor located be-
h i n d t h e fl a p s i n t h e b o o t . The water formed by the air conditioning
c o n d e n s a t i o n i s d i s c h a r g e d v i a a n o p e n -
i n g p r o v i d e d f o r t h i s p u r p o s e . T h e r e f o r e ,
a p u d d l e o f w a t e r m a y f o r m u n d e r n e a t h
t h e v e h i c l e w h e n s t a t i o n a r y .
I f t h e s y s t e m d o e s n o t p r o d u c e c o l d a i r ,
do not use it and have it checked by a
P E U G E O T d e a l e r . AUTOMATIC REGULATION OF TIC REGULATION OF
THE AIR CONDITIONING
D o n o t c o v e r t h e t e m p e r a t u r e a n d h u m i d i t y
sensor
2 and the sunshine sensor 7 .
They are required for regulation of the
a i r c o n d i t i o n i n g .
Advice on operation
In hot weather, in order to obtain
intense ventilation, it is advis-
able to use vents 1 and 4 o n l y .
If, when the vehicle has been
p a r k e d i n t h e s u n f o r a l o n g t i m e ,
t h e i n t e r i o r t e m p e r a t u r e r e m a i n s
v e r y h i g h , fi r s t v e n t i l a t e t h e p a s -
s e n g e r c o m p a r t m e n t f o r a f e w
m i n u t e s . Switch off the air conditioning
when the climatic conditions
p e r m i t .
Use of the automatic regulation of the
a i r c o n d i t i o n i n g i s r e c o m m e n d e d . I t p e r -
m i t s a u t o m a t i c a n d o p t i m i s e d c o n t r o l o f
a l l o f t h e f o l l o w i n g f u n c t i o n s : a i r fl o w ,
p a s s e n g e r c o m p a r t m e n t t e m p e r a t u r e
and air distribution, by means of various
s e n s o r s ( a m b i e n t t e m p e r a t u r e , i n t e r i o r
t e m p e r a t u r e , s u n s h i n e ) , s o p r e v e n t i n g
the need for you to change your set-
t i n g s o t h e r t h a n t h e v a l u e d i s p l a y e d .
I n c e r t a i n c a s e s o f p a r t i c u l a r l y a r d u o u s
use (towing the maximum load on a
s t e e p g r a d i e n t i n h o t w e a t h e r ) , s w i t c h -
ing off the air conditioning saves engine
p o w e r a n d t h e r e f o r e i m p r o v e s t h e t o w -
i n g c a p a c i t y .
C l o s e t h e w i n d o w s t o b e n e fi t f r o m t h e
f u l l e f f e c t i v e n e s s o f t h e a i r c o n d i t i o n i n g .
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t -
m e n t fi l t e r i s i n g o o d c o n d i t i o n . H a v e
t h e fi l t e r e l e m e n t s r e p l a c e d p e r i o d i c a l l y .
If you drive in a dusty environment, re-
p l a c e i t t w i c e a s o f t e n .
The air conditioning system does not
contain chlorine and is not harmful to
t h e o z o n e l a y e r .
O p e r a t e t h e a i r c o n d i t i o n i n g s y s t e m f o r
5 to 10 minutes, once or twice a month,
t o k e e p i t i n g o o d w o r k i n g o r d e r .
1. C e n t r a l v e n t s .
2. T e m p e r a t u r e s e n s o r .
3. A i r o u t l e t t o p a s s e n g e r f o o t w e l l s .
4. S i d e v e n t s .
5. Front window demisting/defrosting
v e n t s .
6. Windscreen demisting/defrosting
v e n t s .
7. S u n s h i n e s e n s o r .
Page 38 of 215
2
COMFORT

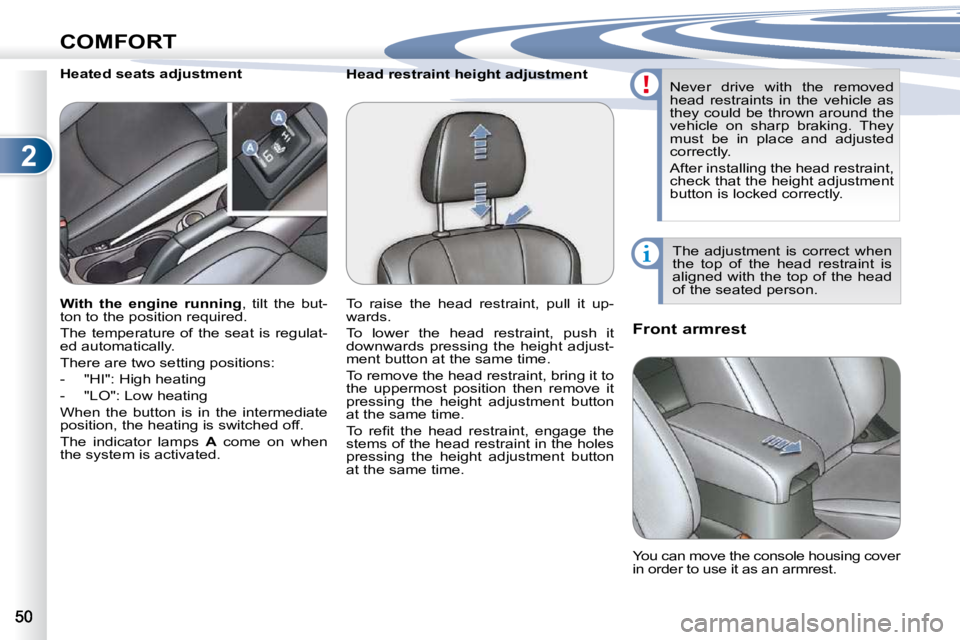

Head restraint height adjustment Front armrest
Heated seats adjustment
The adjustment is correct when
t h e t o p o f t h e h e a d r e s t r a i n t i s
a l i g n e d w i t h t h e t o p o f t h e h e a d
o f t h e s e a t e d p e r s o n .
N e v e r d r i v e w i t h t h e r e m o v e d
head restraints in the vehicle as
they could be thrown around the
v e h i c l e o n s h a r p b r a k i n g . T h e y
m u s t b e i n p l a c e a n d a d j u s t e d
c o r r e c t l y .
After installing the head restraint,
check that the height adjustment
b u t t o n i s l o c k e d c o r r e c t l y .
You can move the console housing cover
i n o r d e r t o u s e i t a s a n a r m r e s t .
With the engine running , tilt the but-
t o n t o t h e p o s i t i o n r e q u i r e d .
T h e t e m p e r a t u r e o f t h e s e a t i s r e g u l a t -
e d a u t o m a t i c a l l y .
T h e r e a r e t w o s e t t i n g p o s i t i o n s :
- " H I " : H i g h h e a t i n g
- "LO": Low heating
When the button is in the intermediate
p o s i t i o n , t h e h e a t i n g i s s w i t c h e d o f f .
T h e i n d i c a t o r l a m p s A come on when
t h e s y s t e m i s a c t i v a t e d . T o r a i s e t h e h e a d r e s t r a i n t , p u l l i t u p -
w a r d s .
T o l o w e r t h e h e a d r e s t r a i n t , p u s h i t
d o w n w a r d s p r e s s i n g t h e h e i g h t a d j u s t -
m e n t b u t t o n a t t h e s a m e t i m e .
To remove the head restraint, bring it to
t h e u p p e r m o s t p o s i t i o n t h e n r e m o v e i t
p r e s s i n g t h e h e i g h t a d j u s t m e n t b u t t o n
a t t h e s a m e t i m e .
T o r e fi t t h e h e a d r e s t r a i n t , e n g a g e t h e
stems of the head restraint in the holes
p r e s s i n g t h e h e i g h t a d j u s t m e n t b u t t o n
a t t h e s a m e t i m e .
Page 96 of 215
6
SAFETY
The ASC/TCL systems offer
exceptional safety in normal driv-
ing, but this should not encourage
the driver to take extra risks or
drive at high speed.
The correct functioning of these
systems depends on observa-
tion of the manufacturer's rec-
ommendations regarding the
wheels (tyres and rims), the
braking components, the elec-
tronic components and the as-
sembly and repair procedures
used by PEUGEOT dealers.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer.
Deactivation
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
better to deactivate the ASC system, so
that the wheels can move freely and re-
gain grip.
Press the "ASC OFF" button, located
to the right of the steering wheel, until
the ASC OFF symbol appears in the
instrument panel screen.
The display of this symbol in the top
right corner of the instrument panel
screen indicates that the ASC and TCL
systems are deactivated. Reactivation
These systems are not reactivated au-
t o m a t i c a l l y a b o v e 3 0 m p h ( 5 0 k m / h ) .
Press the "ASC OFF" button again
to reactivate them manually.
Switching off of the symbol in the top
right corner of the instrument panel
screen indicates the reactivation of the
ASC and TCL systems.
Operating fault
The display of this mes-
sage in the instrument
panel screen indicates a
malfunction of these sys-
tems.
Contact a PEUGEOT dealer to have
the ASC/TCL systems checked.
SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
They operate when the vehicle speed is
h i g h e r t h a n 1 0 m p h ( 1 5 k m / h ) .
Traction control and automatic
stability control
Traction control optimises traction to
prevent wheel spin, by acting on the
brakes of the driving wheels and on the
engine.
Automatic stability control acts on the
brake of one or more wheels and on the
engine to keep the vehicle on the tra-
jectory required by the driver.
They come into operation in
the event of a grip or trajectory
problem.
T h i s i s i n d i c a t e d b y fl a s h i n g
of this symbol on the instrument panel
screen.
Associated systems which guarantee
the directional stability of the vehicle
within the limits of the laws of physics:
- traction control (TCL),
- automatic stability control (ASC).
Page 118 of 215
8
CHECKS

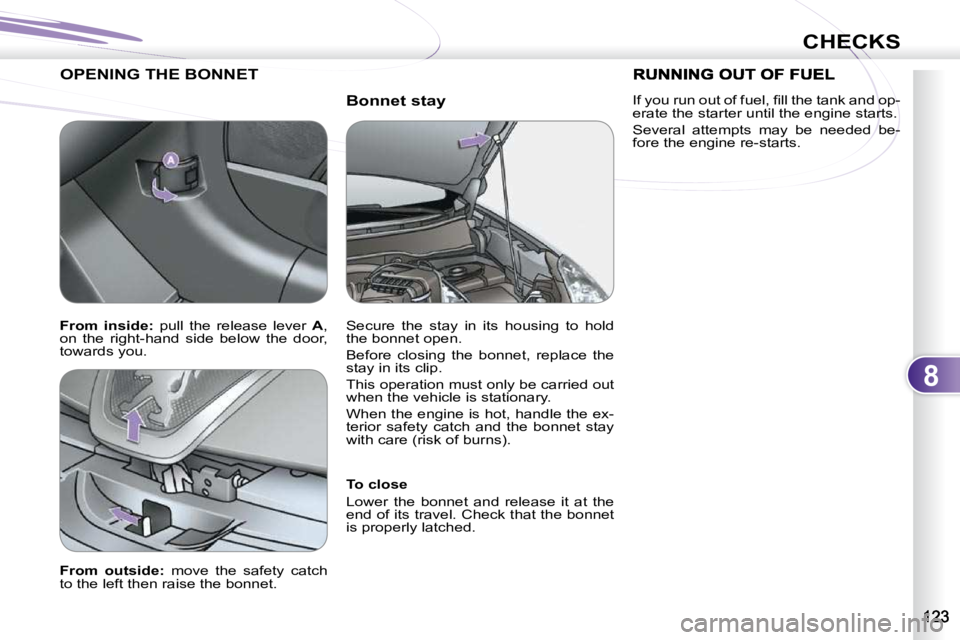

Bonnet stay
OPENING THE BONNET
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly latched.
From outside: move the safety catch
to the left then raise the bonnet. Secure the stay in its housing to hold
the bonnet open.
Before closing the bonnet, replace the
stay in its clip.
This operation must only be carried out
when the vehicle is stationary.
When the engine is hot, handle the ex-
terior safety catch and the bonnet stay
with care (risk of burns).
From inside: pull the release lever A ,
on the right-hand side below the door,
towards you. I f y o u r u n o u t o f f u e l , fi l l t h e t a n k a n d o p -
erate the starter until the engine starts.
Several attempts may be needed be-
fore the engine re-starts.
Page 119 of 215
8
CHECKS
PETROL ENGINE PETROL ENGINE
1. Screenwash and headlamp wash
reservoir.
2. Coolant reservoir.
3. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
4. B r a k e fl u i d r e s e r v o i r .
5. Fusebox.
6. Battery.
7. CVT gearbox dipstick.
8. Radiator cap.
9. Engine oil dipstick.
10. E n g i n e o i l fi l l e r c a p .
11. A i r fi l t e r .
A c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s a n d t h e r e p l a
c e m e n t o f c e r t a i n c o m p o n e n t s .
