2010 PEUGEOT 4007 audio
[x] Cancel search: audioPage 21 of 215
1
INSTRUMENTS and CONTROLS
MONOCHROME SCREEN MONOCHROME SCREEN
This provides the following information:
- t h e t i m e ,
- audio system information (refer to the "Audio and Telematics" section). Setting the time
The digital clock can be set in
auto-
matic mode or in manual mode . Selecting the Setting
Select the
automatic mode or the
manual mode as follows:
Press button A "PWR" to switch on
the audio system.
Access the setting mode by pressing
button B "TUNE" for approximately
2 seconds.
Press button B "TUNE" several
times to scroll through the various
menus and select the CT menu
(clock time).
The order of the menus is the
following: AF/CT/REG/TP-S/PTY
display language/SCV/PHONE/
Functions setting mode OFF.
Automatic mode
This mode permits automatic setting
of the local time using the signal from
RDS stations.
The symbol
"CT" appears on the
screen.
Manual mode
This mode permits manual setting of
t h e t i m e u s i n g t h e a u d i o e q u i p m e n t
buttons.
It can also be used when the "Automatic
m o d e " d i s p l a y s a n i n a c c u r a t e t i m e , w h e n
the local RDS stations are broadcasting
from a different time zone.
Page 23 of 215
1
INSTRUMENTS and CONTROLS
COLOUR SCREEN COLOUR SCREEN
This permits display of the following
main menus: O n t h e c o n t r o l p a n e l , p r e s s b u t t o n
B
(SET) to access the "Settings" screen
and select:
- " D i s p l a y
O f f
" to switch off the dis-
p l a y ,
- "Sound control" for the sound dis-
t r i b u t i o n o r v o l u m e , t h e t y p e o f m u -
s i c a n d t h e s o u n d fi e l d ( s u r r o u n d ) ,
- "Picture control" t o s e t t h e c o l o u r ,
t h e i n t e n s i t y , t h e b r i g h t n e s s , t h e
c o n t r a s t a n d t h e l e v e l o f b l a c k ,
- " S y s t e m " t o c h a n g e t h e t i m e z o n e ,
t h e l a n g u a g e , t h e u n i t s a n d o t h e r
s e t t i n g s ,
- "Wide Screen" to change the size
o f t h e D V D p i c t u r e t o 4 / 3 f o r m a t ,
w i d e s c r e e n m o d e , c e n t r e d w i d e
s c r e e n m o d e o r e n l a r g e m e n t ,
- "Equipment" t o s e t c e r t a i n e q u i p -
m e n t o f f e r e d i n t h e v e h i c l e ,
- "
Colour
Contrast" to select the
contrast of the display in relation
t o t h e a m b i e n t l i g h t ( D a y , N i g h t o r
A u t o ) ,
- " T P s t a n d b y " to activate or deacti-
v a t e t h e t r a f fi c i n f o r m a t i o n .
"Audio-video" menu
"Navigation-guidance" menu
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n A
(MODE) to access the "AV mode"
screen and select:
- r a d i o ( F M , M W , L W ) ,
- C D ( a u d i o , M P 3 o r W M A ) ,
- M u s i c S e r v e r ,
- DVD. "Settings" menu
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n C
(MENU) to access the "Menu" screen
and select:
- "Address/Junction" to search for
a location using the address or the
n a m e o f t h e s t r e e t ,
- "POI name" to search for a location
using the name of a point of interest
( P O I ) ,
- "Advanced search" to search for a
location using an advanced search
b a s e d o n a P O I ,
- "
Previous
20
" to search for a loca-
tion using one of the 20 previous
d e s t i n a t i o n s ,
- "Address book" to search for a loca-
t i o n u s i n g a s t o r e d a d d r e s s ,
- "
Go home
" to navigate to your
h o m e a d d r e s s ,
- "Navigation settings" to set func-
t i o n s l i n k e d w i t h t h e n a v i g a t i o n ,
-
"Navigation tools" to access the basic
information or a pre-set demonstration.
The "CD" and "DVD" buttons
are active if you insert a CD or
DVD in the player.
Page 138 of 215
9
PRACTICAL INFORMATION
Dashboard fuses
T h e f u s e b o x e s a r e p l a c e d i n t h e l o w e r
d a s h b o a r d b e h i n d t h e g l o v e b o x .
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions
1 * 30 A Heating.
2 15 A Brake lamps, third brake lamp, built-in systems
interface.
3 10 A Rear foglamps.
4 30 A Windscreen wipers and screenwash.
5 10 A Diagnostic socket.
6 20 A Central locking, door mirrors.
7 15 A Audio system, telematics, multifunction screen,
hands-free kit.
8 7.5 A Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.
9 15 A Multifunction screen, instrument panel.
10 15 A Built-in systems interface.
11 15 A Rear wiper.
12 7.5 A Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13 - Not used.
14 10 A Ignition switch.
15 20 A Sunroof.
16 10 A Door mirrors, audio system, telematics.
Page 141 of 215
9
PRACTICAL INFORMATION
Spare fuses
The spare fuses are located under the engine compartment
f u s e b o x c o v e r . The cover does not contain spare fuses with an am-
perage of 7.5 A, 25 A or 30 A. If one of the fuses with
these amperages develops a fault, replace it with the
following fuse:
A 7.5 A fuse must be replaced with the 10 A spare
fuse , a 25 A fuse with a 20 A spare fuse and a 30 A
fuse with the audio system fuse (N° 31) .
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t
r i c a l s y s t e m s . A l l w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d
out by a PEUGEOT dealer.
Fuse N° Rating
Functions
22 20 A E n g i n e c o n t r o l u n i t , w a t e r i n D i e s e l d e t e c t o r , i n j e c t i o n
p u m p ( D i e s e l ) , a i r fl o w s e n s o r , w a t e r
p r e s e n c e s e n s o r s , o x y g e n s e n s o r , c a m s h a f t p o s i t i o n s e n s o r , c a n i s t e r p u r g e e l e c t r o v a l v e ,
vehicle speed sensor, variable timing (VTC) electrovalve, EGR electro valve.
23 15 A Petrol pump, fuel gauge.
24 * 30 A Starter.
25 - Not used.
26 * 40 A ABS control unit, ASC control unit.
27* 30 A ABS control unit, ASC control unit.
28 * 30 A Condenser fan.
29 * 40 A Radiator fan.
30 30 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
31 30 A A u d i o a m p l i fi e r .
32 30 A Diesel engine control unit.
Fuse N° Rating
33 10 A
34 15 A
35 20 A
Page 148 of 215
9
PRACTICAL INFORMATION
T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which are
not recommended by PEUGEOT
may result in a failure of your
vehicle's electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n -
ing. You are advised to contact
a your dealer to be shown the
range of recommended equip-
ment and accessories.
ACCESSORIES ACCESSORIES
"Protection": "Touring":
"In-car technology":
"Styling":
"Universal":
* To prevent any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . Depending on the country in
which the vehicle is sold, it is
compulsory to have a high vis-
ibility jacket, warning triangle
and spare bulbs available in the
vehicle.
anti-theft alarm, window etch-
i n g , w h e e l s e c u r i t y b o l t s , fi r s t
aid kit, warning triangle, high
visibility jacket, stolen vehicle
tracking system, anti-skid cov-
e r s , t y r e u n d e r - i n fl a t i o n d e t e c -
tion, rear parking sensors. mats * , boot tray, dog guard,
P V C d o o r s i l l s , c o o l b o x .
For leisure pursuits: roof bars,
bicycle carrier on roof bars,
s k i c a r r i e r , r o o f b o x , b o o s t e r
seats and child seats, side
blinds.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
MP3/USB audio systems,
a u d i o - t e l e p h o n e , a m p l i fi e r s ,
satellite navigation systems,
hands-free kit, speakers, DVD
player, connection kit for MP3
player or portable CD player,
rear parking sensors, alarm. d o o r d e fl e c t o r s , r e a r s t y l i n g
strips, 18 inch alloy wheels,
c h r o m e d e x t e r i o r m i r r o r s h e l l s ,
chromed door handle shells,
diffuser on rear bumper, side
protection mouldings, aluminium
boot sill.
s c r e e n w a s h , i n t e r i o r a n d e x -
terior maintenance and clean-
ing products.
It is advisable to contact a
PEUGEOT dealer before install-
ing accessory radio communica-
t i o n t r a n s m i t t e r s w i t h a n e x t e r n a l
aerial on your vehicle.
The PEUGEOT network will pro-
v i d e t h e s p e c i fi c a t i o n s ( f r e q u e n c y
b a n d , m a x i m u m o u t p u t p o w e r ,
aerial position, special installa-
tion conditions) of the transmitters
w h i c h c a n b e fi t t e d , i n a c c o r d a n c e
with the Motor Vehicle Electro-
magnetic Compatibility Directive
(2004/104/EC).
You can obtain a wide range of
accessories and original parts from the
PEUGEOT network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle
a n d b e n e fi t f r o m P E U G E O T ' s r e c o m -
mendation and warranty.
The product range offered by PEUGEOTAccessories is structured around 5 categories: PROTECTION - TOURING - IN-CAR TECHNOLOGY - STYLING -
UNIVERSAL.
Page 153 of 215
11
AUDIO EQUIPMENT and TELEMATICS
Audio
system
On/Off.
Decrease
/
Increase
volume.
Selection of
CD/
Changer mode.
Automatic search for a
lower radio frequency
.
Search for the previous
track.
Selection and
adjustment
of
audio
settings
(BASS, TREBLE, ...).
Manual search for a lower
or higher radio frequency/ PTY.
Functions setting mode
(AF, REG, TP, SCV, ...).
Search for the previous or
next MP3 folder.
Eject
one or more
CDs.
CD slot.
Load
one or more discs.
AUDIO CD SYSTEM AUDIO CD SYSTEM
Selection of
radio mode.
Selection of
waveband
(FM, MW, LW).
Automatic station storing
(autostore).
Automatic search for a
higher radio frequency.
Search for the next track.
Page 154 of 215
11
AUDIO EQUIPMENT and TELEMATICS

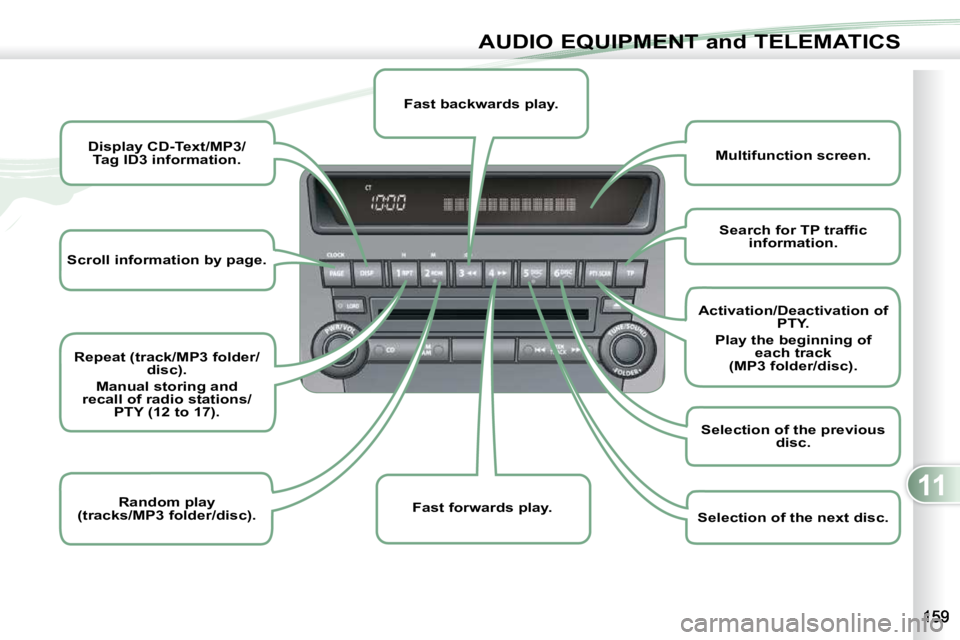

Scroll
information by page.
Display
CD-Text/MP3/
Tag ID3 information.
Repeat (track/MP3 folder/
disc).
Manual storing and
recall
of
radio stations/
PTY (12 to 17).
Random play
(tracks/MP3 folder/disc).
Multifunction
screen
.
Fast backwards play.
Fast forwards play.
S e a r c h f o r T P t r a f fi c
information.
Activation/Deactivation of
PTY.
Play
the beginning of
each track
(MP3 folder/disc).
Selection of the previous
disc.
Selection of the next disc.
Page 155 of 215
11
AUDIO EQUIPMENT and TELEMATICS
STEERING MOUNTED CONTROLS STEERING MOUNTED CONTROL
1. On/Off and selection of
radio or
CD mode
2. Volume decrease
3. Volume increase
4. Search for a higher radio
frequency/Next track/Fast
forwards play
5.
Search for a lower radio frequency/
Previous track/Fast backwards play
They can be used when the ignition
switch is in the "ON" or "ACC" position. Switching on
Press button
1 for more than two seconds.
The last source selected before switching
off comes back into operation.
Selecting the source
Press button 1 .
The source changes in the following
order: FM1/FM2/FM3/MW/LW/CD/FM1... Searching in radio mode
Press button
4 or 5 to search for a
higher or lower radio frequency respec-
tively.
While a track is being played,
press button 5 once to return to
the beginning of this track.
Adjusting the volume
Press and hold button
2 or 3 to decrease or increase the volume respectively.
Switching off
Press button
1 for more than two seconds.
Searching in CD mode
Press button 4 or 5 to select the next or
previous track on the CD respectively.
Press and hold button 4 or 5 for fast for-
wards or fast backwards playing of the
current track of the CD respectively.
